SMC / BMC / FRP Composite
- Large automotive body panels (roof systems, doors, structural parts)
- Industrial composite panels and housings
- Electrical and insulation components
- Heavy-duty FRP structures for infrastructure and transportation
Press Range

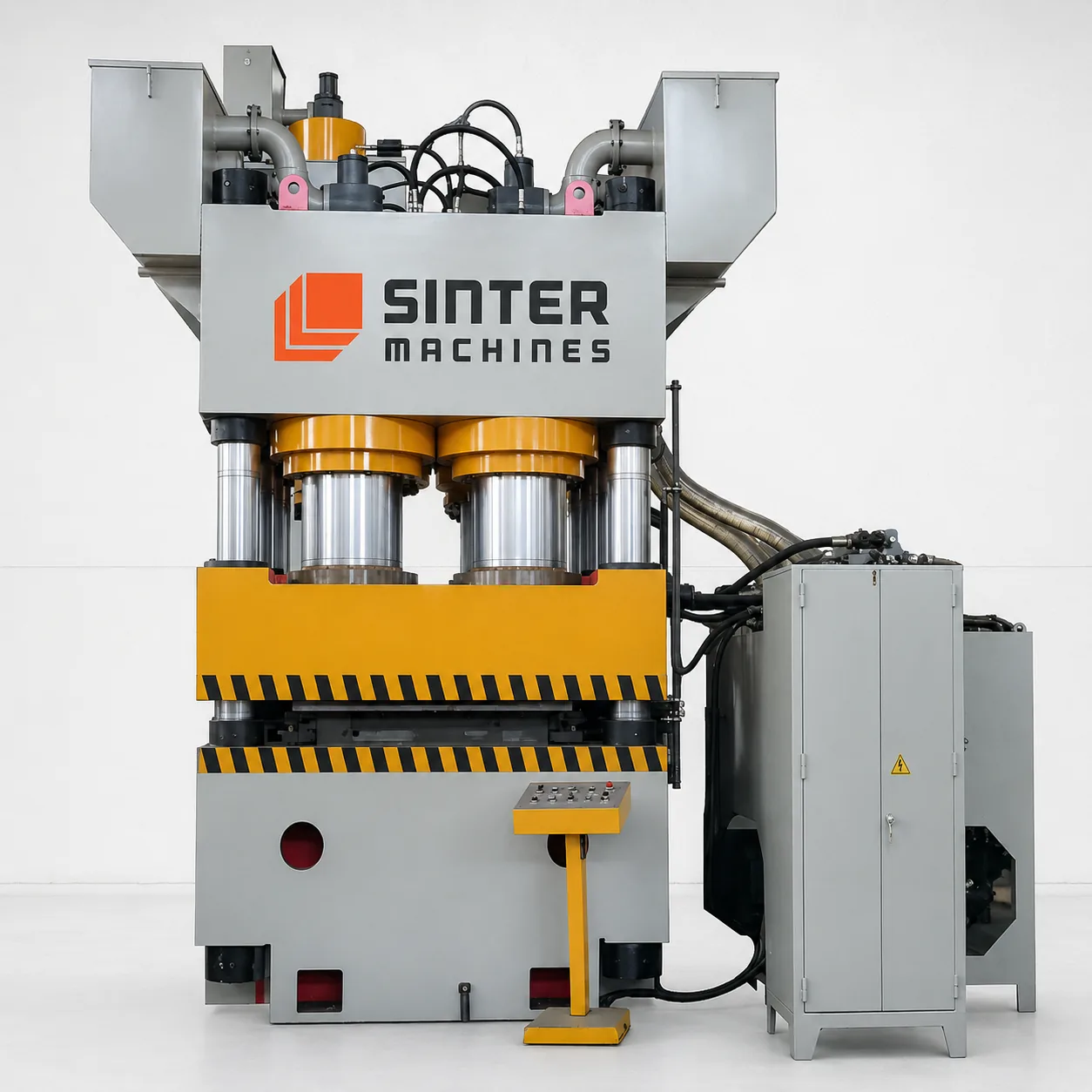

2000-Ton Four Pillar
Hydraulic Press Machine
2000 Ton Four Pillar Hydraulic Press Machine is a top-tier industrial solution built for extreme load, large-format, and high-precision manufacturing. It is especially suited for:
2000T
Rated Capacity
1500 – 3000 mm
Stroke Length
2500 – 4000 mm
Daylight Opening
Up to 300 bar
Hydraulic Pressure
01 — Press System Overview
2000-Ton Four Pillar Hydraulic Press
A 2000-ton four-pillar hydraulic press is an ultra high-capacity, heavy-duty industrial press designed for extreme force applications, large-scale composite molding, and high-density material processing. The four-pillar construction ensures maximum structural rigidity, precise alignment, and uniform pressure distribution, even under continuous high-load production.
Core Components
- Main Hydraulic CylinderGenerates 2000 tons (~20,000 kN) pressing force
- Four Hard Chrome Plated PillarsEnsure accurate guidance and minimal deflection
- Moving Ram/SlideProvides uniform pressure across large die surfaces
- Hydraulic Power PackHigh-capacity pumps, motors, valve systems, oil tank
- Control SystemPLC + HMI with programmable automation (Manual / Semi / Auto)
- Die Cushion (Optional)Essential for large composite panel forming
- Ejector System (Optional)High-capacity hydraulic ejector for heavy parts
- Safety SystemsLight curtains, overload protection, interlocks, emergency stop
02 — Technical Specifications
| Parameter | Specification |
|---|---|
| Capacity | 2000 Tons (20,000 kN) |
| Structure | Four Pillar / Four Column |
| Stroke Length | 1500 – 3000 mm |
| Daylight Opening | 2500 – 4000 mm |
| Table Size | 3000 × 3000 mm to 5000 × 5000 mm |
| Hydraulic Pressure | Up to 300 bar |
| Approach Speed | 150 – 300 mm/sec |
| Working Speed | 5 – 40 mm/sec |
| Return Speed | 150 – 300 mm/sec |
| Power Pack | 200 – 400 kW |
| Control System | PLC + HMI (CNC optional) |
| Parallelism Accuracy | ±0.02 – ±0.05 mm |
| Ejector Capacity (Optional) | 200 – 500 Tons |
| Frame | Heavy-duty fabricated, stress-relieved steel |
Specifications can be customized depending on product size, tooling, and cycle requirements.
03 — Applications
TPE & Rubber Pads / Mats
- Large-area rubber mat compression molding
- Industrial TPE sheets and elastomer components
- Anti-vibration pads, flooring systems, heavy-duty rubber products
04 — Key Advantages
01
Extreme Force Capability
- 2000-ton capacity enables:
- Processing of very large components
- High-pressure composite molding
- Ultra-thick and high-density materials
02
Maximum Structural Strength
- Four-pillar design ensures:
- Exceptional rigidity
- Minimal deflection under extreme load
- Long operational lifespan
03
High Precision & Uniform Pressure
- Excellent parallelism across very large surfaces
- Ensures consistent and defect-free products, especially for composite panels
04
Ideal for Large Composite Molding
- Perfect for SMC/BMC/FRP applications
- Uniform compression ensures:
- Better surface finish
- Improved structural integrity
05
Fully Programmable & Customizable
- Adjustable:
- Pressure
- Stroke
- Speed
- PLC-controlled cycles ensure repeatability and automation
06
Smooth & Controlled Operation
- Gradual pressure build-up
- Reduced vibration, noise, and tool wear
07
High Productivity
- Faster cycle times for large components
- Reduced rejection rates
- Suitable for mass production
08
Energy Efficient Options
- Servo-hydraulic systems available
- Optimized power usage during non-working cycles
09
Advanced Safety & Automation
- Integrated safety systems for operator protection
- Automation-compatible for continuous production lines
- Reduced manual intervention
