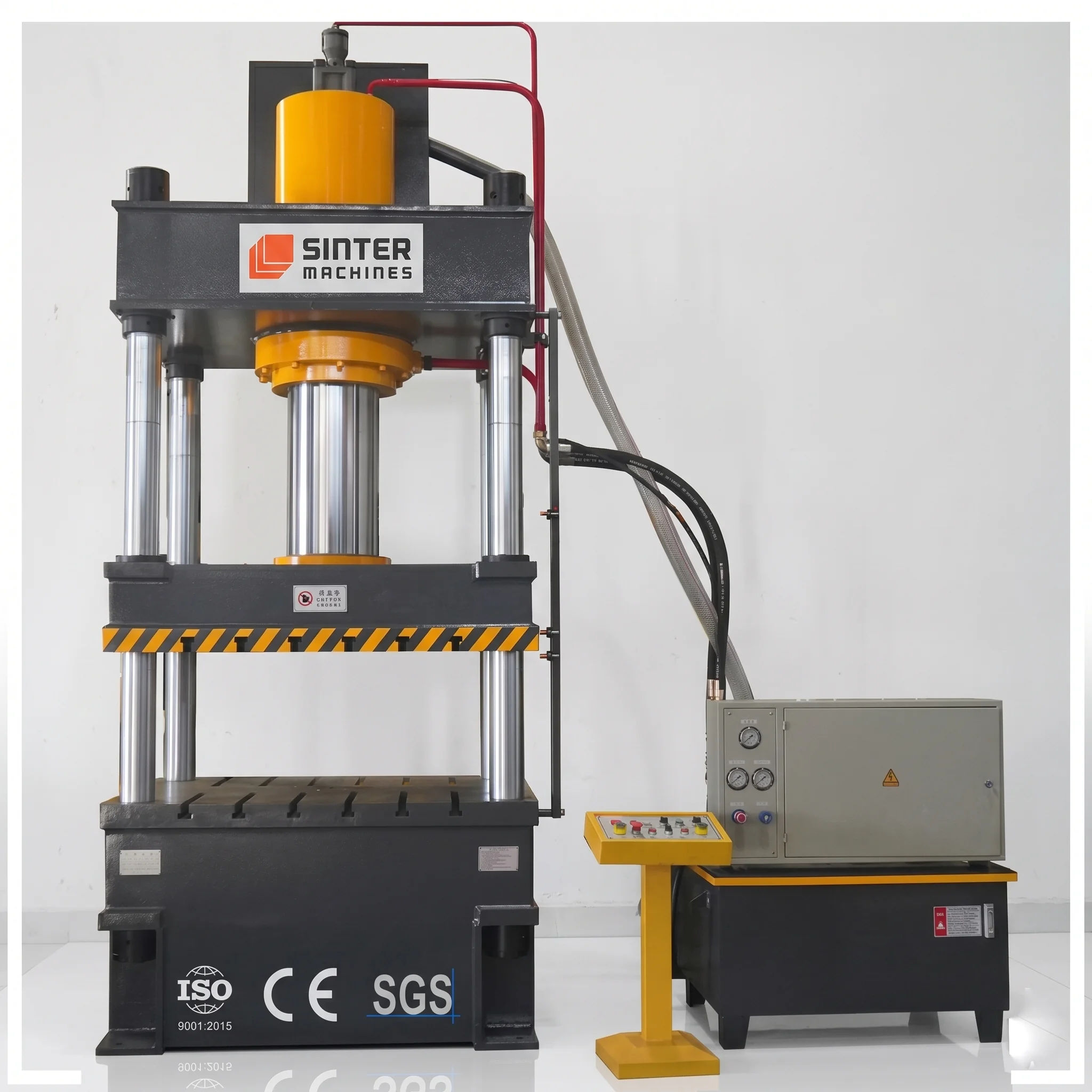

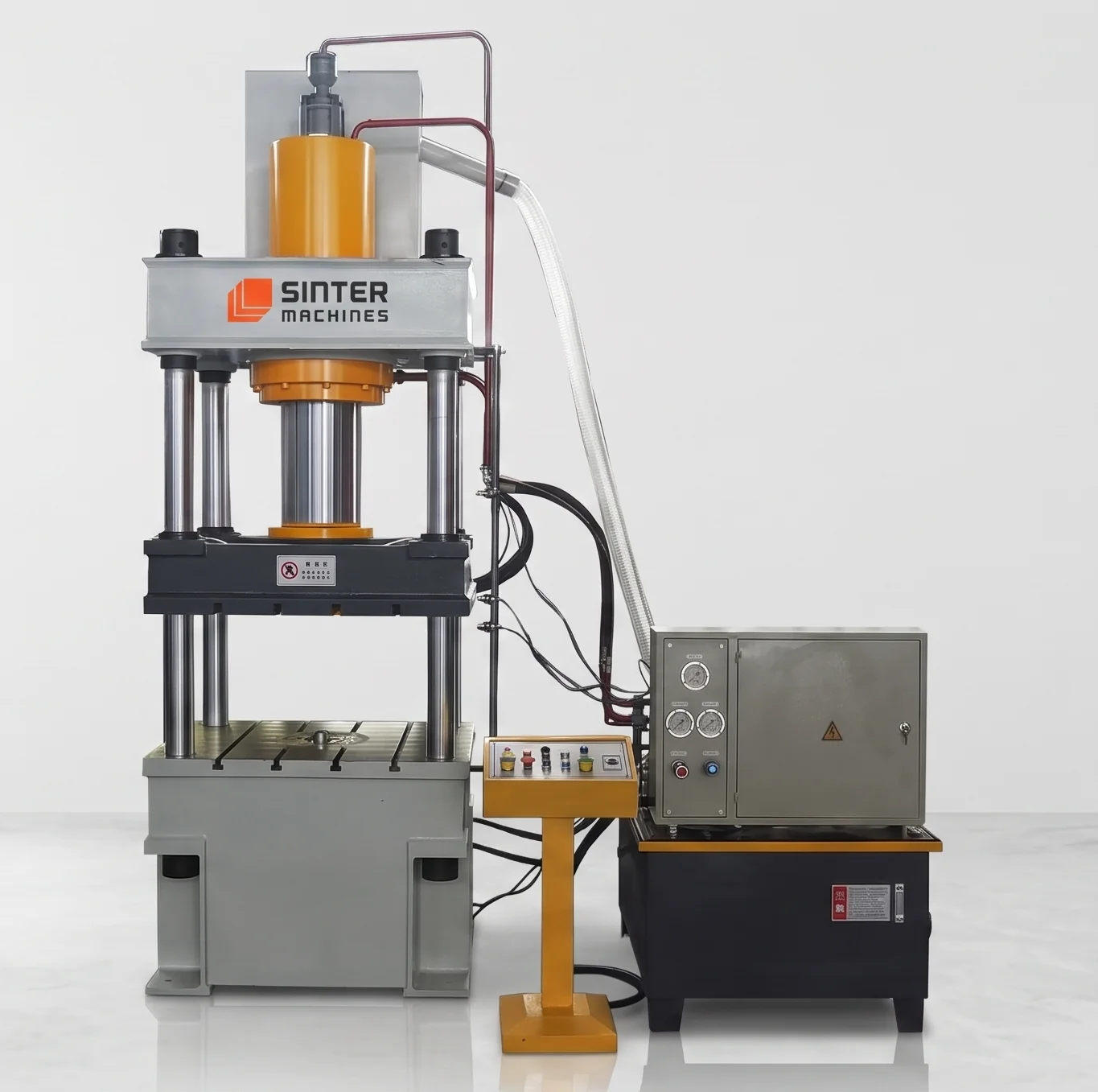

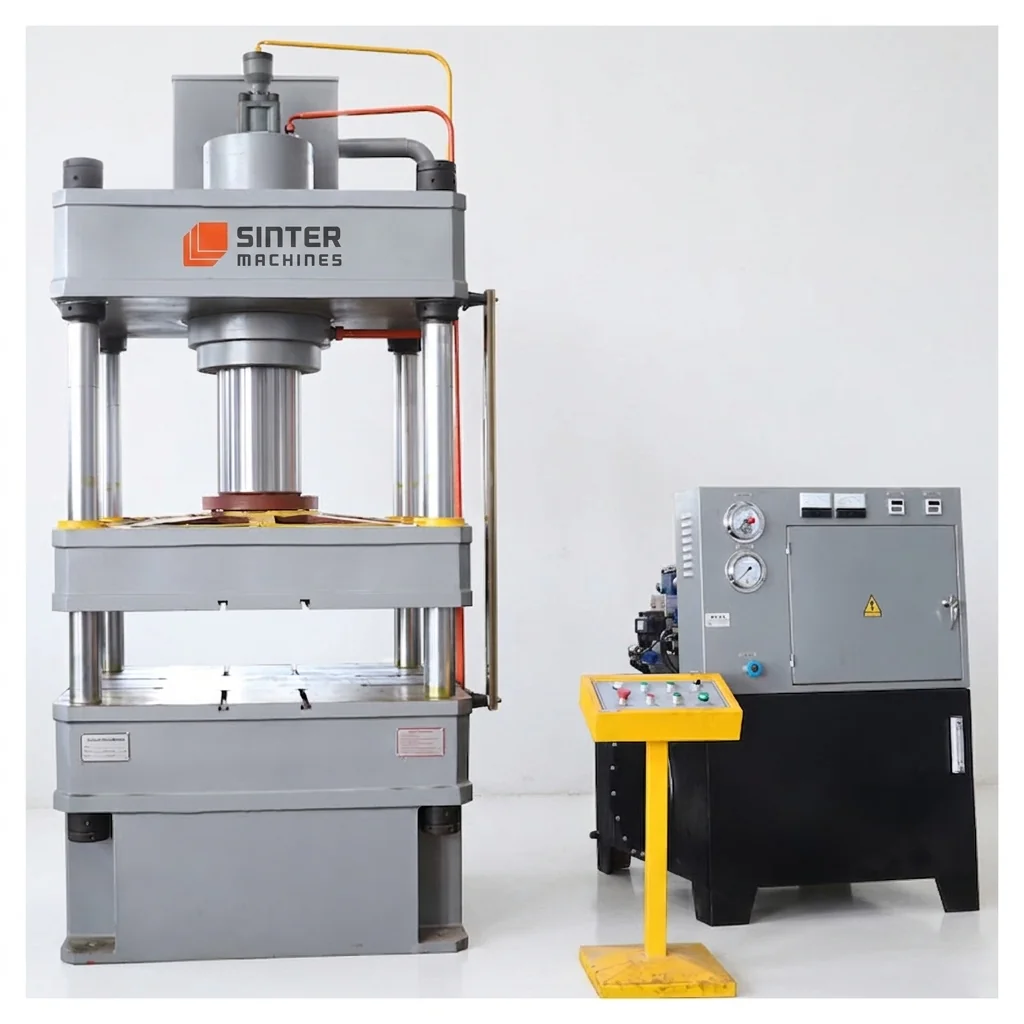

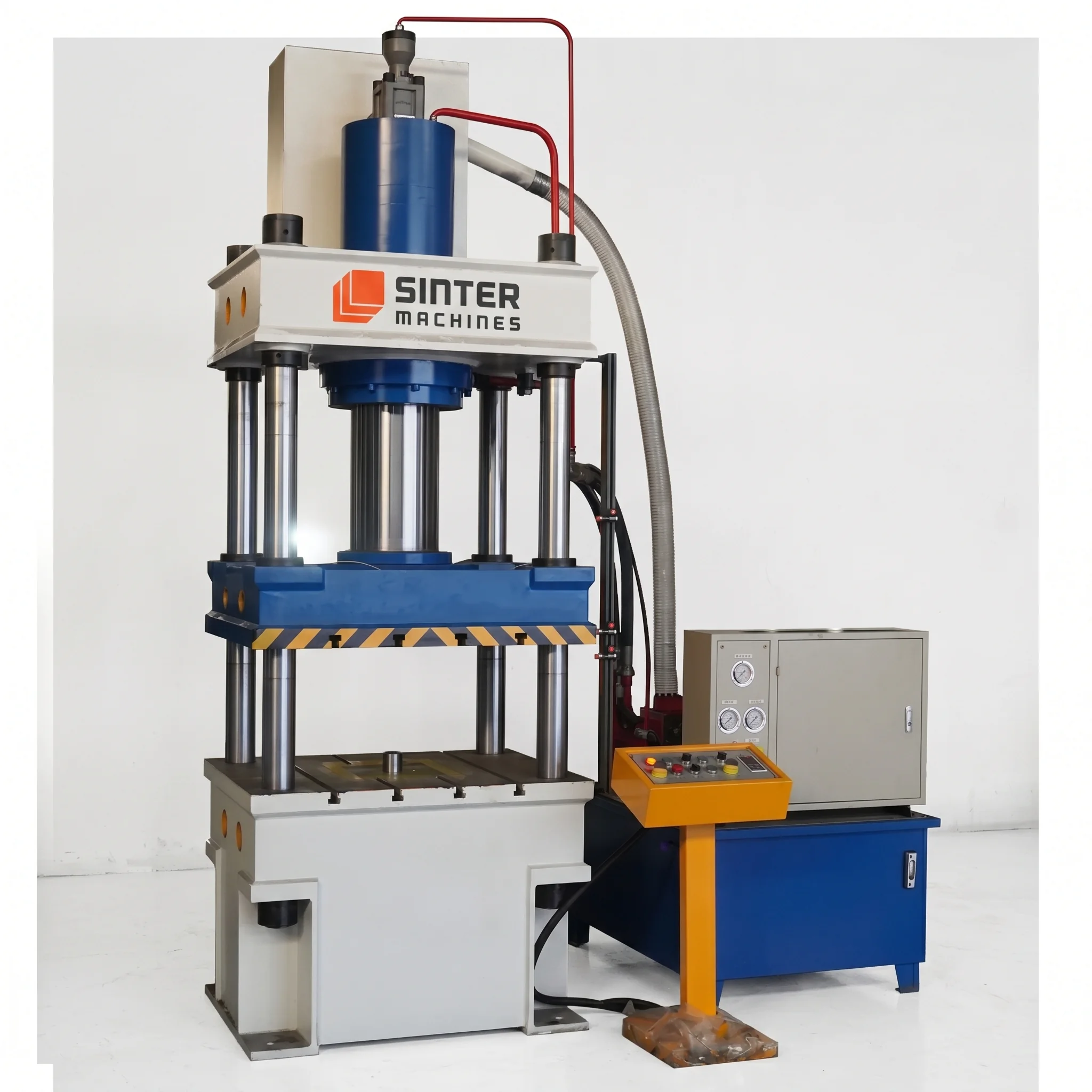

100T Four Column Hydraulic Press for Biotite Powder Block
A Biotite Powder Block Compression 4-Column Hydraulic Press Machine is a specialized industrial compaction system engineered to compress fine biotite powder—a common dark sheet silicate (mica) mineral—into dense, uniform solid blocks, tablets, or briquettes.
These machines are utilized in industrial mineral processing, filler manufacturing, and chemical applications where loose, flaky mineral powders must be consolidated to minimize airborne dusting, reduce storage volume, and optimize material handling.
01 — Engineering Considerations
Structural Design & Engineering Considerations (4-Column Architecture)
High-Precision Guidance & Parallelism: Biotite possesses a lamellar, flaky crystal structure that can easily orient unevenly under pressure. The four-pillar precision-ground column architecture ensures absolute platen parallelism and eliminates lateral play, preventing uneven density gradients and structural weak points across the compressed block.
Rigid Load Distribution: Compacting micaceous powders requires consistent, balanced tonnage. The 4-column frame withstands heavy cyclic loads without structural flexing, maintaining exact micro-tolerances between the punches and the die cavity over long operational lifespans.
Air Evacuation & Compression Control: Because sheet silicate powders trap significant amounts of air between their layers during filling, the hydraulic system is programmed with multi-stage compression profiles and extended dwell times to allow trapped air to escape safely without causing internal lamination or cracking.
02 — Technical Specifications
Key Technical Specifications
Feature | Industrial Specification Range |
Nominal Compaction Force | 40 Tons to 300+ Tons (tailored to block cross-sectional area and target density) |
Guide Structure | 4 Hard-Chromed, Precision-Ground Steel Pillars with heavy-duty, low-friction bushings |
Die & Punch Assembly | Hardened alloy tool steel or wear-resistant inserts designed to handle abrasive mineral flake powders |
Hydraulic Drive | Variable displacement piston pumps or servo-hydraulic systems with smooth proportional pressure control |
Control Unit | PLC system with HMI touchscreen interface for programming fill depth, pressing tonnage, dwell time, and automated extraction |
03 — Operational Workflow
Operational Workflow
- Volumetric Feeding: An automated, calibrated feed shoe slides precisely over the die cavity to deposit a measured volume of loose biotite powder, ensuring uniform fill density and minimizing airborne dust.
- Multi-Stage Compression:
- Fast Approach: The top ram lowers quickly to the material surface.
- High-Pressure Compaction: The system applies controlled tonnage. A multi-action or dual-punch configuration ensures even particle interlocking and density distribution throughout the depth of the block.
- Dwell Phase: Peak pressure is held for a set duration to allow trapped air to evacuate and the flaky mineral layers to firmly settle, minimizing internal stress or cracking.
- Controlled Decompression & Ejection: Hydraulic pressure is gradually bled off to prevent surface cracking from elastic springback. A bottom ejection cylinder then cleanly pushes the solid biotite block out of the die cavity for downstream storage or processing.
Finished Product Gallery
