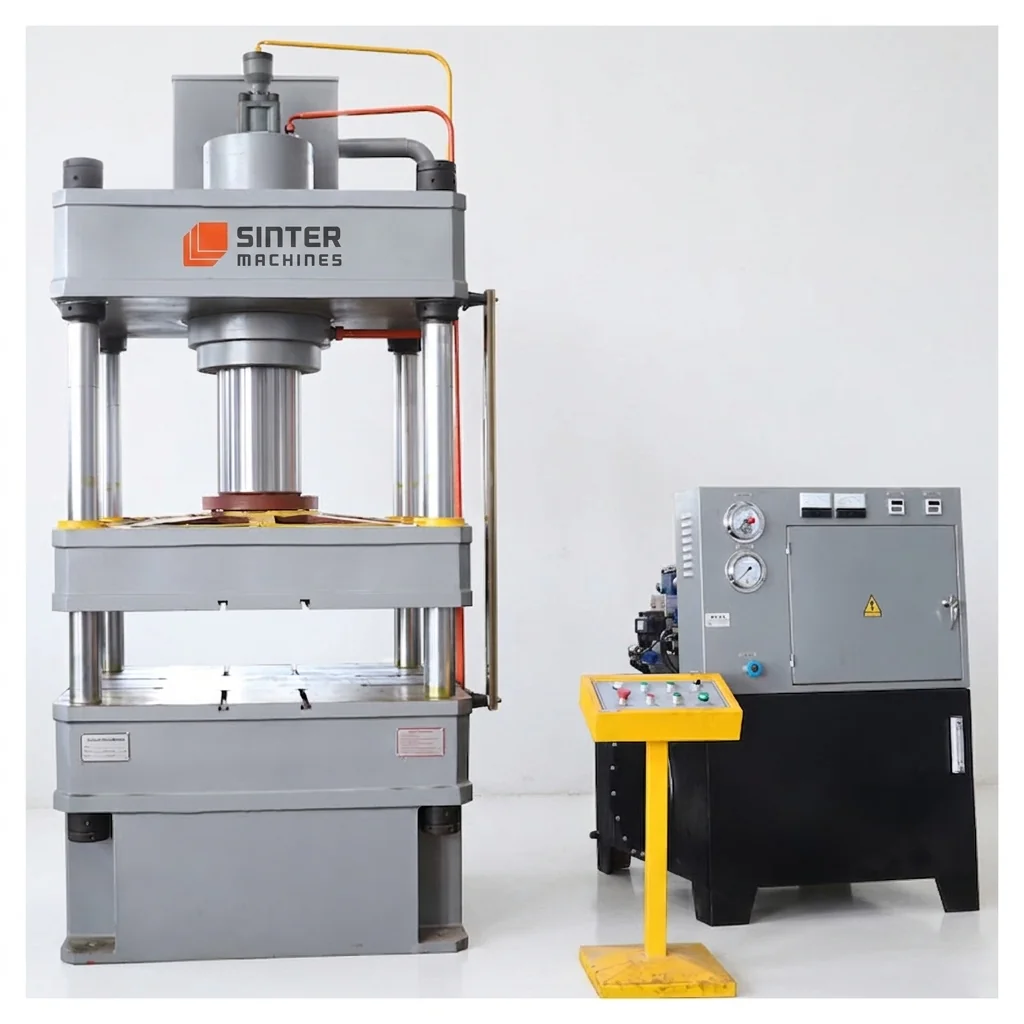

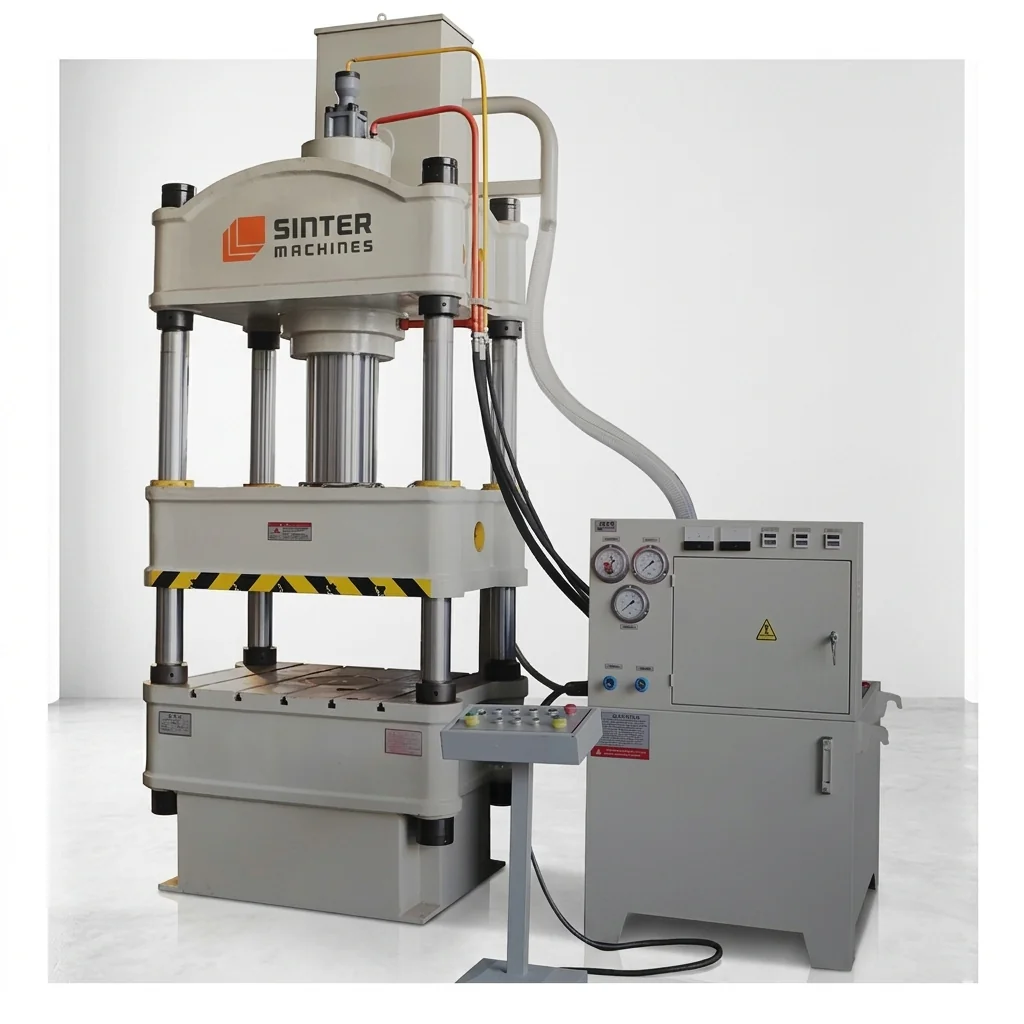

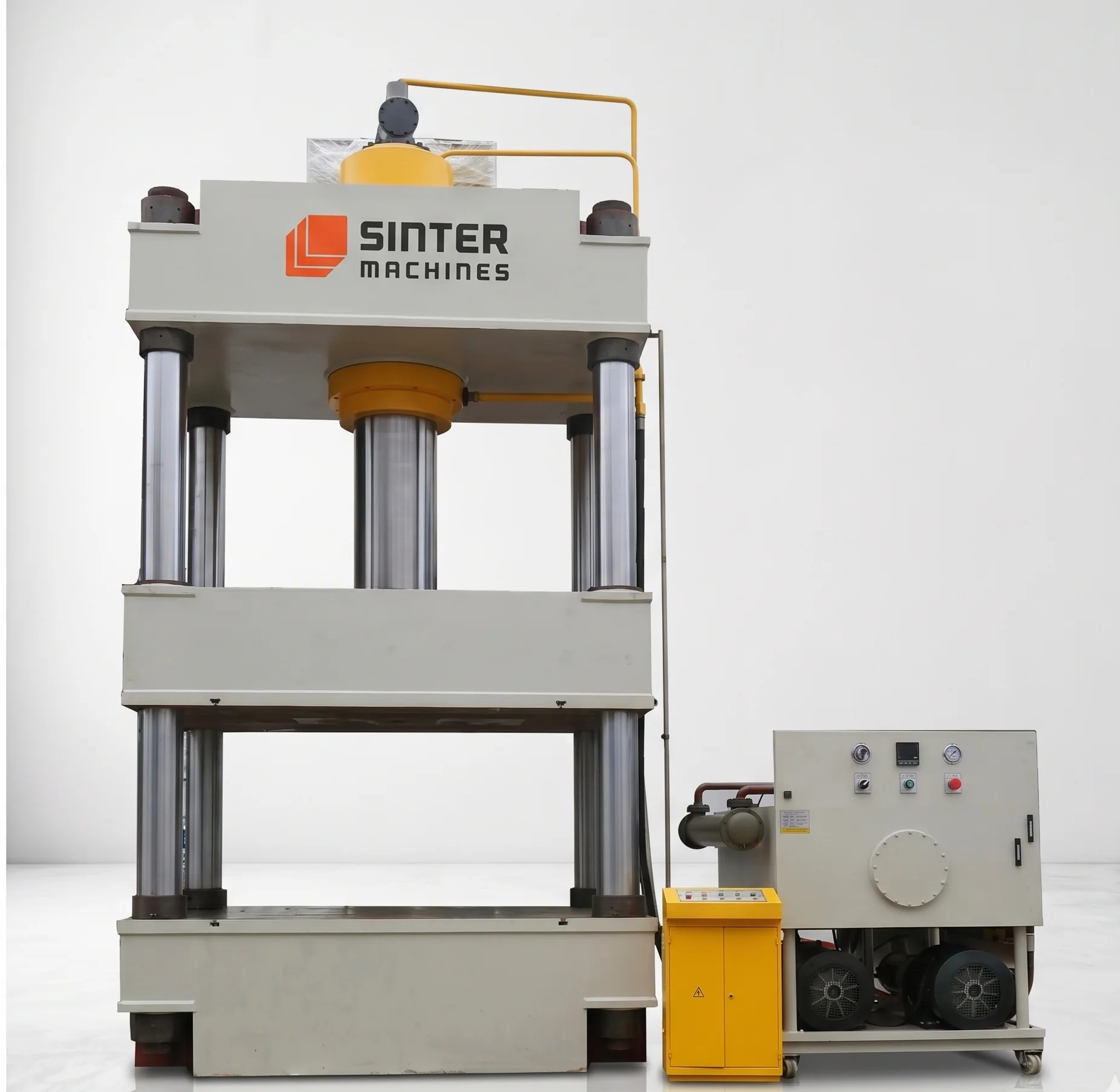

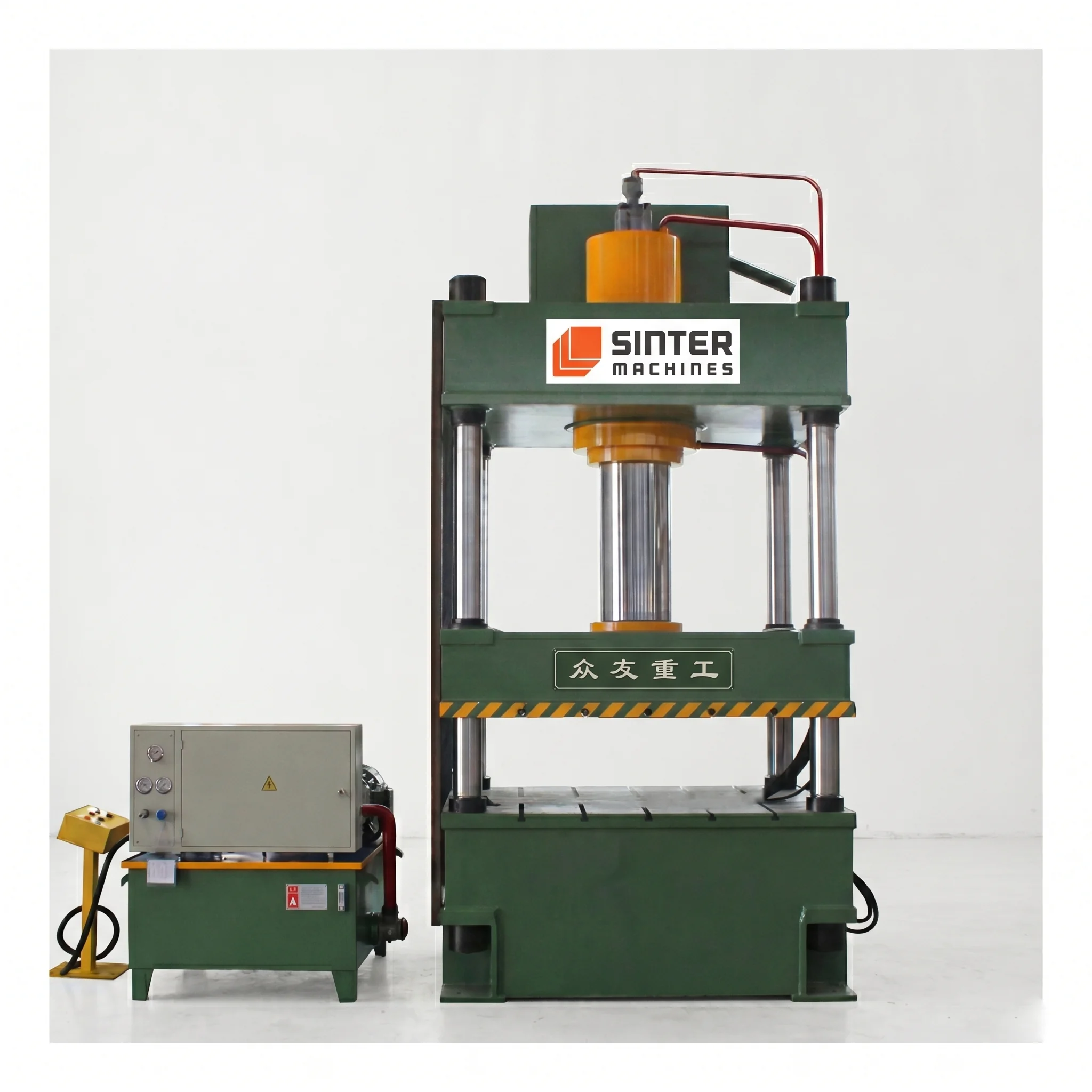

200T Four Column Hydraulic Press for Wollastonite Powder Block
Wollastonite Powder Block Compression 4-Column Hydraulic Press Machine is a specialized industrial compaction system engineered to compress fine wollastonite powder (a naturally occurring calcium silicate mineral characterized by an acicular, needle-like crystal structure) into dense, uniform solid blocks, tablets, or briquettes.
These machines are utilized in ceramics, refractory manufacturing, friction materials, and metallurgical applications where loose mineral powders must be consolidated to minimize airborne dusting, reduce storage volume, and optimize material handling or furnace feed rates.
01 — Engineering Considerations
Structural Design & Engineering Considerations (4-Column Architecture)
Acicular Particle Orientation & Precision Guidance: Wollastonite features a distinct needle-like morphology that requires strict control over compaction uniformity. The four-pillar precision-ground column architecture ensures absolute platen parallelism and eliminates lateral play, preventing uneven orientation gradients and structural weak points across the compressed block.
Rigid Load Distribution: Compacting fibrous and silicate mineral powders requires consistent, balanced tonnage. The 4-column frame withstands heavy cyclic loads without structural flexing, maintaining exact micro-tolerances between the punches and the die cavity over long operational lifespans.
Dust Containment & Material Handling: Fine mineral powders create significant airborne dust during handling. The press is frequently integrated with enclosed or sealed feeding hoppers, local exhaust ventilation ports, and dust collection interfaces to protect operators and ensure a clean working environment.
02 — Technical Specifications
Key Technical Specifications
Feature | Industrial Specification Range |
Nominal Compaction Force | 40 Tons to 400+ Tons (tailored to block cross-sectional area and target density) |
Guide Structure | 4 Hard-Chromed, Precision-Ground Steel Pillars with heavy-duty, low-friction bushings |
Die & Punch Assembly | Hardened alloy tool steel or specialized wear-resistant inserts designed to handle abrasive silicate mineral powders |
Hydraulic Drive | Variable displacement piston pumps or servo-hydraulic systems with smooth proportional pressure control |
Control Unit | PLC system with HMI touchscreen interface for programming fill depth, pressing tonnage, dwell time, and automated extraction |
03 — Operational Workflow
Operational Workflow
- Enclosed Volumetric Feeding: An automated, sealed feed shoe slides precisely over the die cavity to deposit a measured volume of loose wollastonite powder, minimizing airborne dust and ensuring uniform fill density.
- Multi-Stage Compression:
- Fast Approach: The top ram lowers quickly to the material surface.
- High-Pressure Compaction: The system applies controlled tonnage. A multi-action or dual-punch configuration ensures even particle interlocking and density distribution throughout the depth of the block.
- Dwell Phase: Peak pressure is held for a set duration to allow trapped air to evacuate and the needle-like mineral particles to firmly settle, minimizing internal stress or cracking.
- Controlled Decompression & Ejection: Hydraulic pressure is gradually bled off to prevent surface cracking from elastic springback. A bottom ejection cylinder then cleanly pushes the solid wollastonite block out of the die cavity for downstream processing, curing, or packaging.
Finished Product Gallery
