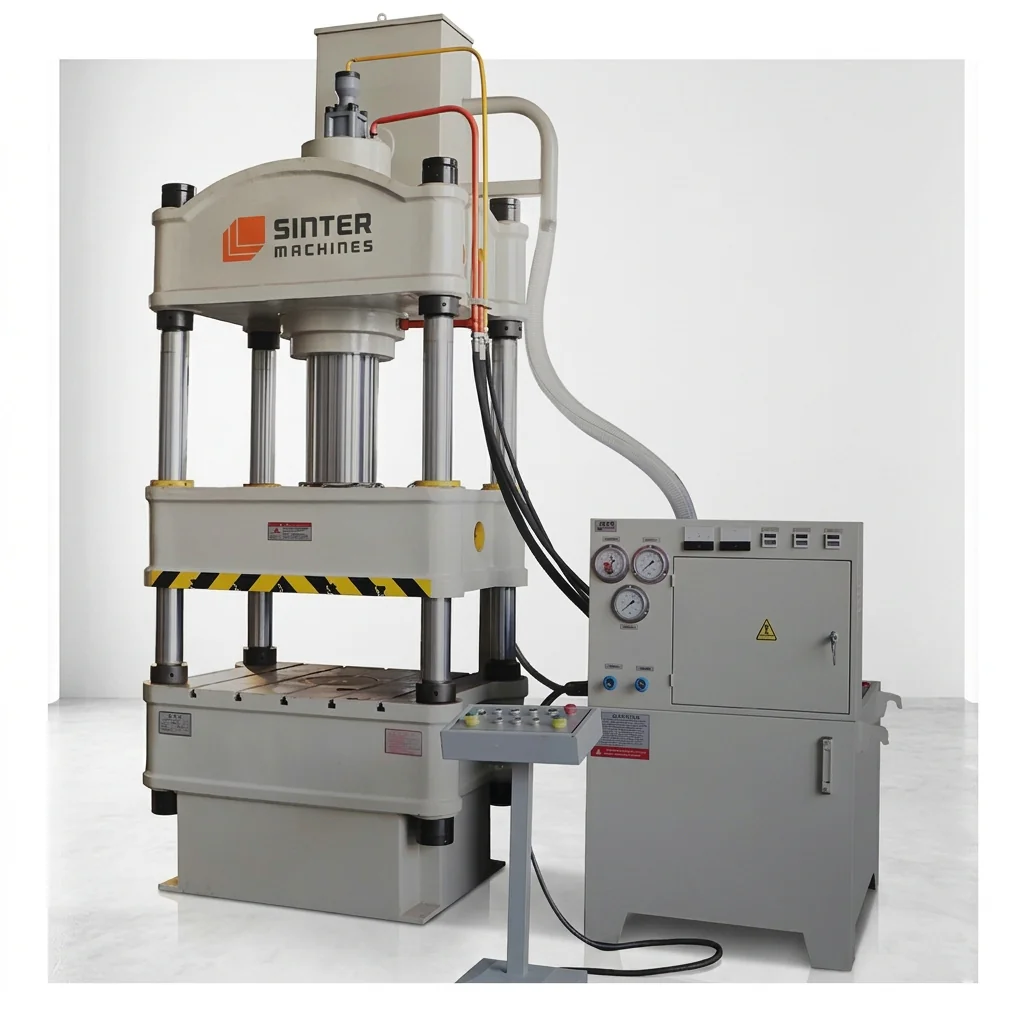

Capacity
Maximum pressing force capacity is 100 Tons for dense compaction. Specially rated for standard density crusher and quarry dust bricks.
Structural Design
Heavy duty steel plate frame engineered to sustain continuous impact loads. Stress relieved structure minimizing deflection during high pressure pressing cycles.

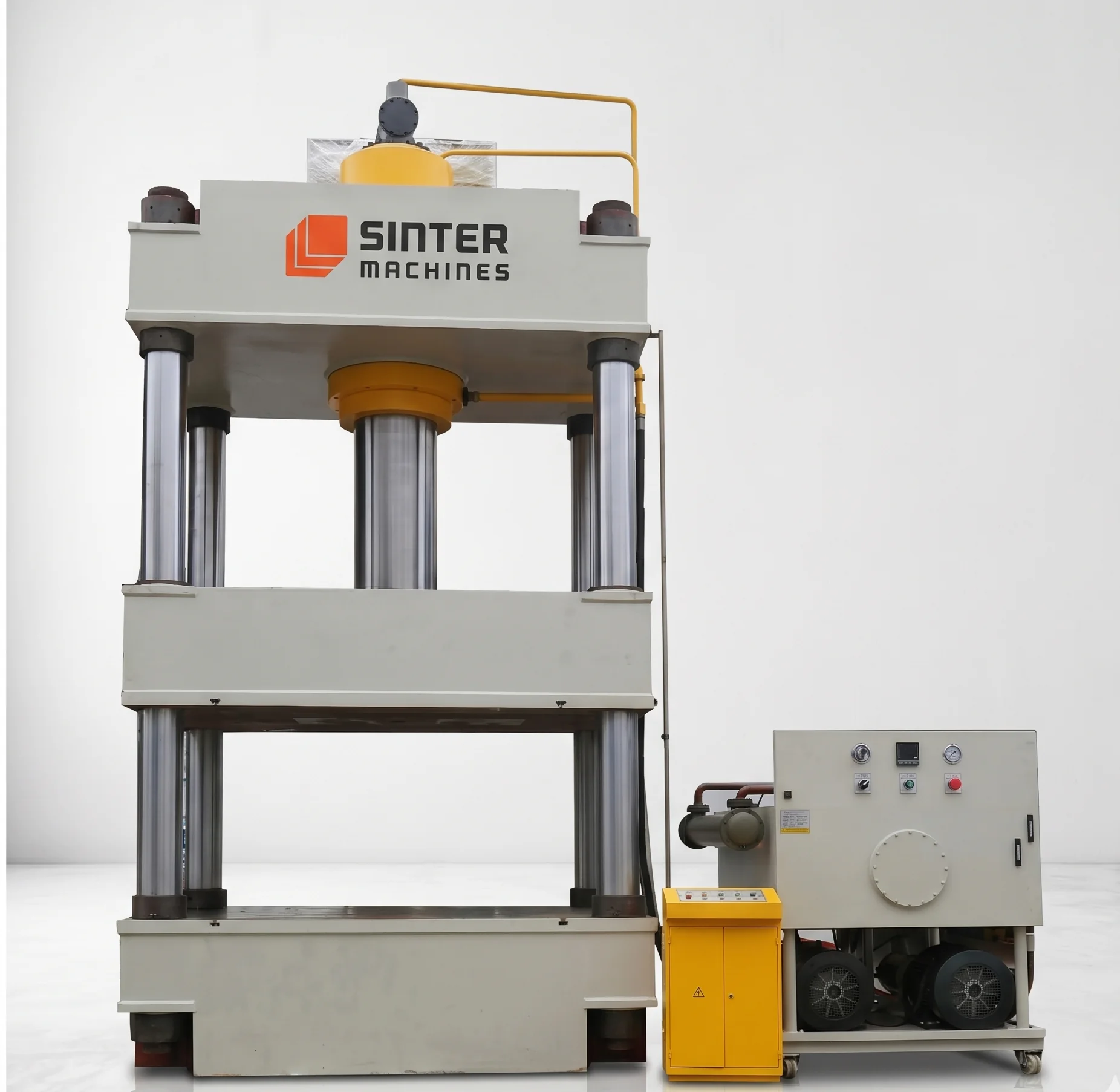

Frame Type
Four column vertical pillar design providing balanced load distribution. Rigid box type welded construction for long term structural stability.

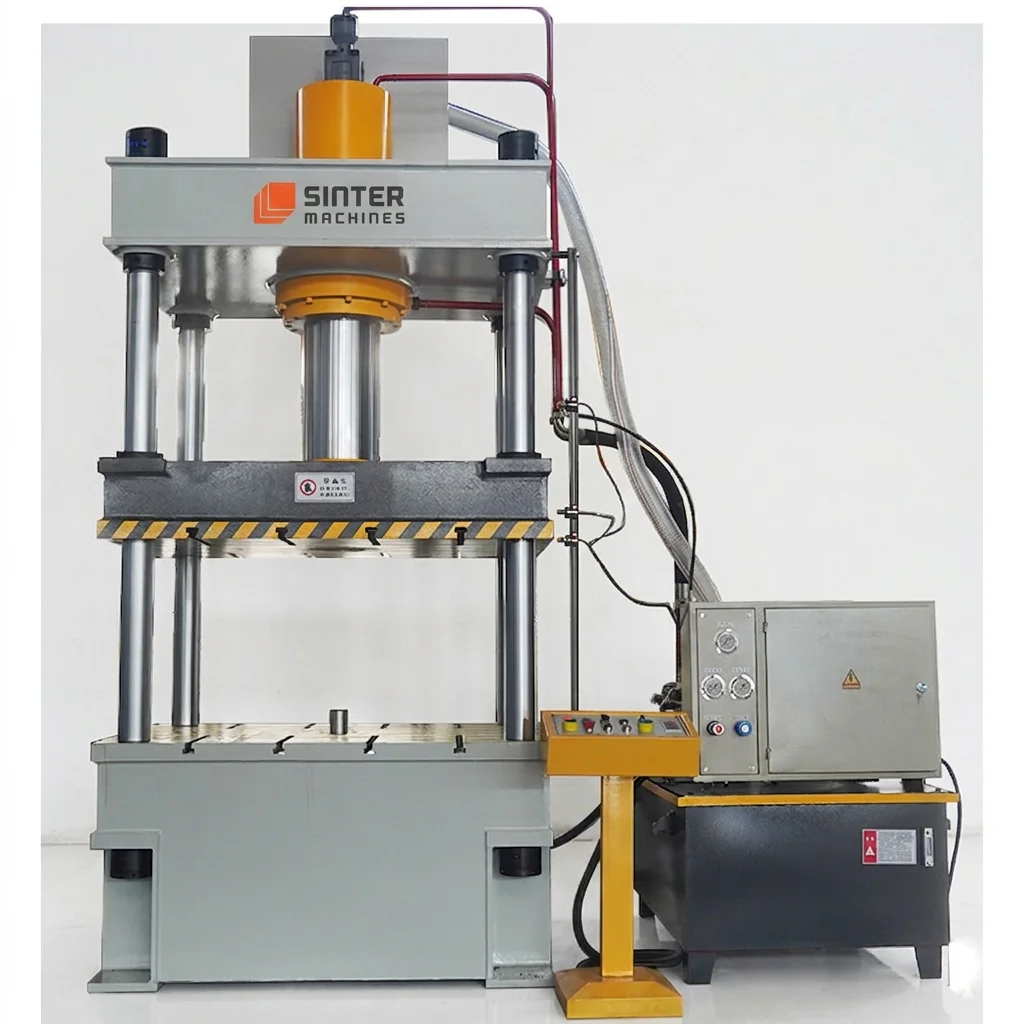

Hydraulic System
Closed loop oil hydraulic circuit paired with high volume fluid reservoir. Industrial grade radial pump supplying continuous oil flow pressure.
Main Ram Stroke
Maximum vertical movement travel of the main cylinder is 300 mm. Precision controlled pressing depth ensuring accurate brick thickness dimensions.
Working Hydraulic Pressure
System operational pressing pressure maintained at 210 Bar. Inbuilt pressure relief valve safeguarding against structural or fluid overload.
Daylight Gap
Clear vertical clearance distance between bed and top ram face is 500 mm. Provides ample space to fit various heights of brick molds.
Approach Speed
Downward fast closing speed of the main pressing head is 100 mm per Sec. Reduces idle stroke duration before contacting raw material mixture.
Pressing / Drawing Speed
Controlled slow compaction pressing speed is set at 10 mm per Sec. Allows full air displacement from quarry dust for maximum density.
Return Speed
Upward retraction movement speed of the hydraulic ram is 90 mm per Sec. Speeds up mold opening cycle time to increase daily brick output.
Bed / Platen Size Platen
Working bottom table platen surface dimensions measure 600 mm by 500 mm. Machined smooth flat surface for precise mold seating and alignment.
Columns
Four hard chrome plated guide pillars providing rigid vertical alignment. Abrasion resistant pillar surface reduces friction and seal wear.
Working Envelope
Required machine footprint floor area space is 2000 mm by 1500 mm. Sufficient operational zone allowing smooth loading and manual or automatic removal.
Control System
Programmable logic controller based electrical operating panel display interface. Includes selector switches for manual setup mode and auto production mode.
Main Motor Power
Primary drive electric motor power rating is 15 Kilowatt. Runs on standard industrial three phase 415 Volt supply.
Valves & Hydraulics
Directional valves and pressure control blocks from international standard brands. Seamless high pressure steel hydraulic piping with leak proof fittings.
Automation
Automated sequence for feeding pressing and ejection yielding 1200 bricks per Hour. Dwell timing control ensures identical density across all production runs.
Safety Features
Prominent emergency stop buttons fitted on main frame and control desk. Hydraulic safety interlocks and overload protection valves for safe working conditions.

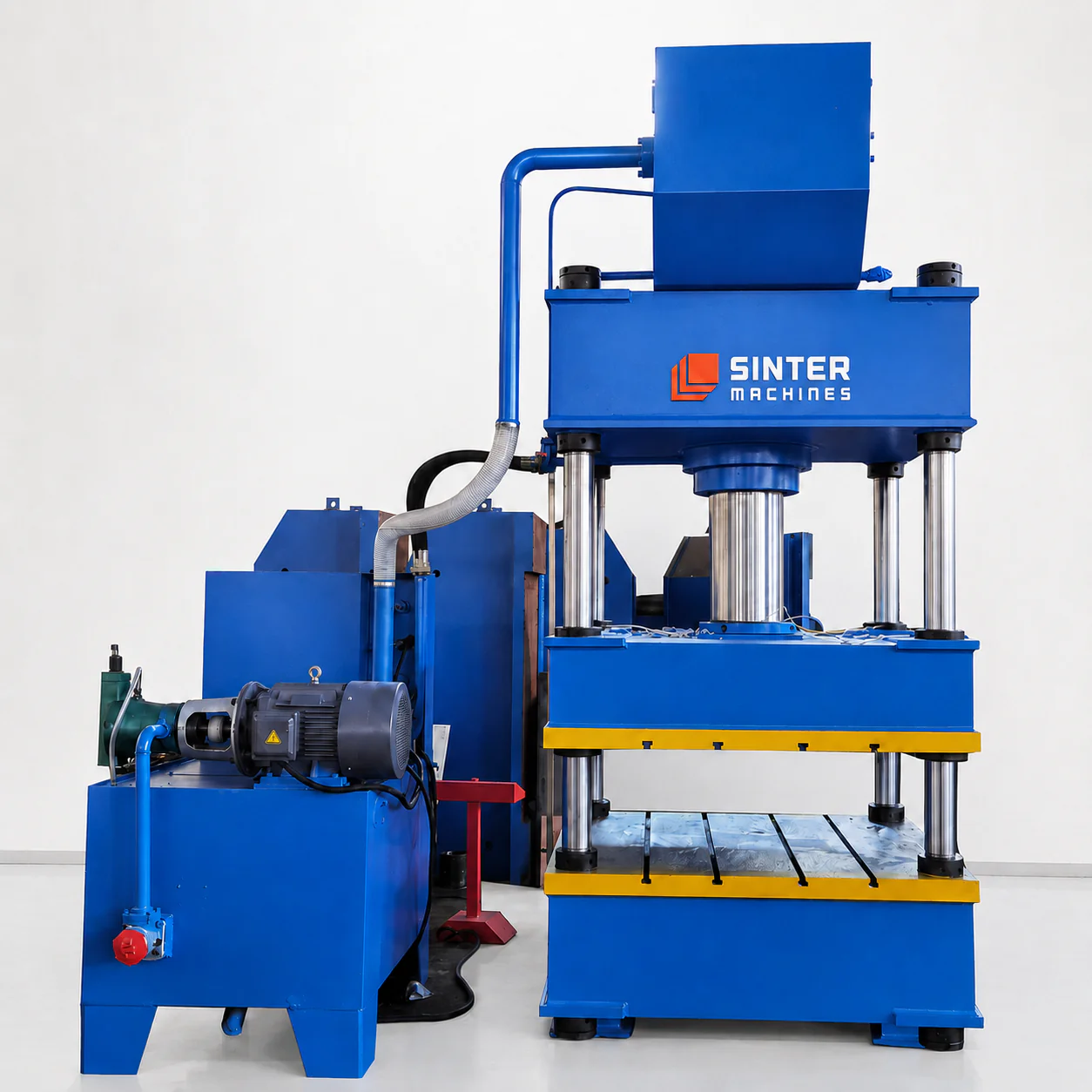

SM 100 HP — Model Specifications
Nominal Force: 1000 KN
Maximum Hydraulic Pressure: 25 MPa
Max Opening Height of the Slider: 800 mm
Max Stroke of the Slider: 500 mm
Effective Bed Size: 630 × 550 mm
Slider Down Speed: 100 mm/s
Slider Pressing Speed: 7–15 mm/s
Slider Return Speed: 90 mm/s
Ejector Cylinder Nominal Force: 100 KN
Stroke of the Ejection Cylinder: 200 mm
