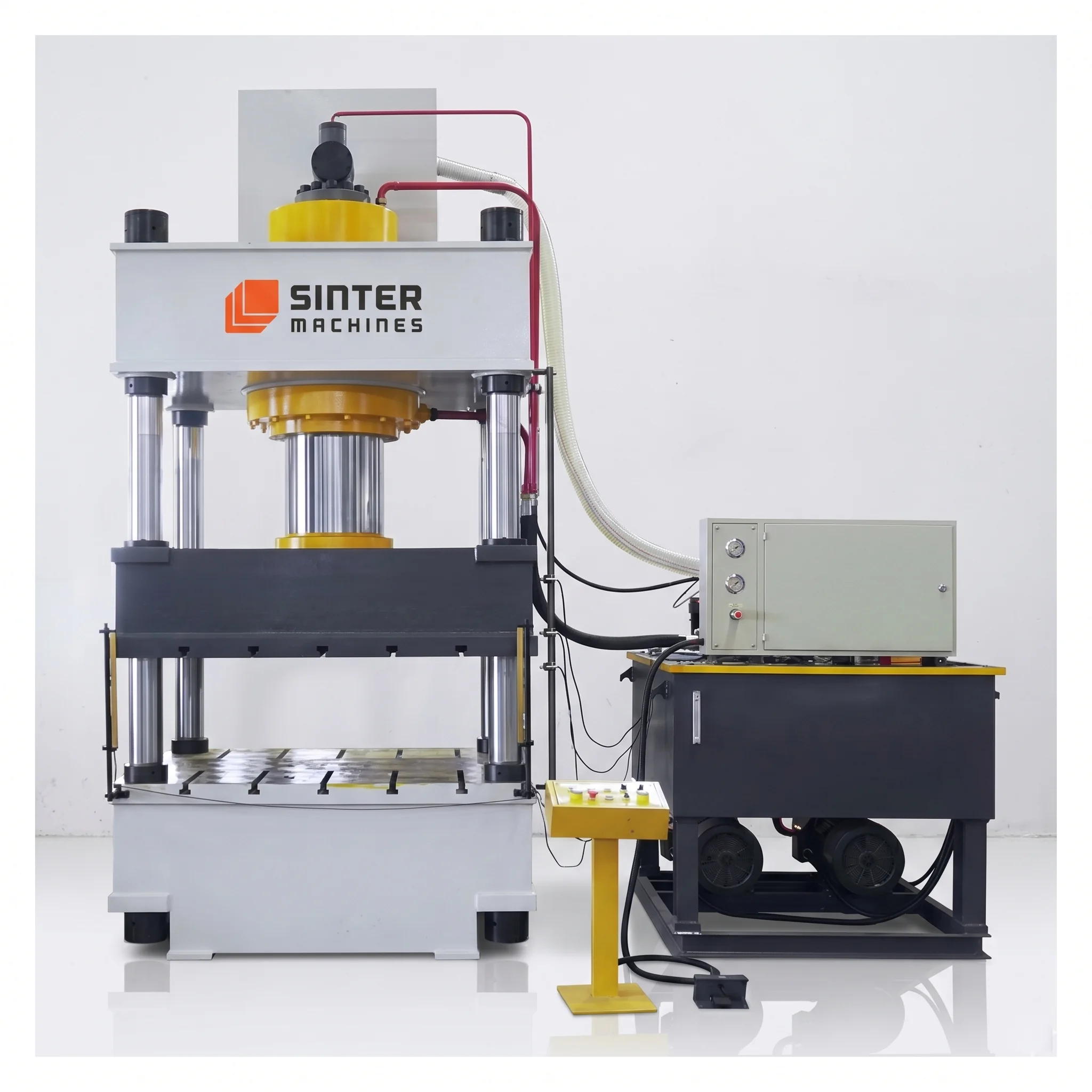

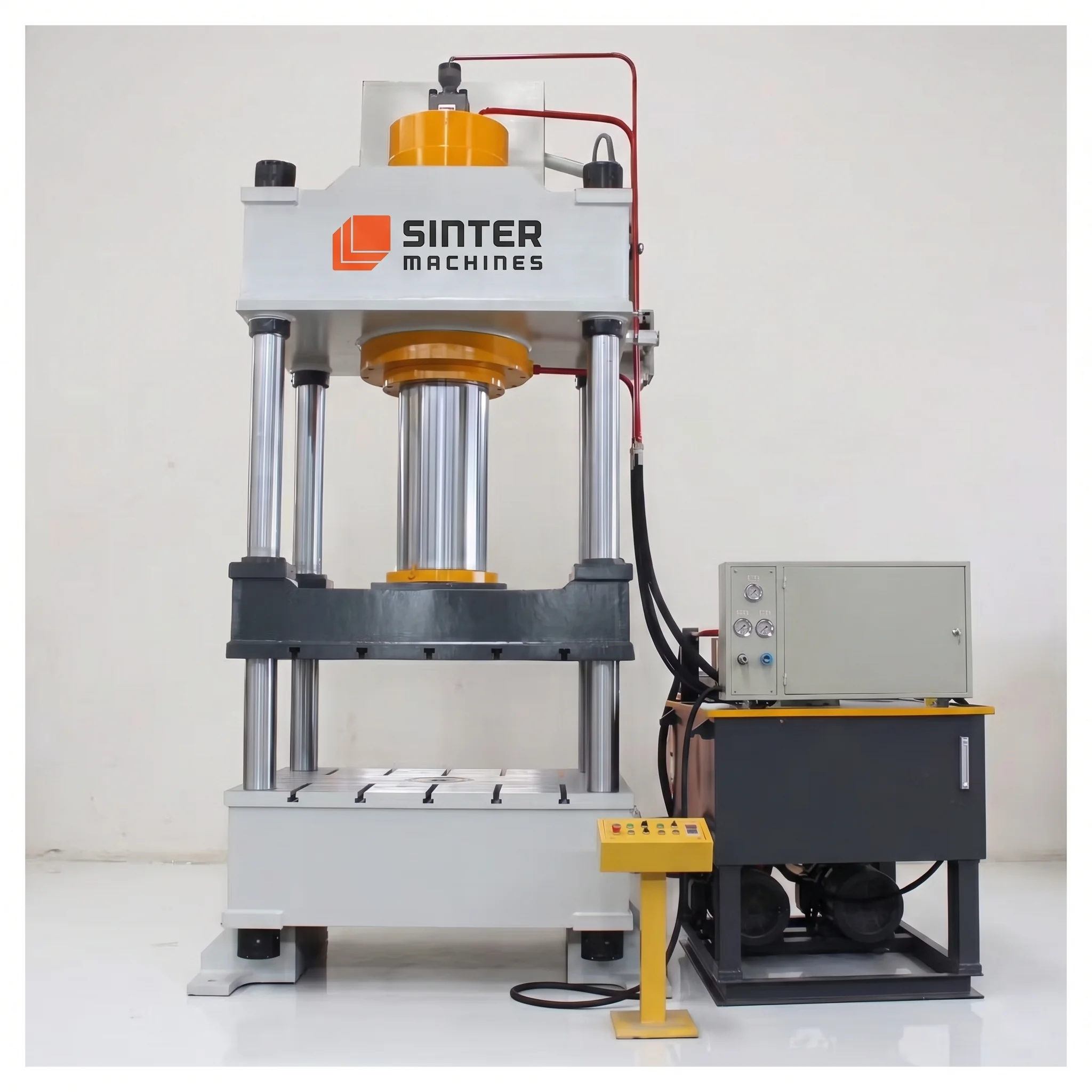

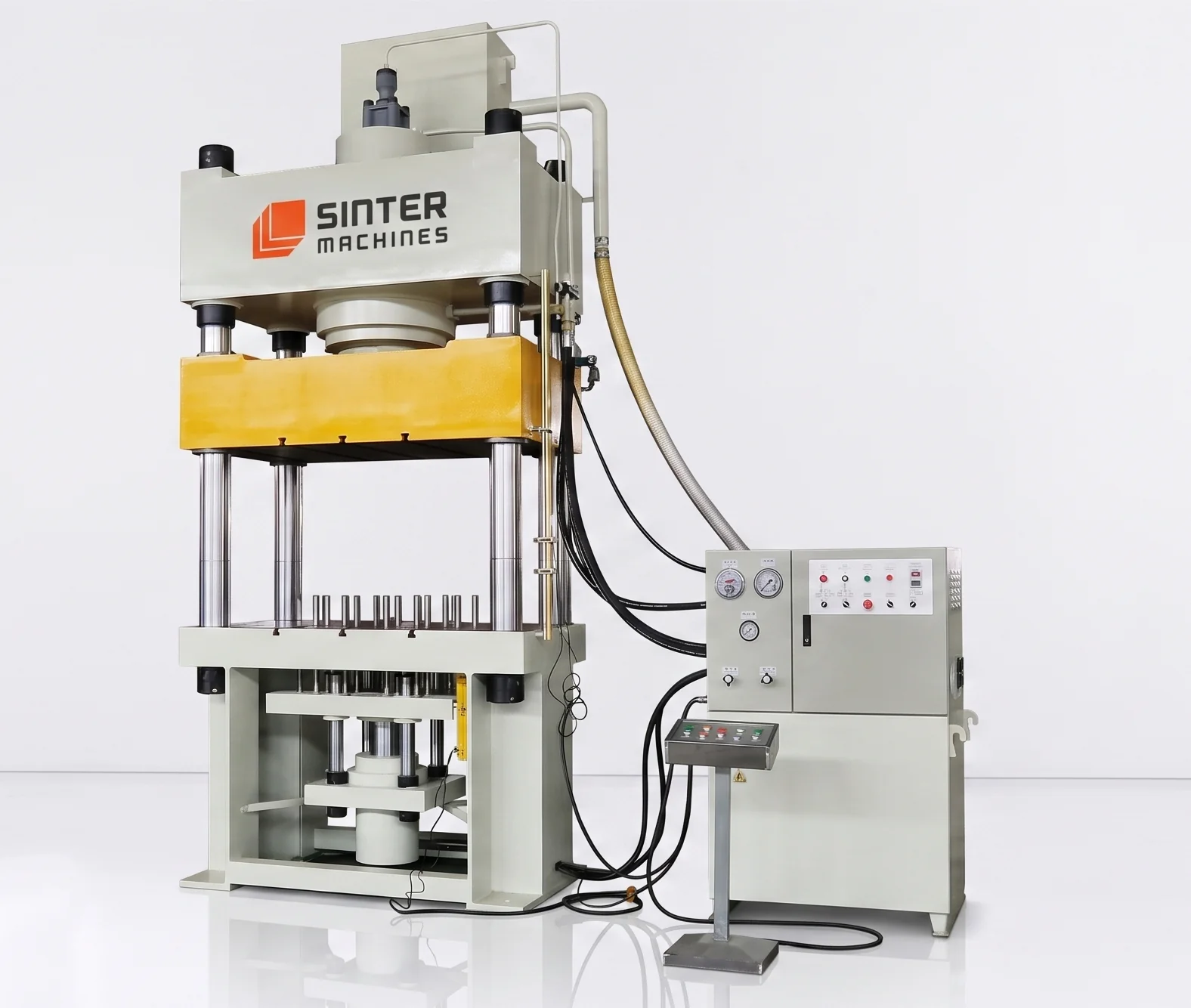

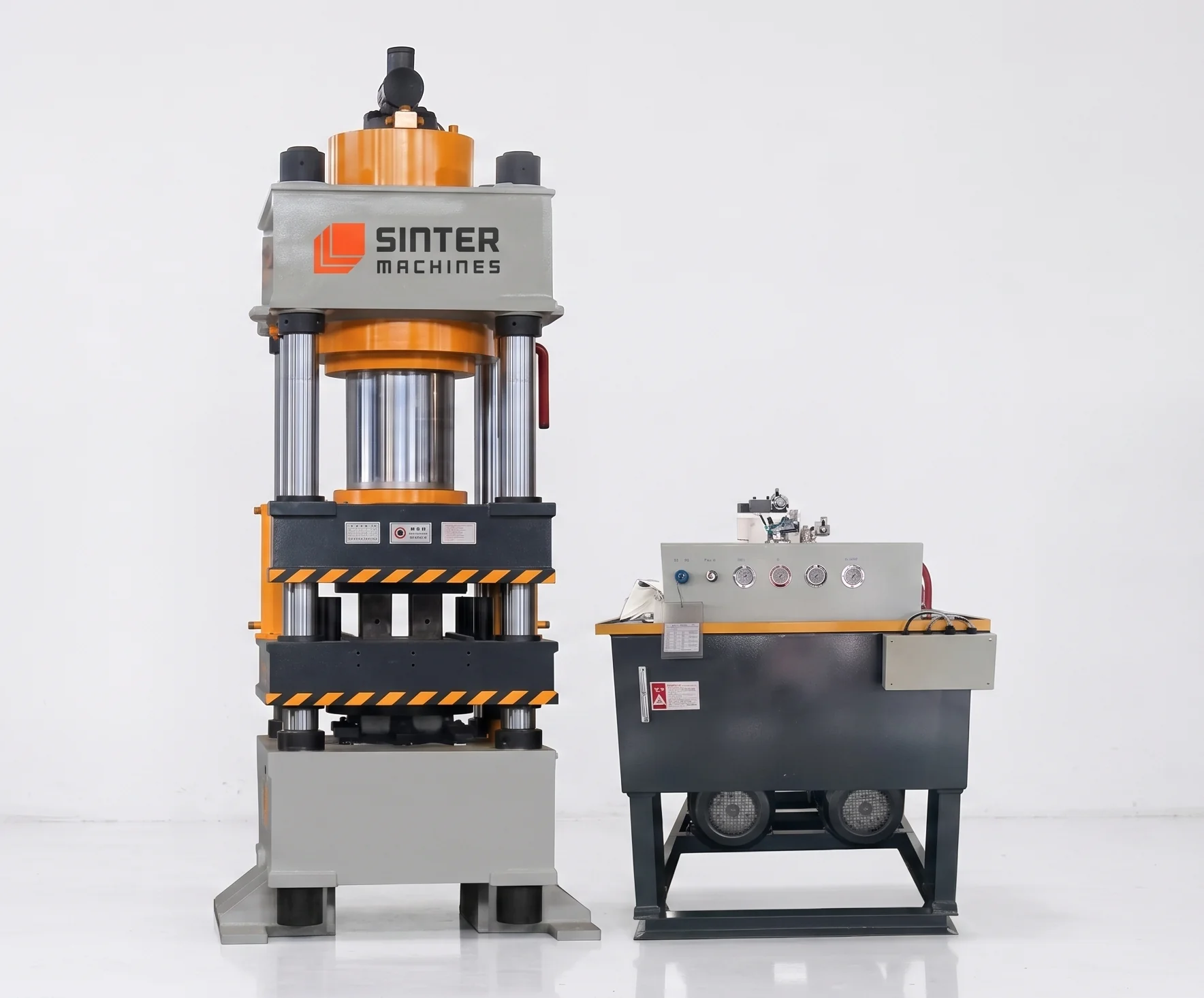

500T Four Column Hydraulic Press for Zeolite Powder Block
A Zeolite Powder Block Compression 4-Column Hydraulic Press Machine is a specialized industrial compaction system engineered to compress fine zeolite powder (microporous aluminosilicate minerals used as catalysts, adsorbents, and ion exchangers) into dense, uniform solid blocks, pellets, or briquettes.
These machines are utilized in chemical processing, water treatment manufacturing, petrochemical refining, and agricultural production, where loose, highly porous powders must be consolidated to minimize airborne dusting, reduce storage volume, and optimize handling or reactor feed rates.
01 — Engineering Considerations
Structural Design & Engineering Considerations (4-Column Architecture)
High-Precision Guidance & Parallelism: Zeolite possesses a delicate microporous structure that requires strict control over compaction uniformity. The four-pillar precision-ground column architecture ensures absolute platen parallelism and eliminates lateral play, preventing uneven wall pressures and ensuring consistent block density.
Rigid Load Distribution: Compacting porous mineral powders into solid blocks requires consistent, balanced tonnage. The 4-column frame withstands heavy cyclic loads without structural flexing, maintaining exact micro-tolerances between the punches and the die cavity over long operational lifespans.
Porosity & Air Management: Because zeolite powders trap significant amounts of air within their internal pore networks during filling, the hydraulic system is programmed with multi-stage compression profiles and extended dwell times to allow trapped air to evacuate safely without causing internal lamination, weakness, or crumbling.
02 — Technical Specifications
Key Technical Specifications
Feature | Industrial Specification Range |
Nominal Compaction Force | 40 Tons to 400+ Tons (tailored to block cross-sectional area and target density) |
Guide Structure | 4 Hard-Chromed, Precision-Ground Steel Pillars with heavy-duty, low-friction bushings |
Die & Punch Assembly | Hardened alloy tool steel or specialized wear-resistant inserts designed to handle abrasive mineral powders |
Hydraulic Drive | Variable displacement piston pumps or servo-hydraulic systems with smooth proportional pressure control |
Control Unit | PLC system with HMI touchscreen interface for programming fill depth, pressing tonnage, dwell time, and automated extraction |
03 — Operational Workflow
Operational Workflow
- Enclosed Volumetric Feeding: An automated, sealed feed shoe slides precisely over the die cavity to deposit a measured volume of loose zeolite powder, minimizing airborne dust and ensuring uniform fill density.
- Multi-Stage Compression:
- Fast Approach: The top ram lowers quickly to the material surface.
- High-Pressure Compaction: The system applies controlled tonnage. A multi-action or dual-punch configuration ensures even particle interlocking and density distribution throughout the depth of the block.
- Dwell Phase: Peak pressure is held for a set duration to allow trapped air to evacuate from the microporous structure and the particles to firmly settle, minimizing internal stress or cracking.
- Controlled Decompression & Ejection: Hydraulic pressure is gradually bled off to prevent surface cracking from elastic springback. A bottom ejection cylinder then cleanly pushes the solid zeolite block out of the die cavity for downstream packaging, curing, or thermal processing.

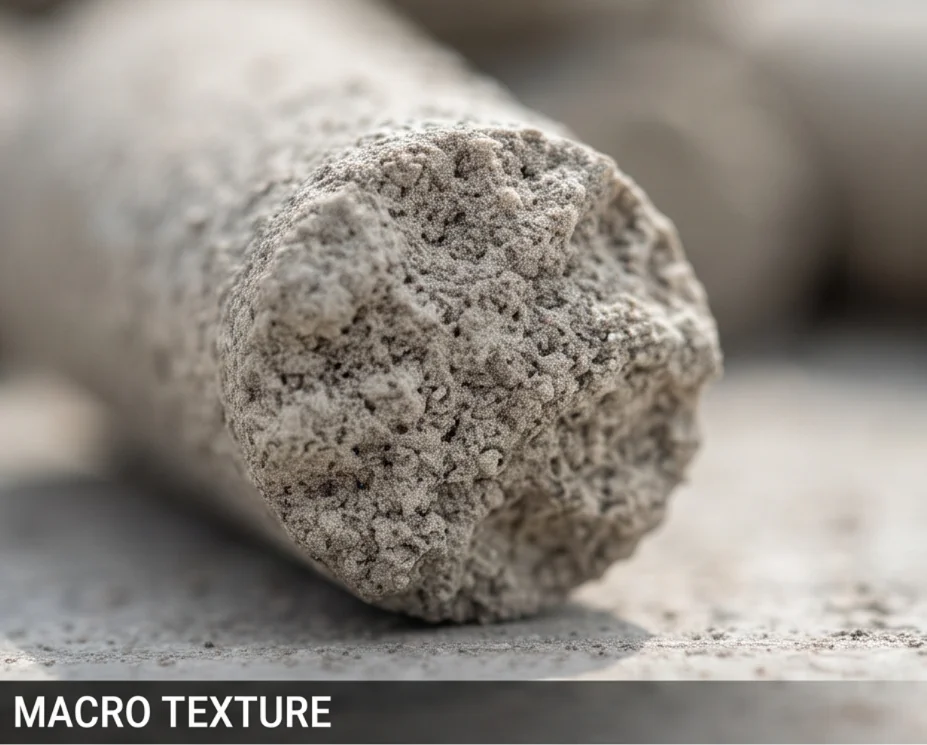

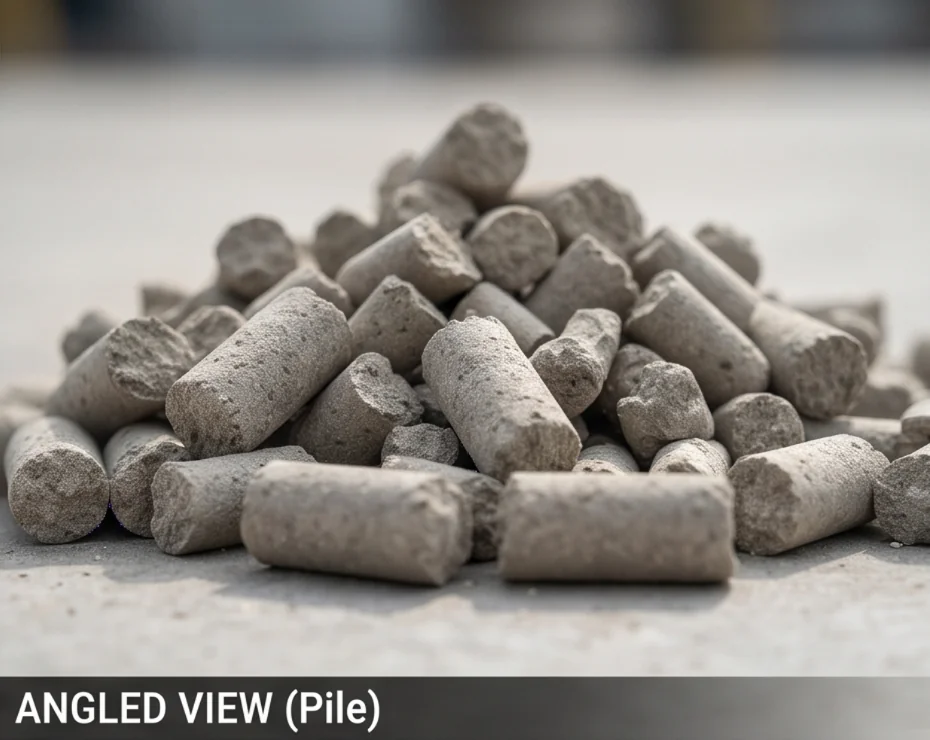

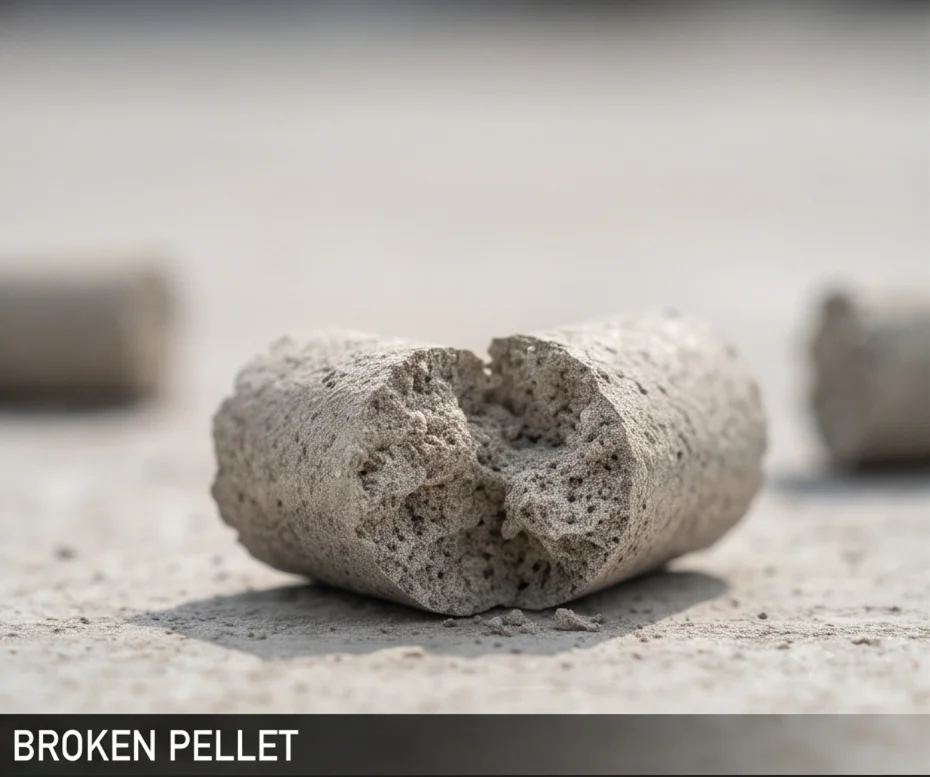

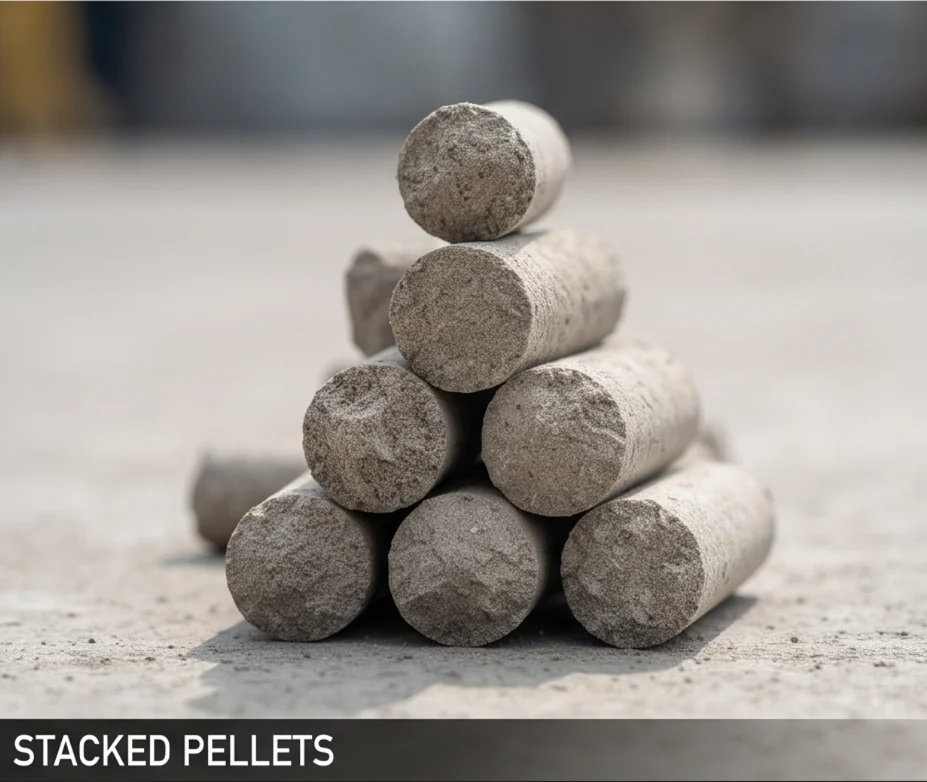

Finished Product Gallery
