1600T Wood Sawdust Pallet Press press view 1
Wood Sawdust Pallets · Hydraulic Press Machine

1600T Four Column Hydraulic Press for Wood Sawdust Pallets

1600T Rated Capacity
180 mm/s Slider Down Speed
6–14 mm/s Slider Pressing Speed
200 mm/s Slider Return Speed

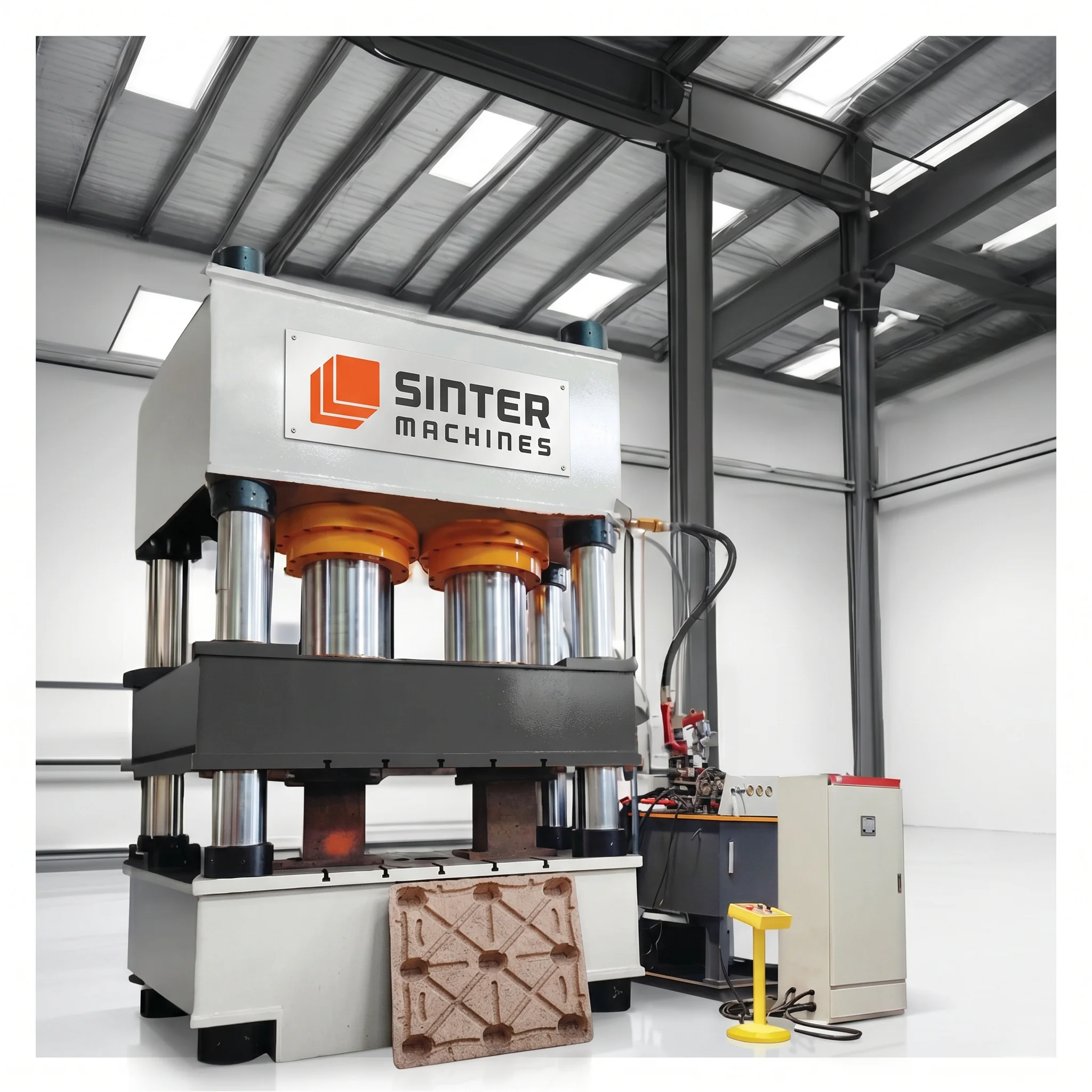

1600T Wood Sawdust Pallet Press press view 1

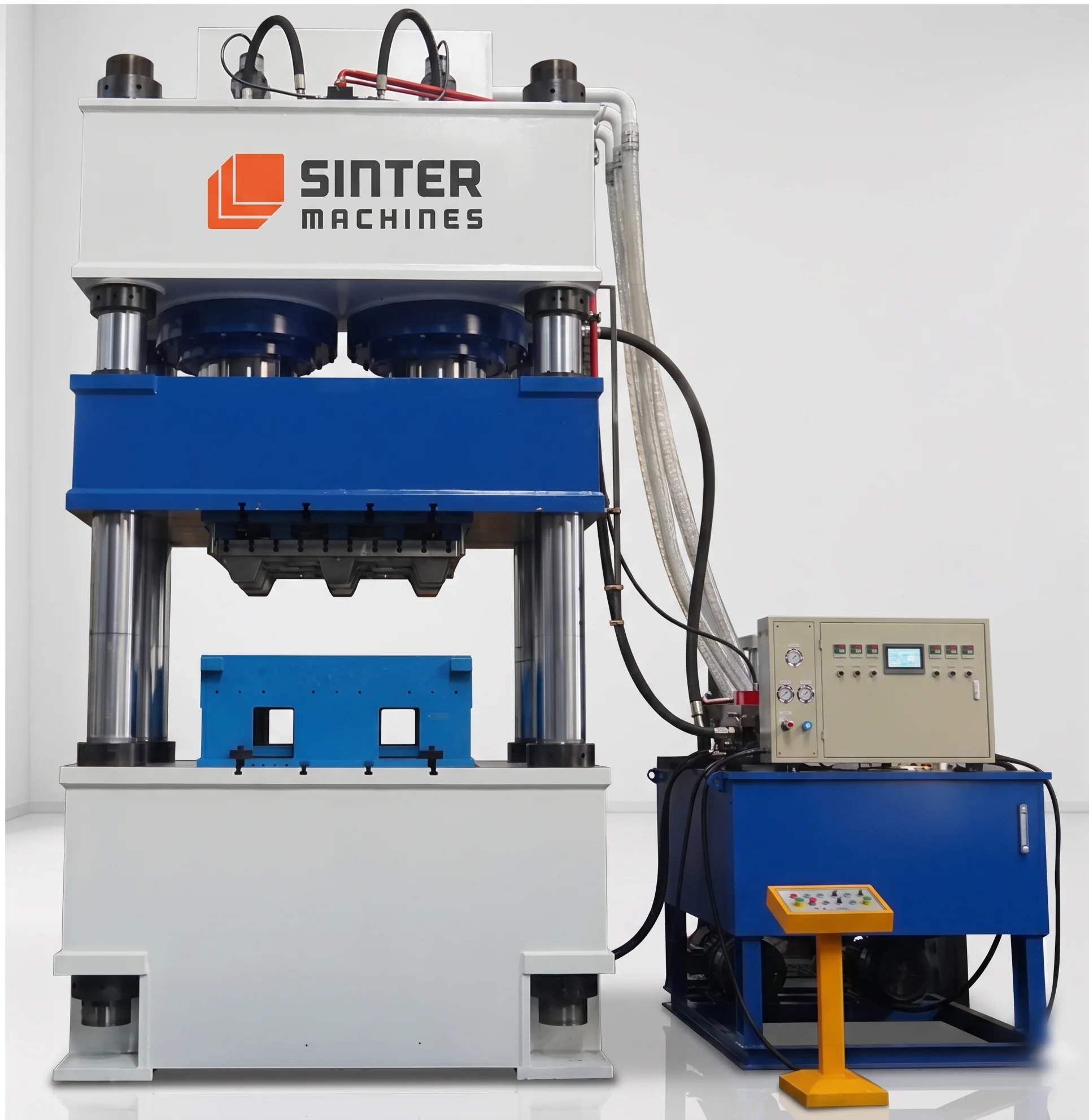

1600T Wood Sawdust Pallet Press press view 2

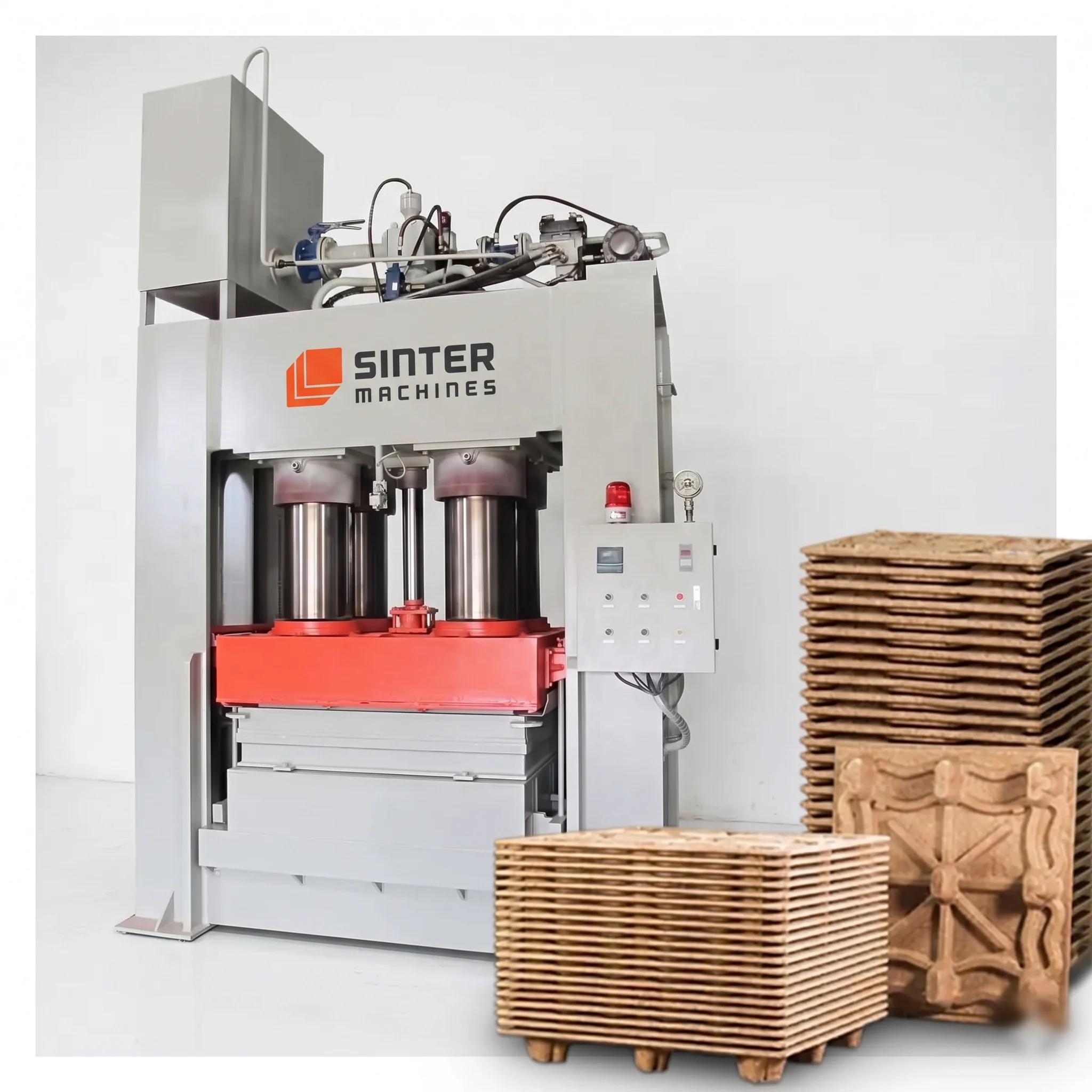

1600T Wood Sawdust Pallet Press press view 3

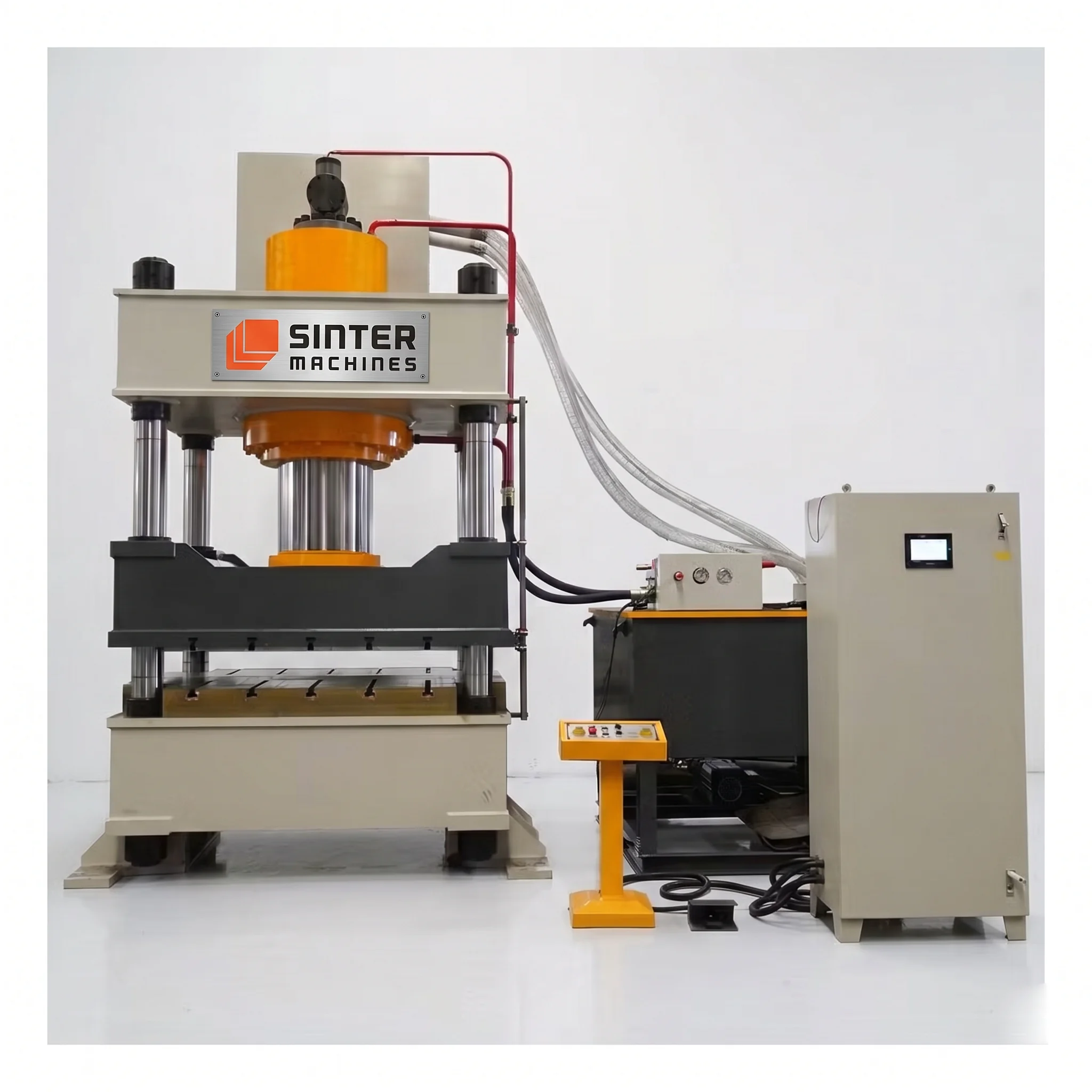

1600T Wood Sawdust Pallet Press press view 4

01 — Press System

1600T Four Column Hydraulic Press Machine

The 1600-ton four-column hydraulic press from Sinter Hydraulics India is a high-capacity industrial solution for compressed wood sawdust pallet manufacturing, offering high-pressure and thermal bonding capability, stable and uniform density pallet production, and large mold compatibility for heavy-duty pallets. When combined with advanced heated molds and process control systems, it ensures high production throughput, low defect rates, long mold life, and consistent product quality.

Use Case

Wood sawdust pallet compression presses consolidate loose wood waste, sawdust, and synthetic resin binders into dense, heavy-duty shipping skids. Operating under 1600 tons of continuous hydraulic force with integrated heated platens, this system cures thermosetting resins, drives out moisture, and molds high-strength, nestable logistics pallets for global freight transport.

Core Applications

  • High-tonnage hot compression molding of wood sawdust, chips, shavings, and timber waste formulations
  • Deep-draw thermoforming of nestable, high-density bio-composite logistics pallets and industrial shipping skids
  • Mass production of ISPM 15 compliant, export-ready, chemical-free compressed wood shipping platforms

Material

  • Dry wood sawdust, timber offcuts, pulverized wood chips, wood powder, and bio-fiber waste mixtures
  • Thermosetting synthetic binders including Urea-Formaldehyde, Melamine-Urea-Formaldehyde, and Phenol-Formaldehyde resins
  • Water-repellent paraffin wax emulsions, moisture-resistant sizing additives, and structural performance enhancers

Typical Products Processed

  • One-piece nestable molded wood sawdust pallets for international ocean freight and heavy industrial transport
  • Heavy-duty four-way entry block pallets, custom machinery shipping platforms, and industrial loading skids
  • Compression molded wood fiber feet blocks, protective corner guards, and cargo cushioning platforms

Key Functions

  • High-force multi-stage thermal squeezing to consolidate loose wood particles and eliminate internal air pockets
  • Multi-zone heated platen temperature management to ensure complete, uniform resin cross-linking and binder curing
  • Programmable pressure dwell-time holding to lock in precise leg contours and guarantee high structural rigidity
  • High-capacity hydraulic bottom ejector system for smooth, non-destructive release of heavy hot-molded pallets

Why 1600 Ton Hydraulic Press?

  • Generates the massive compaction force required to compress large-surface wood sawdust mats into dense, heavy load-bearing structural walls
  • Pre-stressed four-column frame structure maintains absolute platen parallelism under extreme tonnage, ensuring consistent deck thickness across large mold footprints

02 — Technical Specifications

SM 1600 HP – HYDRAULIC PRESS MACHINE COMPLETE TECHNICAL DATA

The SM 1600 HP hydraulic press delivers continuous high-tonnage thermal compression and precise temperature control engineered for heavy-duty wood sawdust pallet manufacturing. Its rigid four-column architecture and multi-stage pressure profiling ensure rapid moisture evacuation, uniform binder curing, and warp-free industrial pallets.

Capacity

  • Maximum continuous hot compression molding force capacity of 16000 kN
  • Dedicated hydraulic bottom ejector stripping force capacity of 1000 kN

Structural Design

  • Heavy fatigue resistant pre stressed four column configuration built for continuous high temperature pressing
  • FEA stress relieved heavy steel plate welded bolster and upper moving slide structure

Frame Type

  • Precision aligned solid induction hardened pillar frame guide structure
  • Stress relieved heavy welded steel plate bolster and upper moving slide assembly

Hydraulic System

  • High output variable displacement axial piston pump fluid power assembly
  • Multi stage high capacity offline oil filtration loop with integrated oil coolers

Main Ram Stroke

  • Maximum vertical slide forming travel distance capability of 1200 mm
  • Electronic stroke length limitation positioning resolution accurate within 0.005 mm

Working Hydraulic Pressure

  • Maximum continuous operating main hydraulic system fluid pressure of 250 bar
  • Peak shock safety valve pressure relief calibration threshold limit of 280 bar

Daylight Gap

  • Maximum open vertical daylight window working clearance of 1600 mm
  • Minimum closed shut die height tool workspace space of 400 mm

Approach Speed

  • Accelerated downward advance slide rapid travel speed of 250 mm/Sec
  • Controlled raw material tool engagement deceleration velocity of 12 mm/Sec

Pressing / Drawing Speed

  • Dynamic high pressure thermal curing resin bonding speed of 3 to 15 mm/Sec
  • Maximum resistance continuous sawdust compaction velocity of 20 mm/Sec

Return Speed

  • High speed upward ram extraction retraction travel speed of 220 mm/Sec
  • Ultra fast automated hydraulic pre return system decompression cycle timing

Bed / Platen Size Platen

  • Total clear bolster bed width left to right of 1600 mm
  • Total clear bolster bed depth front to back of 1400 mm

Columns

  • Ultra high tensile forged alloy steel pillar diameter of 280 mm
  • Heavy duty wear resistant bronze guide bushings with automatic grease lubrication

Working Envelope

  • Total horizontal internal clear workspace area of 1600 by 1400 mm
  • Maximum permissible upper heated die tool assembly mass weight of 12000 kg

Control System

  • Industrial programmable logic controller linked with a graphical touchscreen station
  • Dual redundant non contact linear transducer position tracking systems accurate within 0.002 mm

Main Motor Power

  • High efficiency primary hydraulic pump electric drive motor power of 132 kW
  • Dedicated auxiliary cooling and continuous oil filtration motor power of 15 kW

Valves & Hydraulics

  • High dynamic response proportional servo flow control cartridge manifold block
  • Integrated fast acting overhead gravity pre fill oil valve unit assembly

Automation

  • Digital interface connection ports for synchronized automatic sawdust dosing units
  • Integrated thermal oil heating manifold controls and automated robotic pallet transfer arms

Safety Features

  • Dual channel infrared light curtain barriers guarding operator workspace zones
  • Automated heavy duty dual fail safe mechanical anti drop ram safety locking blocks

SM 1600 HP — Model Specifications

  • Nominal Force: 16000 KN
  • Maximum Hydraulic Pressure: 25 MPa
  • Max Opening Height of the Slider: 1500 mm
  • Max Stroke of the Slider: 900 mm
  • Effective Bed Size: 1600 × 1600 mm
  • Slider Down Speed: 180 mm/s
  • Slider Pressing Speed: 6–14 mm/s
  • Slider Return Speed: 200 mm/s
  • Ejector Cylinder Nominal Force: 800 KN
  • Stroke of the Ejection Cylinder: 300 mm
Production Case Study

Wood Sawdust Pallets Production Line

1200 x 1000 mm and 1200 x 800 mmPallet size
800 to 1100 kg /Cu MDensity
120 to 240 SecCycle time
15 to 30 palletsOutput/Hour
High load strength achieved
Uniform resin curing guaranteed
Zero pallet warping observed
Crisp leg contour formation
Smooth surface finish held
Low production reject rates
Long mold life maintained

03 — Die / Mold System

Precision Wood Sawdust Pallets Die Mold Engineering

This precision thermoforming compression mold features heavy-duty alloy tool steel construction, CNC-machined thermal oil heating channels, and micro-perforated degassing networks. Engineered to withstand continuous 1600-ton clamping pressure, it delivers uniform heat transfer, rapid steam venting, and high-density structural pallet leg formation.

Use Case

The wood sawdust pallet die mold installs into 1600-ton hot hydraulic presses to thermoform loose wood chips and synthetic resin mixtures into heavy-duty logistics skids. It applies continuous thermal energy and extreme compaction force to cure thermosetting binders, drive off moisture, and form nestable, ISPM 15 compliant shipping pallets.

Technical Specifications (Tooling)

Die Type

  • Heavy duty industrial heated compression mold tool assembly for compressed wood sawdust logistics pallets
  • Precision matched metal matrix die set engineered for high tonnage wood fiber pallet thermoforming

Die Materials

  • Premium P20 pre hardened tool steel mold cores designed for superior thermal conductivity and compressive strength
  • High strength H13 hot work tool steel inserts installed in high stress pallet feet and perimeter rim zones

Tool Configuration & Construction

  • Precision gun drilled internal thermal oil circulation channels designed for uniform multi zone mold heating
  • Modular core and cavity insert construction allowing rapid replacement of high wear pallet leg and block sections

Key Tooling Features

  • Micro perforated steam venting channels engineered to evacuate moisture and gases during hot compression
  • Integrated multi point hydraulic ejector pins combined with pneumatic blow off ports for gentle hot pallet release

Alignment Accuracy

  • Upper core to lower cavity guide pillar alignment deviation kept strictly under a limit of 0.020 mm
  • Heated platen thermal expansion parallelism variance across the active workspace restricted within a tolerance of 0.015 mm

Process Materials

  • Dry wood sawdust timber offcuts pulverized wood chips and recycled wood fiber mixtures
  • Thermosetting Urea Formaldehyde Melamine Urea Formaldehyde and Phenol Formaldehyde resin binders

Surface Finish

  • Active mold cavity surfaces precision polished down to a surface roughness of Ra 0.40 microns
  • Hard chrome plating layer applied to a thickness of 0.030 mm for superior wear and abrasion resistance

Tool Life

  • Expected operational span of 150000 compression cycles before requiring mandatory surface re polishing and seal inspection
  • Total structural mold base lifespan capacity reaching 1000000 production cycles before major cavity rebuilds
Case Study (Die Performance)

Precision Wood Sawdust Pallets Die Mold

A 20 AlloyDie Steel
50-55 HRCHardness
Vacuum Double TemperingHeat Treatment
Mold cavity sticking eliminated
Steam moisture evacuated rapidly
High load strength achieved
Zero pallet warping observed
Uniform wall thickness held
Production reject rates minimized
Mold service life extended

04 — Product Application

Where Wood Sawdust Pallets Are Used

Compressed wood sawdust pallets serve as a high-density, eco-friendly replacement for conventional timber skids in heavy-duty shipping and logistics. Their nestable structure, superior load bearing, and ISPM 15 compliance make them an ideal choice across global industrial and export supply chains.

Industry Applications

Compressed wood sawdust pallets are extensively used in global export logistics, heavy machinery transport, chemical storage, and automated warehousing hubs. Utilizing recycled timber offcuts and sawdust enables manufacturers to bypass ISPM 15 quarantine delays, eliminate single-use wooden pallets, reduce corporate carbon footprints, and optimize global supply chain efficiency.

International Freight Forwarding and Export Shipping

Complies with international ISPM 15 shipping regulations without needing expensive heat treatments or chemical fumigation processes. Reduces container tare weight and optimizes cargo stacking efficiency to lower total international air and ocean freight transportation costs.

Heavy Industrial Goods, Automotive Components, and Machinery Transport

Provides high static and dynamic load capacities capable of supporting heavy auto parts, castings, and industrial equipment. Resists structural deflection under high pressure, maintaining stability during forklift handling and long-distance transport.

Chemical, Fertilizer, and Construction Material Distribution

Delivers excellent structural integrity and moisture resistance when transporting heavy bagged chemicals, cement, or fertilizers. Features a uniform, splinter-free, nail-free construction that prevents product bag punctures and keeps cargo undamaged during transit.

Warehousing, E-Commerce, and Automated Distribution Logistics

Offers up to 66 percent space savings in warehouse floor storage due to its space-efficient nestable pallet design. Ensures seamless integration with automated conveyor lines, robotic lifters, and standard forklift equipment due to strict dimensional accuracy.

Finished Product Gallery

1600T Wood Sawdust Pallet Press finished product 1
1600T Wood Sawdust Pallet Press finished product 2

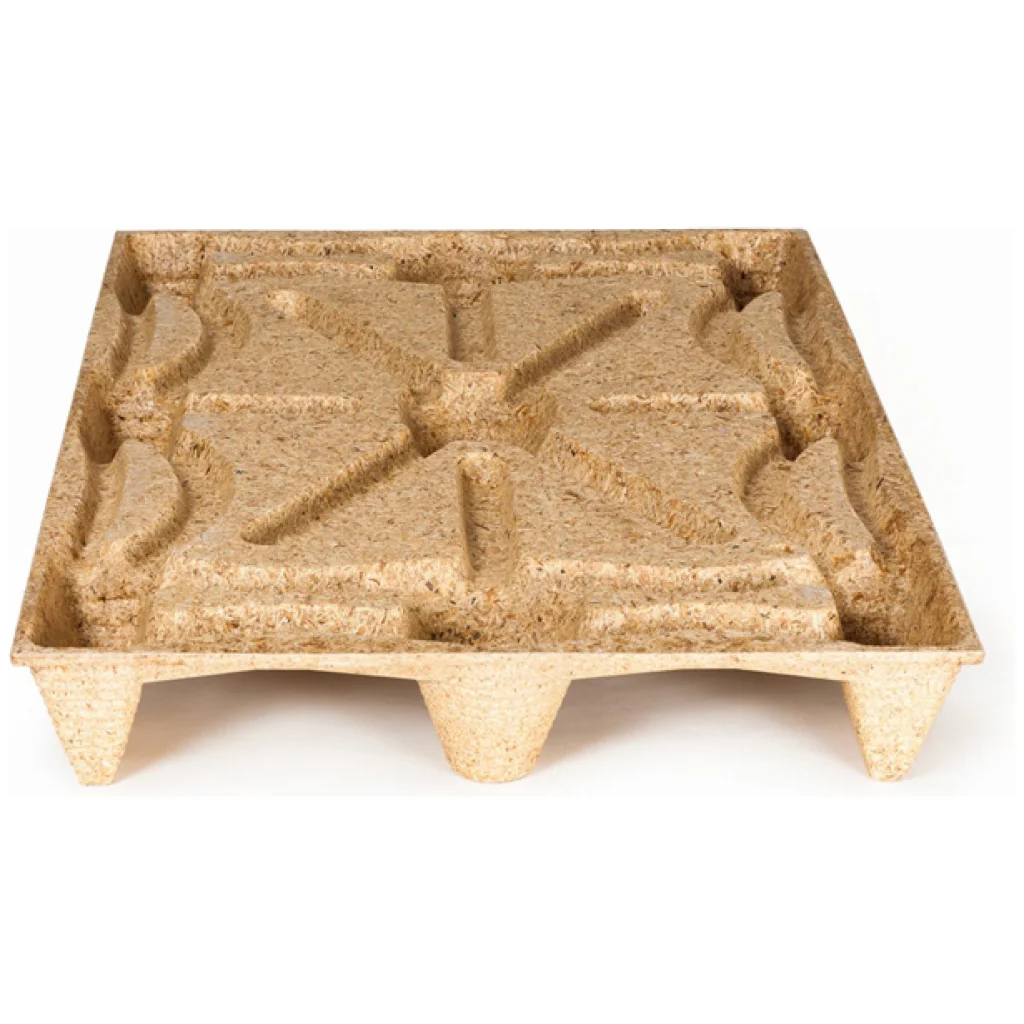

1600T Wood Sawdust Pallet Press finished product 3

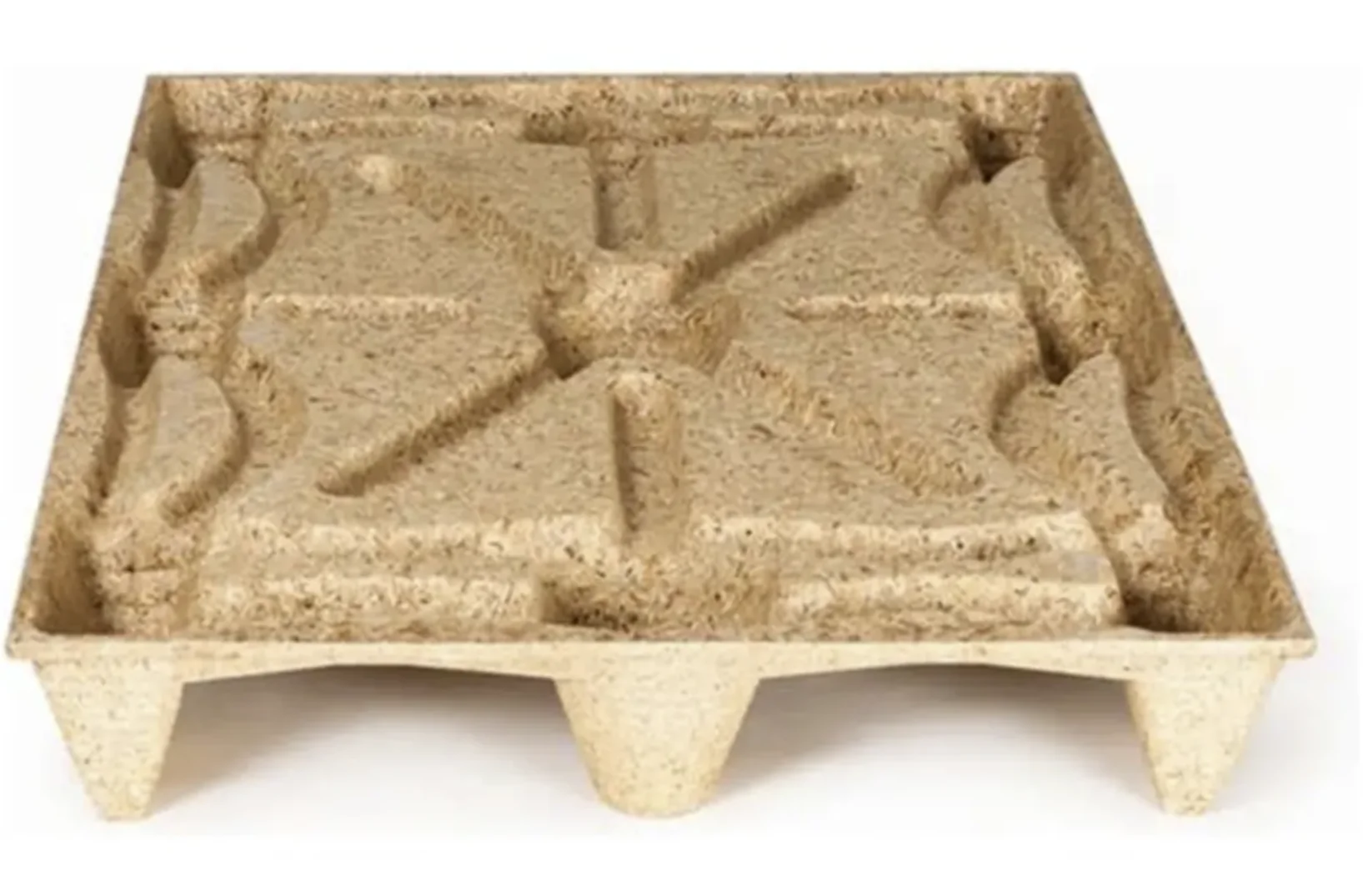

1600T Wood Sawdust Pallet Press finished product 4

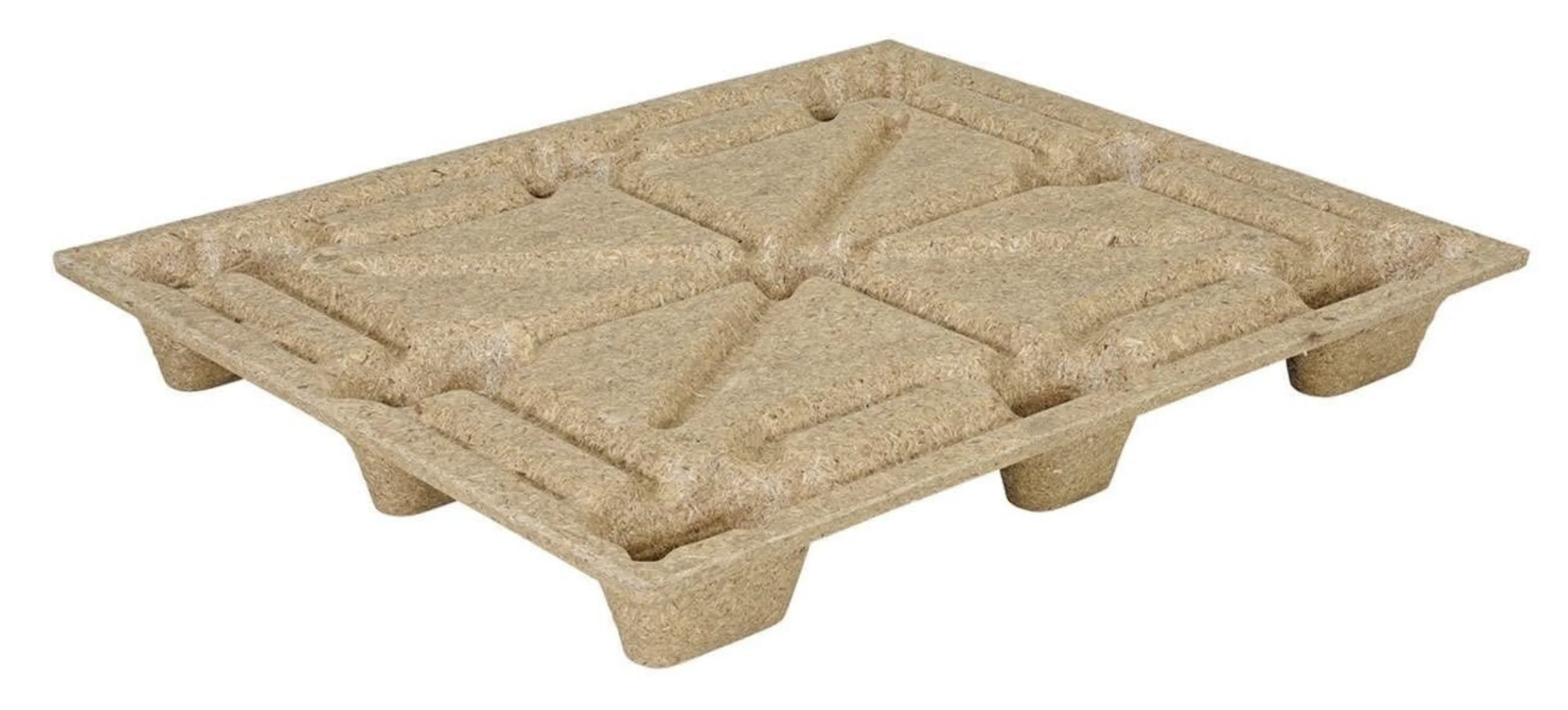

1600T Wood Sawdust Pallet Press finished product 5

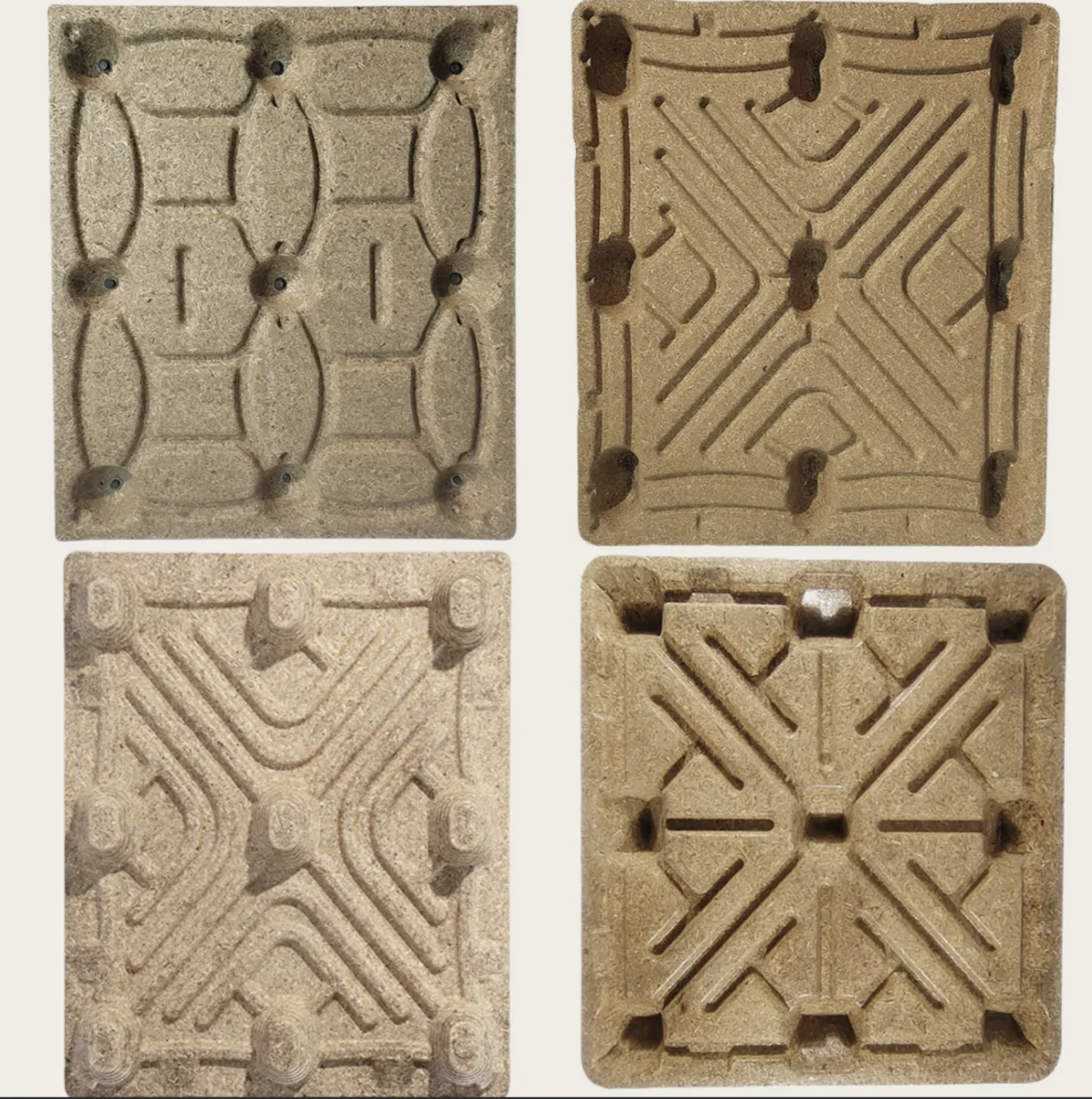

1600T Wood Sawdust Pallet Press finished product 6

05 — Key Advantages

Why Choose the 1600-Ton Sinter Hydraulic Press

The 1600-Ton Sinter Hydraulic Press provides ultra-high compaction force and precise multi-zone temperature regulation engineered for processing dense wood fiber composites. Its advanced moisture degassing, heavy four-column parallelism, and automated ejection system produce warp-free, ISPM 15 compliant logistics pallets with exceptional load capacity.

Technical & Commercial Benefits

01

Massive 1600-Ton Tonnage Achieving Superior Material Density

Delivers 1600 tons of continuous hydraulic pressure to consolidate thick wood sawdust and chip mats uniformly. High compaction force eliminates internal voids and interlocking fibers, resulting in superior deck stiffness and heavy-duty load capacity.

02

Precision Multi-Zone Thermal Oil Heating for Uniform Resin Curing

Transfers thermal energy evenly across the 1600 x 1400 mm platen workspace to fully cure thermosetting resin binders. Balanced heating eliminates uncured core zones, preventing structural leg collapse, edge cracking, or surface defects.

03

Multi-Stage Decompression Degassing System Preventing Delamination

Executes precise micro-decompression pauses during hot pressing to vent high-pressure steam and moisture vapor. Evacuating trapped steam prevents internal blistering, cracking, and structural failure in finished high-density wood pallets.

04

Rigid Pre-Stressed Four-Column Frame Ensuring Absolute Parallelism

The heavy-duty four-column structure absorbs high tonnage without flexing, maintaining precise platen alignment under thermal stress. Absolute parallelism ensures uniform deck thickness, equal leg density, and dimensional accuracy across large mold areas.

05

Integrated High-Force Bottom Hydraulic Ejector for Clean Demolding

Features a 1000 kN bottom ejection mechanism coupled with pneumatic assist jets to smoothly lift hot, deep-drawn pallets. Synchronized mechanical extraction eliminates leg chipping, rim tearing, and corner cracking during rapid automated unloading.

06

Low-Cost Waste Conversion Delivering ISPM 15 Compliant Export Pallets

Transforms low-value timber offcuts and sawdust into pest-free, wood-free shipping skids that bypass expensive chemical fumigation. Utilizing recycled wood waste lowers raw material expenses while producing high-margin, eco-friendly pallets for export markets.
