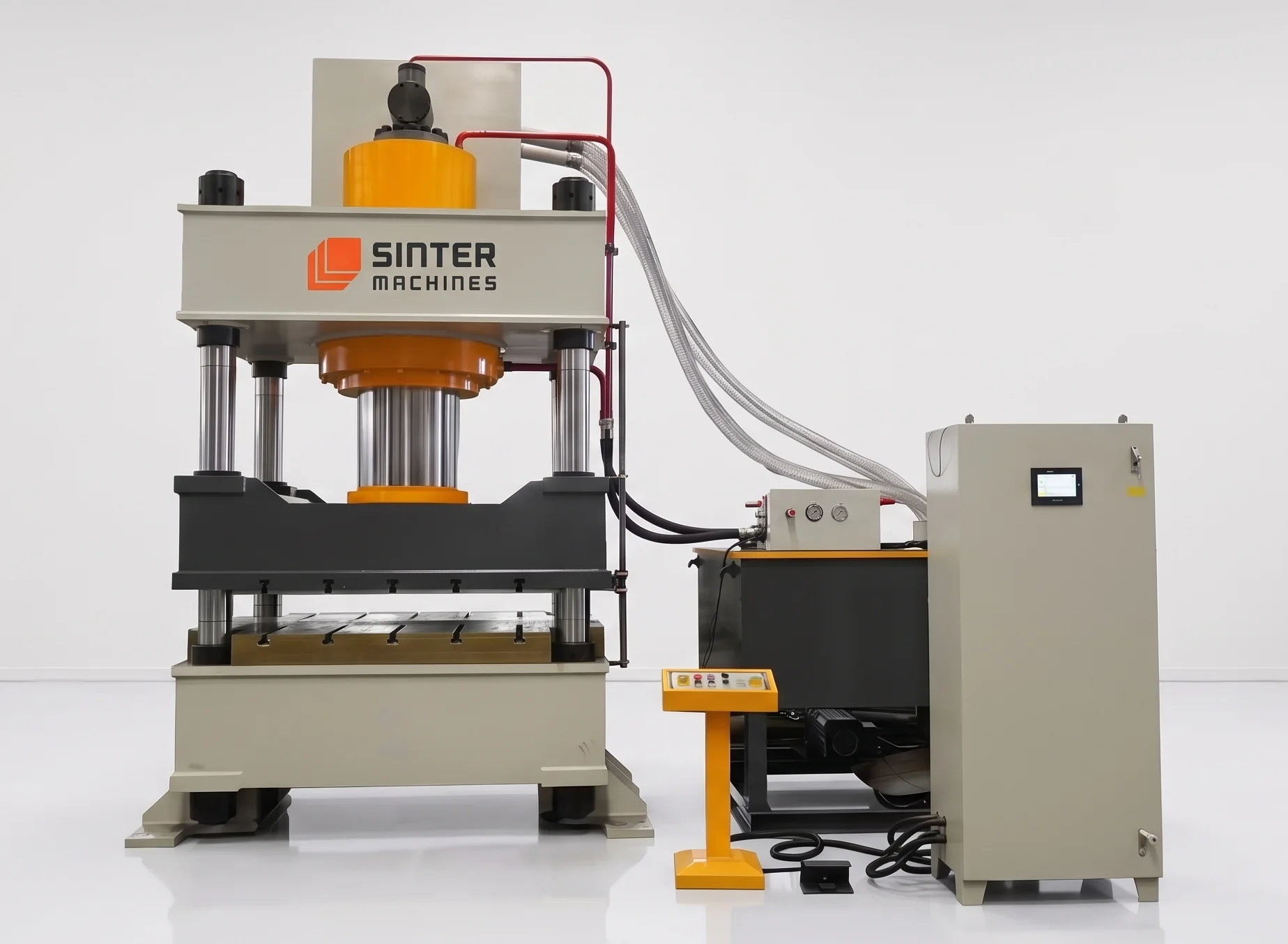

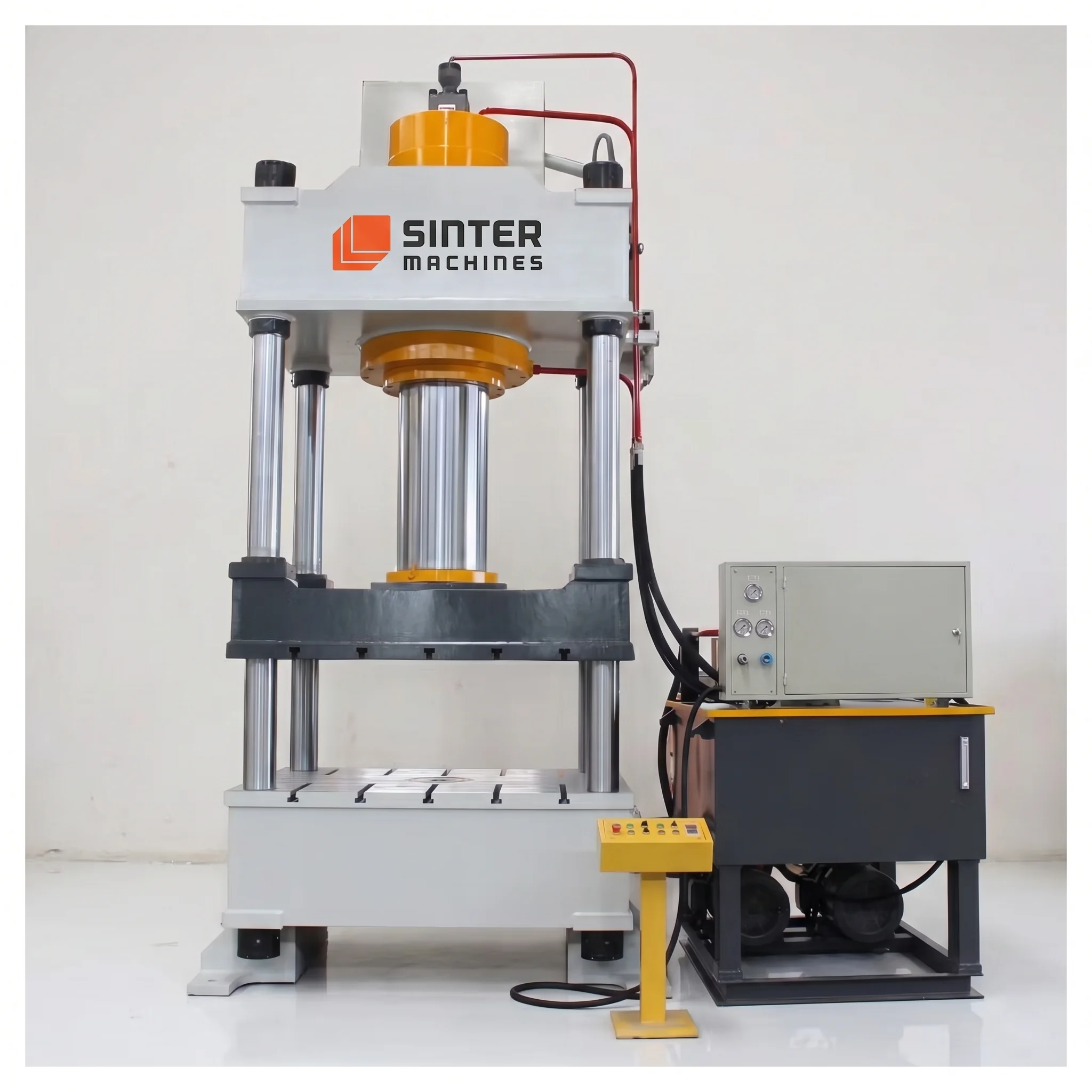

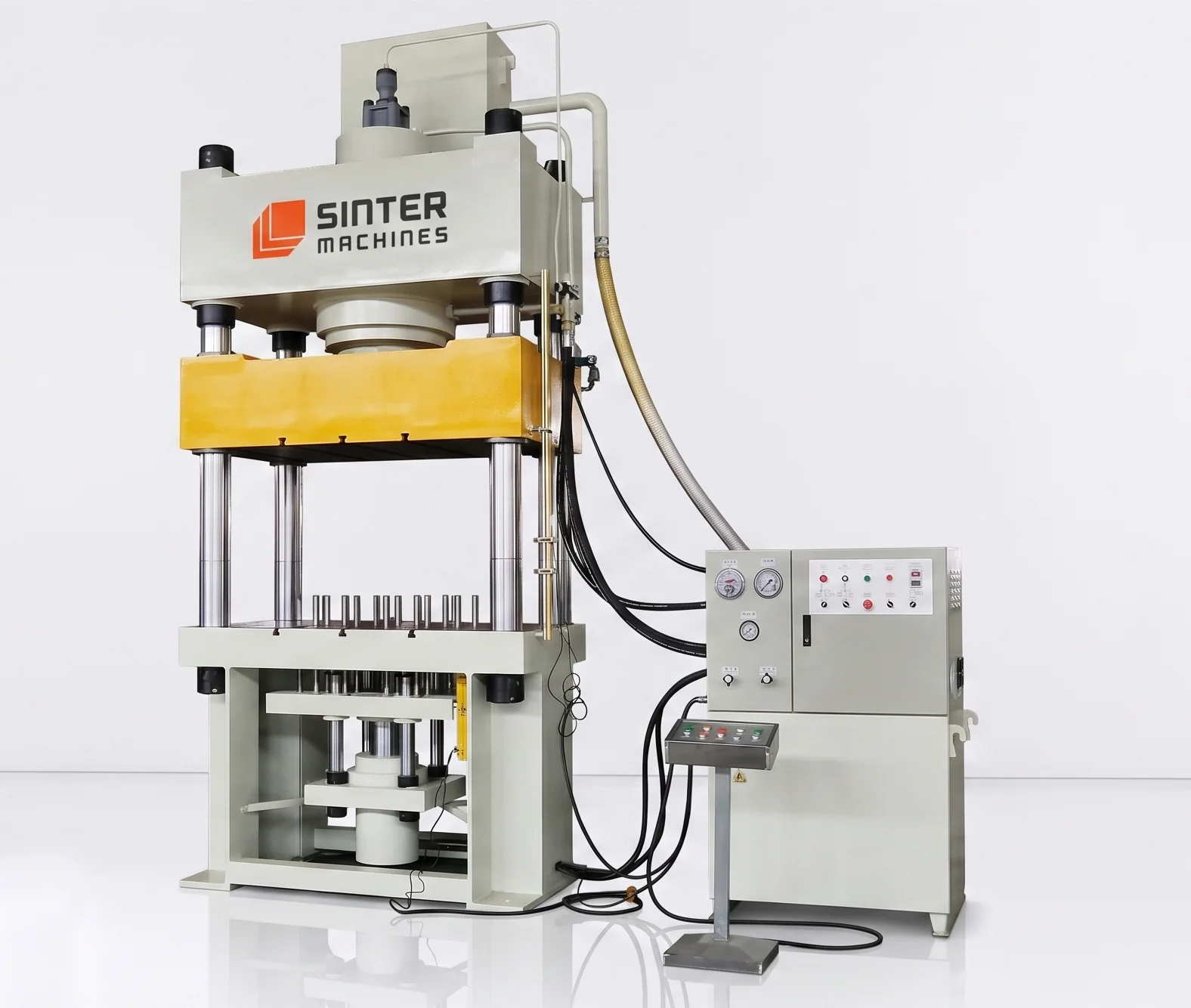

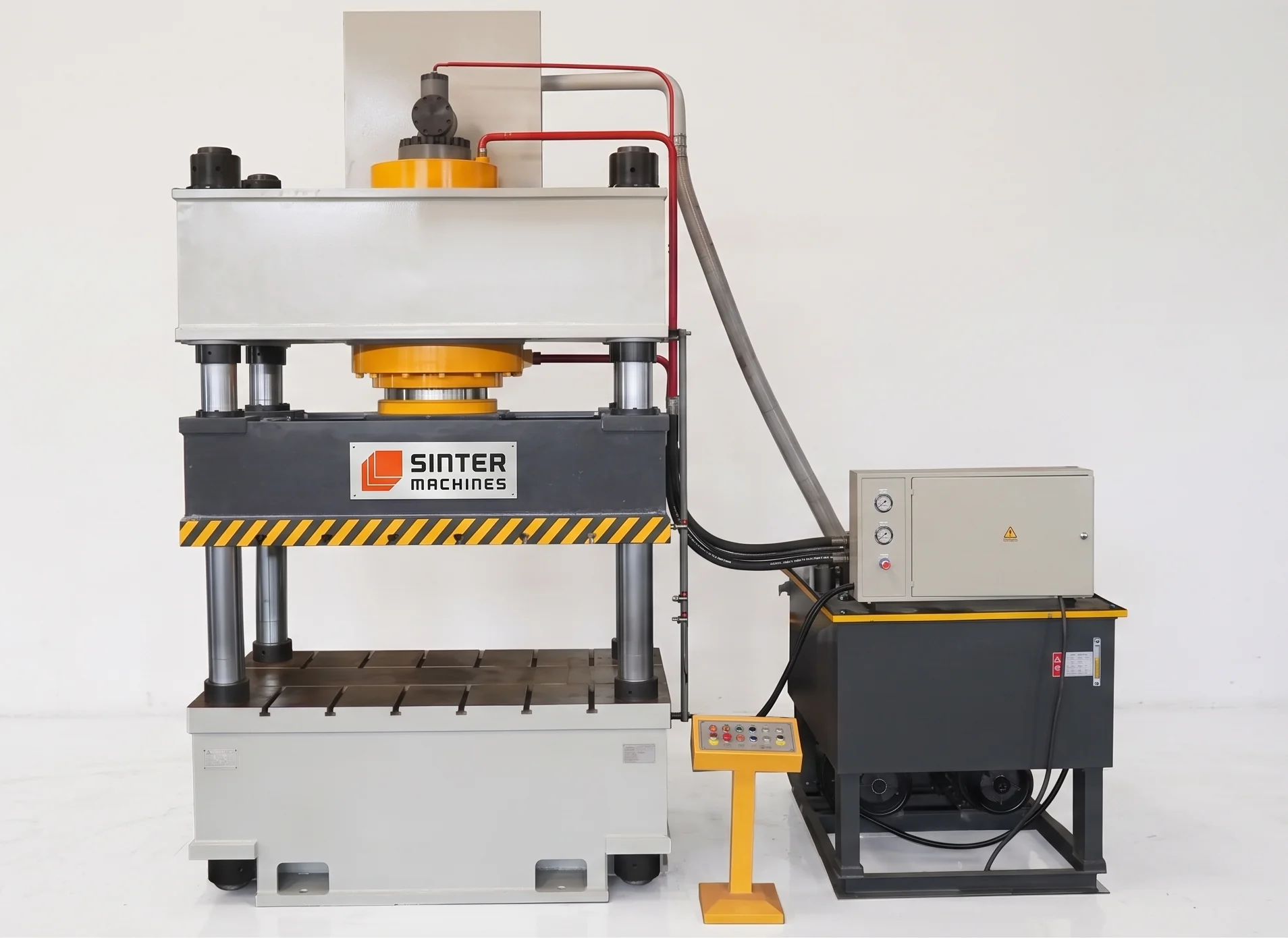

500T Four Column Hydraulic Press for Magnesium Powder Block Press
A Magnesium Powder Block Compression 4-Column Hydraulic Press Machine is a specialized heavy-duty industrial compaction system engineered to compress fine magnesium metal powder into dense, uniform solid blocks, briquettes, or charge preforms.
These machines are utilized in pyrotechnics, lightweight alloy production, aerospace component manufacturing, and metallurgical reduction processes, where reactive metal powders must be consolidated to minimize airborne dusting, reduce fire and explosion risks, and optimize furnace or reactor feed rates.
01 — Engineering Considerations
Structural Design & Engineering Considerations (4-Column Architecture)
High-Precision Guidance & Parallelism: Magnesium metal powders require strict control over compaction uniformity to prevent structural weak points or density gradients. The four-pillar precision-ground column architecture ensures absolute platen parallelism and eliminates lateral play, preventing uneven wall pressures and ensuring consistent block density.
Rigid Load Distribution: Compacting reactive metal powders into high-strength blocks requires consistent, balanced tonnage. The 4-column frame withstands heavy cyclic loads without structural flexing, maintaining exact micro-tolerances between the punches and the die cavity over long operational lifespans.
Explosion Prevention & Safety Integration: Because fine magnesium powder is highly combustible and reactive, the press is heavily integrated with explosion-proof electrical components, inert gas purging systems (such as argon or nitrogen blanketing), sealed enclosures, and spark-free tooling to ensure safe operation and prevent ignition risks.
02 — Technical Specifications
Key Technical Specifications
Feature | Industrial Specification Range |
Nominal Compaction Force | 40 Tons to 500+ Tons (tailored to block cross-sectional area and target density) |
Guide Structure | 4 Hard-Chromed, Precision-Ground Steel Pillars with heavy-duty, low-friction bushings |
Die & Punch Assembly | Spark-resistant alloy tool steel or specialized wear-resistant inserts designed to handle reactive metal powders |
Hydraulic Drive | Variable displacement piston pumps or servo-hydraulic systems with smooth proportional pressure control |
Control Unit | Explosion-proof PLC system with HMI touchscreen interface for programming fill depth, pressing tonnage, dwell time, and automated extraction |
03 — Operational Workflow
Operational Workflow
- Inert-Purged Volumetric Feeding: An automated, sealed feed shoe operating under an inert gas blanket slides precisely over the die cavity to deposit a measured volume of loose magnesium powder, minimizing fire risks and ensuring uniform fill density.
- Multi-Stage Compression:
- Fast Approach: The top ram lowers quickly to the material surface.
- High-Pressure Compaction: The system applies controlled tonnage. A multi-action or dual-punch configuration ensures even particle interlocking and density distribution throughout the depth of the block.
- Dwell Phase: Peak pressure is held for a set duration to allow trapped gas to evacuate and the metal particles to firmly settle, minimizing internal stress or cracking.
- Controlled Decompression & Ejection: Hydraulic pressure is gradually bled off to prevent surface cracking from elastic springback. A bottom ejection cylinder then cleanly pushes the solid magnesium block out of the die cavity for downstream processing, alloying, or protective packaging.

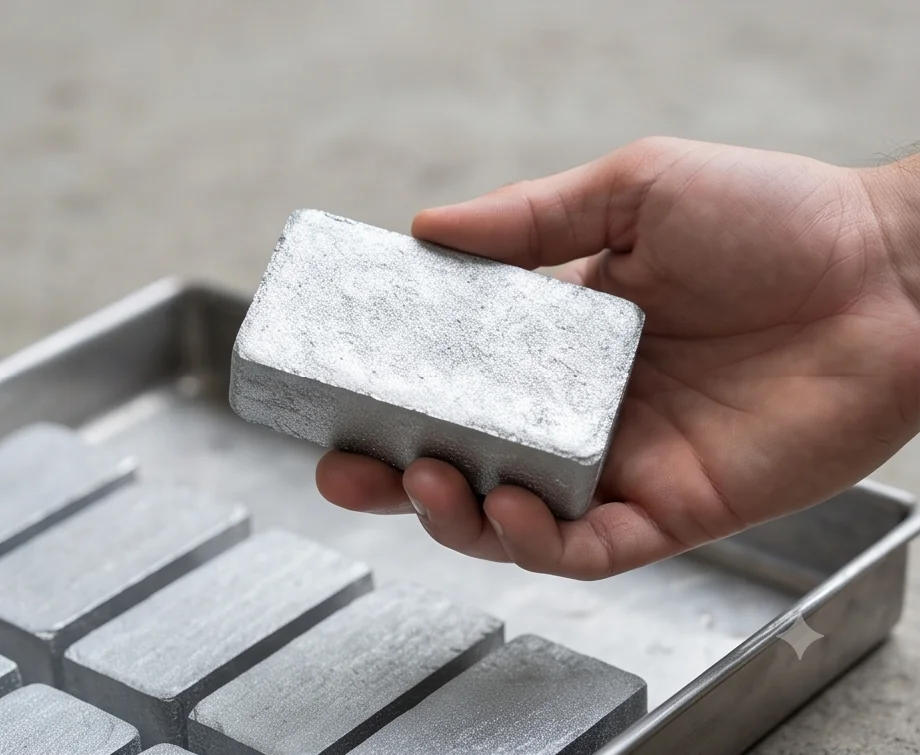

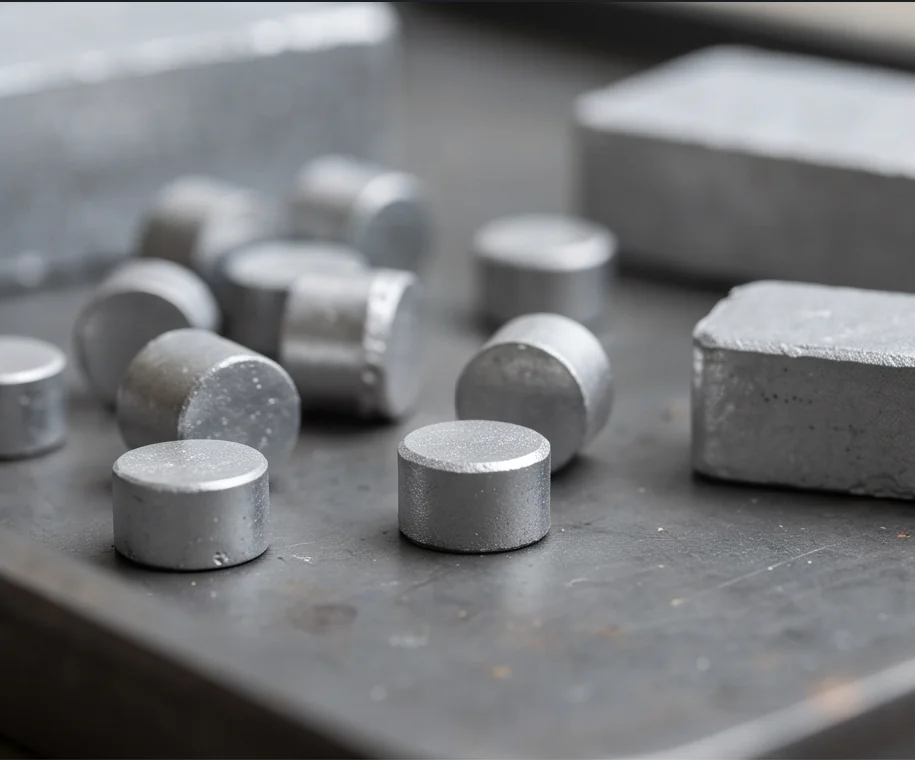

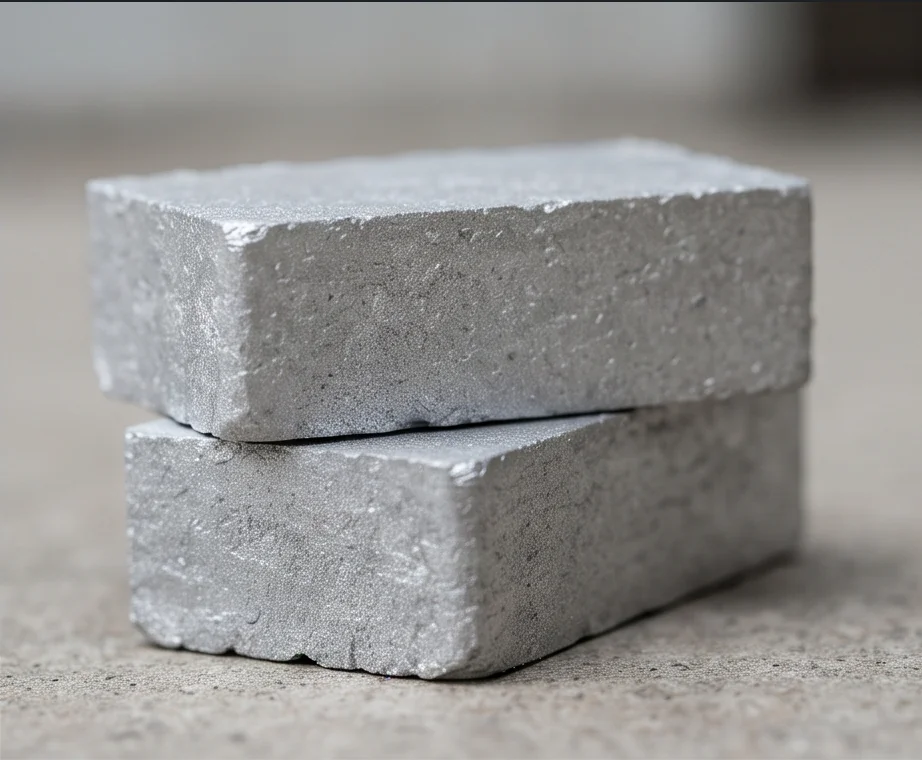

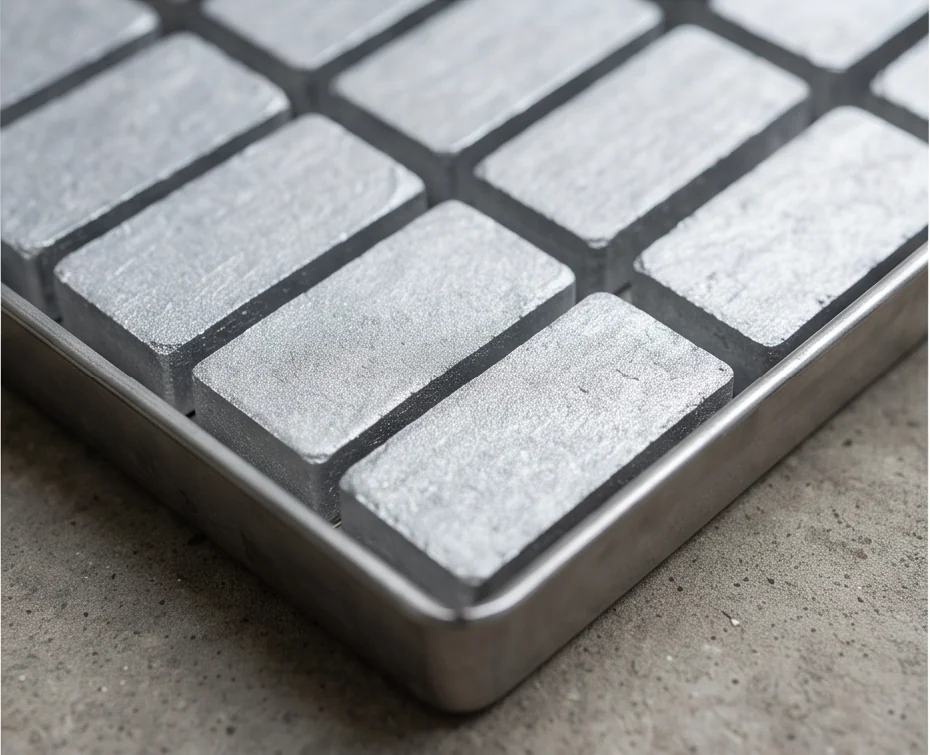

Finished Product Gallery
