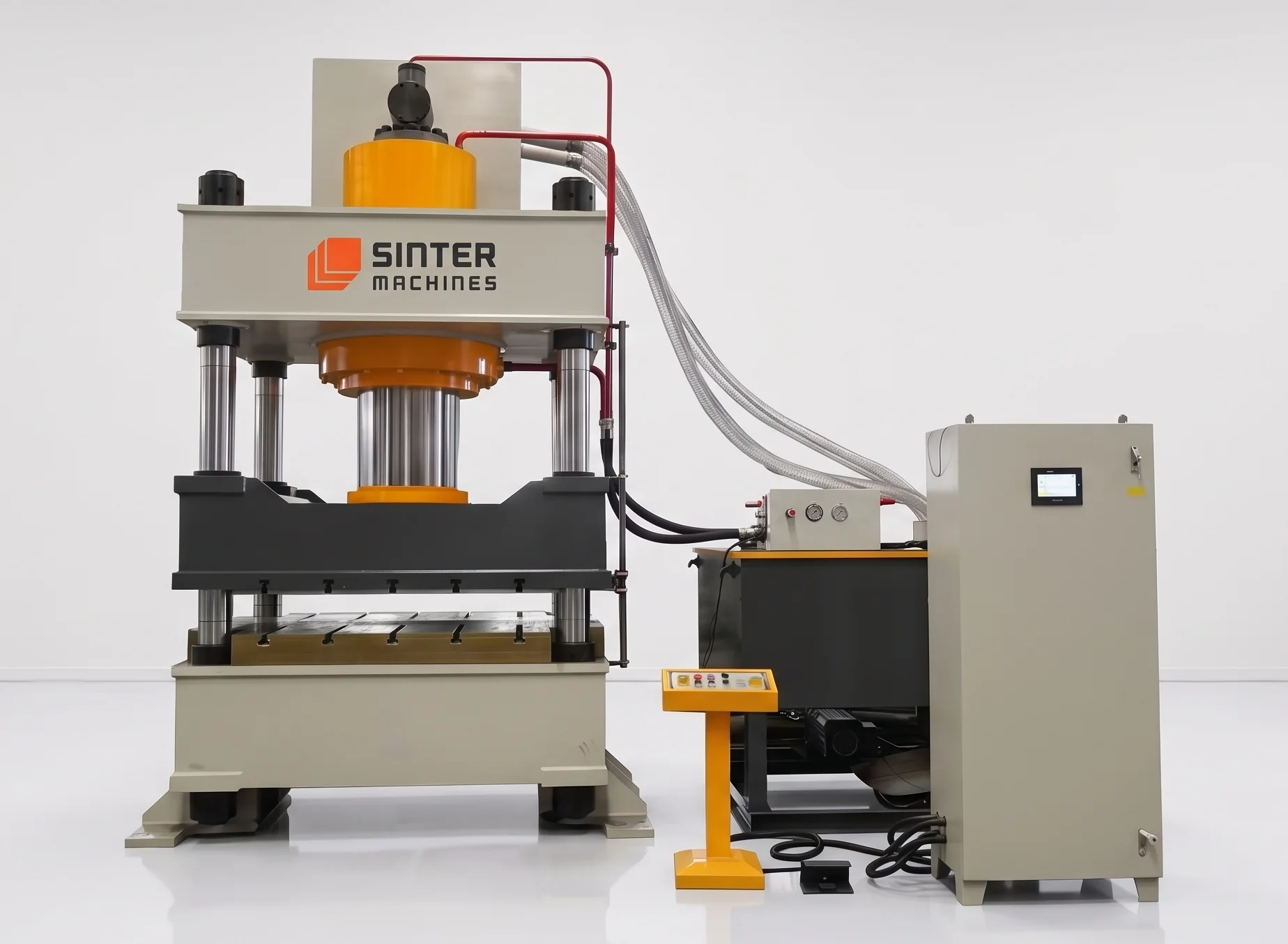

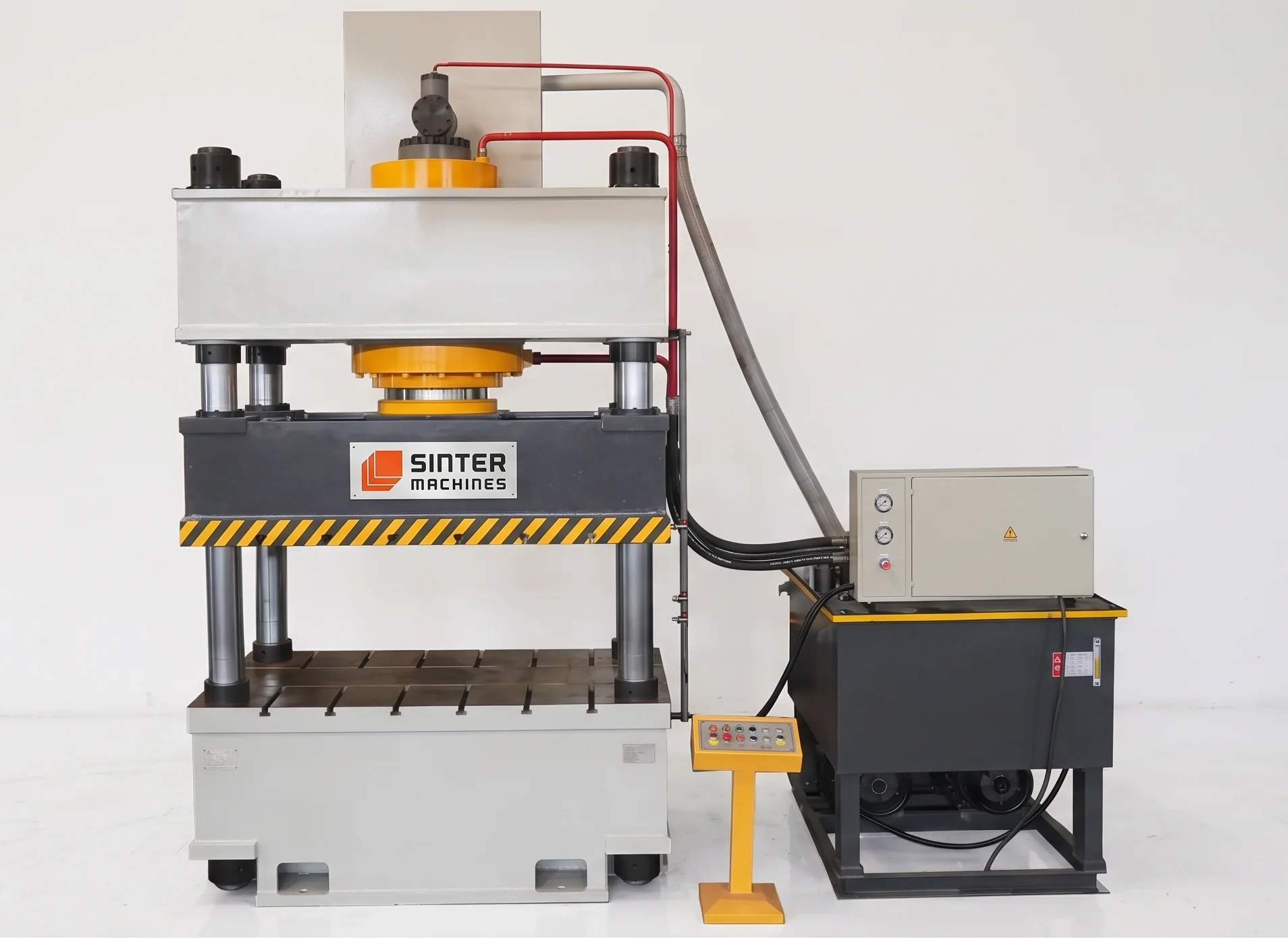

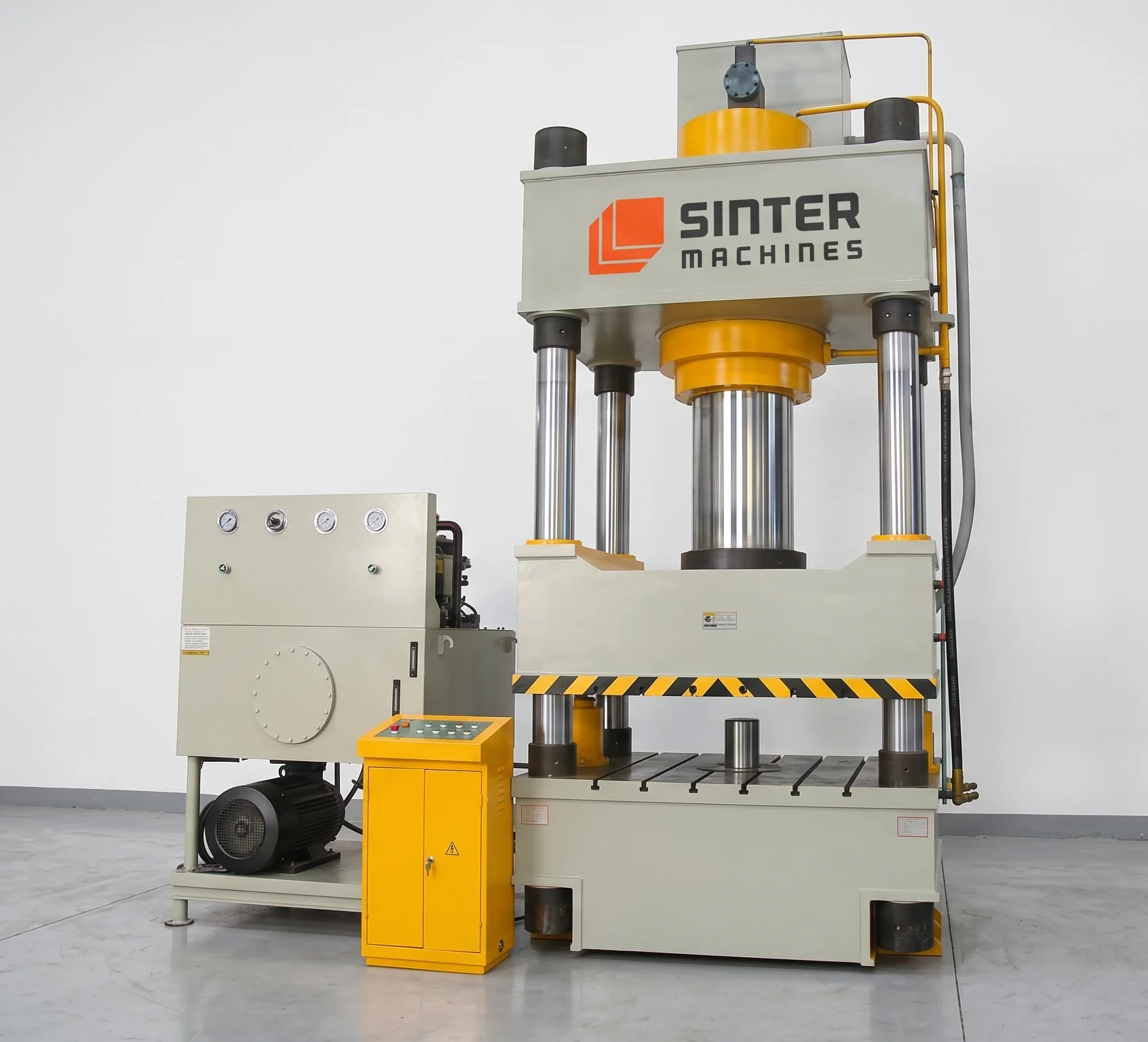

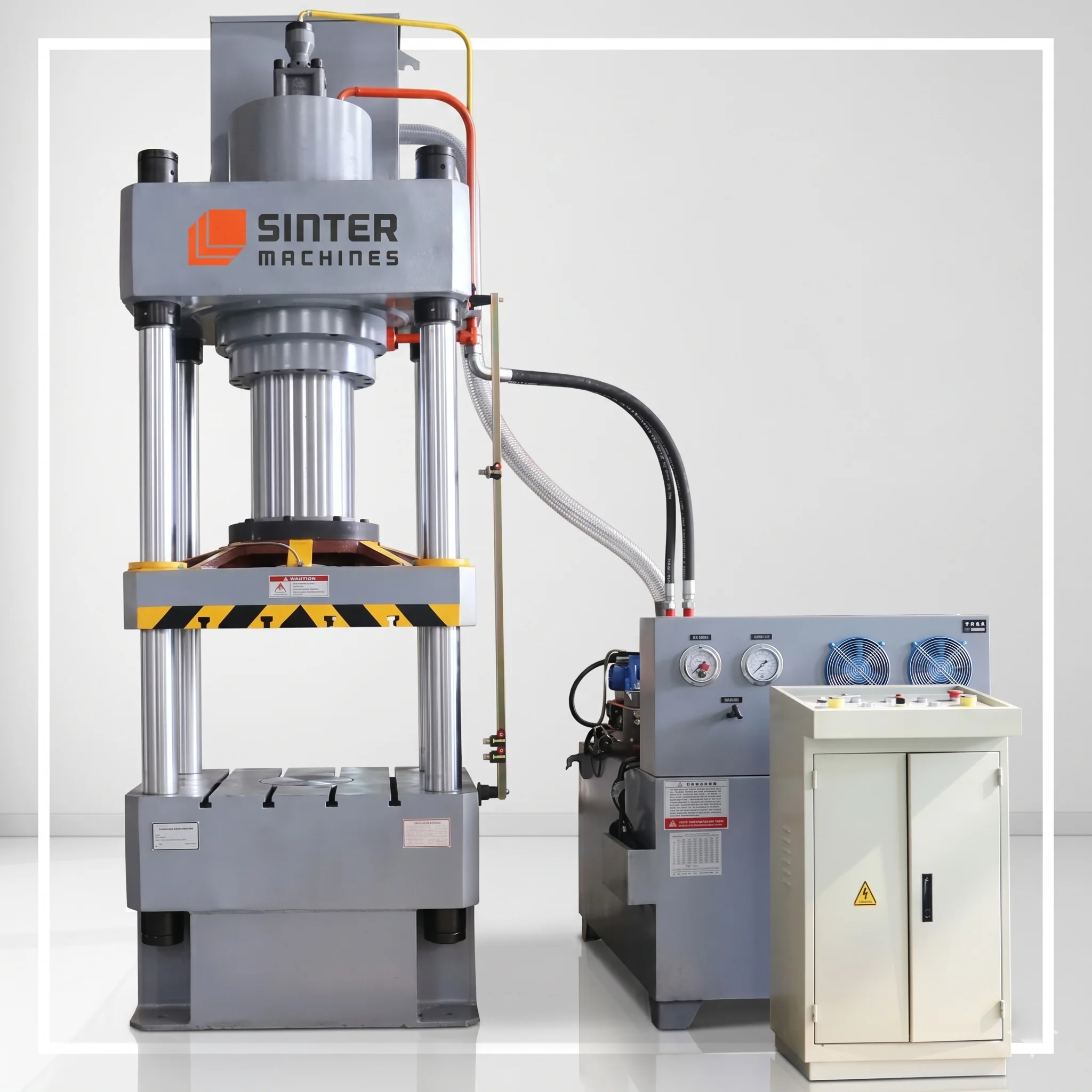

500T Four Column Hydraulic Press for Spinel Powder Block
Spinel Powder Block Forming 4-Column Hydraulic Press Machine is a specialized high-precision industrial compaction system designed to compress fine spinel powders (such as magnesium aluminate spinel, $\text{MgAl}_2\text{O}_4$, or related oxide ceramics) into dense, uniform green blocks, refractory bricks, or preforms.
These machines are essential in advanced ceramics, high-performance refractory manufacturing, and metallurgical lining production, where high thermal shock resistance, chemical stability, and precise green density are mandatory prior to sintering.
01 — Advantages
Structural Design & Advantages (4-Column Architecture)
High-Precision Guidance & Parallelism: Advanced ceramic powders like spinel are prone to cracking or density variations if subjected to uneven pressure. The four-pillar precision-ground column architecture ensures absolute platen parallelism and eliminates lateral play, guaranteeing uniform compaction across the entire block.
Rigid Load Distribution: Compacting hard, refractory ceramic powders requires continuous high tonnage. The 4-column frame withstands heavy cyclic loads without structural flexing, maintaining exact micro-tolerances between the punches and the die cavity over long operational lifespans.
02 — Technical Specifications
Key Technical Specifications
Feature | Industrial Specification Range |
Nominal Compaction Force | 100 Tons to 600+ Tons (tailored to block cross-sectional area and target green density) |
Guide Structure | 4 Hard-Chromed, Precision-Ground Steel Pillars with low-friction, heavy-duty bushings |
Die & Punch Assembly | High-grade tungsten carbide inserts or specialized abrasion-resistant alloy tool steel to withstand the extreme wear caused by hard spinel particles |
Hydraulic Drive | Servo-hydraulic or variable displacement piston pumps with closed-loop proportional pressure and displacement control |
Control Unit | Advanced PLC system with HMI touchscreen interface for programming multi-stage pressing profiles, exact fill depth, dwell times, and automatic extraction |
03 — Operational Workflow
Operational Workflow
- Precision Volumetric Feeding: An automated, calibrated powder-feed shoe slides across the high-tolerance die cavity to evenly deposit a measured quantity of loose spinel powder.
- Multi-Stage Compression:
- Fast Approach: The top ram lowers rapidly to the material surface.
- High-Pressure Compaction: The system applies controlled, heavy tonnage. A multi-action or dual-punch configuration (top and bottom movement) ensures even particle rearrangement and density distribution throughout the depth of the block.
- Dwell Phase: Peak pressure is held for a set duration to allow trapped air to evacuate and the ceramic particles to fully settle, minimizing internal stress or lamination defects.
- Controlled Decompression & Ejection: Hydraulic pressure is gradually bled off to prevent elastic springback cracking. A bottom ejection cylinder then cleanly pushes the solid green spinel block out of the die cavity for transfer to a high-temperature sintering furnace.

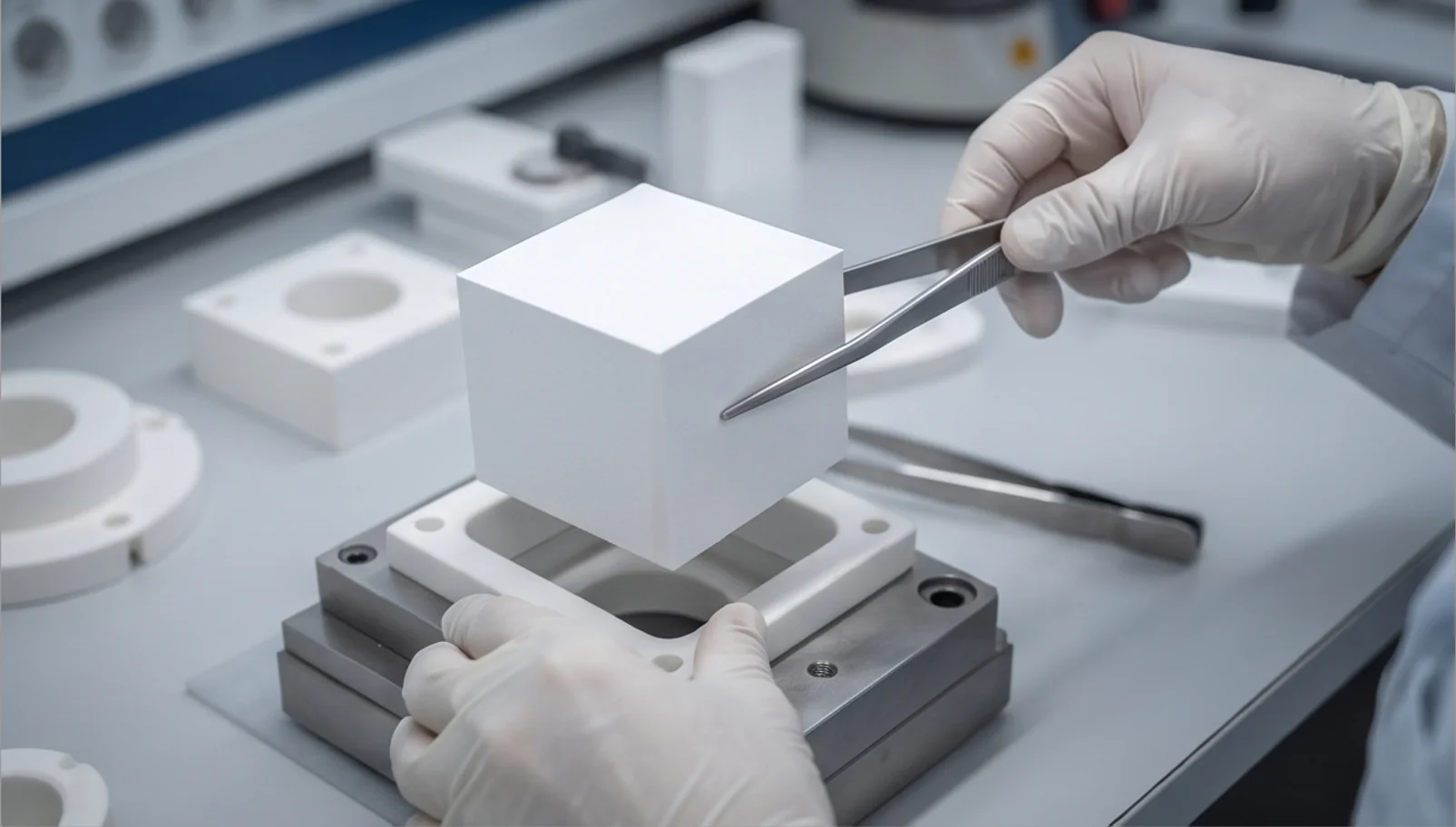

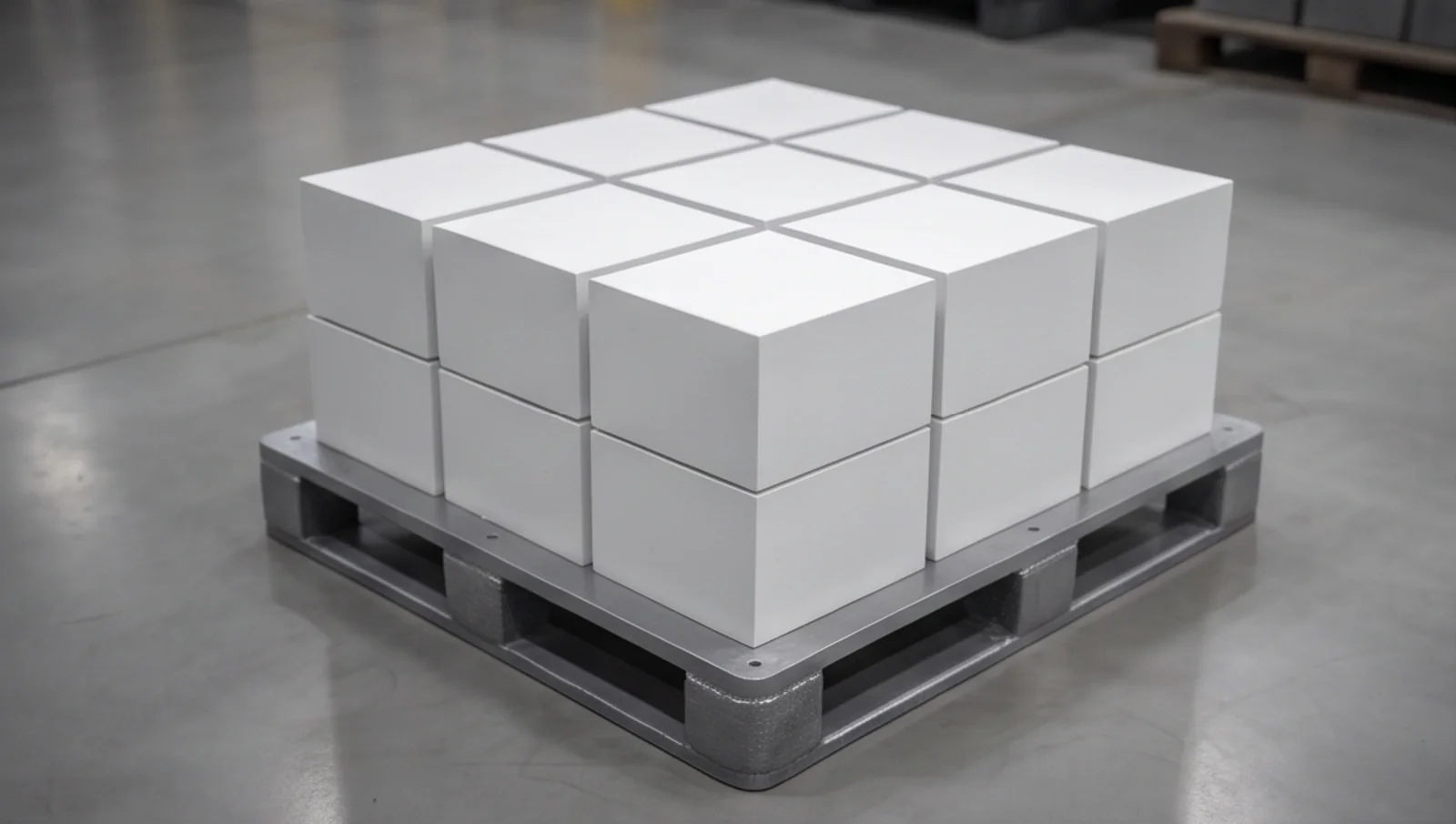

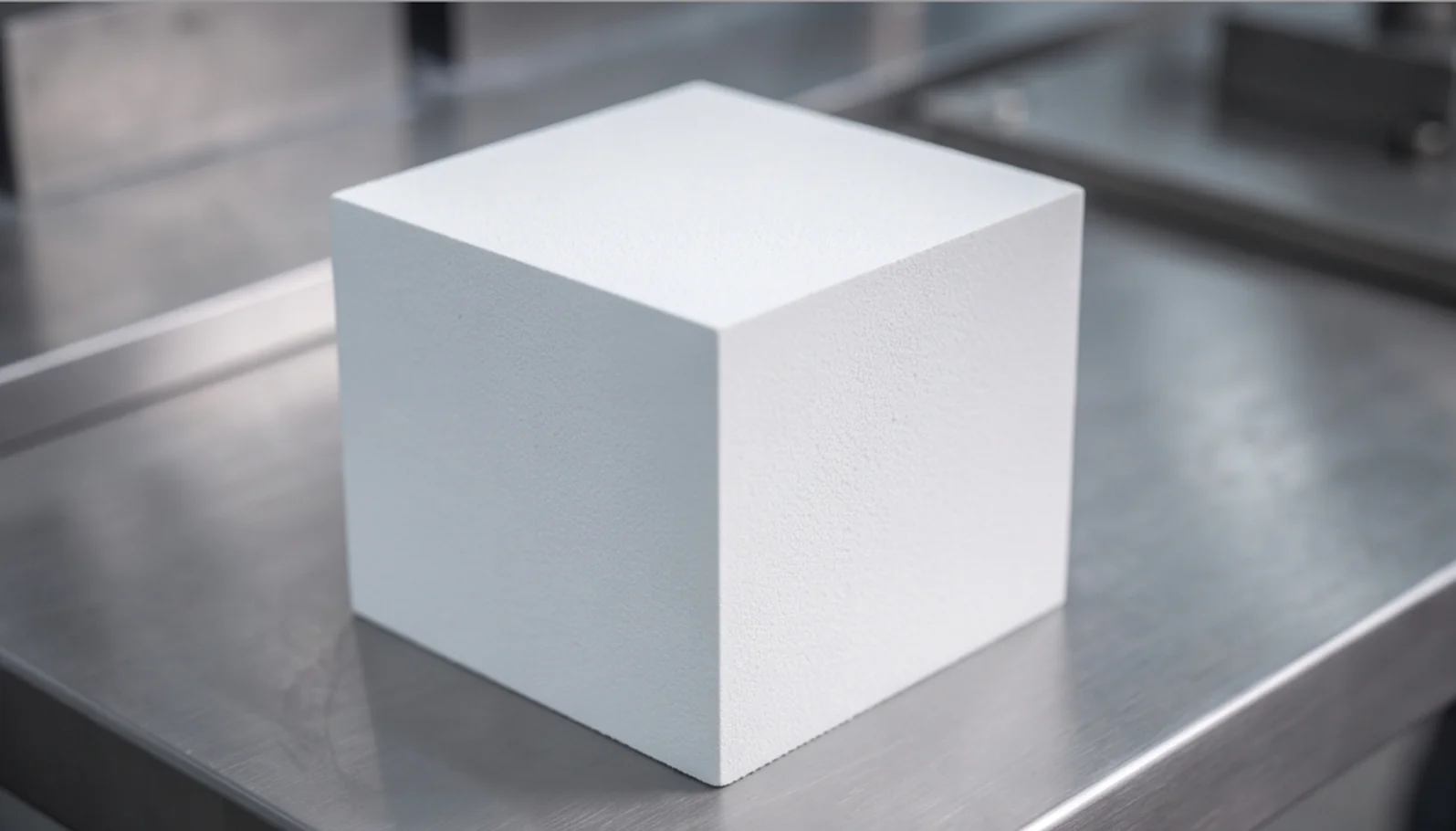

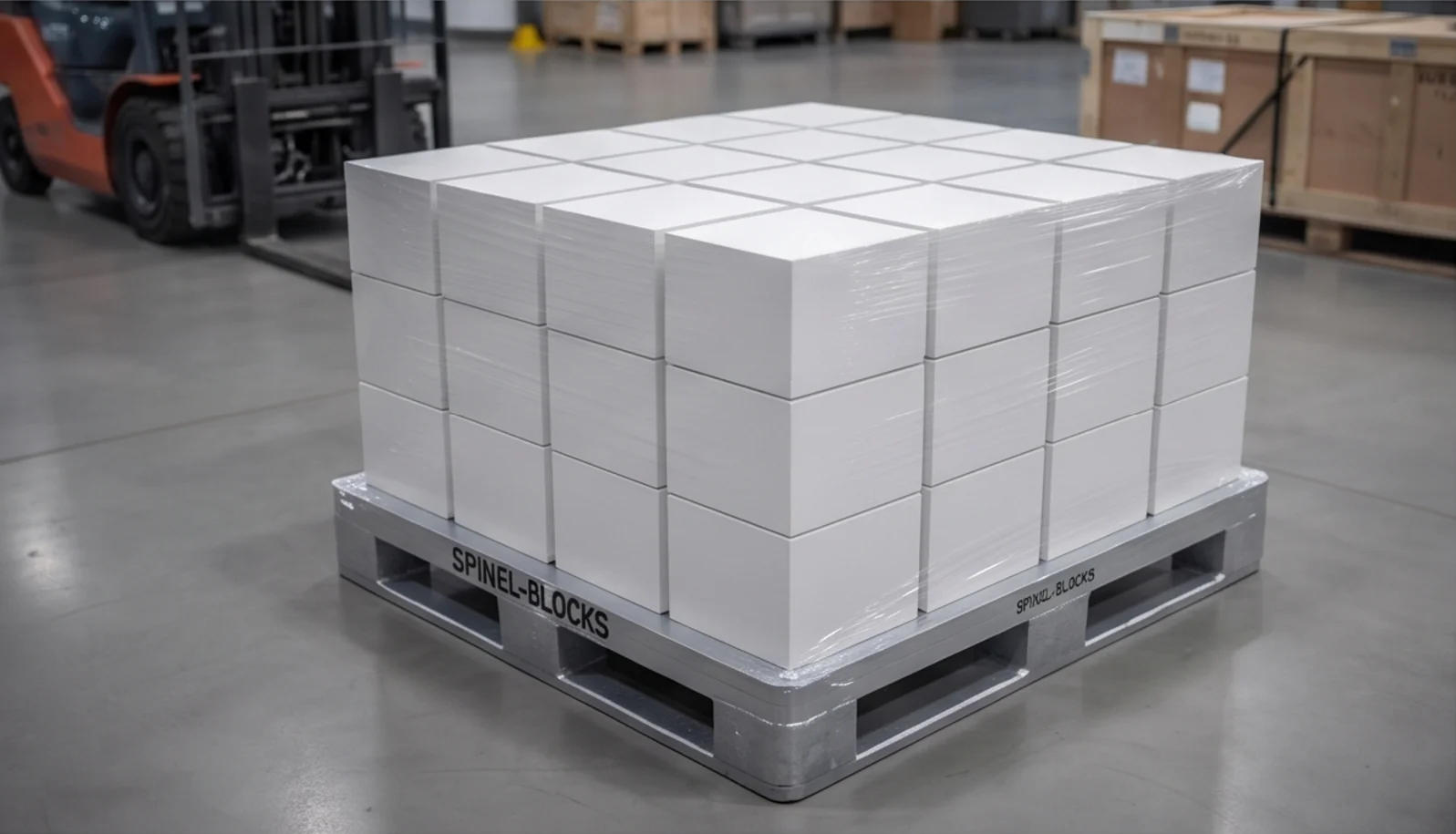

Finished Product Gallery
