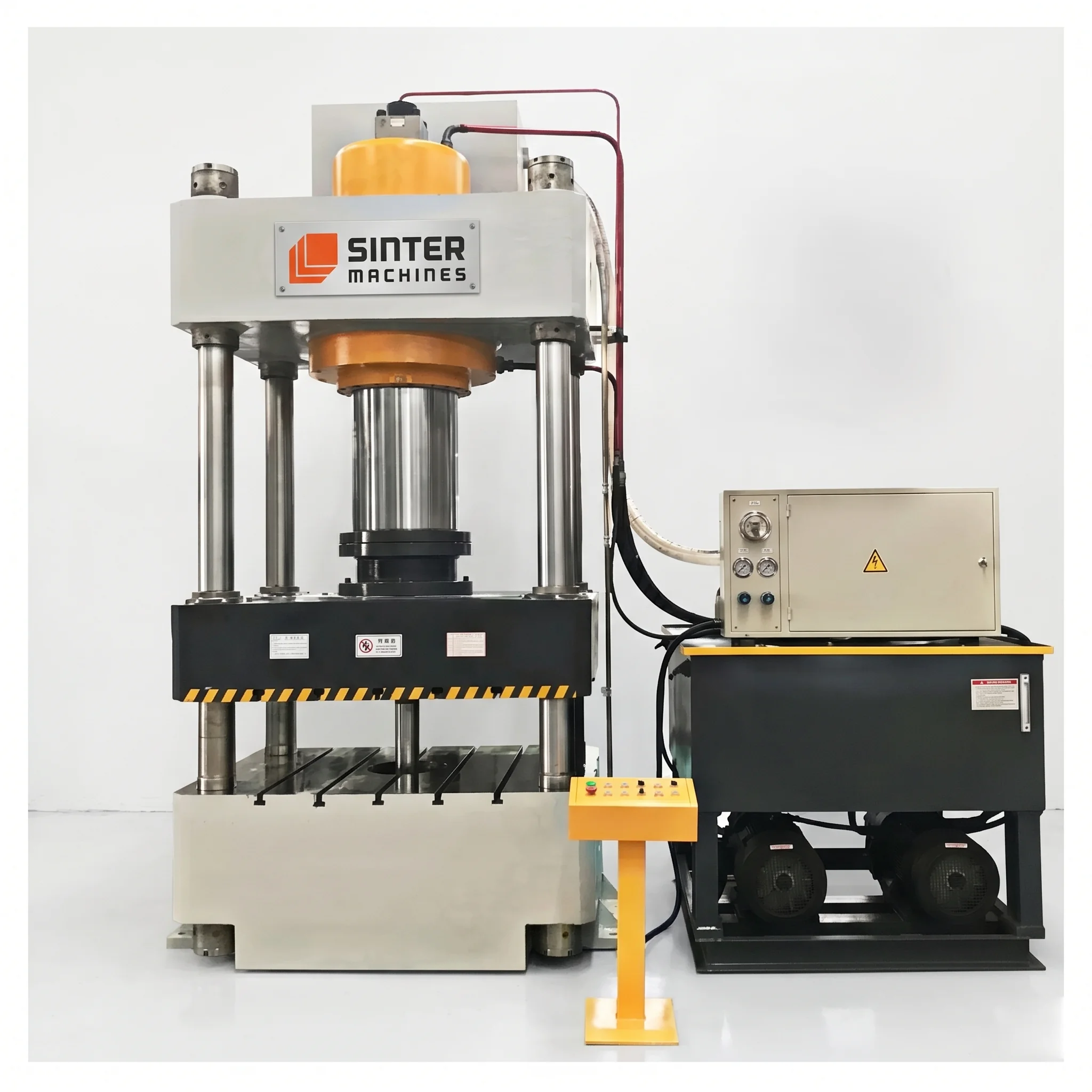

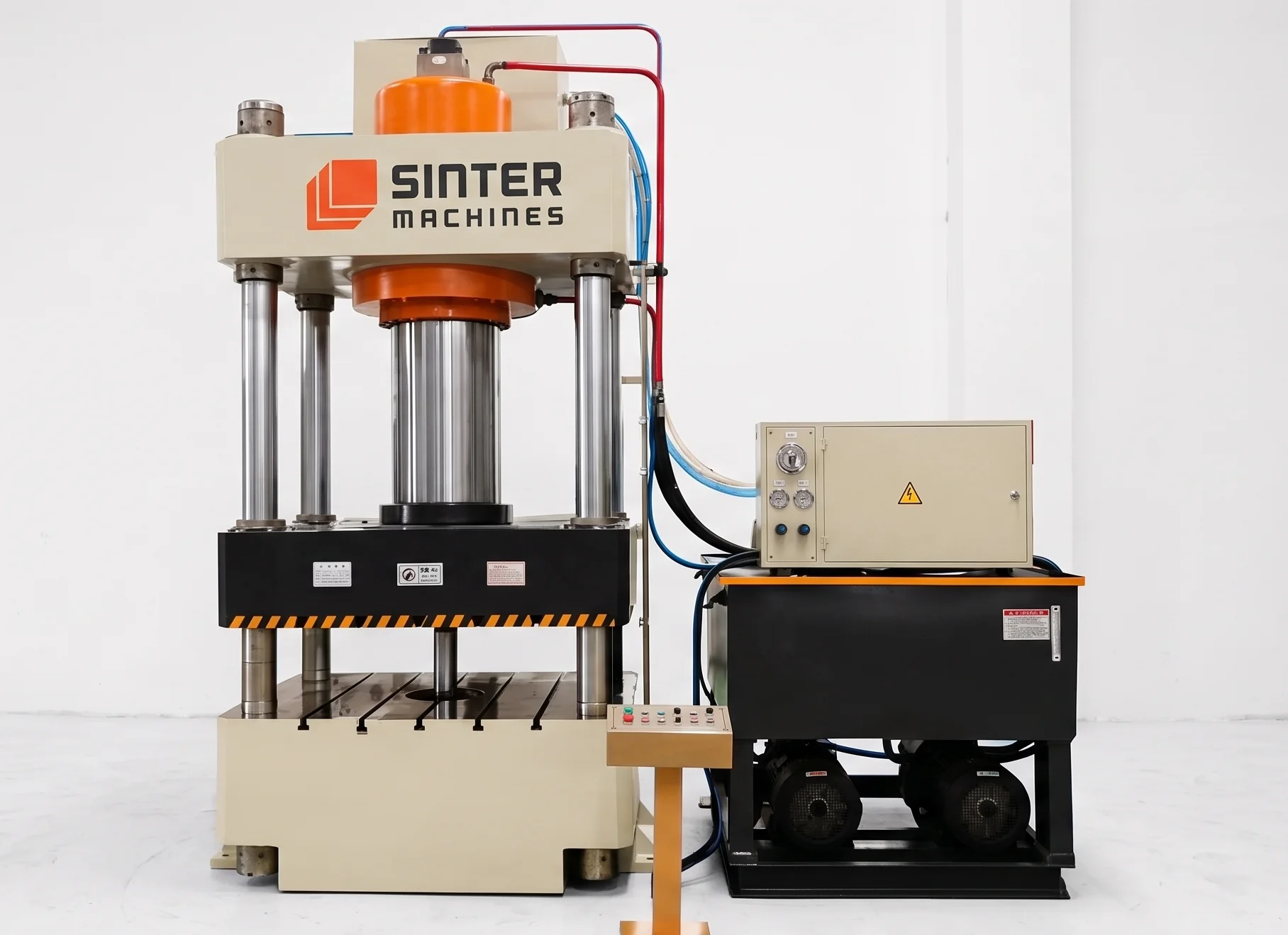

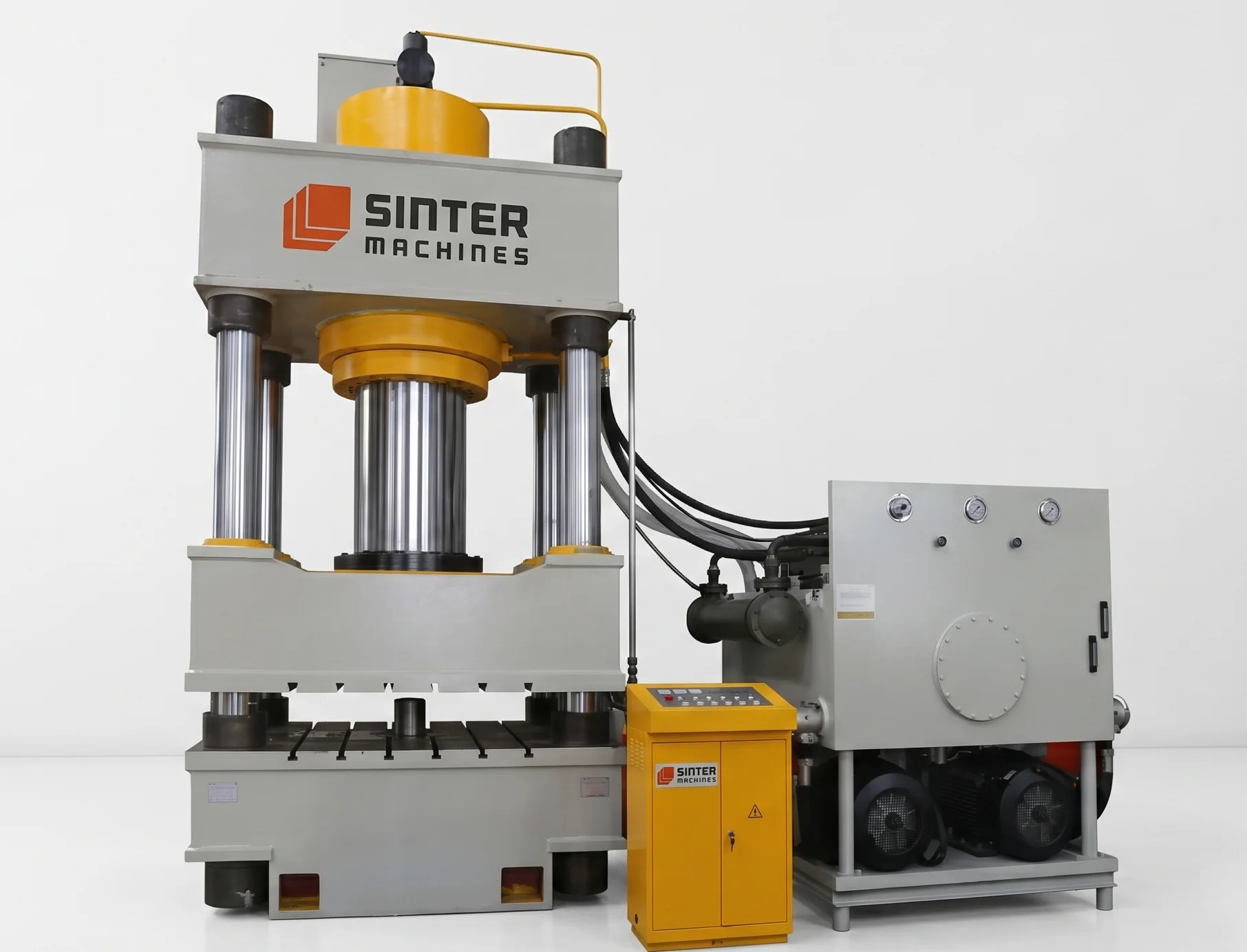

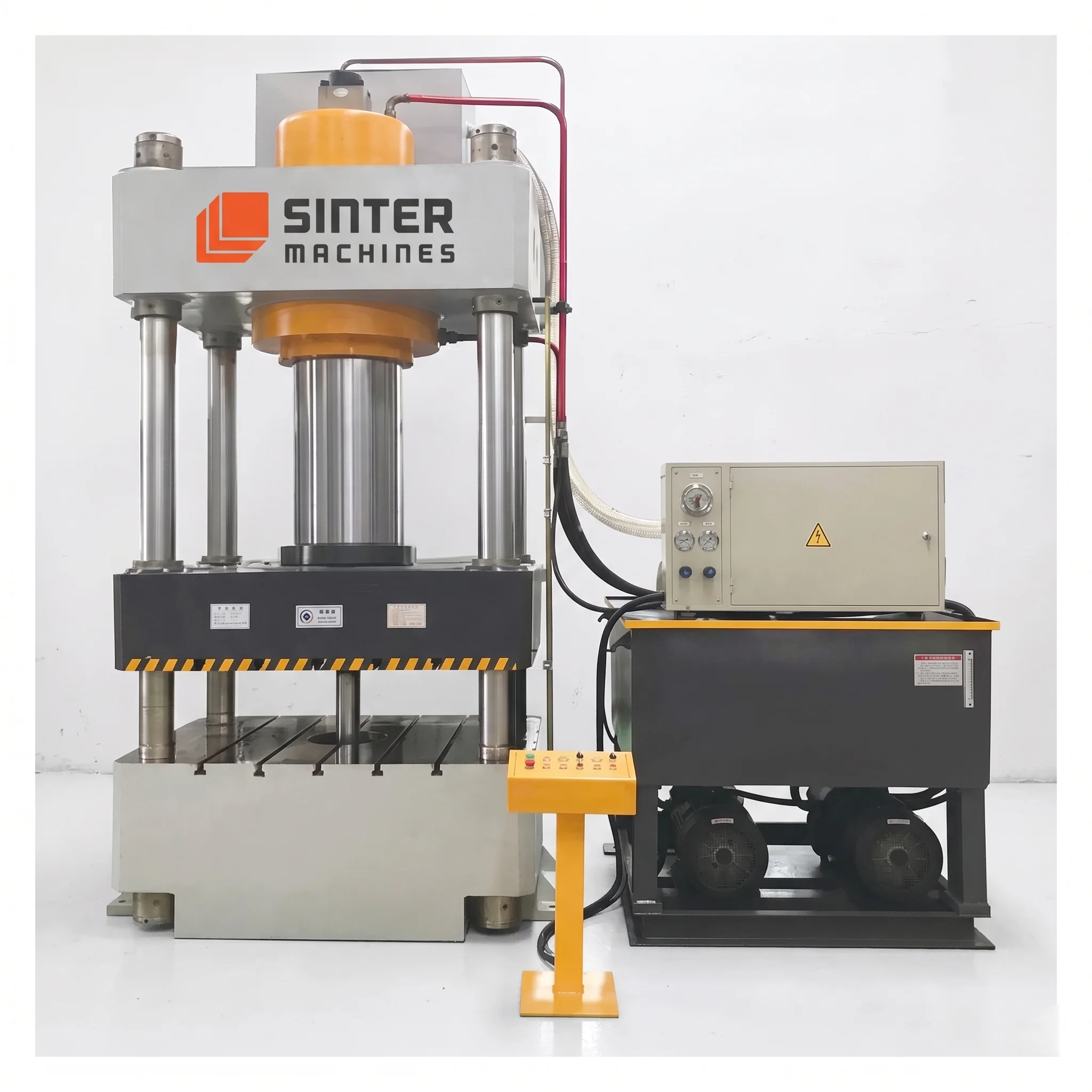

800T Four Pillar Hydraulic Press for Iron Powder Block
Iron Powder Block Forming 4-Column Hydraulic Press Machine is a heavy-duty industrial compaction system specifically engineered to press fine iron or steel powder into high-density, uniform solid green blocks, briquettes, or parts. This equipment is widely utilized in powder metallurgy, magnetic core production, and metal recycling/smelting preparation.
01 — Advantages
Structural Design & Advantages (4-Column Architecture)
High-Precision Guidance: Fine iron powders demand extreme dimensional accuracy and uniform density. The four-pillar precision-ground column architecture ensures absolute platen parallelism and eliminates lateral play, preventing powder leakage around the tight tolerances of the die and punches.
Extreme Tonnage Distribution: Iron powder requires immense pressure to achieve proper particle interlocking and cold-welding. The 4-column frame withstands massive cyclic loads without structural deflection, ensuring even compaction across the entire surface of the block.
02 — Technical Specifications
Key Technical Specifications
Feature | Industrial Specification Range |
Nominal Compaction Force | 100 Tons to 1,000+ Tons (tailored to block surface area and target green density) |
Guide Structure | 4 Hard-Chromed, Precision-Ground Steel Pillars with heavy-duty bushings |
Die & Punch Assembly | High-grade tungsten carbide inserts or hardened alloy tool steel to resist extreme abrasive wear from iron particles |
Hydraulic Drive | Heavy-duty variable displacement piston pumps or servo-hydraulic systems with proportional pressure and speed controls |
Control Unit | PLC system with HMI touchscreen interface for programming fill depth, pressing tonnage, dwell time, and automated ejection |
03 — Operational Workflow
Operational Workflow
- Volumetric Feeding: An automated feed shoe slides precisely over the die cavity, filling it with a measured amount of loose iron powder.
- Multi-Stage Compression:
- Pre-fill / Fast Approach: The top ram lowers quickly to the material surface.
- High-Pressure Compaction: The system applies heavy tonnage, often via a dual-action (top and bottom punch) mechanism to ensure even density distribution throughout the depth of the block.
- Dwell Time: The press holds the peak pressure briefly to allow trapped air to escape and the iron particles to firmly lock into place.
- Controlled Decompression & Ejection: Pressure is smoothly bled off to prevent elastic springback cracking. A bottom hydraulic cylinder then cleanly pushes the solid iron block out of the die cavity for downstream sintering or processing.

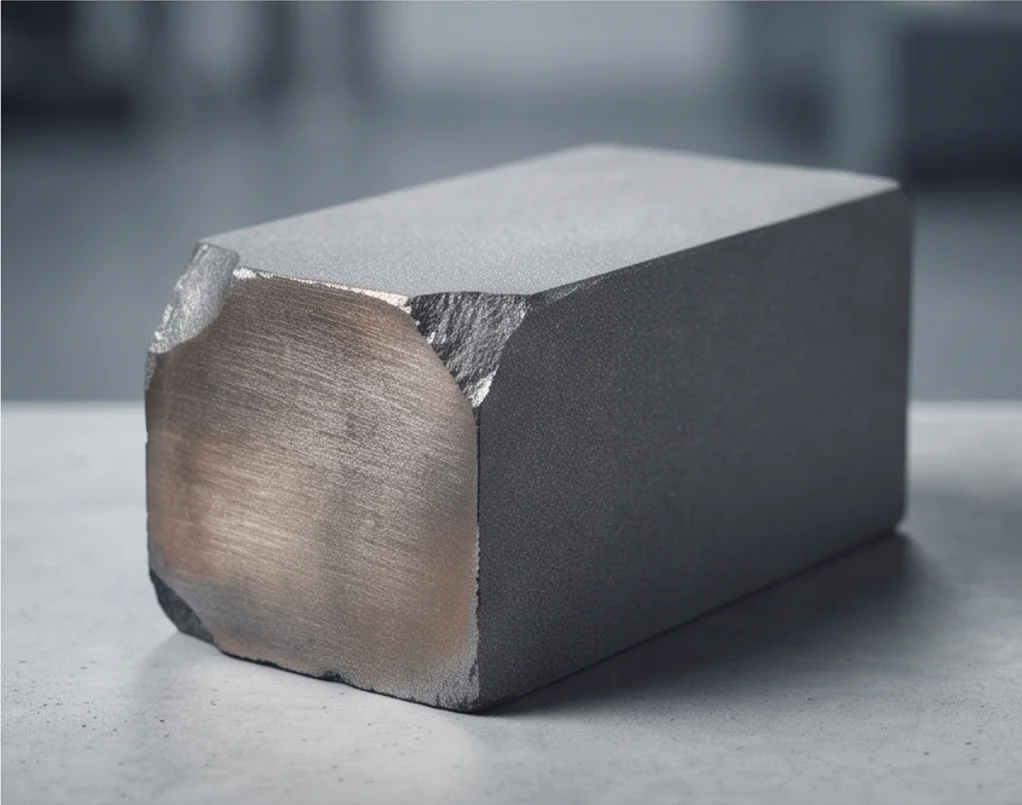

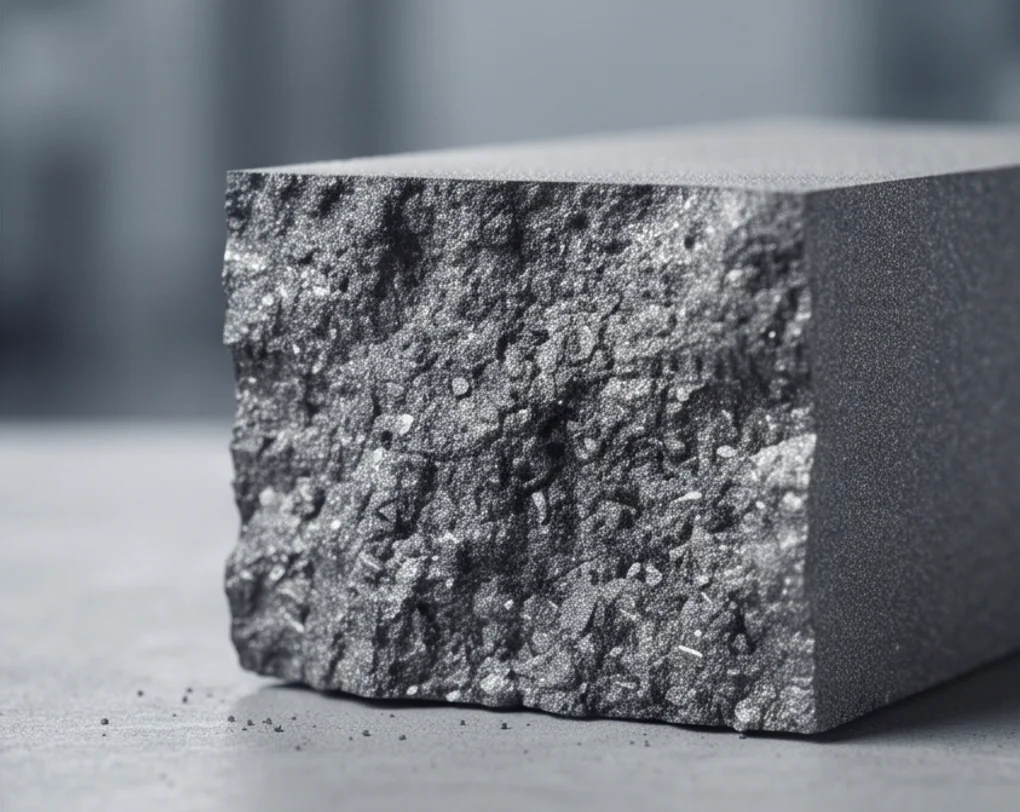

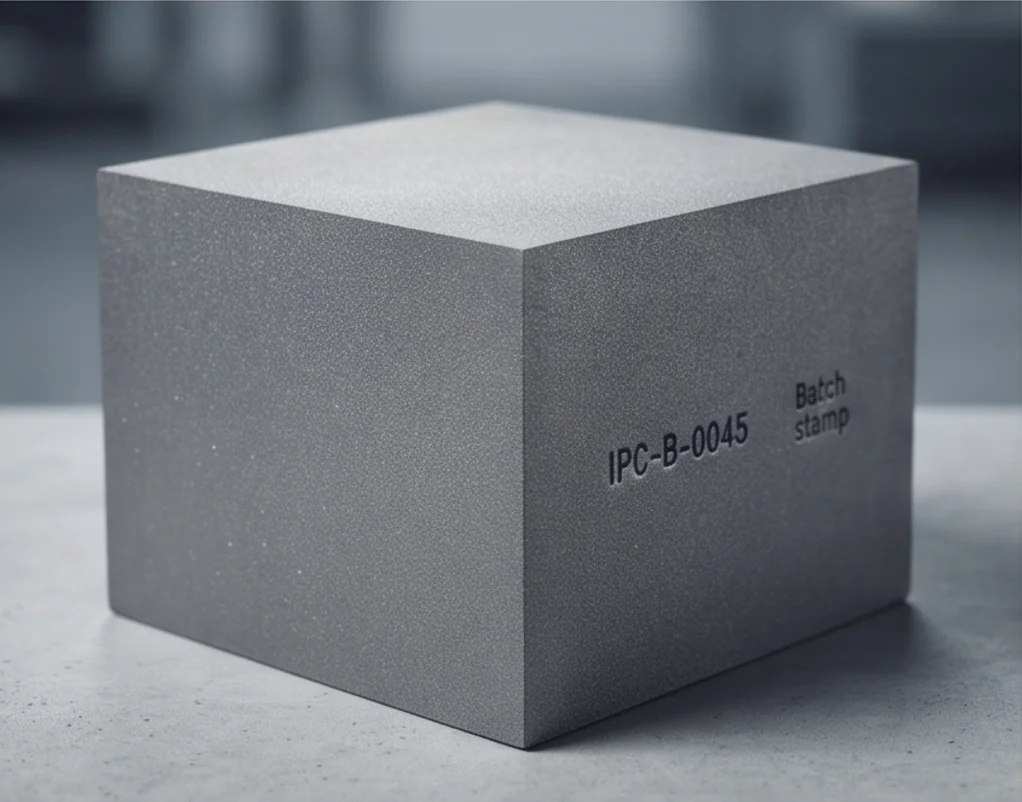

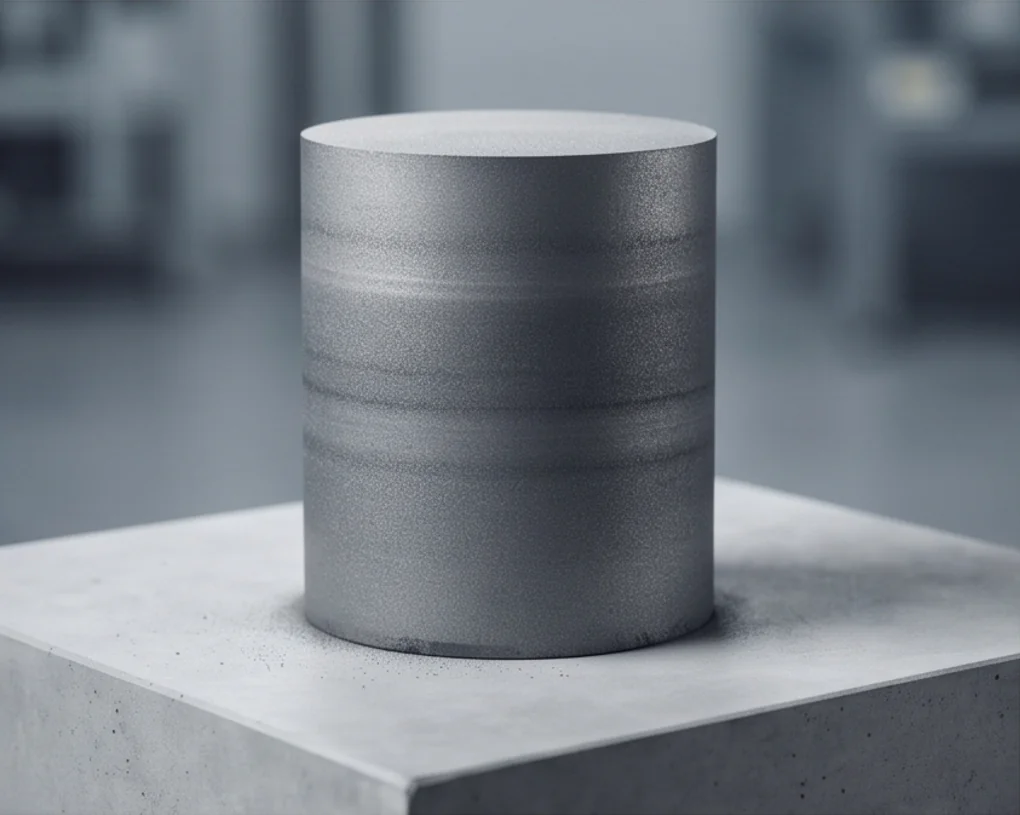

Finished Product Gallery
