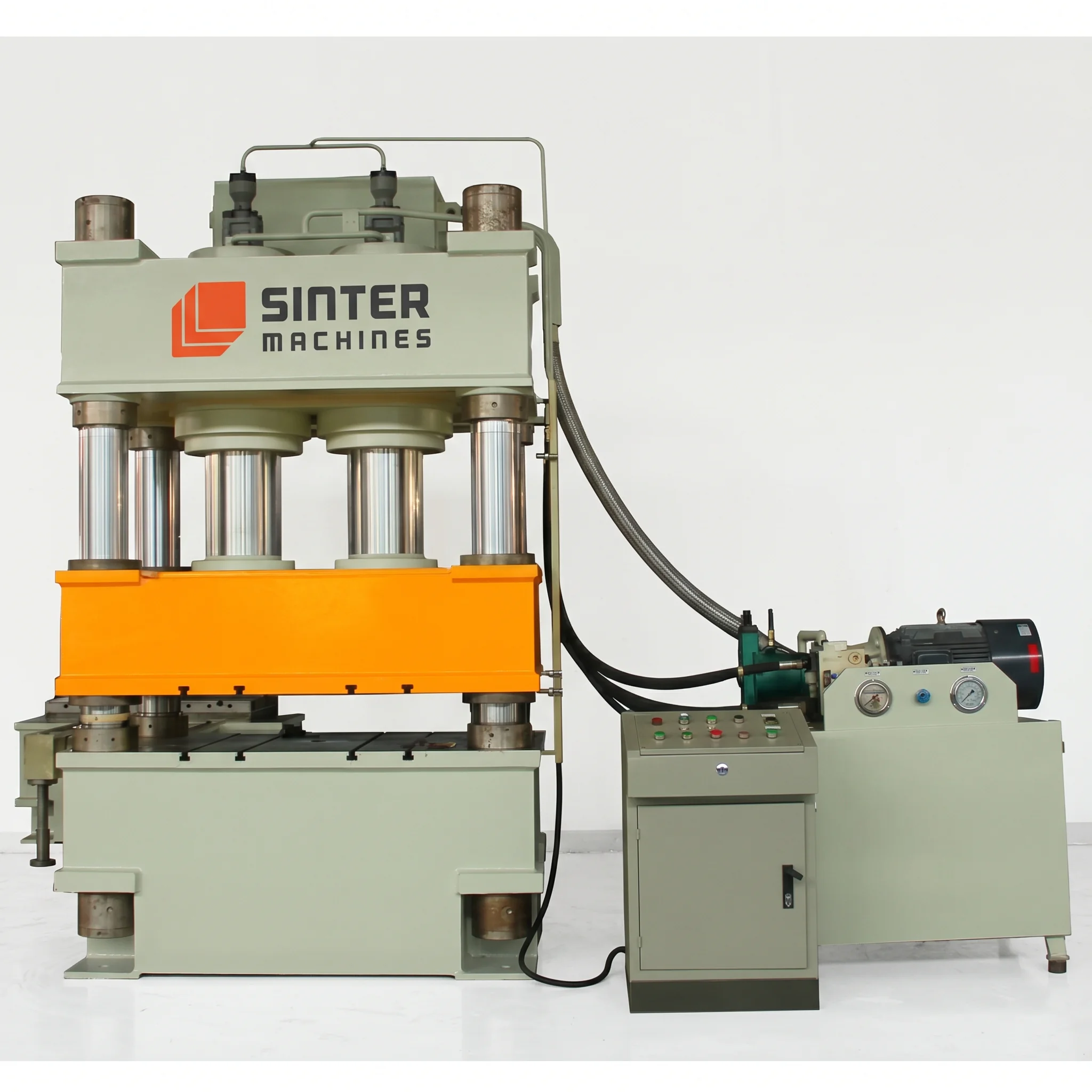

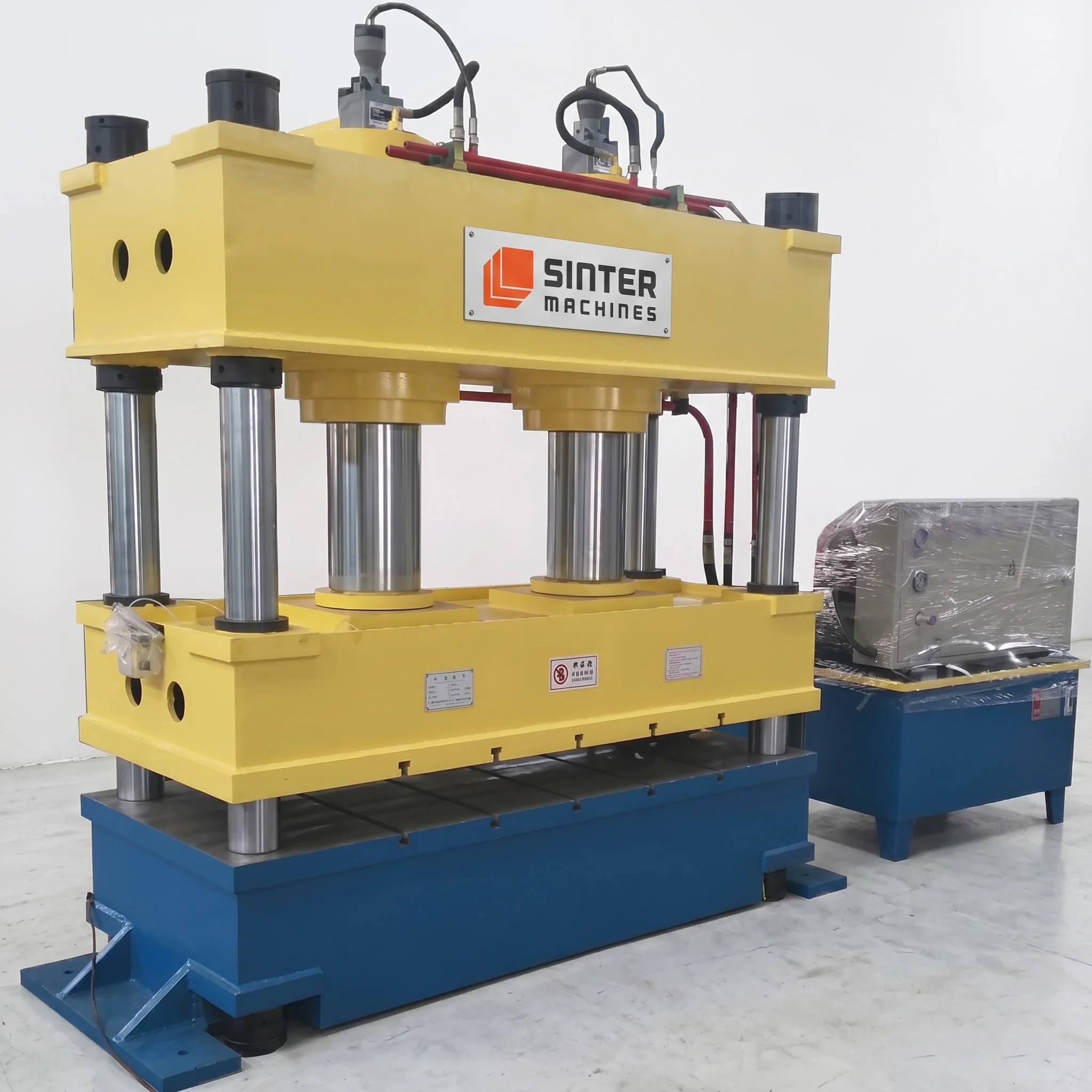

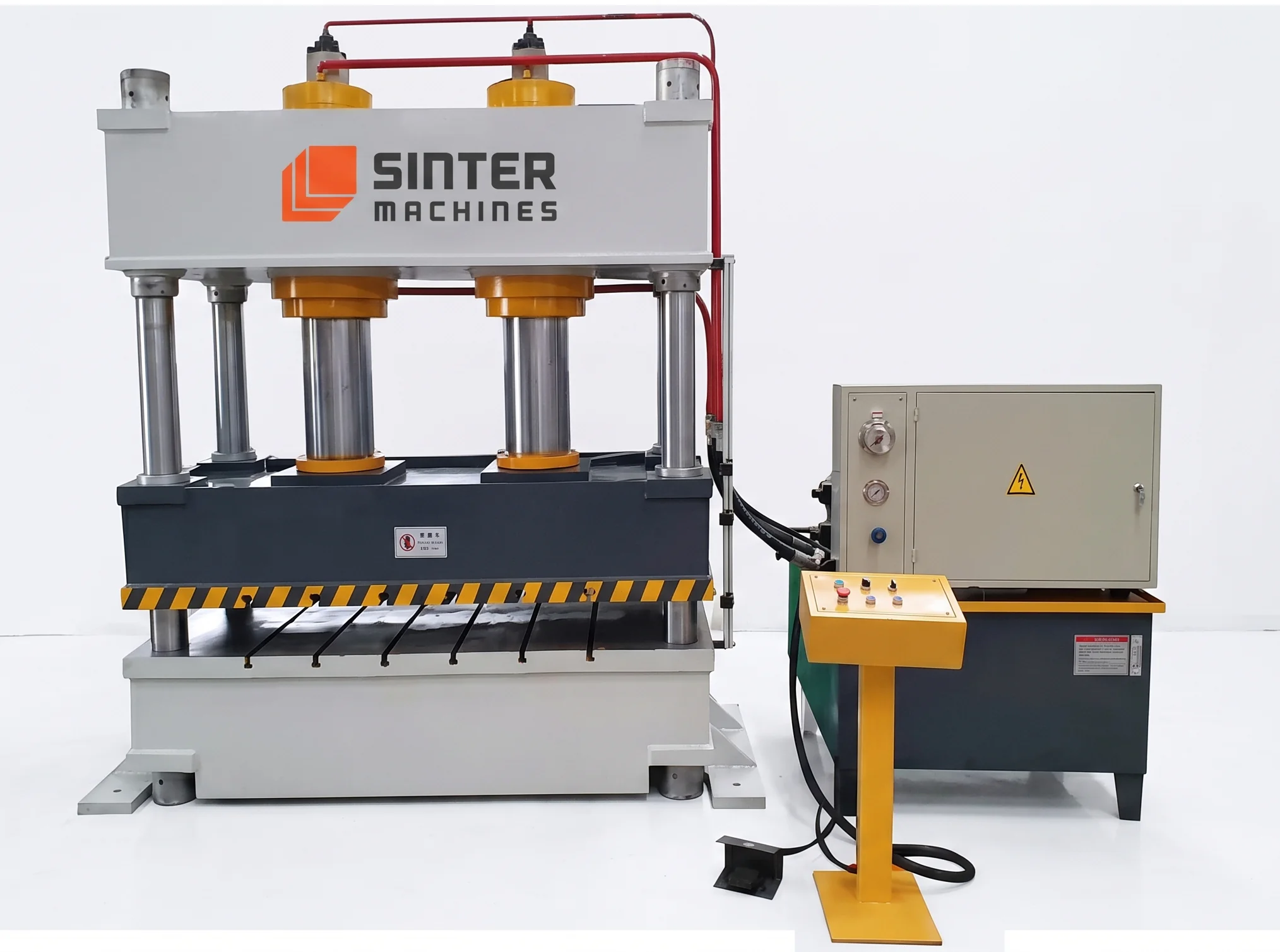

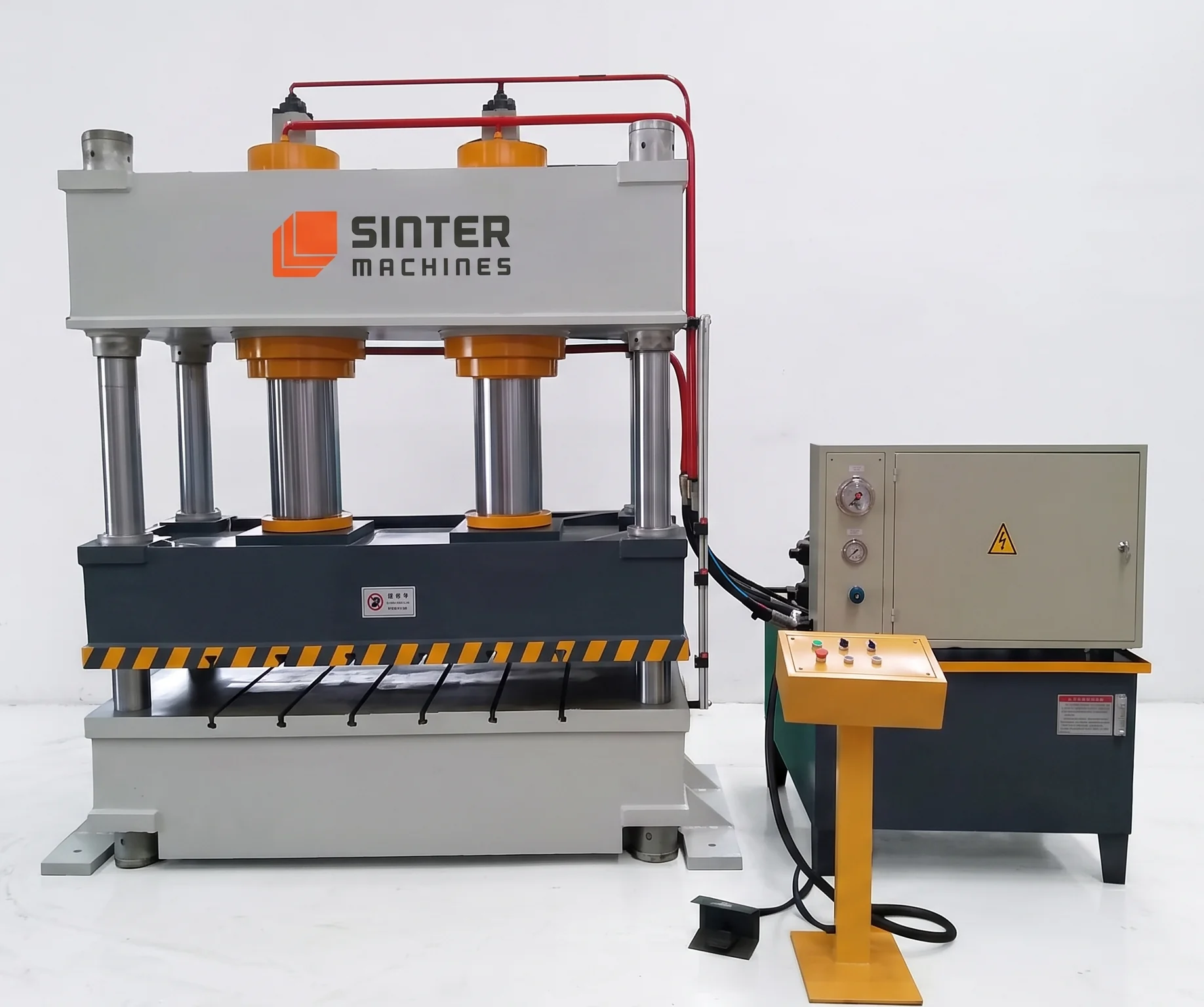

400T Four Column Hydraulic Press for Plastic Sand Decking Plank

Capacity

• Pressing Capacity: 400 Ton

Structural Design

• Frame Type: Heavy duty four column rigid tie rod structure

Hydraulic System

• Main Ram Stroke: 600 mm
• Working Hydraulic Pressure: 250 Bar
• Daylight Gap: 1000 mm
• Approach Speed: 120 mm per Sec
• Pressing / Drawing Speed: 8 to 15 mm per Sec
• Return Speed: 100 mm per Sec
• Bed / Platen Size: 1500 x 1000 mm
• Columns: 4 Solid hard chrome plated steel pillars

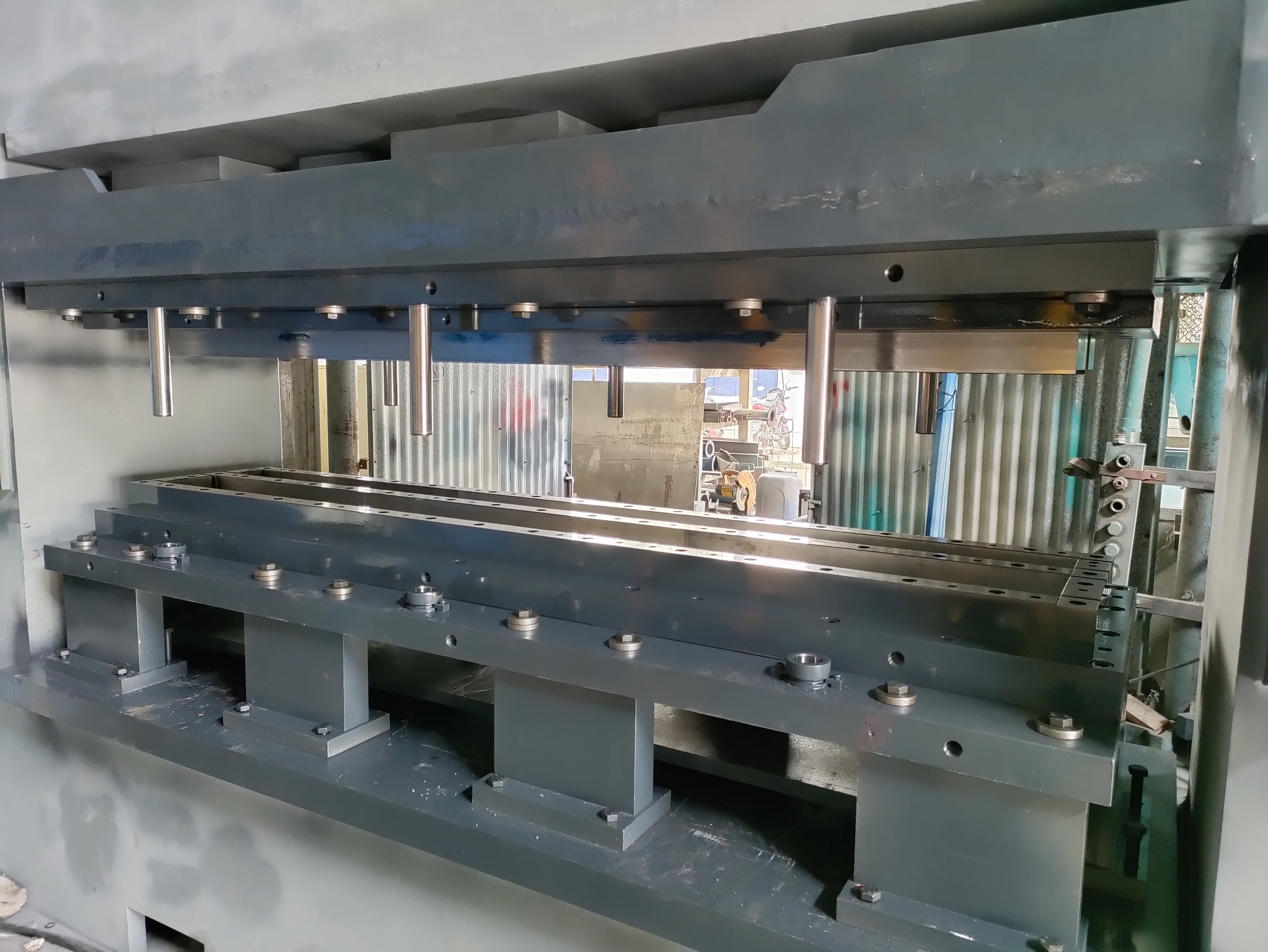

Working Envelope: Maximum operational clearance for deep cavity mold systems

Control System

• Main Motor Power: 30 HP
• Valves and Hydraulics: Proportional pressure and flow control block manifold system
• Automation: PLC controlled with human machine interface touchscreen panel

Safety Features: Dual palm switch buttons, safety light curtains, and automatic overload protection valves

SM 400 HP — Model Specifications

• Nominal Force: 4000 KN
• Maximum Hydraulic Pressure: 25 MPa
• Max Opening Height of the Slider: 1250 mm
• Max Stroke of the Slider: 800 mm
• Effective Bed Size: 1260 × 1160 mm
• Slider Down Speed: 100 mm/s
• Slider Pressing Speed: 7–12 mm/s
• Slider Return Speed: 100 mm/s
• Ejector Cylinder Nominal Force: 400 KN
• Stroke of the Ejection Cylinder: 300 mm
