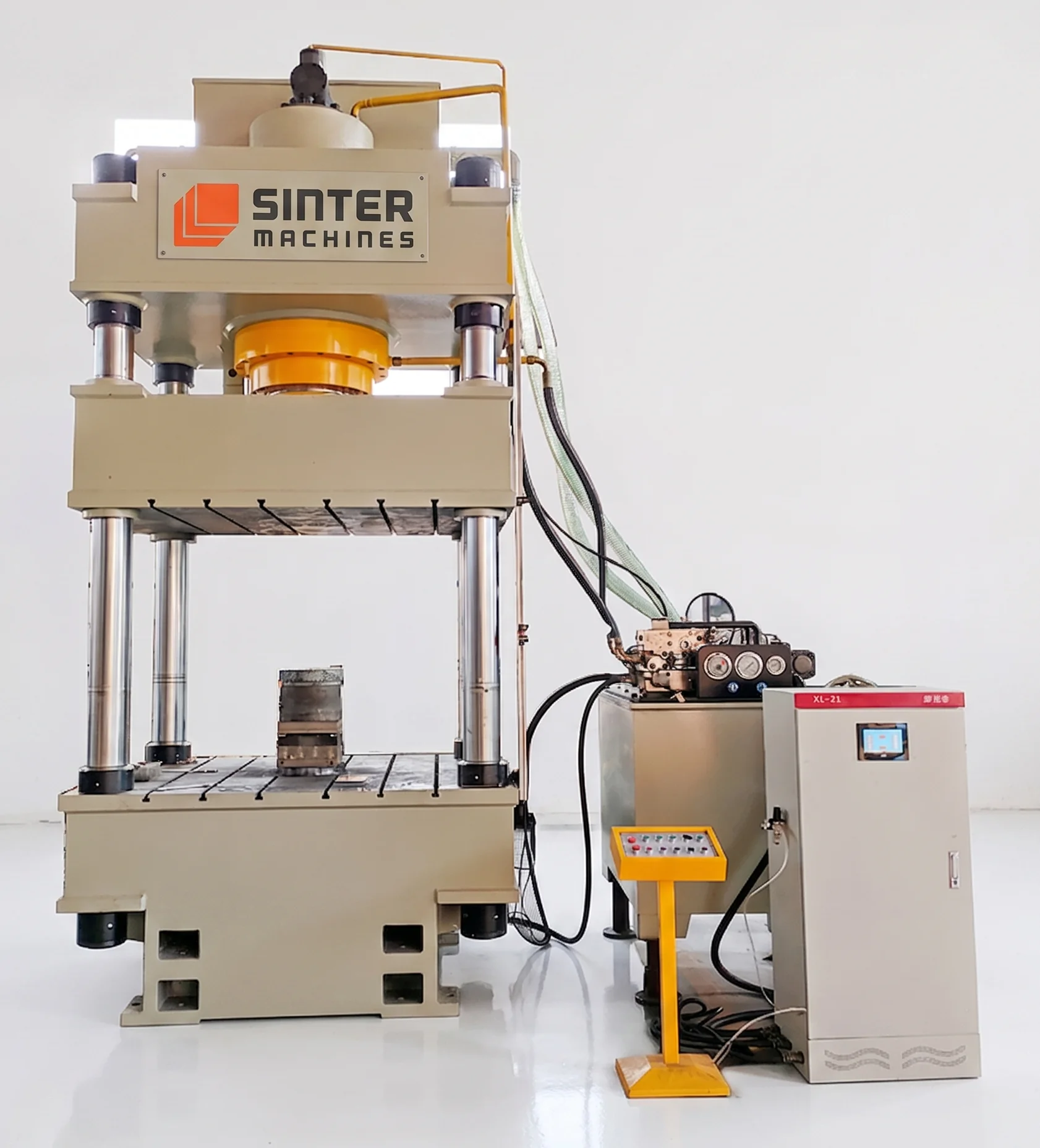

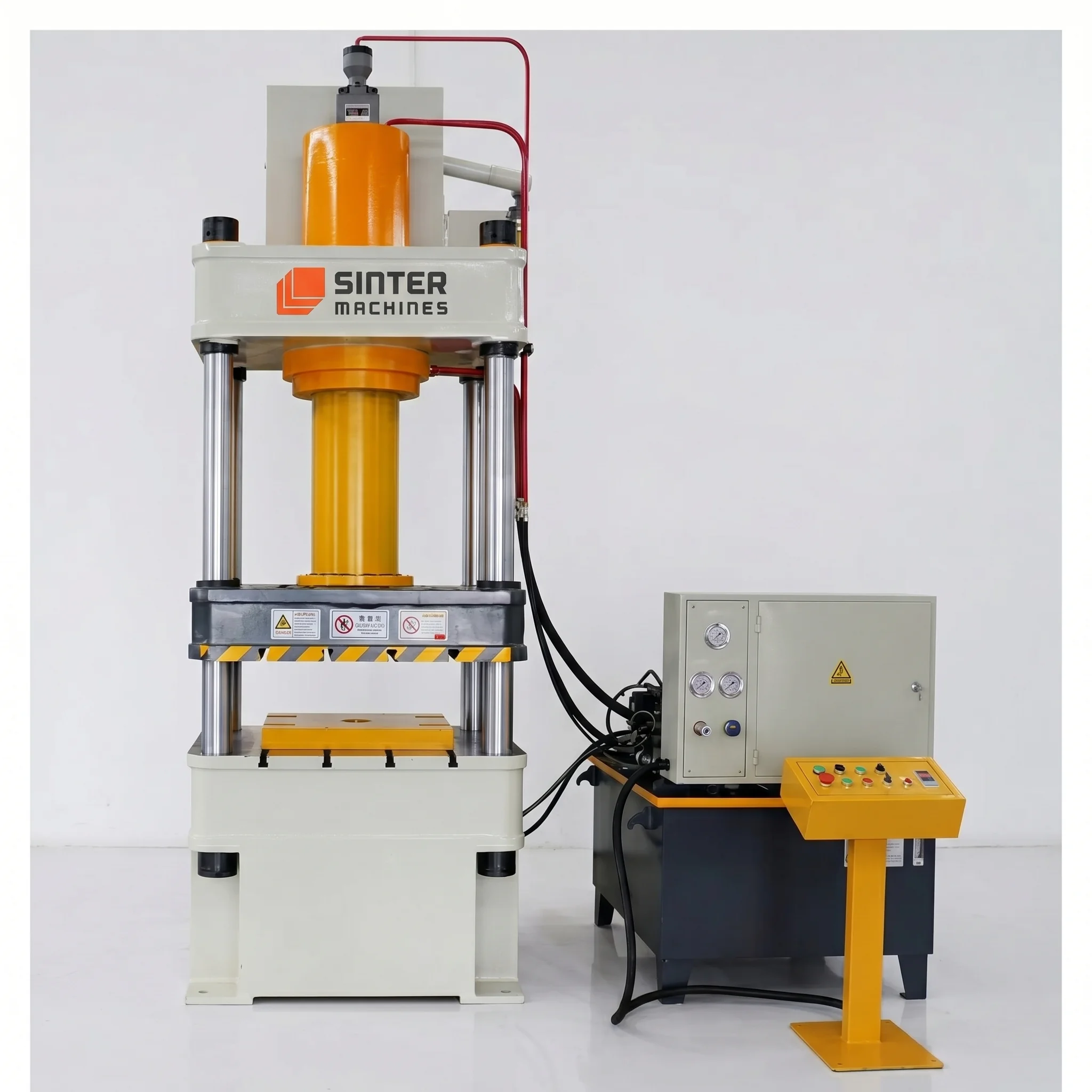

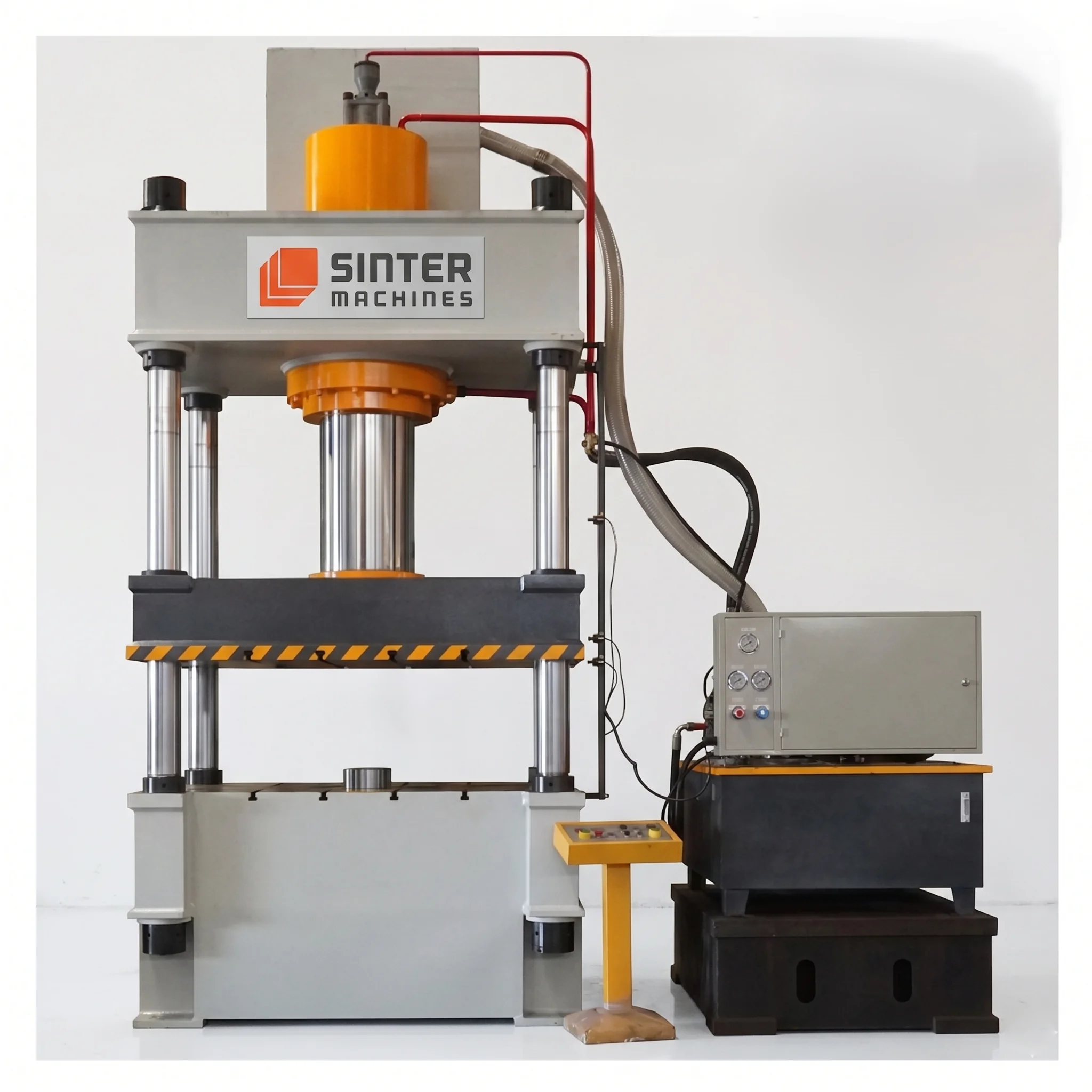

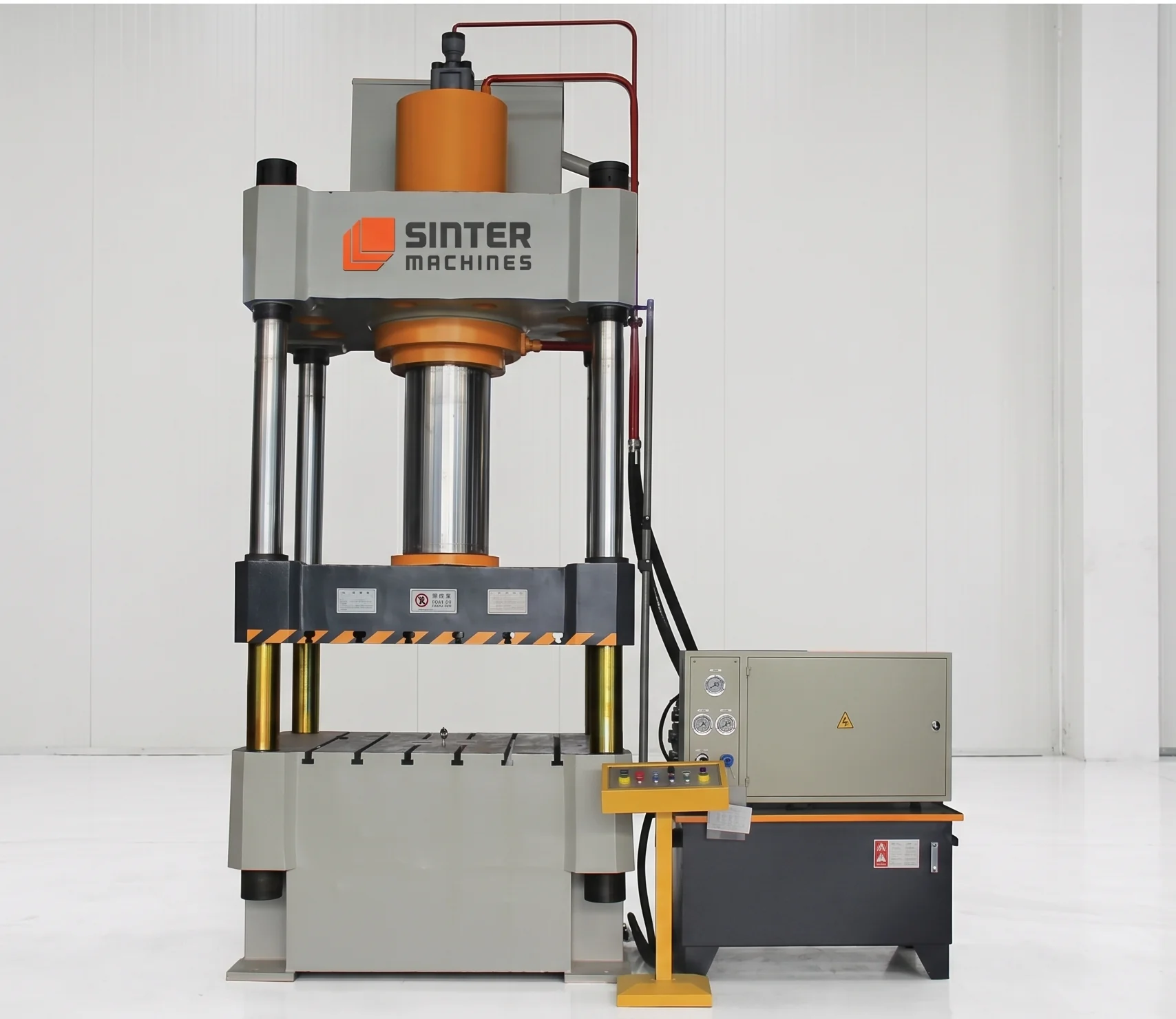

315T Four Column Hydraulic Press for Stibnite Powder Block
Stibnite Powder Block Forming 4-Column Hydraulic Press Machine is a specialized heavy-duty industrial compaction system engineered to compress fine stibnite powder ($\text{Sb}_2\text{S}_3$, antimony sulfide) or mineral concentrates into dense, uniform solid blocks, briquettes, or charge preforms.
These machines are utilized in pyrometallurgical processing, antimony smelting preparation, and chemical manufacturing, where loose sulfide powders must be consolidated to minimize dusting, prevent material loss, and optimize furnace feed rates.
01 — Safety Features
Structural Design & Safety Features (4-Column Architecture)
High-Precision Guidance: Sulfide mineral powders require strict control over compaction uniformity. The four-pillar precision-ground column architecture ensures absolute platen parallelism and eliminates lateral play, preventing uneven wall pressures and ensuring consistent block density.
Sealed & Contained Processing: Because stibnite contains antimony—a toxic heavy metal—the press is frequently integrated with enclosed or sealed feeding hoppers, local exhaust ventilation (LEV) ports, and dust containment features to ensure operator safety and environmental compliance.
02 — Technical Specifications
Key Technical Specifications
Feature | Industrial Specification Range |
Nominal Compaction Force | 50 Tons to 400+ Tons (tailored to block cross-sectional area and target density) |
Guide Structure | 4 Hard-Chromed, Precision-Ground Steel Pillars with heavy-duty, low-friction bushings |
Die & Punch Assembly | Hardened alloy tool steel or wear-resistant carbide inserts designed to handle abrasive sulfide mineral powders |
Hydraulic Drive | Variable displacement piston pumps or servo-hydraulic systems with smooth proportional pressure control |
Control Unit | PLC system with HMI touchscreen interface for programming fill depth, pressing tonnage, dwell time, and automated extraction |
03 — Operational Workflow
Operational Workflow
- Enclosed Volumetric Feeding: An automated, sealed feed shoe slides precisely over the die cavity to deposit a measured volume of loose stibnite powder, minimizing airborne dust.
- Multi-Stage Compression:
- Fast Approach: The top ram lowers quickly to the material surface.
- High-Pressure Compaction: The system applies controlled tonnage. A multi-action or dual-punch configuration ensures even particle interlocking and density distribution throughout the depth of the block.
- Dwell Phase: Peak pressure is held for a set duration to allow trapped air to evacuate and the sulfide particles to firmly settle, minimizing internal stress or cracking.
- Controlled Decompression & Ejection: Hydraulic pressure is gradually bled off to prevent surface cracking from elastic springback. A bottom ejection cylinder then cleanly pushes the solid stibnite block out of the die cavity for downstream smelting or processing.

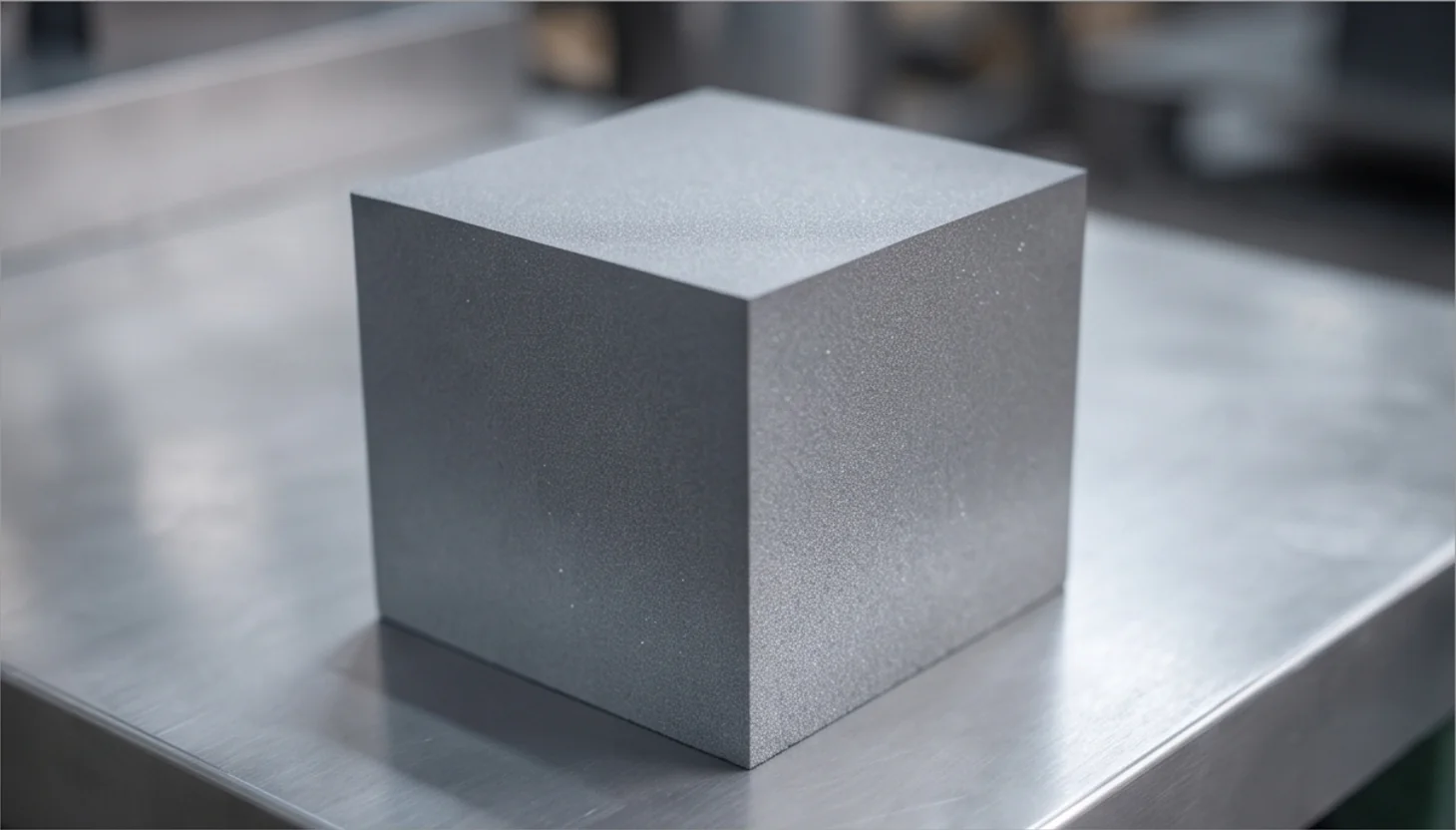

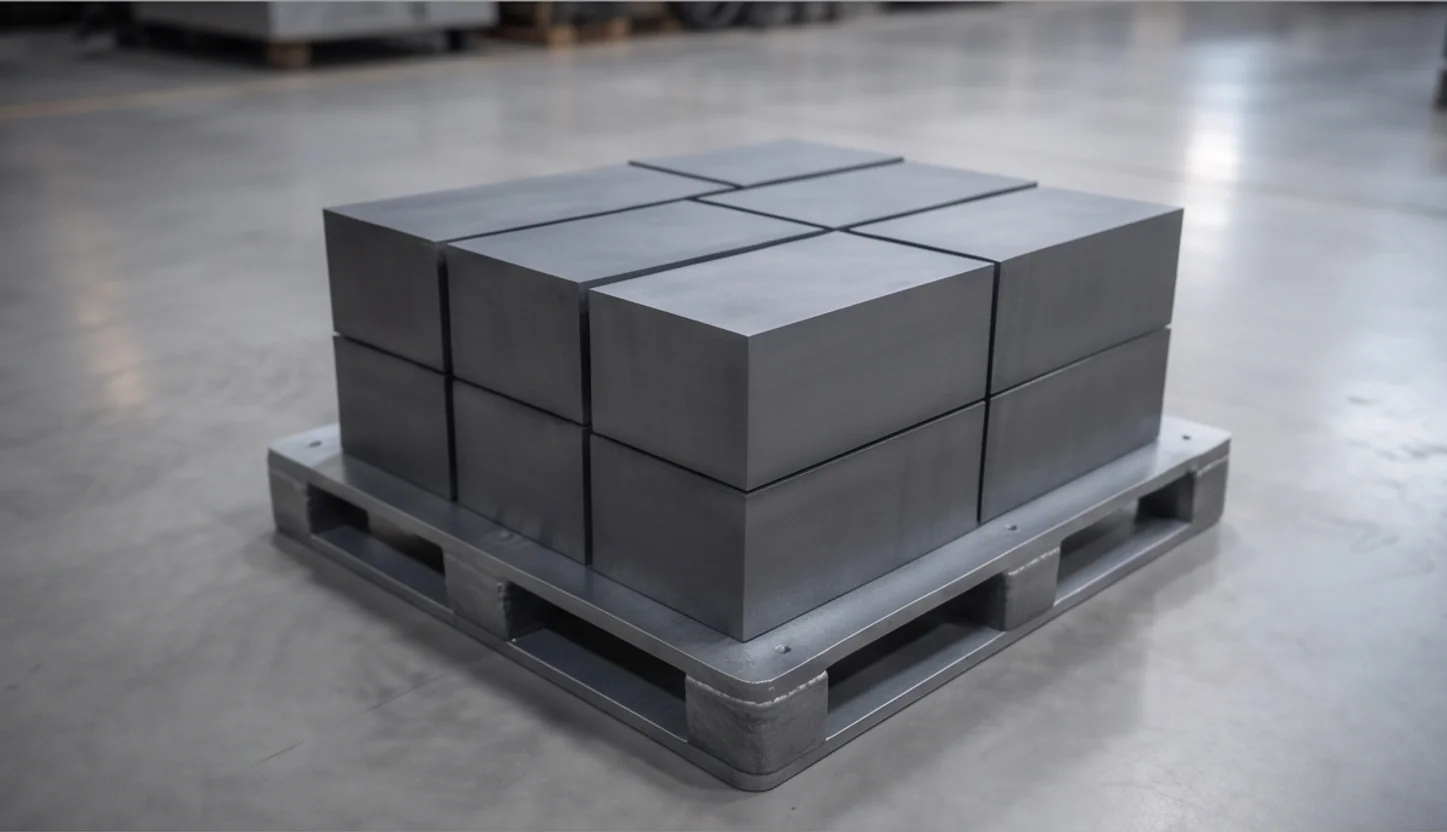

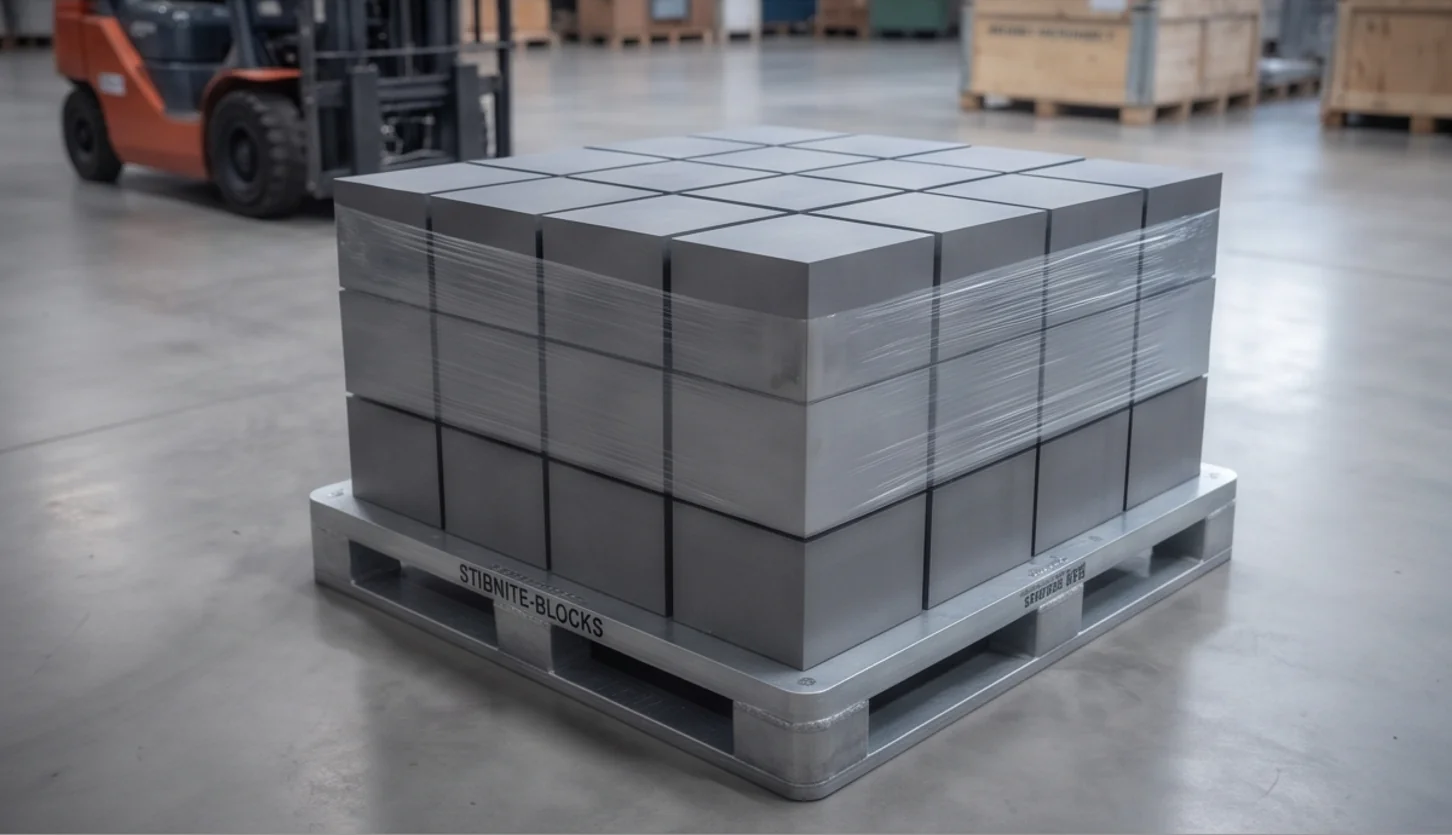

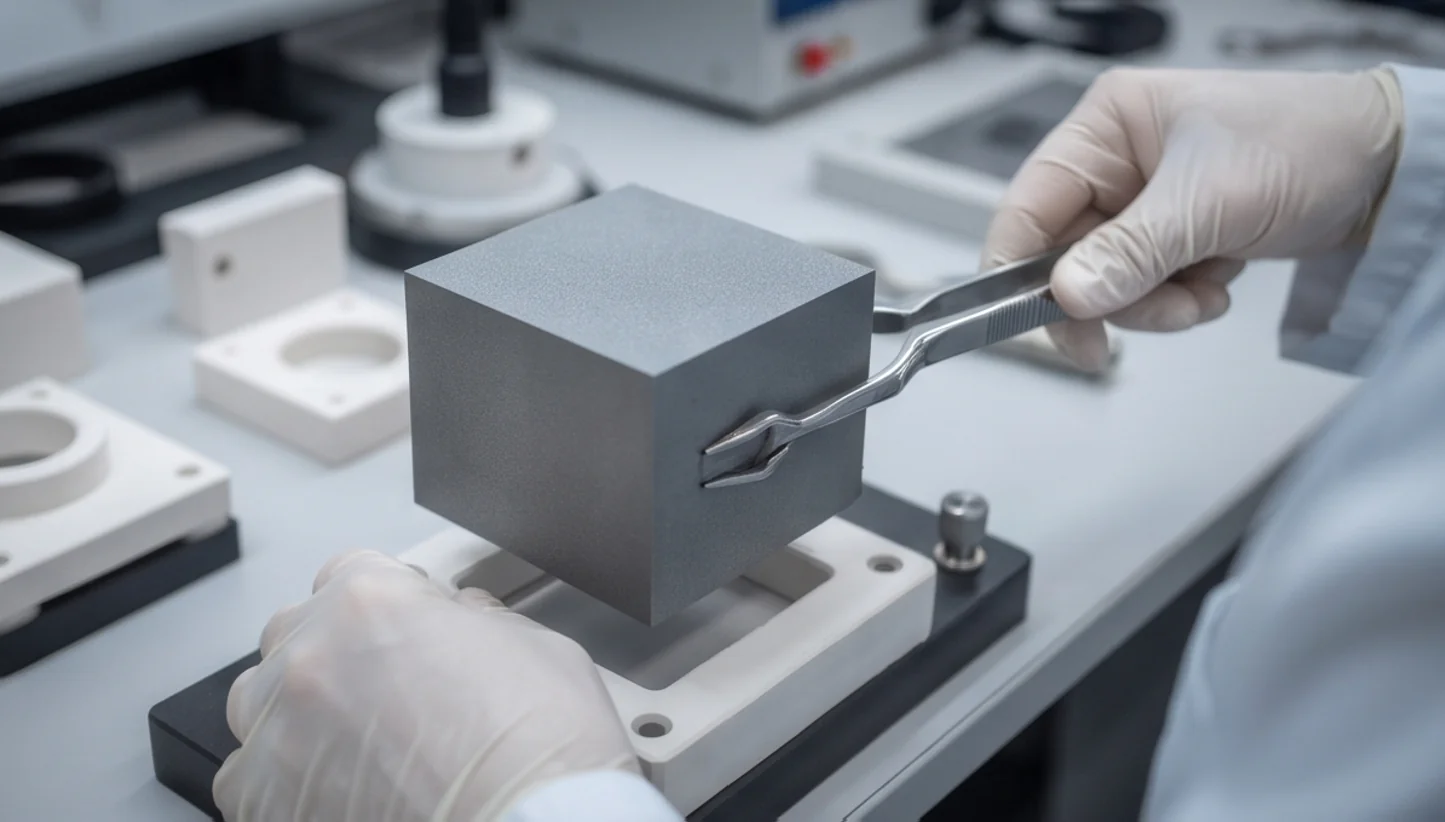

Finished Product Gallery
