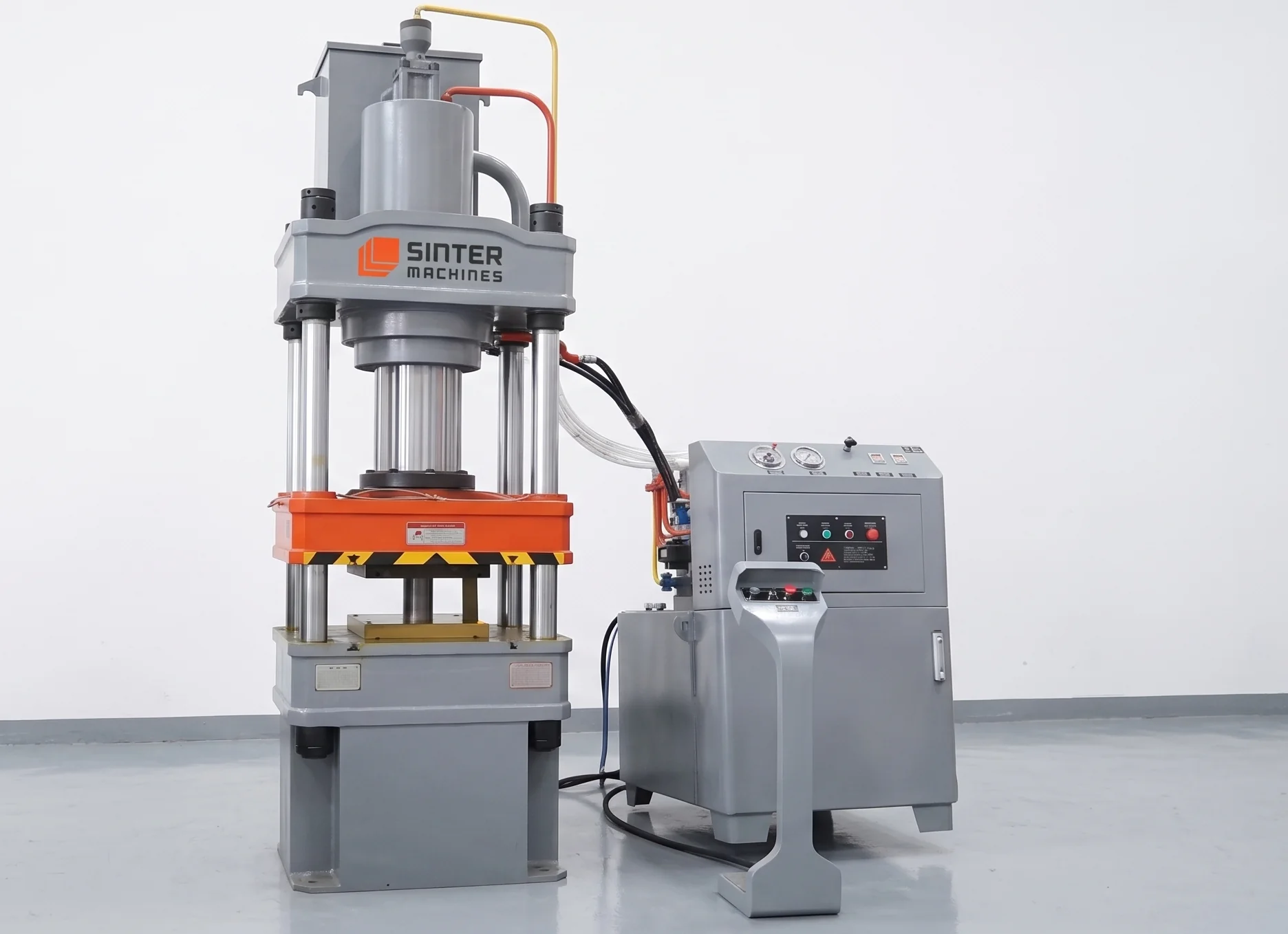

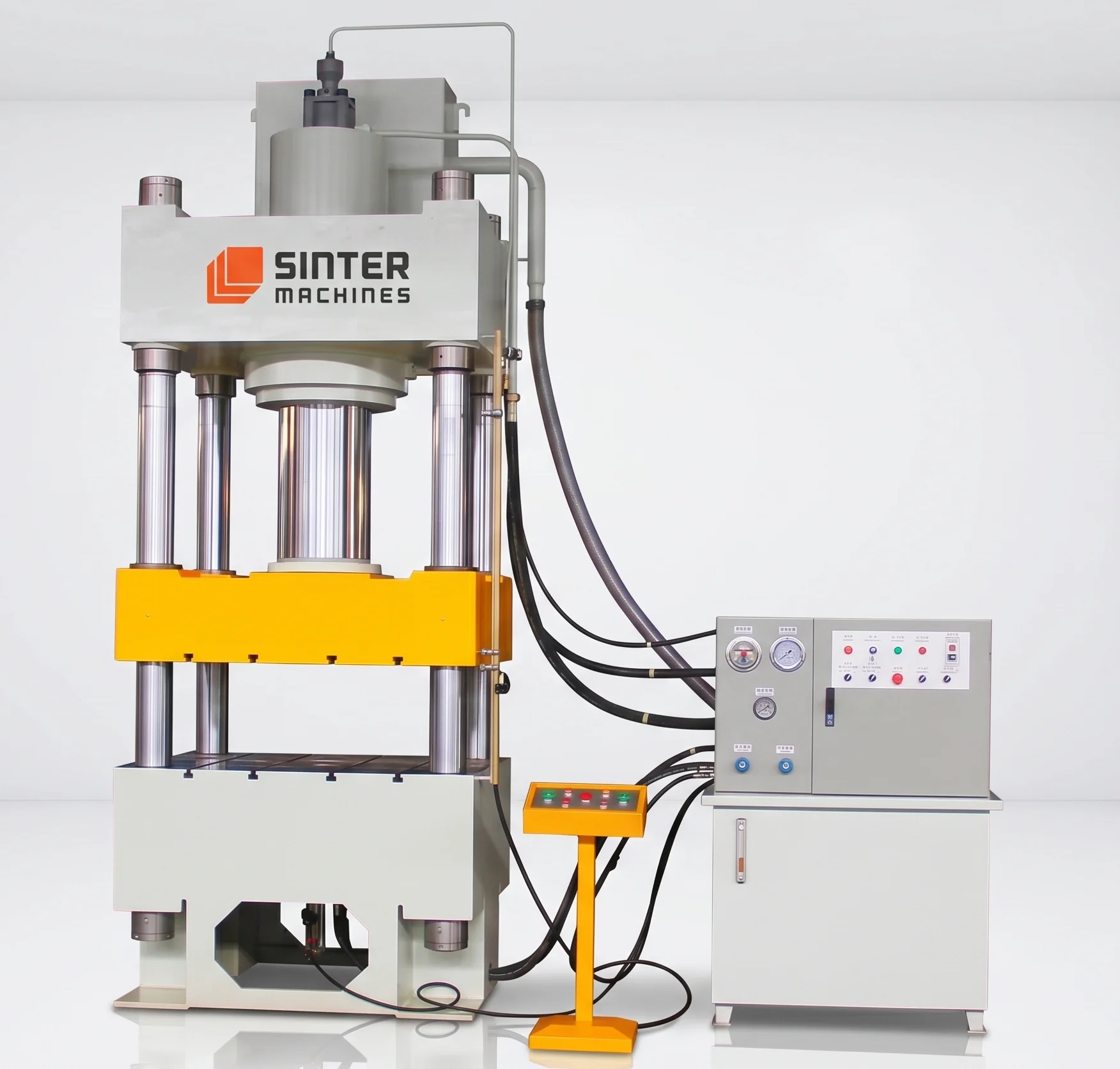

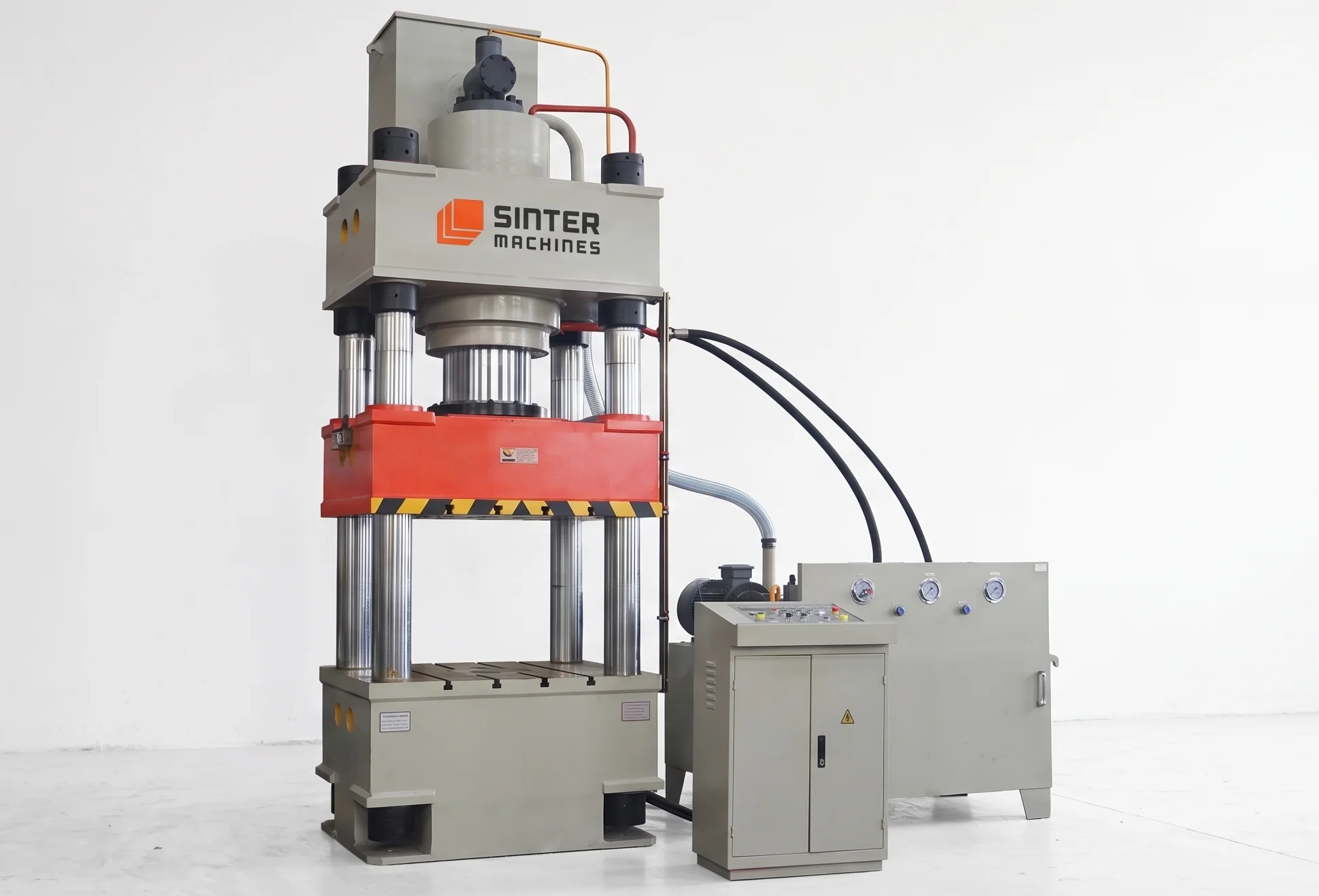

630T Four Column Hydraulic Press for Biomass chips & Powder Block
A Biomass Chips and Powder Block Forming 4-Column Hydraulic Press Machine is a heavy-duty industrial compaction system engineered to compress a heterogeneous blend of coarse biomass chips, agricultural residues, and fine organic powders into dense, uniform solid blocks, fuel logs, or multi-purpose briquettes.
These machines are utilized in biomass energy production, agricultural waste recycling, and green fuel manufacturing, where mixed organic waste must be consolidated to minimize storage volume, eliminate airborne dusting, and optimize combustion efficiency or transport logistics.
01 — Engineering Considerations
Structural Design & Engineering Considerations (4-Column Architecture)
High-Precision Guidance & Parallelism: Mixed-composition biomass materials require strict control over compaction uniformity to prevent structural weak points or density gradients that can cause blocks to crumble. The four-pillar precision-ground column architecture ensures absolute platen parallelism and eliminates lateral play, preventing uneven wall pressures and ensuring consistent block density.
Rigid Load Distribution: Compacting bulky chips combined with fine powders into high-strength blocks requires continuous, balanced high tonnage. The 4-column frame withstands heavy cyclic loads without structural flexing, maintaining exact micro-tolerances between the punches and the die cavity over long operational lifespans.
Thermal & Friction Management: Because biomass densification relies on natural lignin activation, moisture management, or added binders under high pressure, press tooling and die assemblies are engineered with wear-resistant alloy steels and can integrate heating elements to ensure smooth material release and prevent sticking.
02 — Technical Specifications
Key Technical Specifications
Feature | Industrial Specification Range |
Nominal Compaction Force | 40 Tons to 600+ Tons (tailored to block cross-sectional area and target density) |
Guide Structure | 4 Hard-Chromed, Precision-Ground Steel Pillars with heavy-duty, low-friction bushings |
Die & Punch Assembly | Hardened alloy tool steel or specialized wear-resistant inserts designed to handle mixed fibrous and powdered biomass |
Hydraulic Drive | Variable displacement piston pumps or servo-hydraulic systems with smooth proportional pressure control |
Control Unit | PLC system with HMI touchscreen interface for programming fill depth, pressing tonnage, dwell time, and automated extraction |
03 — Operational Workflow
Operational Workflow
- Volumetric Feeding: An automated feed shoe or conveyor mechanism deposits a measured, blended volume of biomass chips and powder into the die cavity, ensuring uniform fill density and homogeneous material distribution.
- Multi-Stage Compression:
- Fast Approach: The top ram lowers quickly to the material surface.
- High-Pressure Compaction: The system applies controlled tonnage. A multi-action or dual-punch configuration ensures even particle interlocking and density distribution throughout the depth of the block.
- Dwell Phase: Peak pressure is held for a set duration to allow trapped air to evacuate and the mixed biomass particles to firmly bond together, minimizing internal stress or springback cracking.
- Controlled Decompression & Ejection: Hydraulic pressure is gradually bled off to prevent surface splitting. A bottom ejection cylinder then cleanly pushes the solid biomass block out of the die cavity for downstream cooling, curing, wrapping, or packaging.

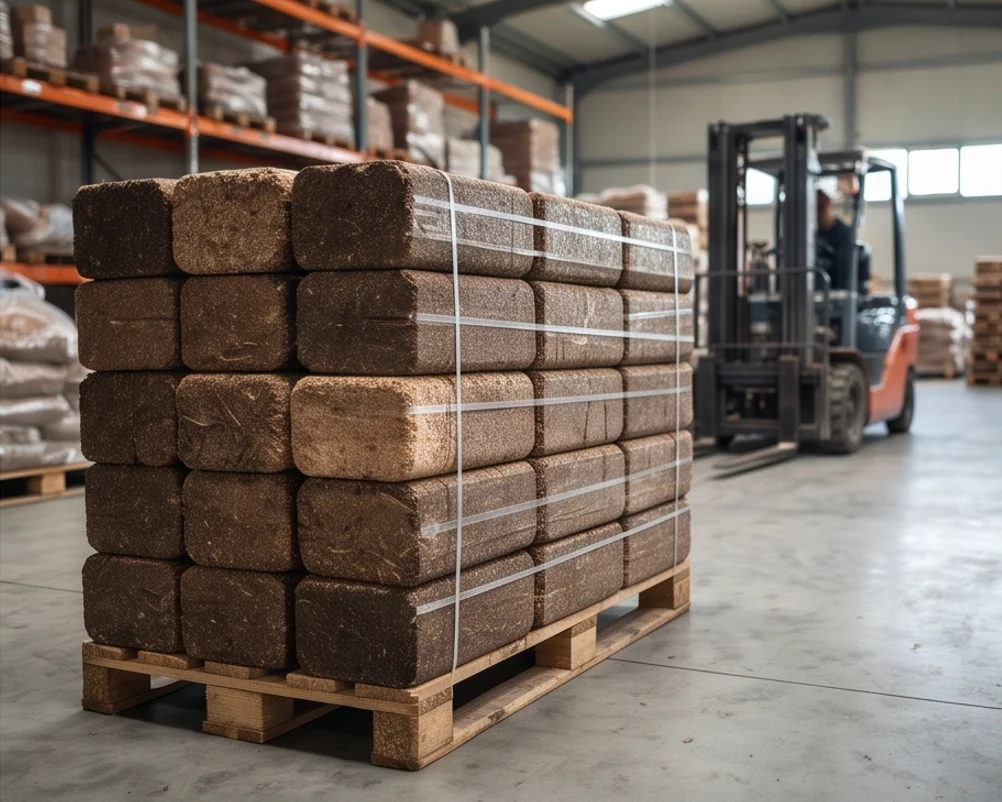

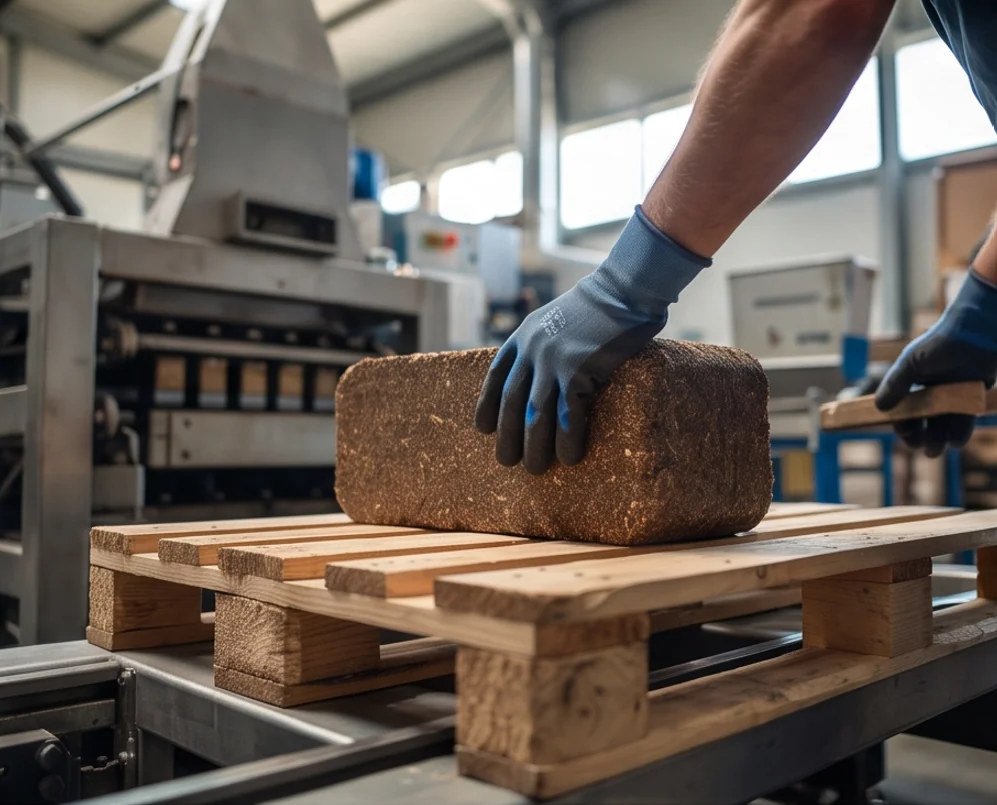

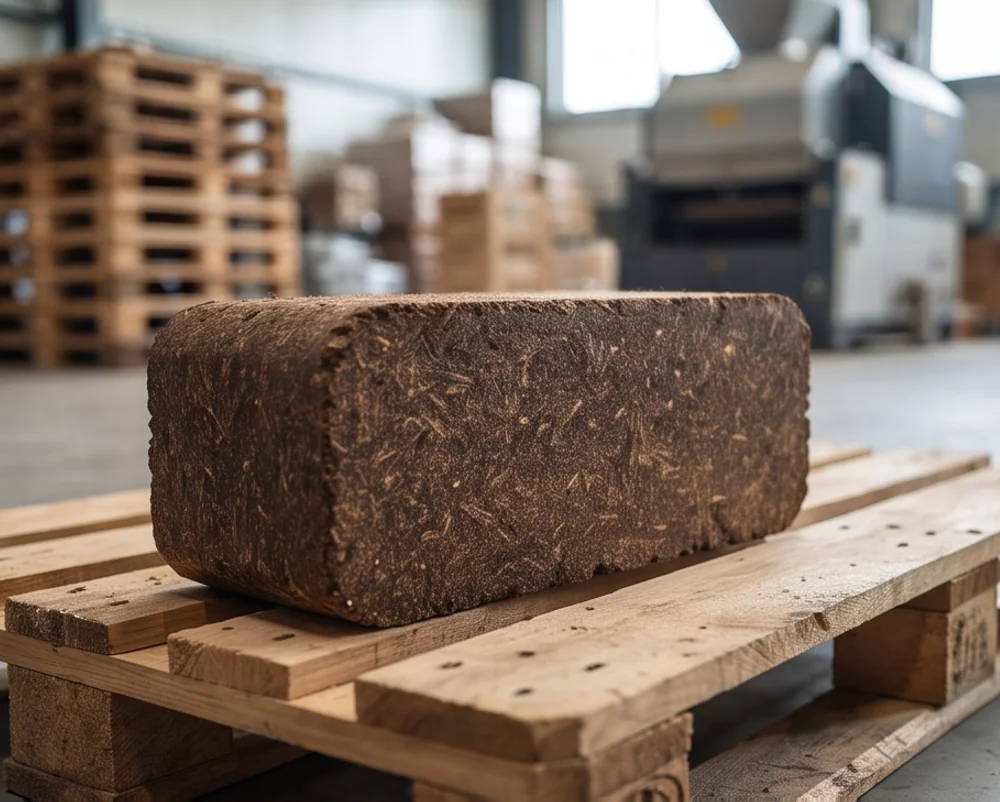

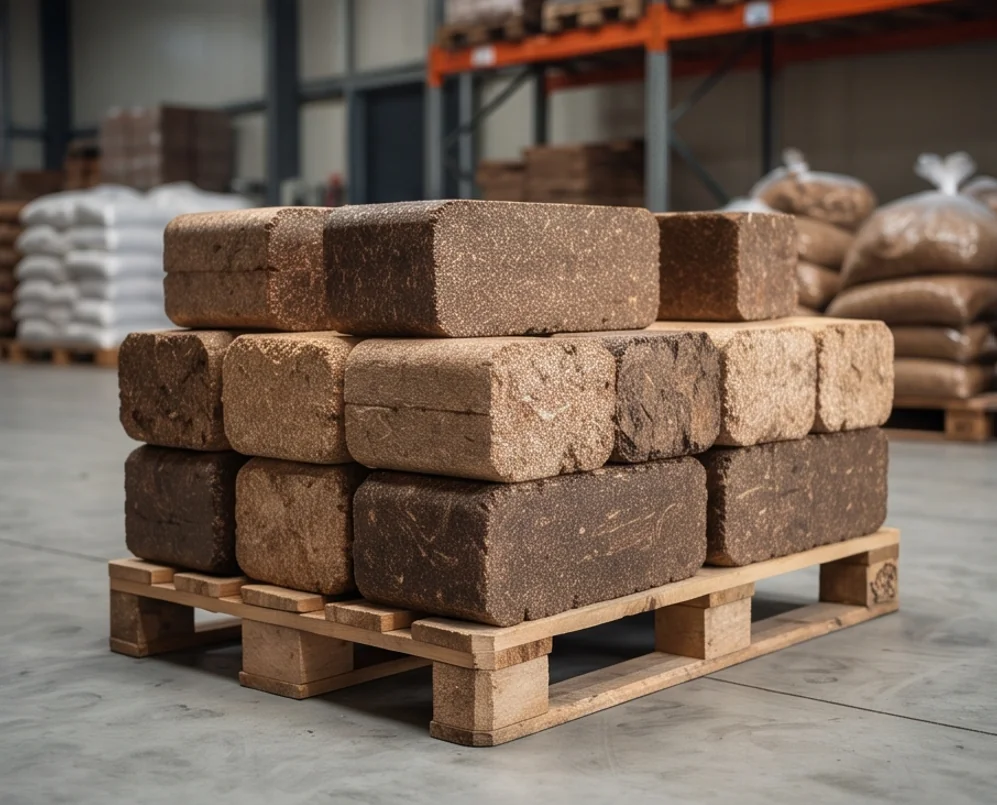

Finished Product Gallery
