02 — Technical Specifications
SM 200 HP – HYDRAULIC PRESS MACHINE COMPLETE TECHNICAL DATA

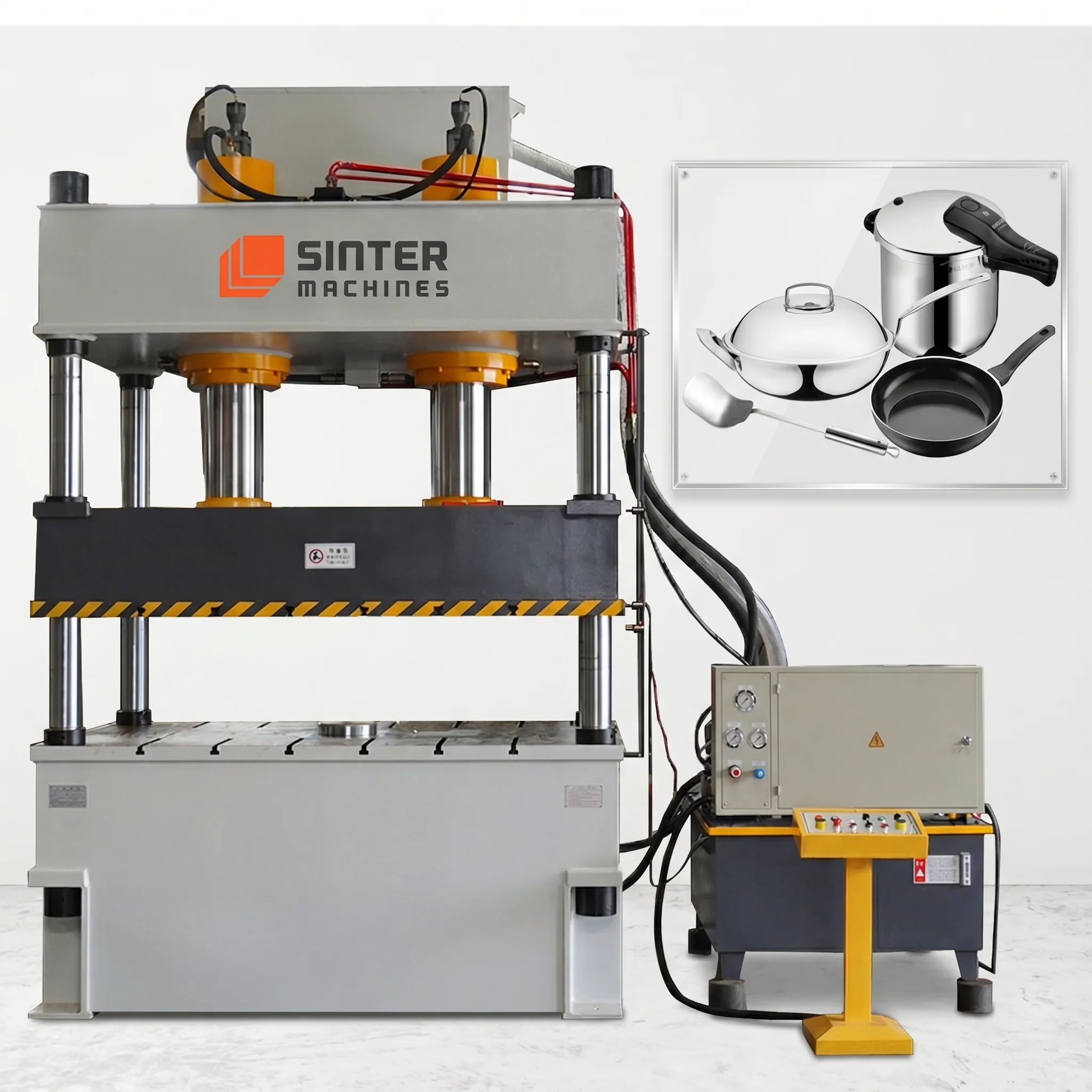

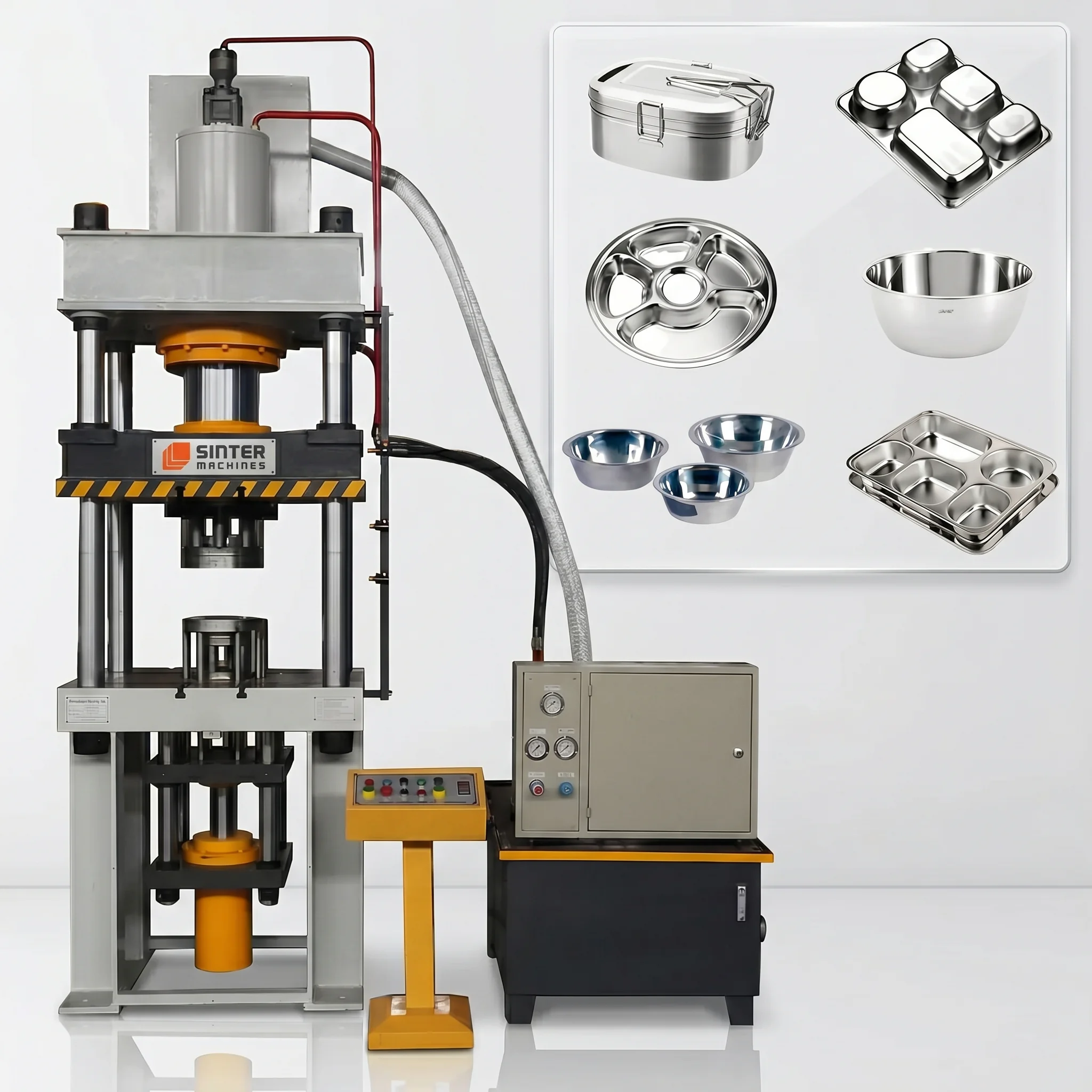

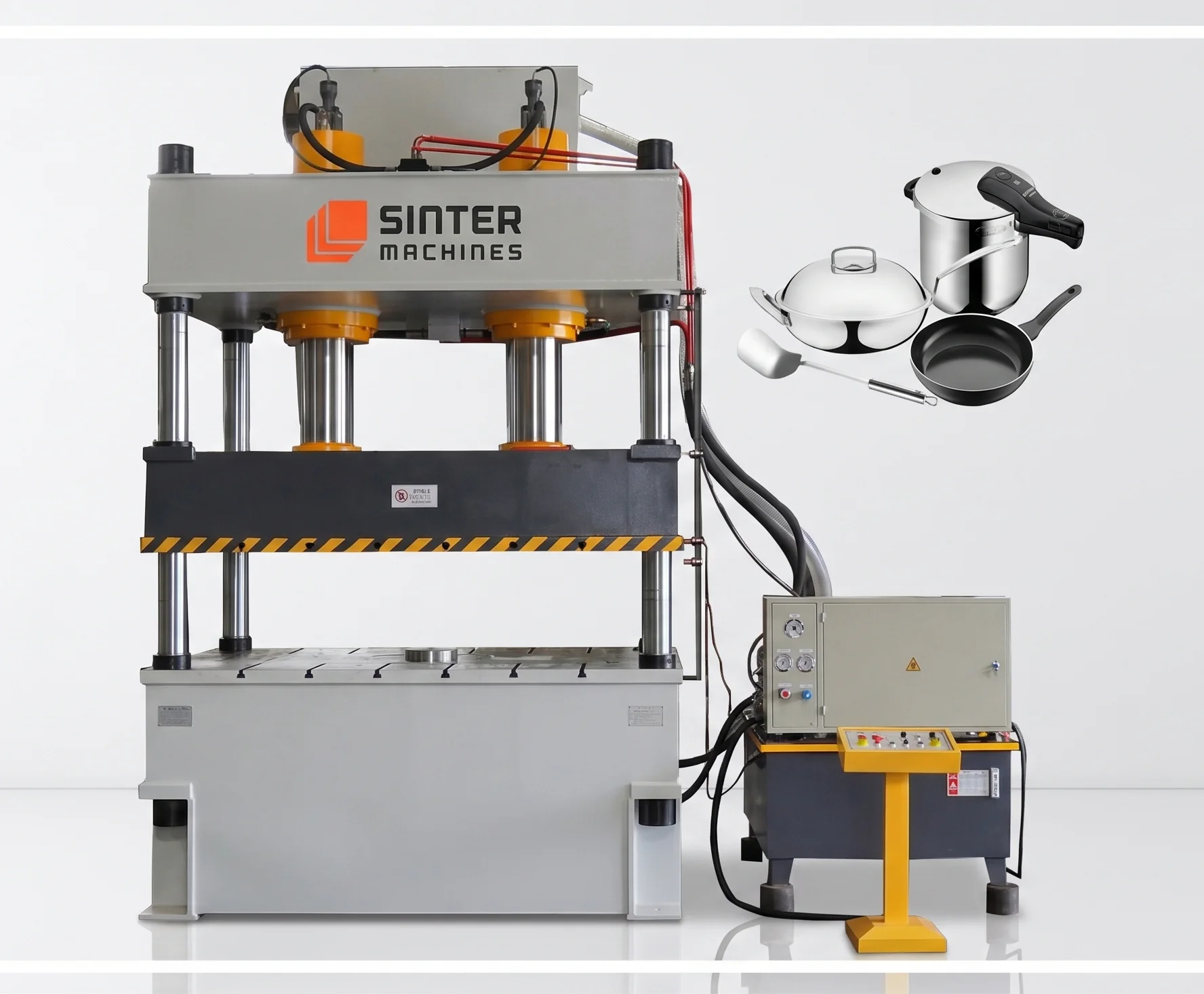

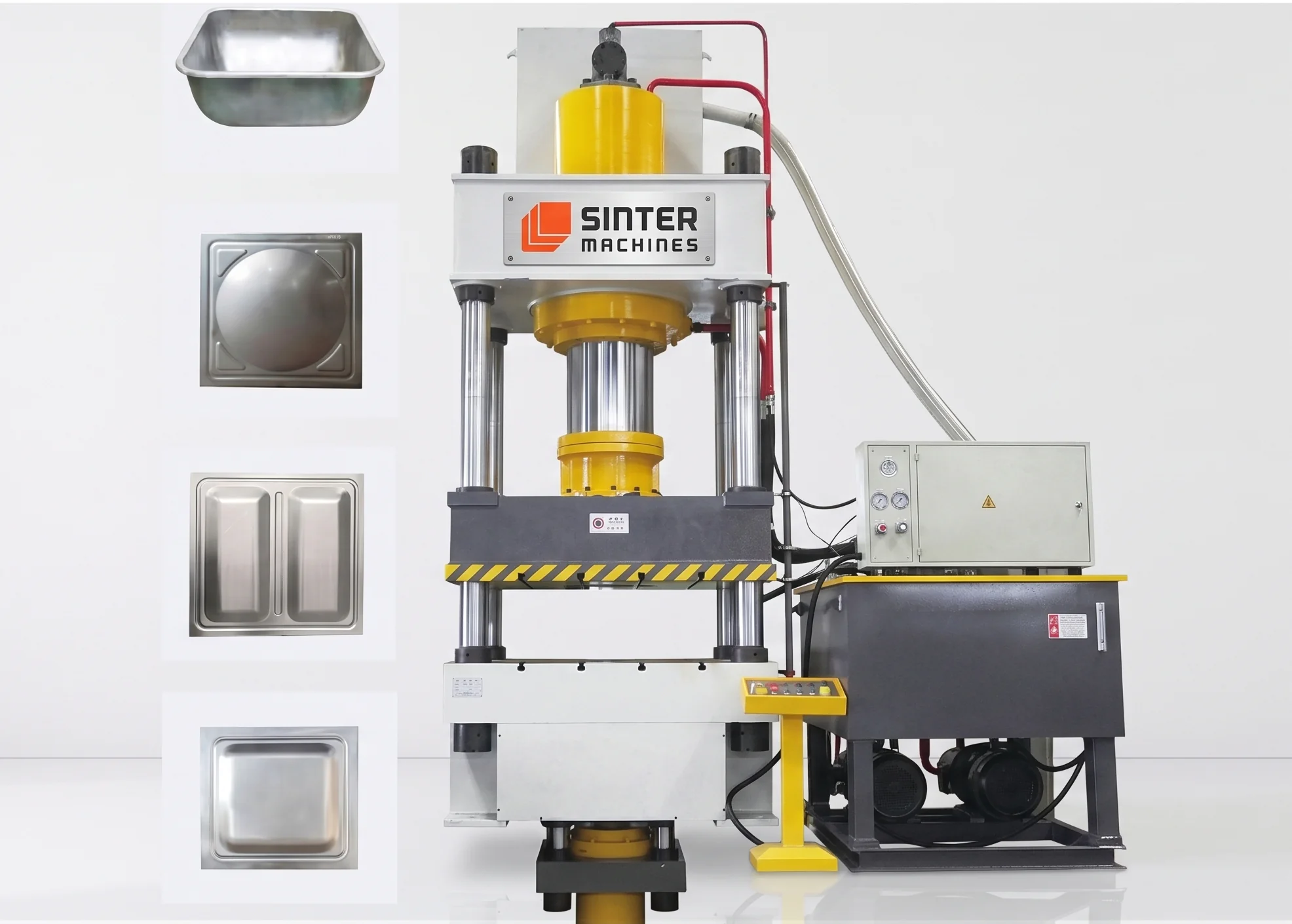

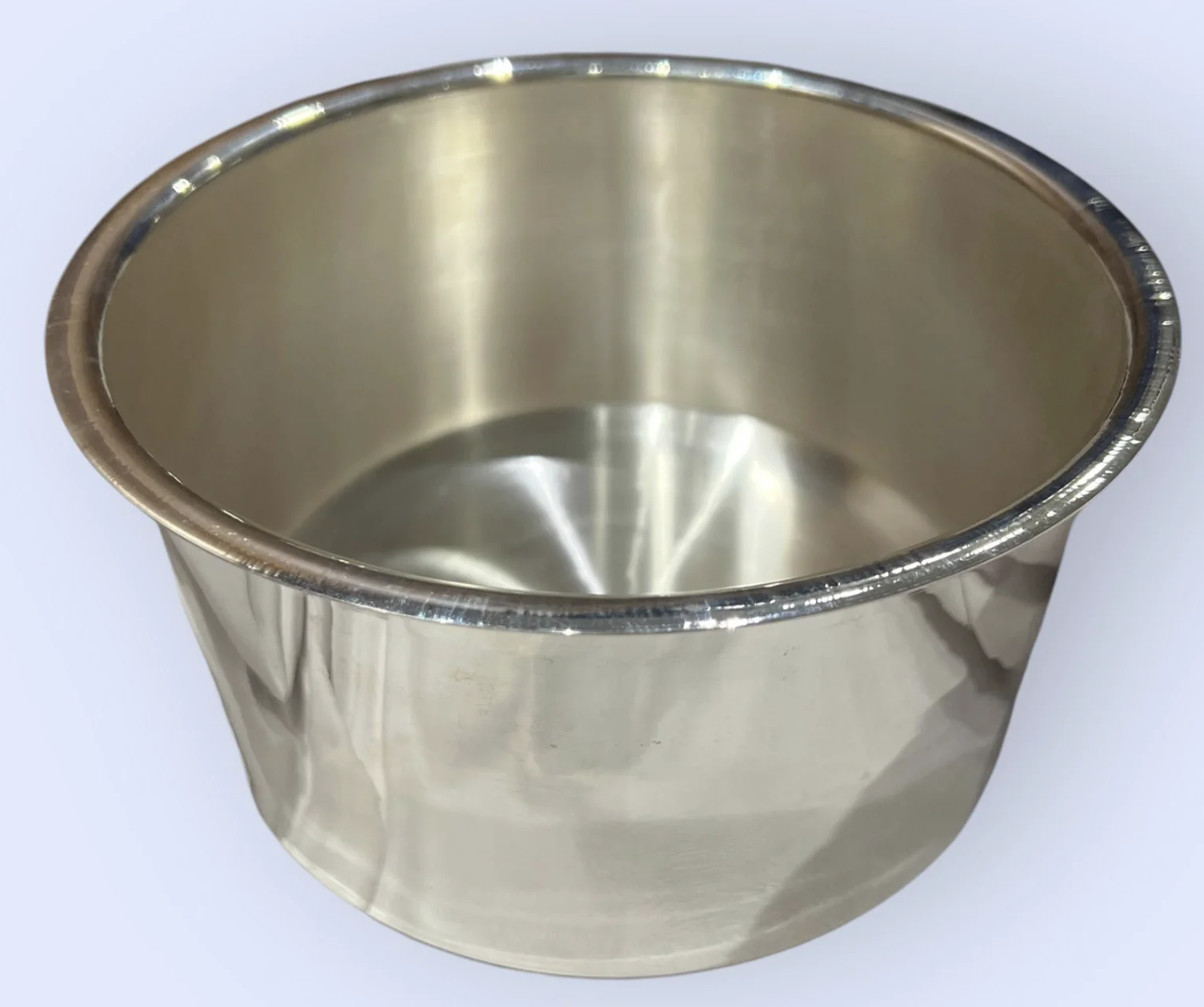

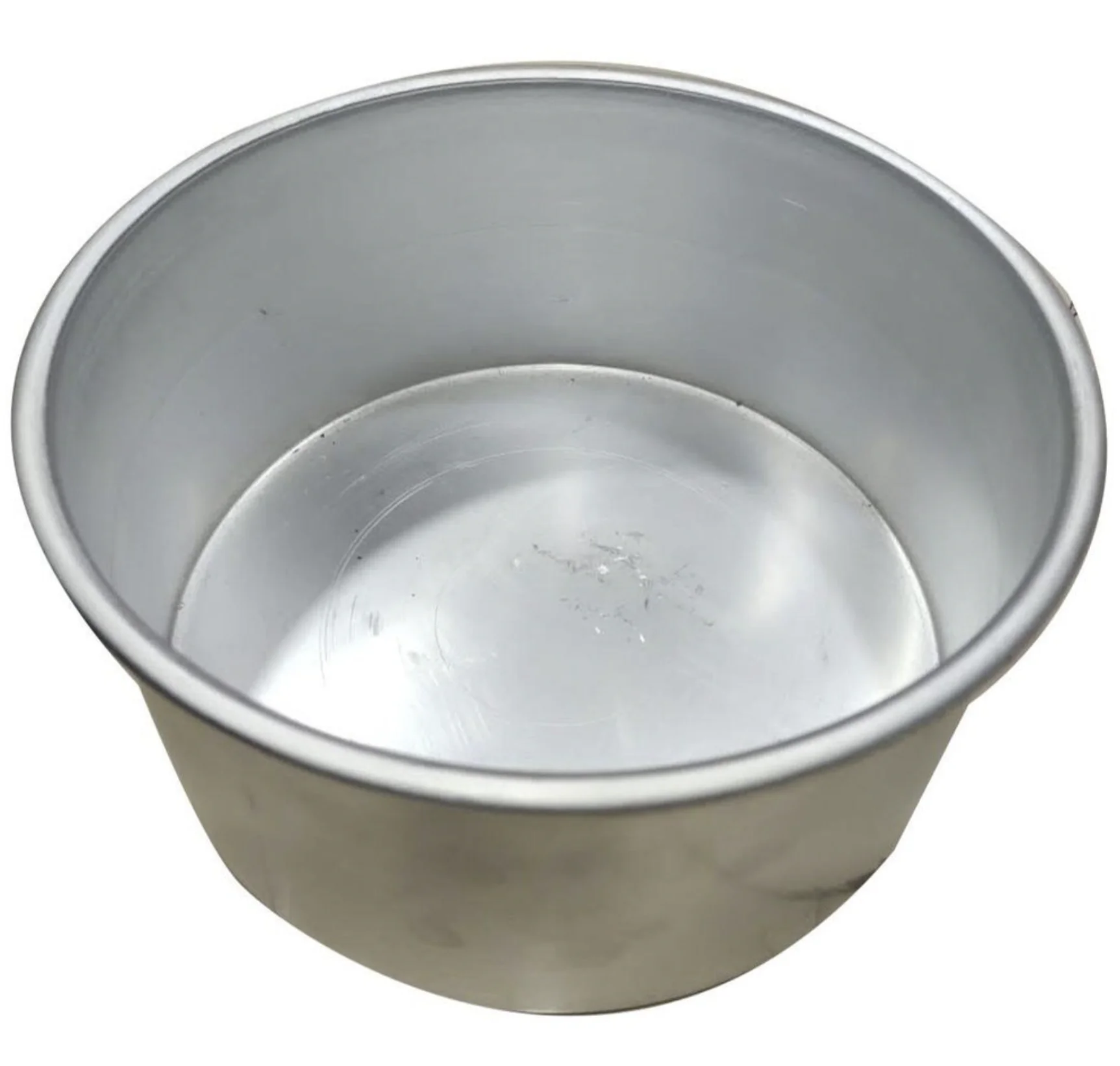

The SM 200 HP hydraulic press machine features a high-stability, four-pillar design configured engineered for high-elongation deep drawing of aluminum alloys. This specialized technical setup coordinates rapid cylinder strokes with sensitive low-pressure control parameters to form deep hollowware without tearing the soft metal.
Technical Data
Capacity: Nominal press force rating of 200 ton
Structural Design: Heavy duty stress relieved four pillar construction
Frame Type: Rigid upright pillar structural geometry
Hydraulic System: High stability variable displacement axial piston pump architecture
Main Ram Stroke: Maximum linear travel distance of 500 mm
Working Hydraulic Pressure: Continuous operational fluid limit of 210 bar
Daylight Gap: Maximum vertical open window height of 800 mm
Approach Speed: Rapid downward advance rate of 200 mm/Sec
Pressing / Drawing Speed: Highly controlled precision drawing velocity from 8 to 15 mm/Sec
Return Speed: Accelerated upward retract velocity of 160 mm/Sec
Bed / Platen Size Platen: Total structural table footprint of 900 mm by 850 mm
Columns: Four solid induction hardened steel pillars measuring 120 mm diameter
Working Envelope: Total internal processing volumetric clearance area of 900 mm by 850 mm by 800 mm
Control System: Central programmable logic controller integrated with real time touchscreen human machine interface
Main Motor Power: Energy efficient high torque electric drive rated at 22 kW
Valves & Hydraulics: Manifold block assembly with fast acting proportional flow and pressure control valves
Automation: Integrated pneumatic base ejector cylinder and multi axis robotic arm interface linkage
Safety Features: Dual hand touch control buttons, digital safety light curtains, and automatic hydraulic pressure relief protection valves
SM 200 HP — Model Specifications
- Nominal Force: 2000 KN
- Maximum Hydraulic Pressure: 25 MPa
- Max Opening Height of the Slider: 900 mm
- Max Stroke of the Slider: 600 mm
- Effective Bed Size: 800 × 800 mm
- Slider Down Speed: 100 mm/s
- Slider Pressing Speed: 7–18 mm/s
- Slider Return Speed: 90 mm/s
- Ejector Cylinder Nominal Force: 200 KN
- Stroke of the Ejection Cylinder: 200 mm
