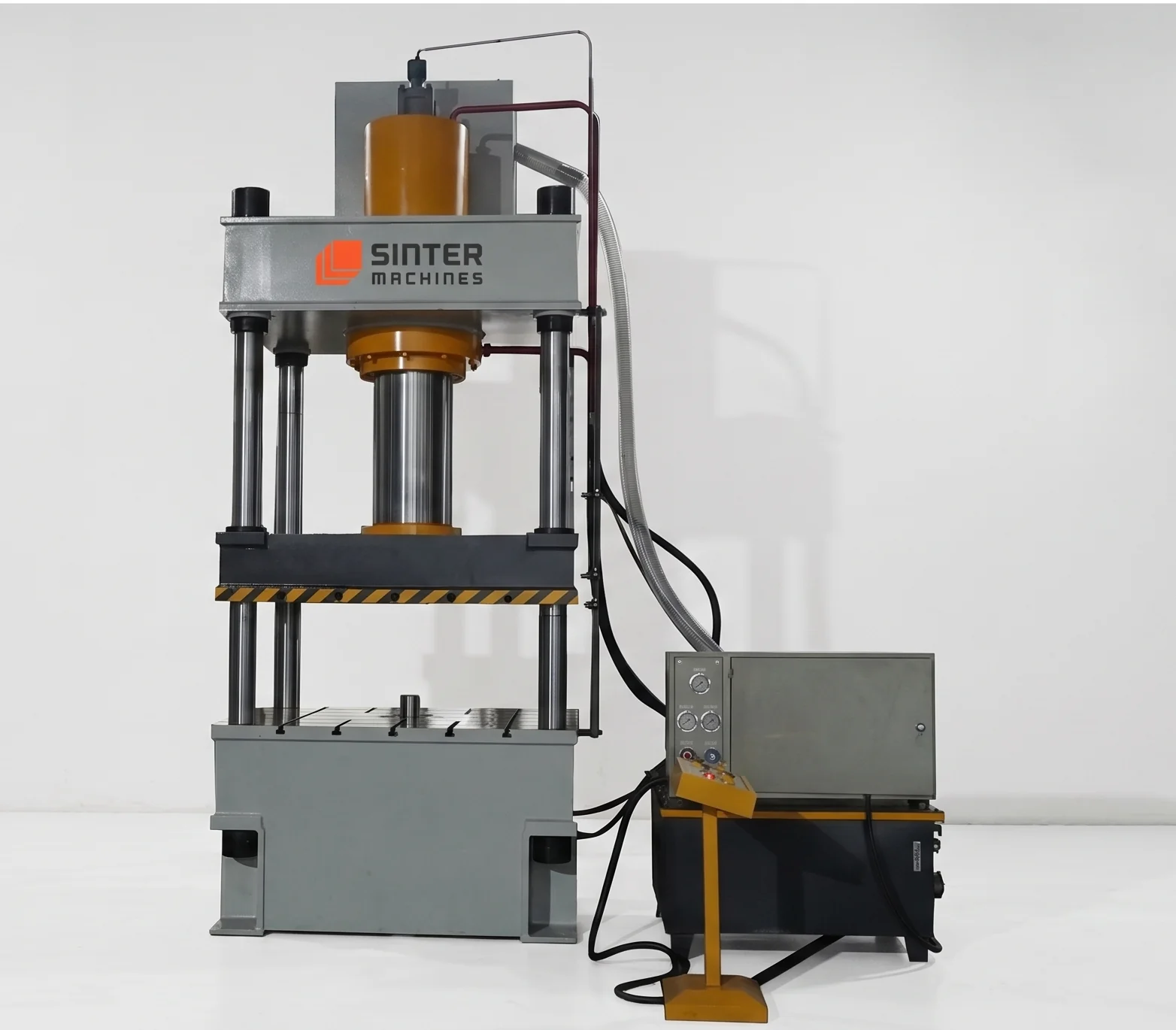

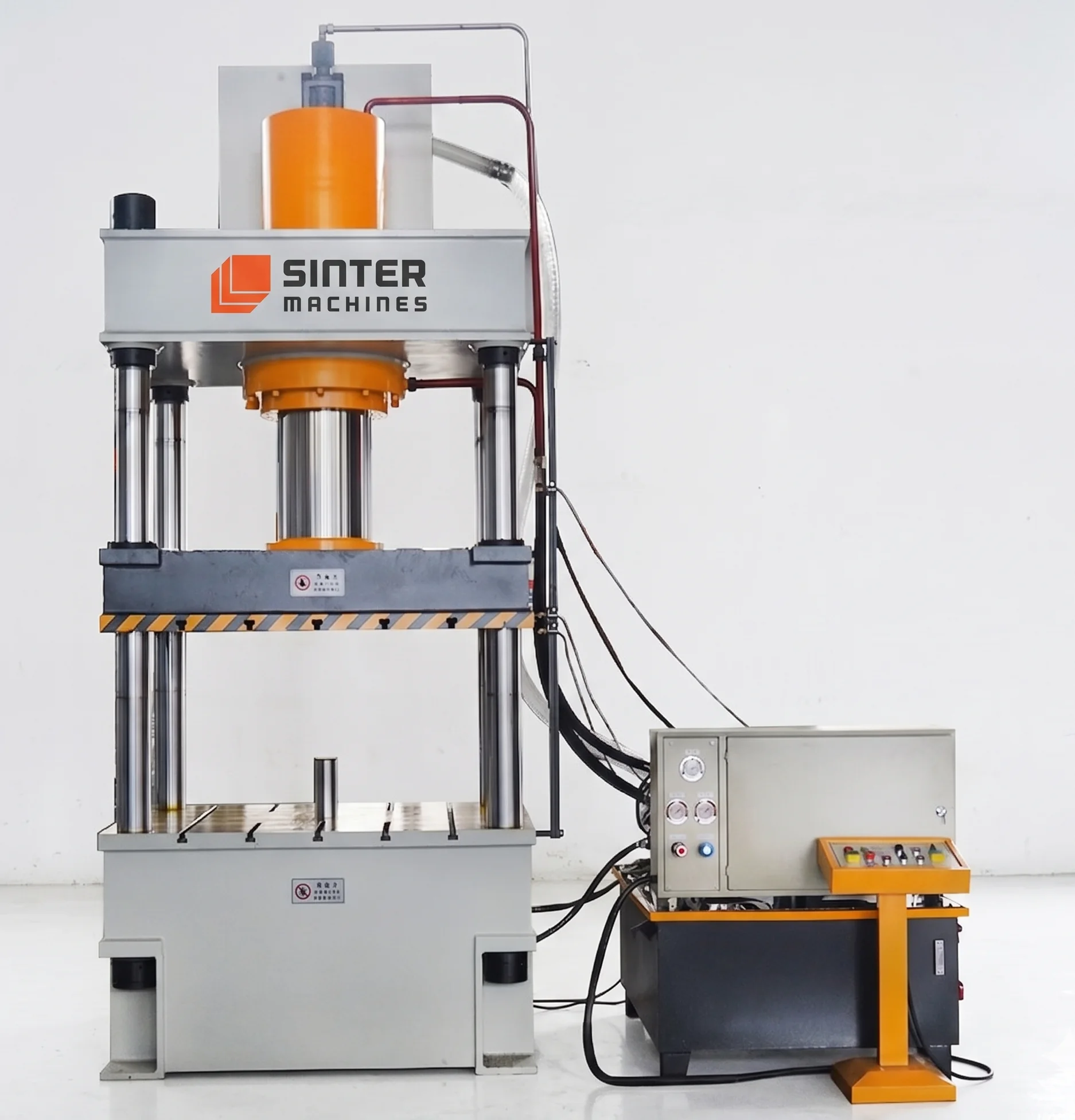

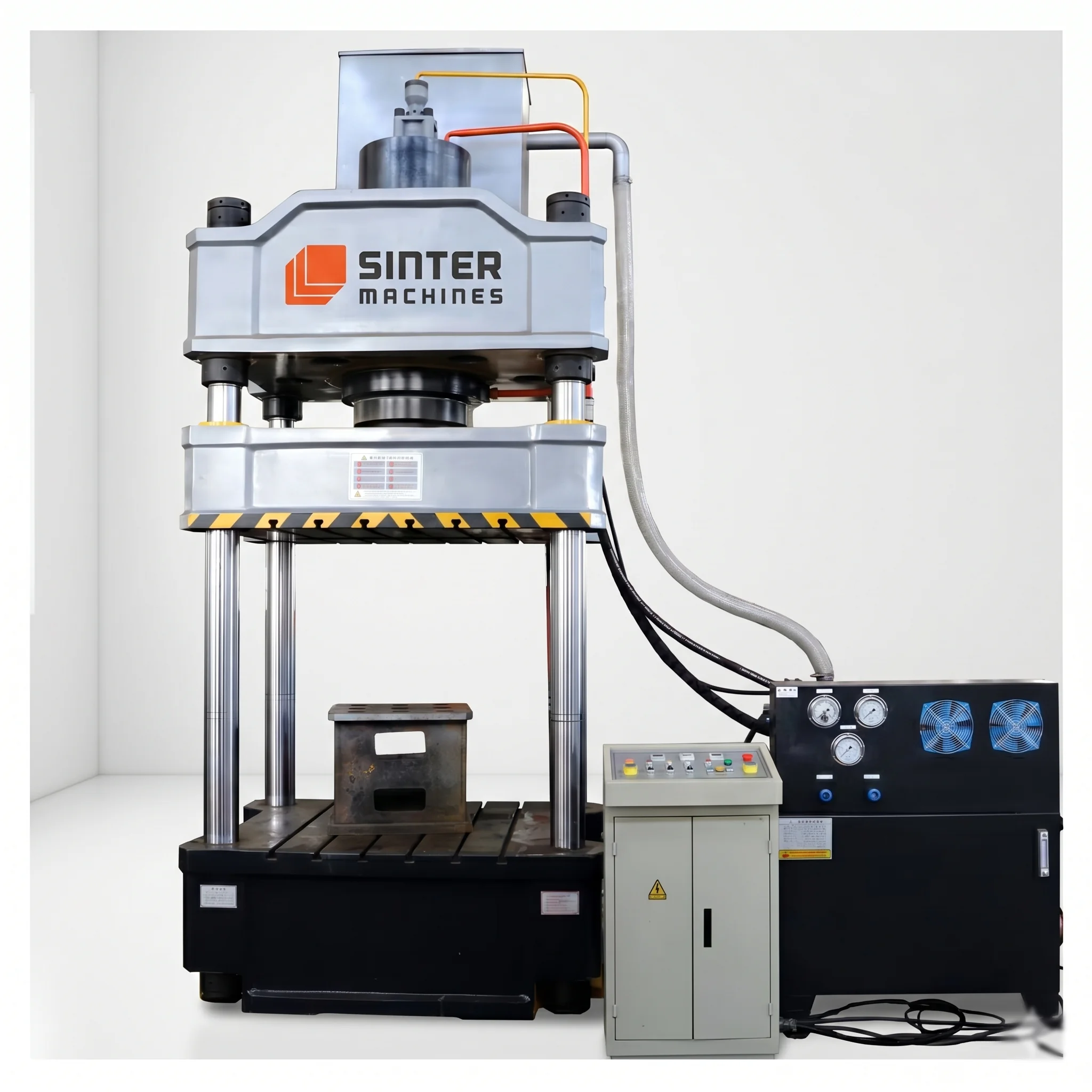

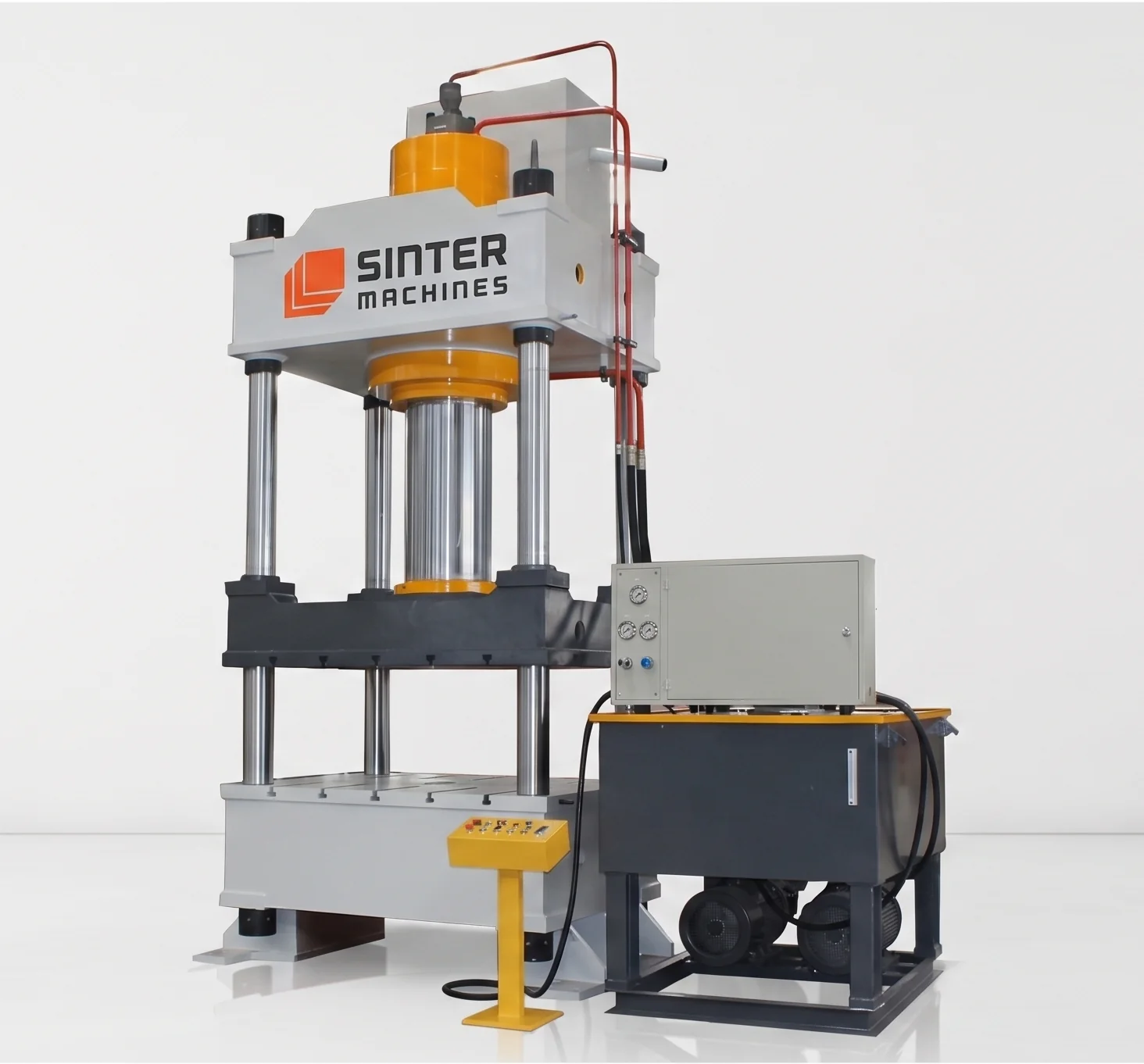

315T Four Column Hydraulic Press for Galena Powder Block Press
A Galena Powder Block Compression 4-Column Hydraulic Press Machine is a heavy-duty industrial compaction system engineered to compress fine galena powder (lead sulfide, PbS, which serves as the primary ore of lead) into dense, uniform solid blocks, briquettes, or charge preforms.
These machines are utilized in extractive metallurgy, lead smelting preparation, and battery manufacturing, where loose, heavy metal sulfide concentrates must be consolidated to minimize airborne dusting, prevent material loss, and optimize furnace or roaster feed rates.
01 — Engineering Considerations
Structural Design & Engineering Considerations (4-Column Architecture)
High-Precision Guidance & Parallelism: Heavy metal sulfide concentrates require strict control over compaction uniformity to prevent structural weak points or density gradients. The four-pillar precision-ground column architecture ensures absolute platen parallelism and eliminates lateral play, preventing uneven wall pressures and ensuring consistent block density.
Rigid Load Distribution: Compacting dense, heavy mineral powders requires continuous high tonnage. The 4-column frame withstands heavy cyclic loads without structural flexing, maintaining exact micro-tolerances between the punches and the die cavity.
Toxicity Containment & Safety: Because galena contains lead, strict environmental, health, and safety protocols are mandatory. The press is heavily integrated with hermetically sealed feeding hoppers, local exhaust ventilation ports, complete enclosure housings, and dust collection interfaces to protect operators and prevent hazardous emissions.
02 — Technical Specifications
Key Technical Specifications
Feature | Industrial Specification Range |
Nominal Compaction Force | 50 Tons to 500+ Tons (tailored to block cross-sectional area and target density) |
Guide Structure | 4 Hard-Chromed, Precision-Ground Steel Pillars with heavy-duty, low-friction bushings |
Die & Punch Assembly | Hardened alloy tool steel or specialized wear-resistant carbide inserts designed to handle abrasive sulfide mineral powders |
Hydraulic Drive | Variable displacement piston pumps or servo-hydraulic systems with smooth proportional pressure control |
Control Unit | PLC system with HMI touchscreen interface for programming fill depth, pressing tonnage, dwell time, and automated extraction |
03 — Operational Workflow
Operational Workflow
- Hermetically Sealed Volumetric Feeding: An automated, enclosed feed shoe slides precisely over the die cavity to deposit a measured volume of loose galena powder, completely containing hazardous dust and ensuring uniform fill density.
- Multi-Stage Compression:
- Fast Approach: The top ram lowers quickly to the material surface.
- High-Pressure Compaction: The system applies controlled tonnage. A multi-action or dual-punch configuration ensures even particle interlocking and density distribution throughout the depth of the block.
- Dwell Phase: Peak pressure is held for a set duration to allow trapped air to evacuate and the dense mineral particles to firmly settle, minimizing internal stress or cracking.
- Controlled Decompression & Ejection: Hydraulic pressure is gradually bled off to prevent surface cracking from elastic springback. A bottom ejection cylinder then cleanly pushes the solid galena block out of the die cavity for downstream roasting, smelting, or secure transport.

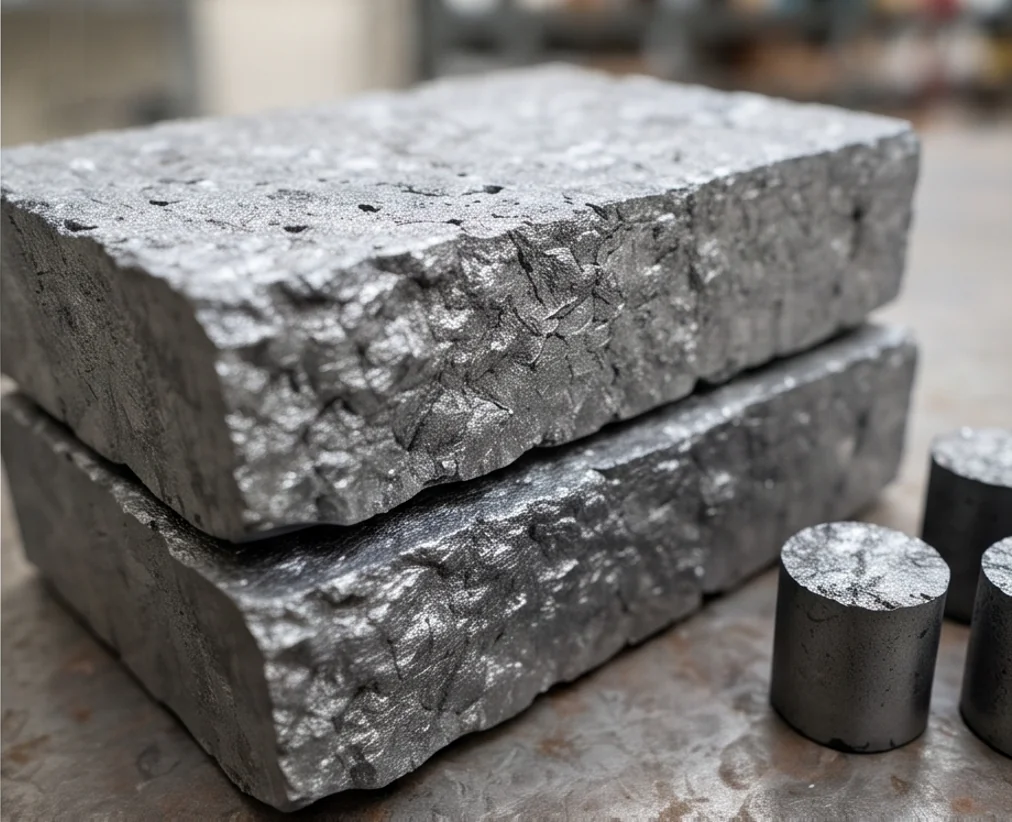

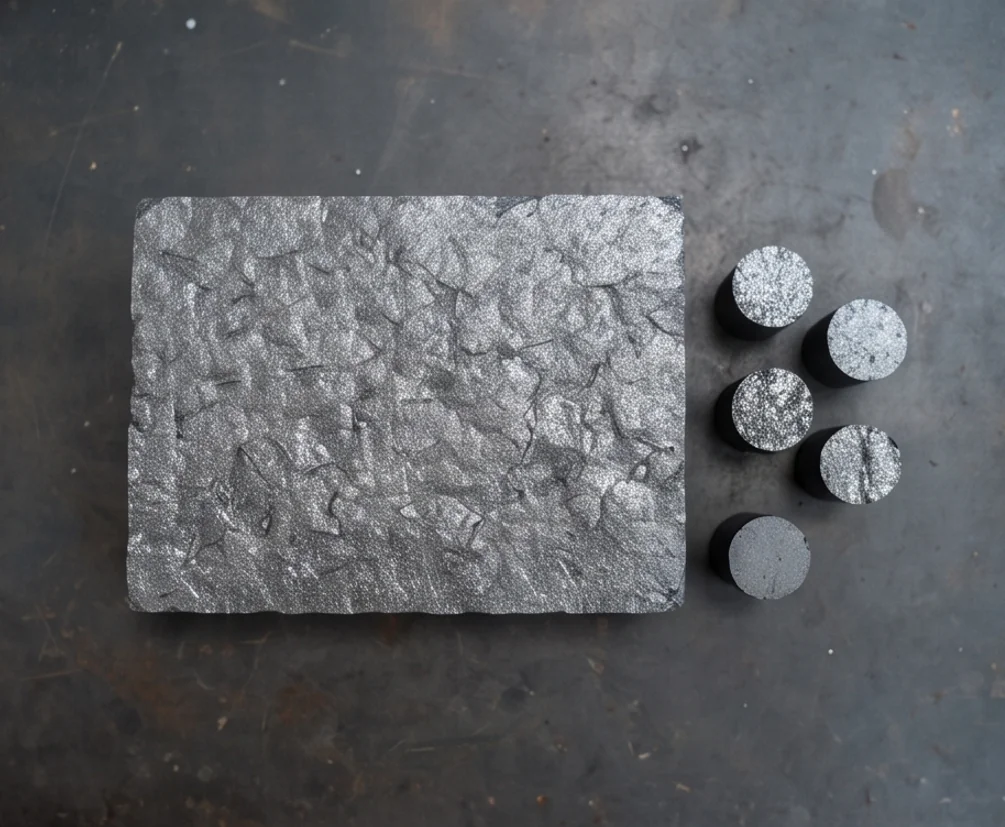

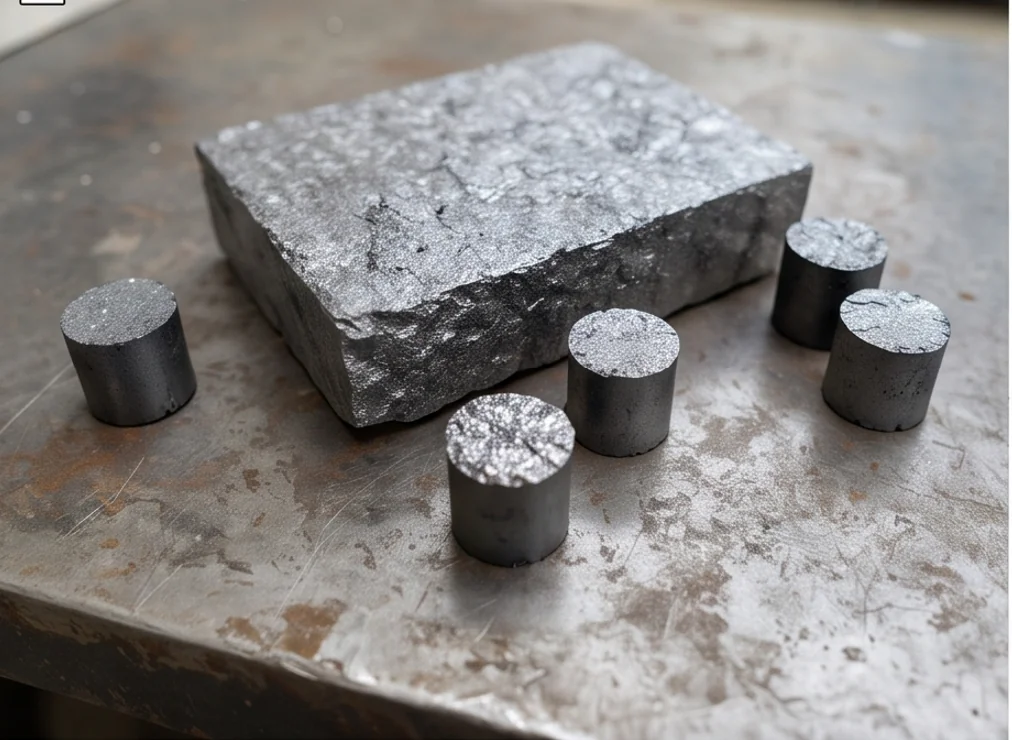

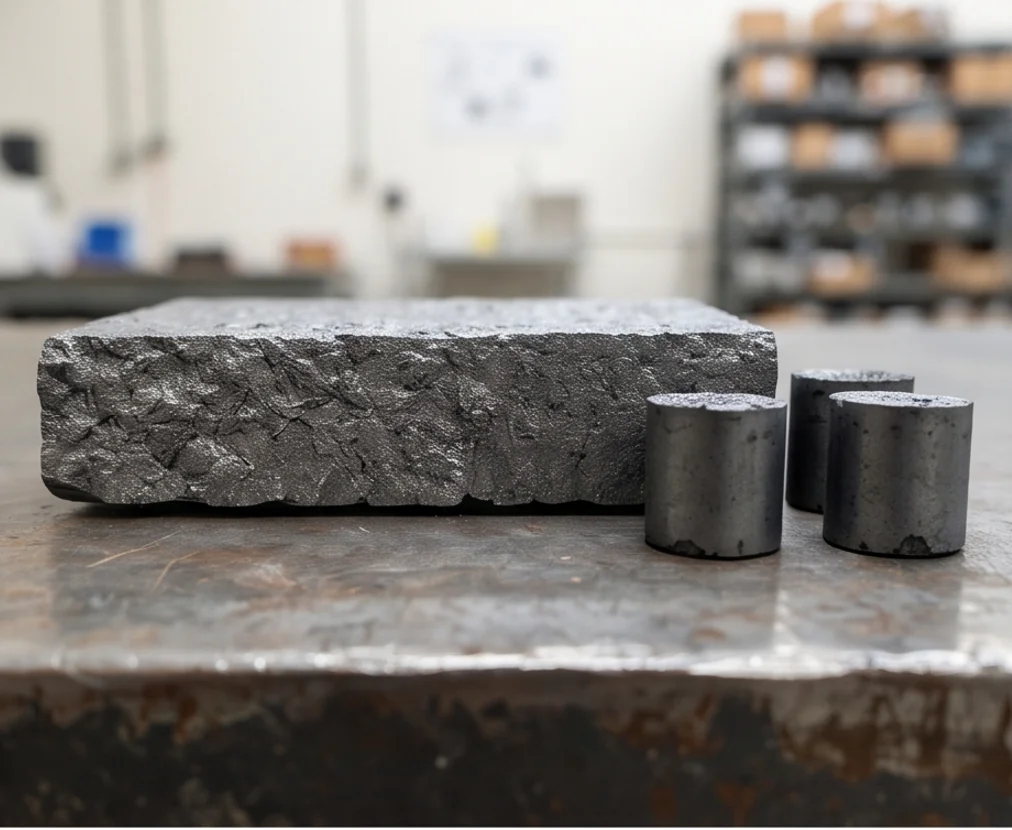

Finished Product Gallery
