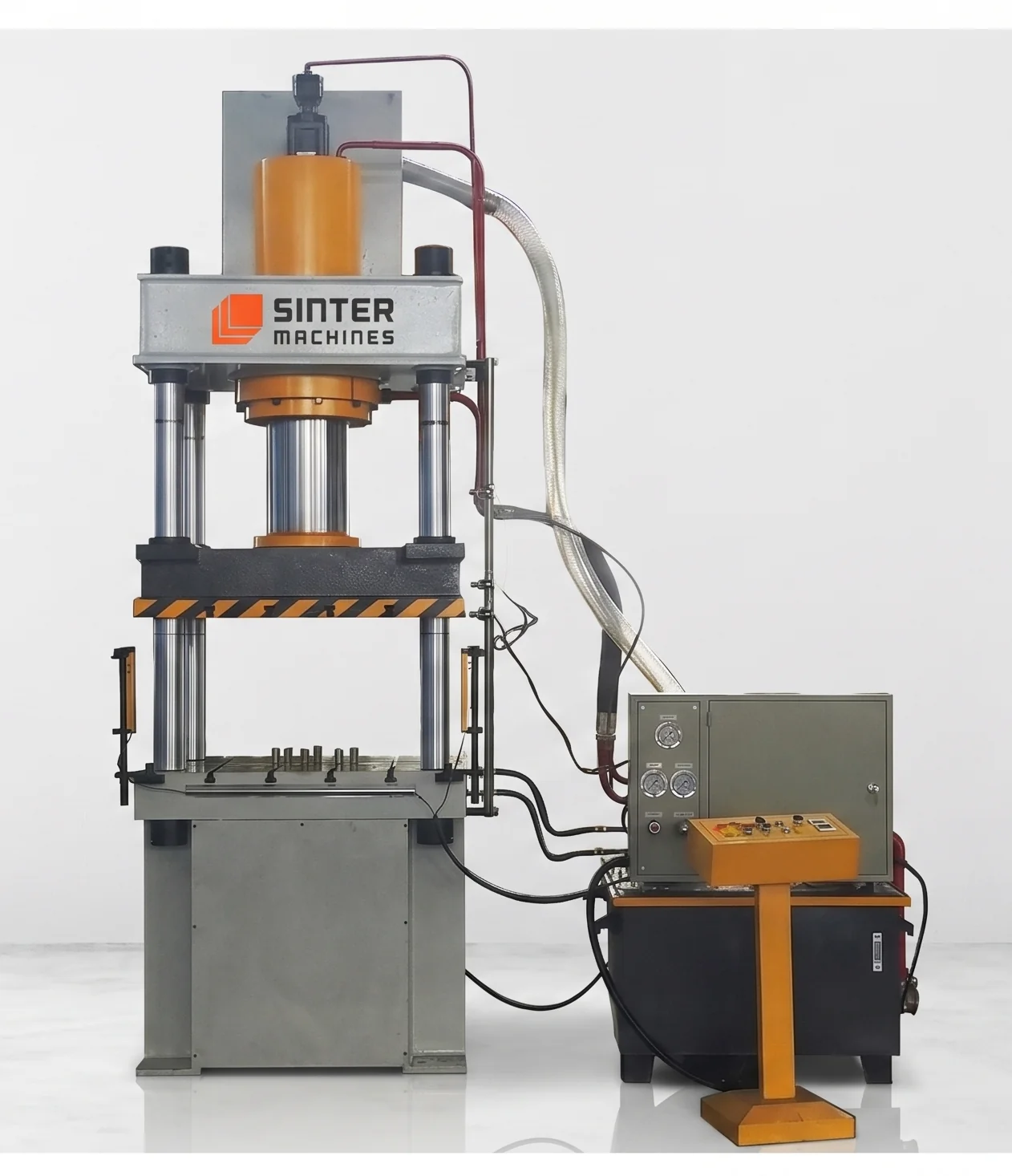

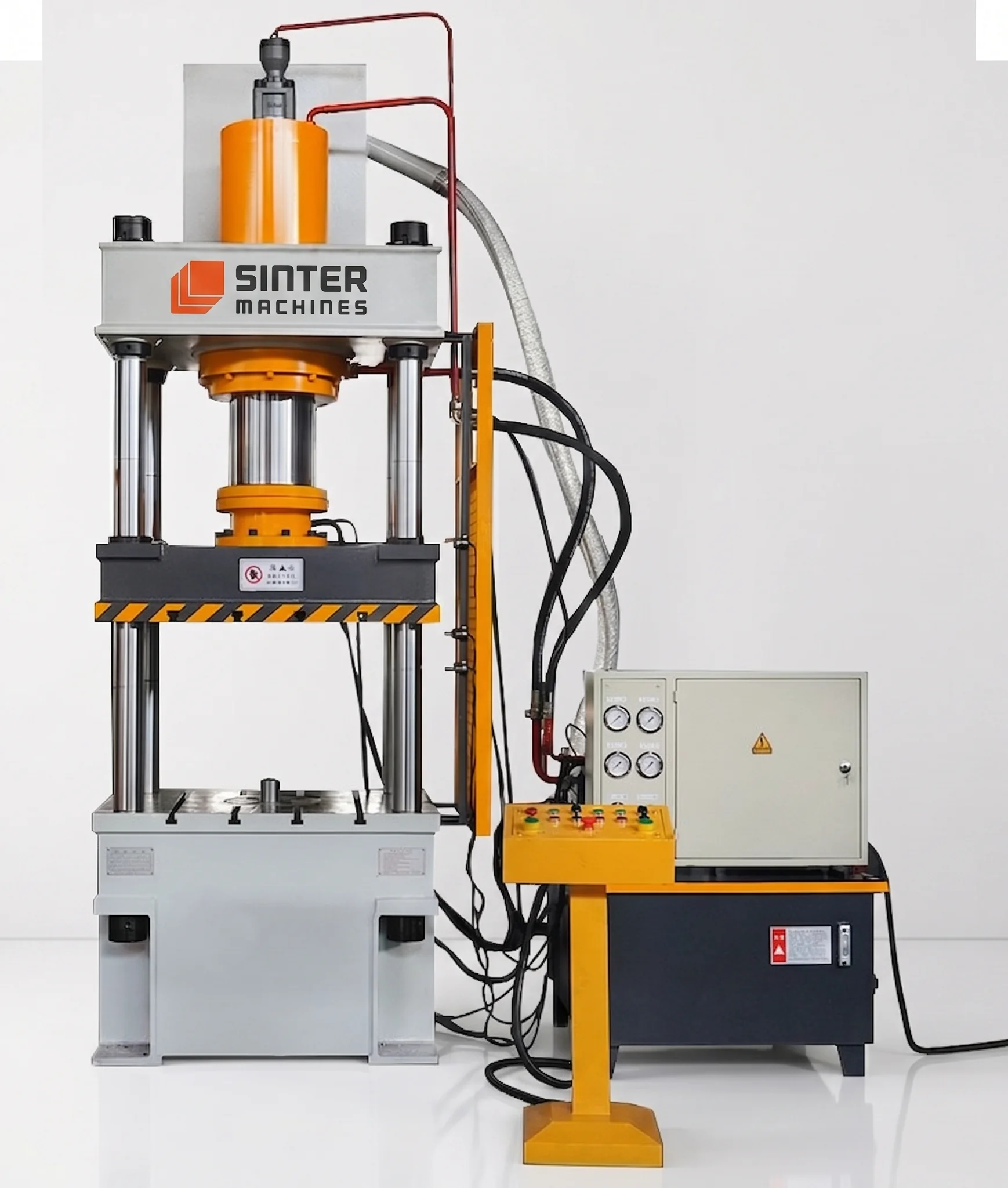

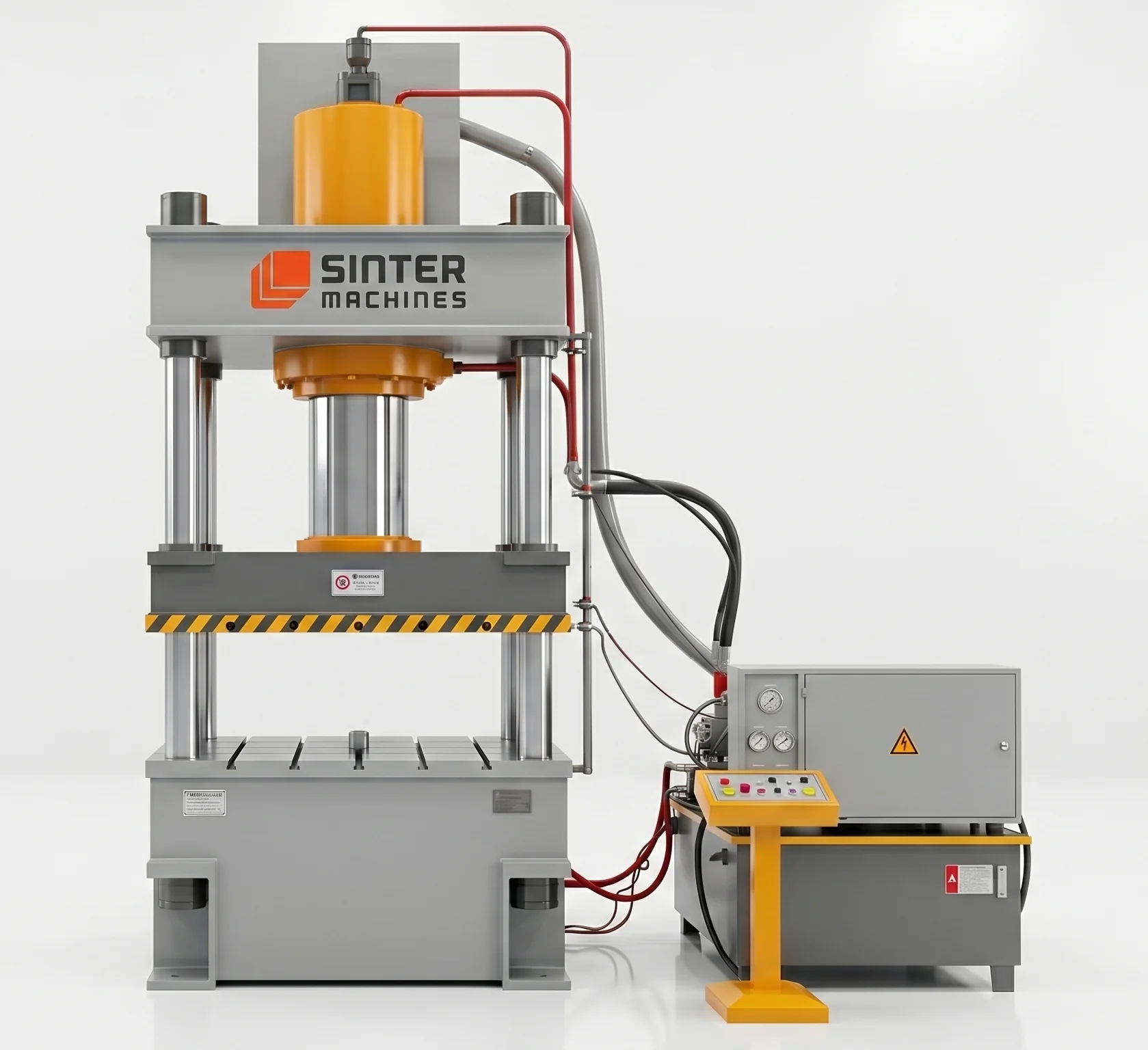

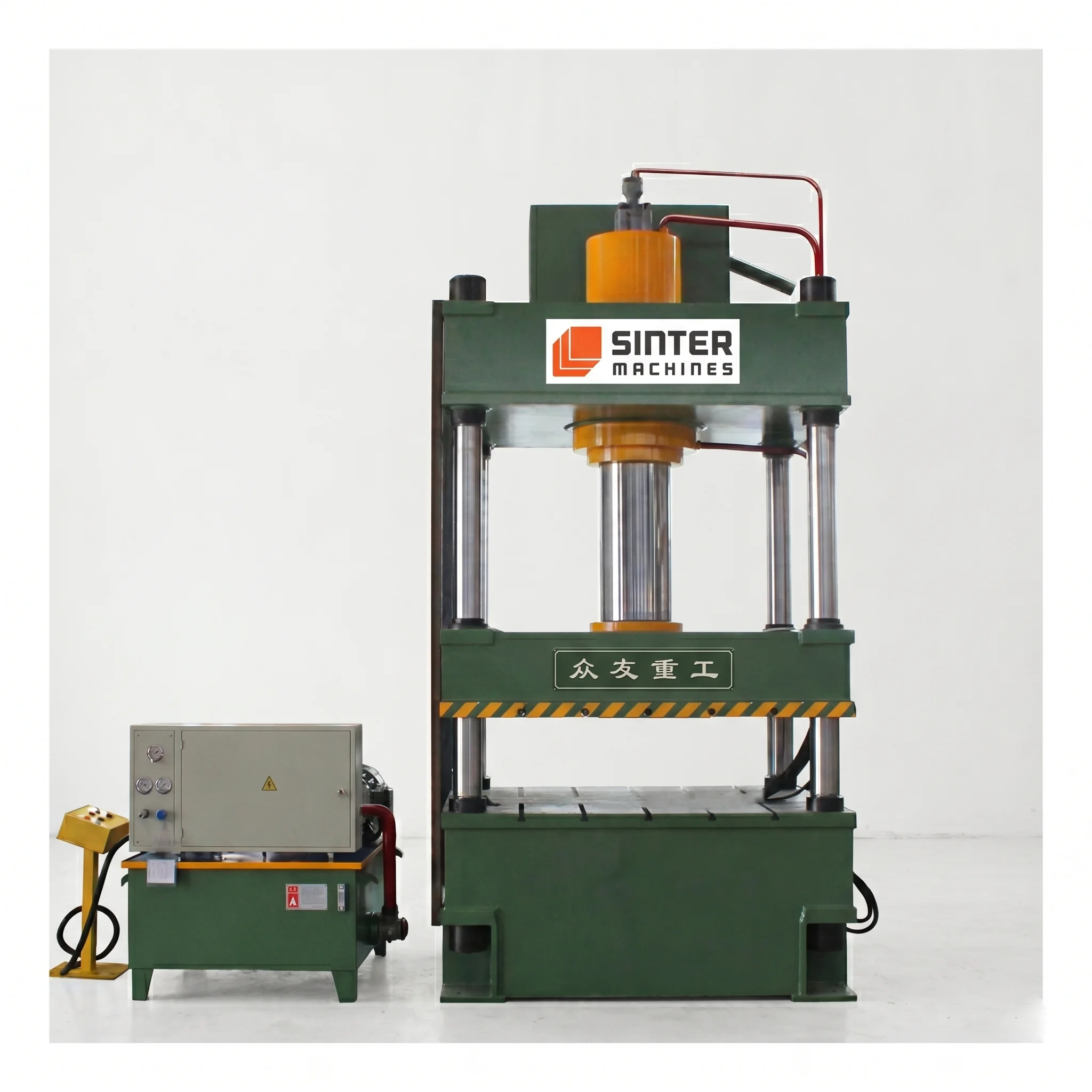

200T Four Column Hydraulic Press for Cinnabar Powder Block
A Cinnabar Powder Block Compression 4-Column Hydraulic Press Machine is a specialized heavy-duty industrial compaction system engineered to compress fine cinnabar powder (mercury(II) sulfide, HgS, which serves as the primary ore of mercury) into dense, uniform solid blocks, briquettes, or stabilization preforms.
These machines are utilized in extractive metallurgy, mercury recovery operations, and hazardous waste stabilization, where loose, highly toxic heavy metal sulfide powders must be consolidated to minimize airborne dusting, prevent toxic exposure, and optimize furnace or retort feed rates.
01 — Engineering Considerations
Structural Design & Engineering Considerations (4-Column Architecture)
High-Precision Guidance & Parallelism: Mercury-bearing mineral concentrates require strict control over compaction uniformity to prevent structural weak points or density gradients. The four-pillar precision-ground column architecture ensures absolute platen parallelism and eliminates lateral play, preventing uneven wall pressures and ensuring consistent block density.
Rigid Load Distribution: Compacting dense mineral powders into high-strength blocks requires continuous high tonnage. The 4-column frame withstands heavy cyclic loads without structural flexing, maintaining exact micro-tolerances between the punches and the die cavity over long operational lifespans.
Toxic Containment & Vapor Safety: Because cinnabar contains mercury, strict environmental, health, and safety protocols are mandatory. The press is heavily integrated with hermetically sealed feeding hoppers, local exhaust ventilation ports, complete enclosure housings, and vapor-tight collection interfaces to protect operators and prevent hazardous emissions.
02 — Technical Specifications
Key Technical Specifications
Feature | Industrial Specification Range |
Nominal Compaction Force | 40 Tons to 400+ Tons (tailored to block cross-sectional area and target density) |
Guide Structure | 4 Hard-Chromed, Precision-Ground Steel Pillars with heavy-duty, low-friction bushings |
Die & Punch Assembly | Hardened alloy tool steel or specialized corrosion-resistant inserts designed to handle toxic sulfide mineral powders |
Hydraulic Drive | Variable displacement piston pumps or servo-hydraulic systems with smooth proportional pressure control |
Control Unit | PLC system with HMI touchscreen interface for programming fill depth, pressing tonnage, dwell time, and automated extraction |
03 — Operational Workflow
Operational Workflow
- Hermetically Sealed Volumetric Feeding: An automated, enclosed feed shoe slides precisely over the die cavity to deposit a measured volume of loose cinnabar powder, completely containing toxic dust and ensuring uniform fill density.
- Multi-Stage Compression:
- Fast Approach: The top ram lowers quickly to the material surface.
- High-Pressure Compaction: The system applies controlled tonnage. A multi-action or dual-punch configuration ensures even particle interlocking and density distribution throughout the depth of the block.
- Dwell Phase: Peak pressure is held for a set duration to allow trapped air to evacuate and the dense mineral particles to firmly settle, minimizing internal stress or cracking.
- Controlled Decompression & Ejection: Hydraulic pressure is gradually bled off to prevent surface cracking from elastic springback. A bottom ejection cylinder then cleanly pushes the solid cinnabar block out of the die cavity for downstream retorting, roasting, or secure containment.

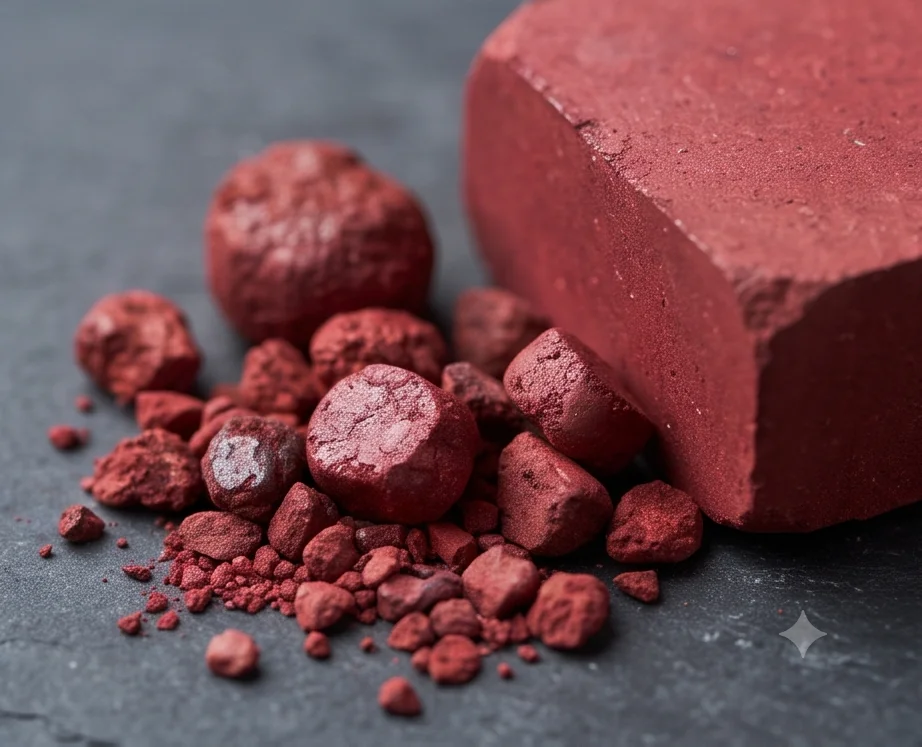

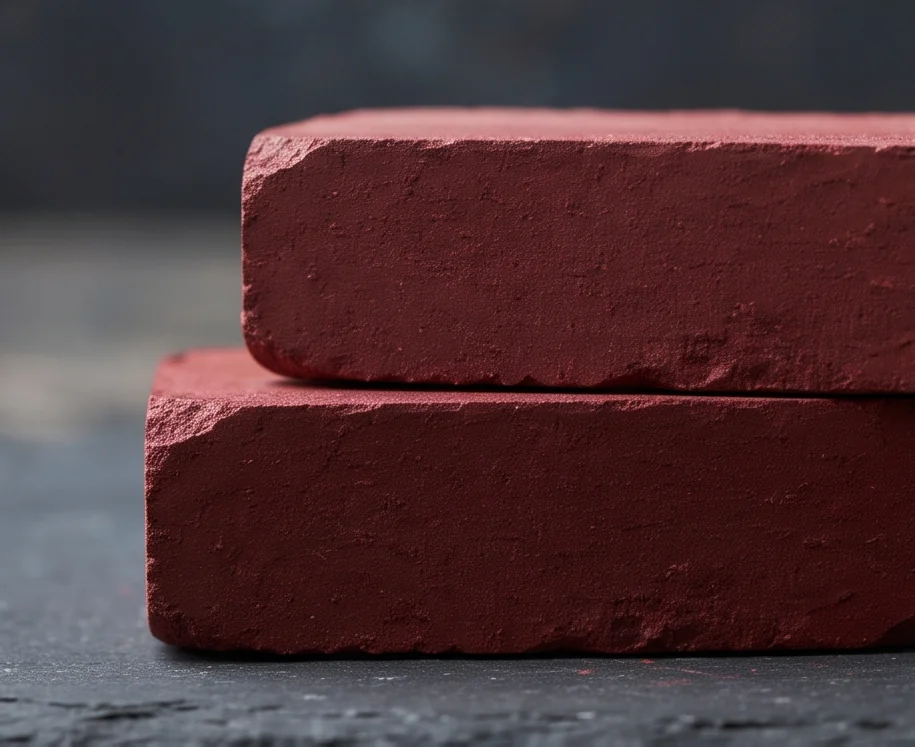

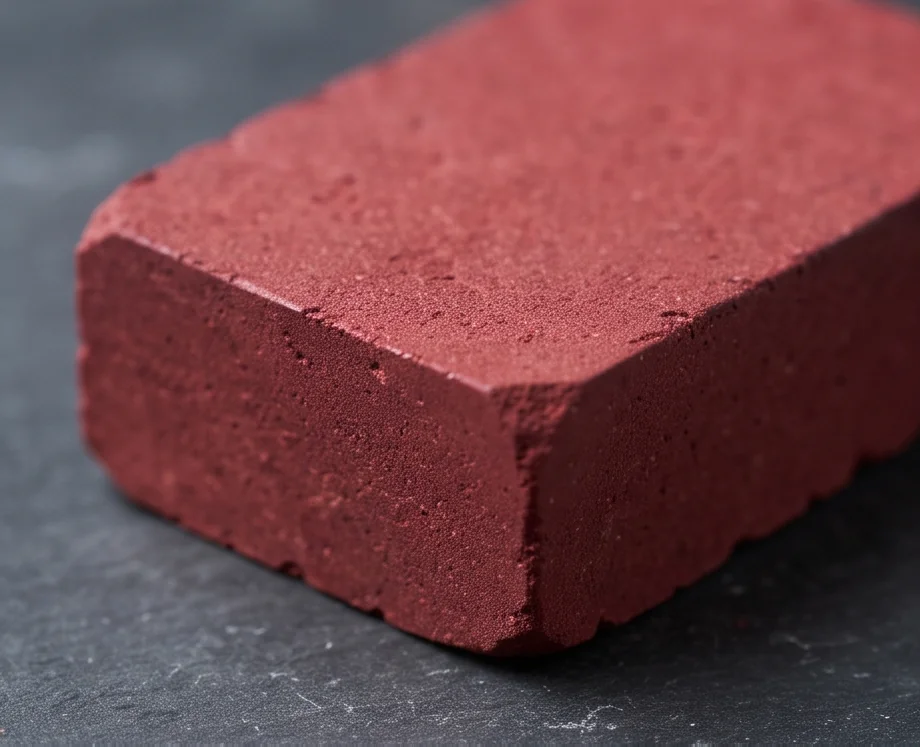

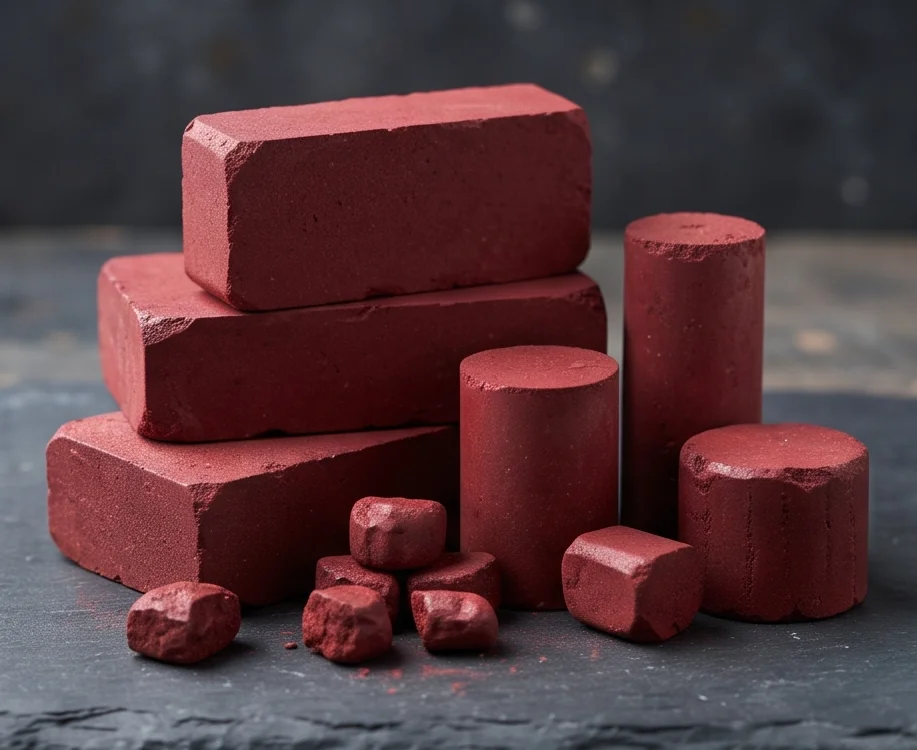

Finished Product Gallery
