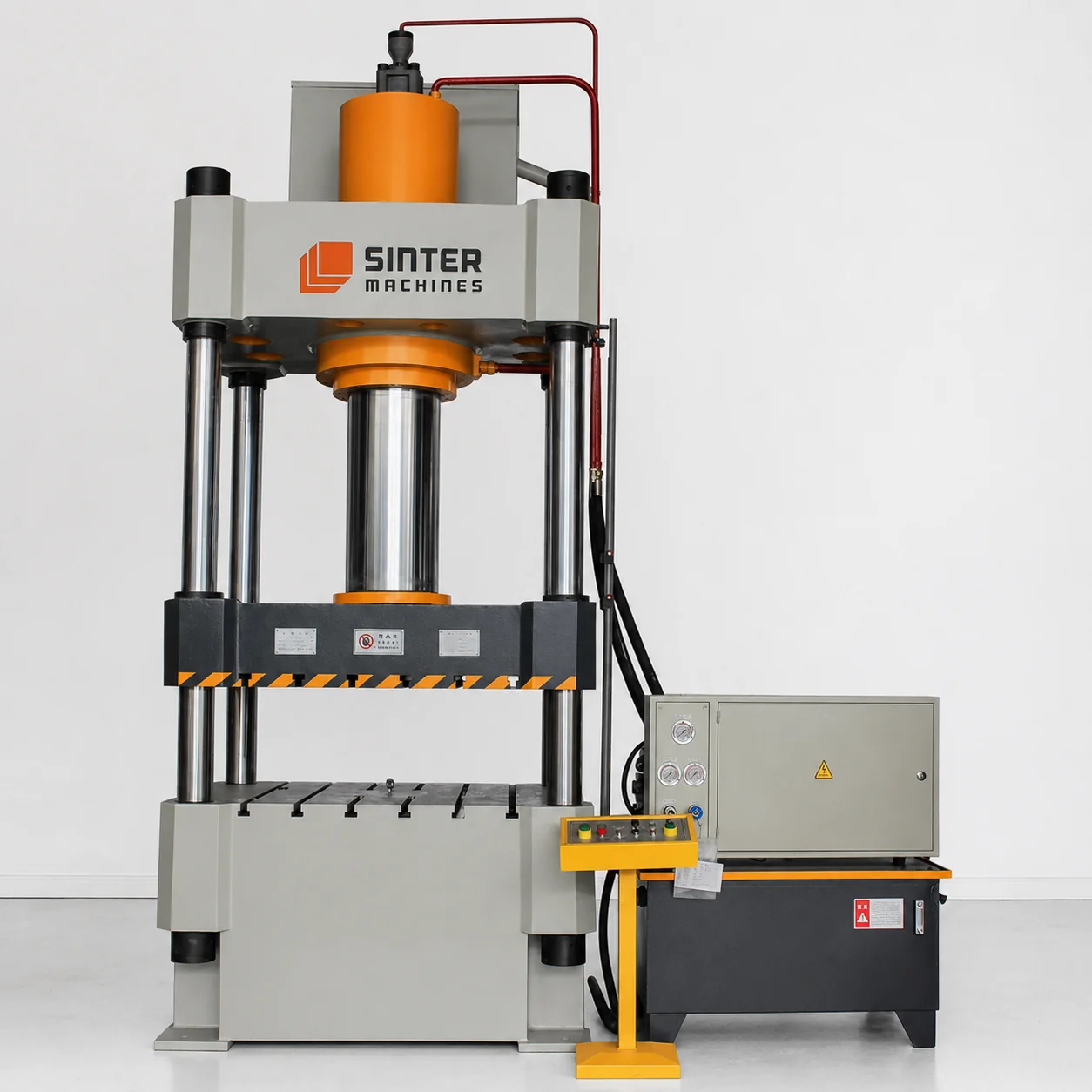

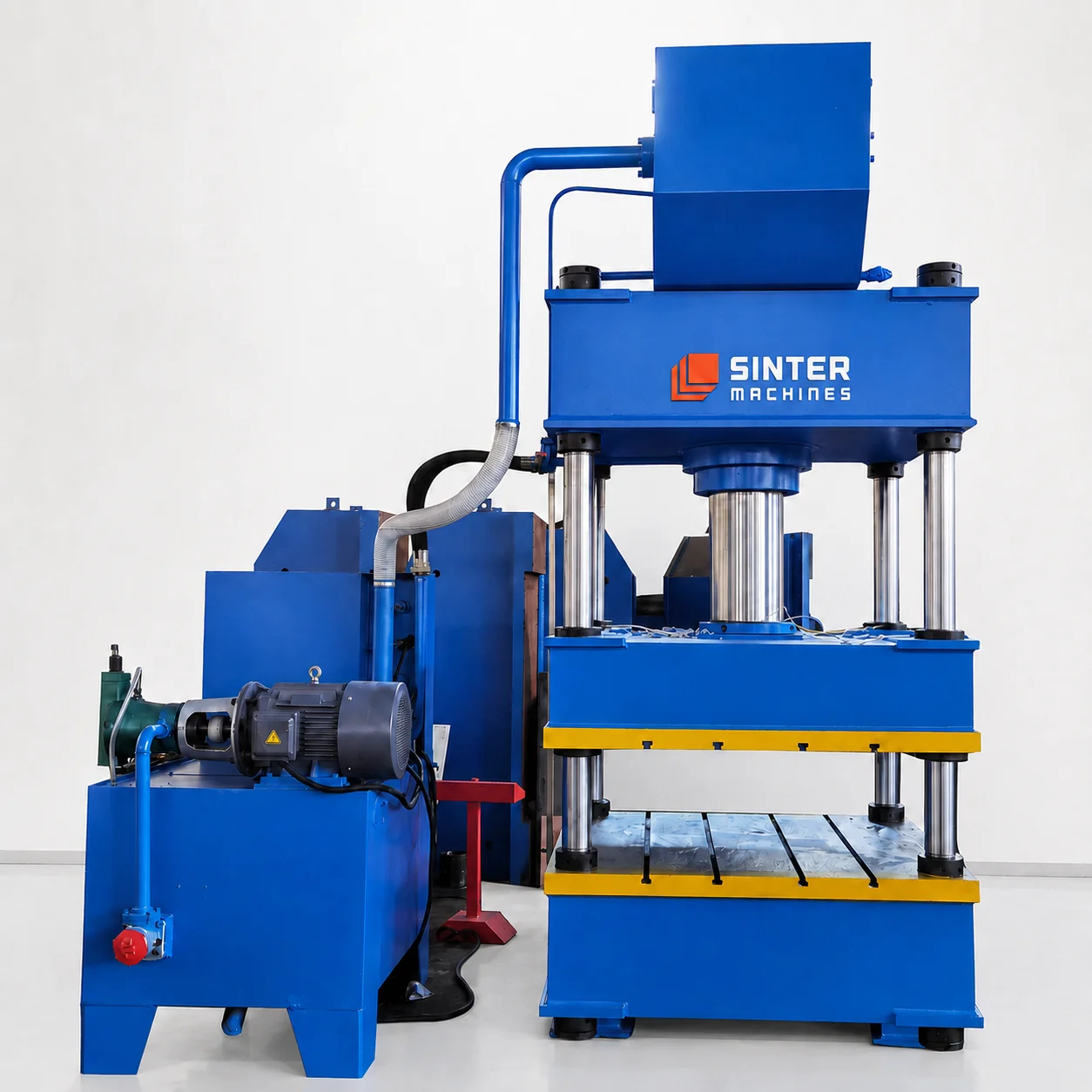

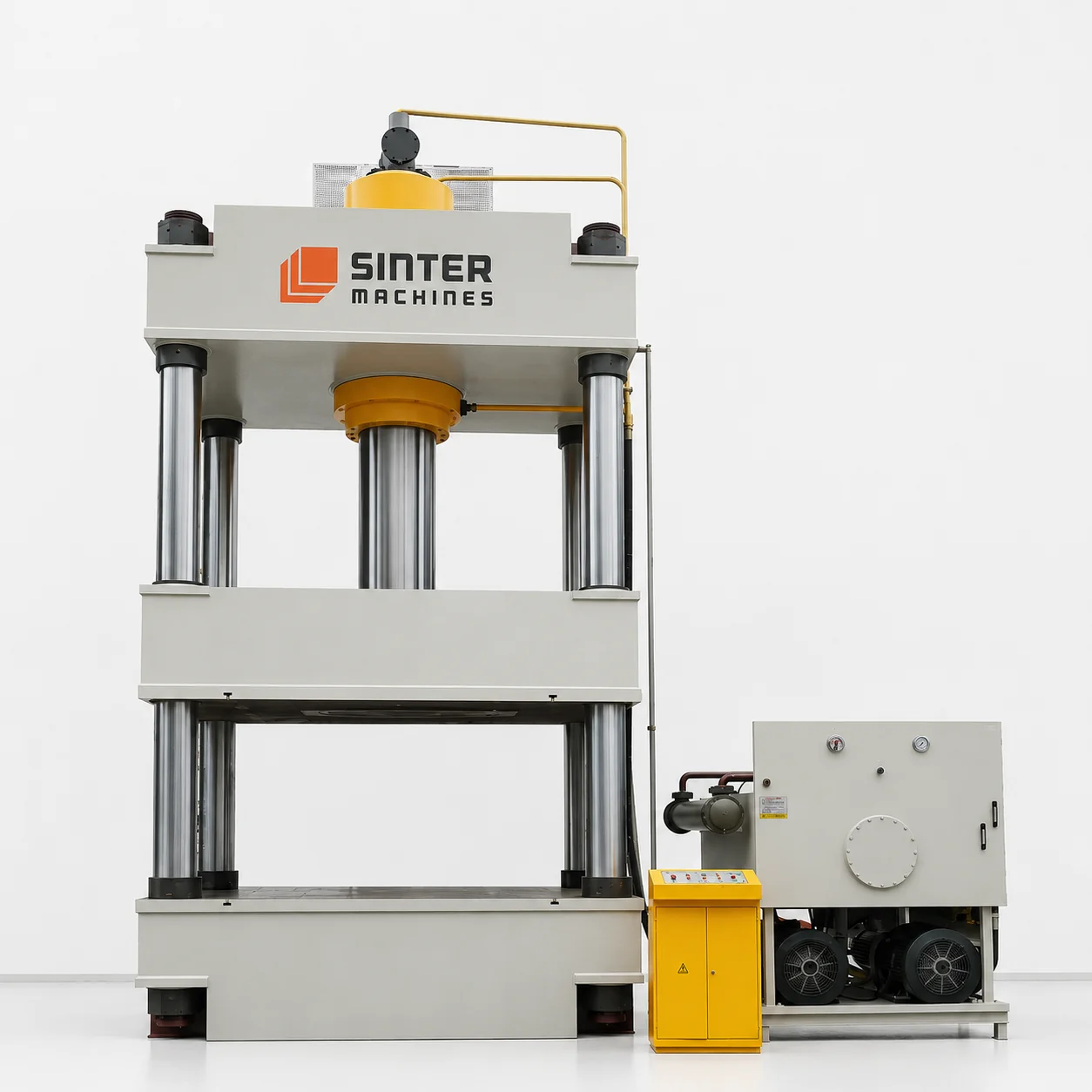

100T Four Column Hydraulic Press for Rhodium Powder Block
A Rhodium Powder Block Compression 4-Column Hydraulic Press Machine is a specialized heavy-duty industrial compaction system engineered to compress fine rhodium metal powder into dense, uniform solid blocks, pellets, or green compacts.
These machines are utilized in precious metal refining, catalyst manufacturing, electrical contact production, and advanced powder metallurgy, where high-value, rare platinum-group metal powders must be consolidated to minimize material loss, prevent airborne dusting, and optimize subsequent sintering or melting processes.
01 — Engineering Considerations
Structural Design & Engineering Considerations (4-Column Architecture)
High-Precision Guidance & Parallelism: Precious metal powders require strict control over compaction uniformity to prevent structural weak points, density gradients, or inconsistent electrical and thermal properties. The four-pillar precision-ground column architecture ensures absolute platen parallelism and eliminates lateral play, preventing uneven wall pressures and ensuring consistent block density.
Rigid Load Distribution: Compacting fine precious metal powders into high-strength blocks requires continuous high tonnage and precision. The 4-column frame withstands heavy cyclic loads without structural flexing, maintaining exact micro-tolerances between the punches and the die cavity over long operational lifespans.
Material Security & Containment: Because rhodium is an extremely rare and valuable precious metal, the press is integrated with enclosed or sealed feeding hoppers, secure collection zones, complete housing enclosures, and local exhaust ventilation ports to prevent material loss, protect operators, and ensure strict inventory accountability during processing.
02 — Technical Specifications
Key Technical Specifications
Feature | Industrial Specification Range |
Nominal Compaction Force | 40 Tons to 400+ Tons (tailored to block cross-sectional area and target density) |
Guide Structure | 4 Hard-Chromed, Precision-Ground Steel Pillars with heavy-duty, low-friction bushings |
Die & Punch Assembly | Hardened alloy tool steel or specialized wear-resistant carbide inserts designed to handle precious metal powders |
Hydraulic Drive | Variable displacement piston pumps or servo-hydraulic systems with smooth proportional pressure control |
Control Unit | PLC system with HMI touchscreen interface for programming fill depth, pressing tonnage, dwell time, and automated extraction |
03 — Operational Workflow
Operational Workflow
- Enclosed Volumetric Feeding: An automated, sealed feed shoe slides precisely over the die cavity to deposit a measured volume of loose rhodium powder, minimizing airborne dust and preventing precious metal loss.
- Multi-Stage Compression:
- Fast Approach: The top ram lowers quickly to the material surface.
- High-Pressure Compaction: The system applies controlled tonnage. A multi-action or dual-punch configuration ensures even particle interlocking and density distribution throughout the depth of the block.
- Dwell Phase: Peak pressure is held for a set duration to allow trapped air to evacuate and the fine metal particles to firmly settle, minimizing internal stress or cracking.
- Controlled Decompression & Ejection: Hydraulic pressure is gradually bled off to prevent surface cracking from elastic springback. A bottom ejection cylinder then cleanly pushes the solid rhodium block out of the die cavity for downstream sintering, melting, or secure transport.

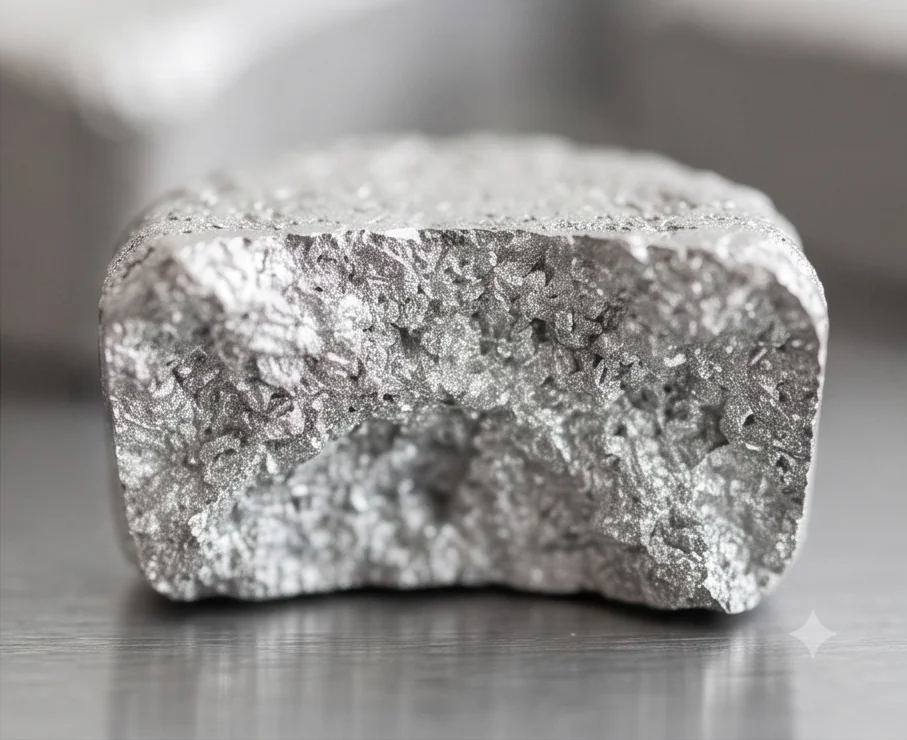

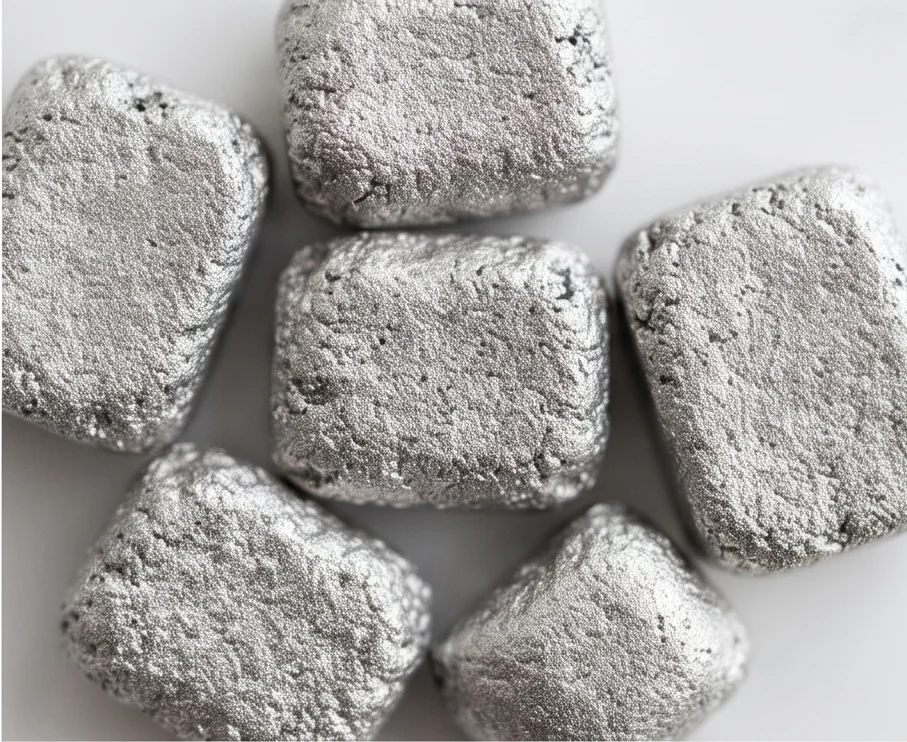

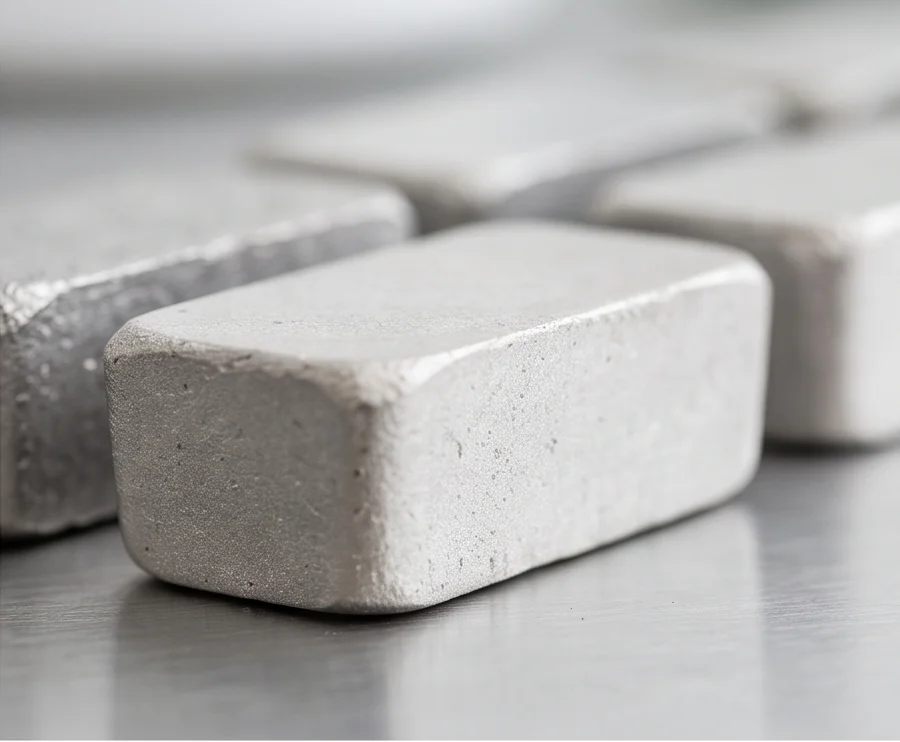

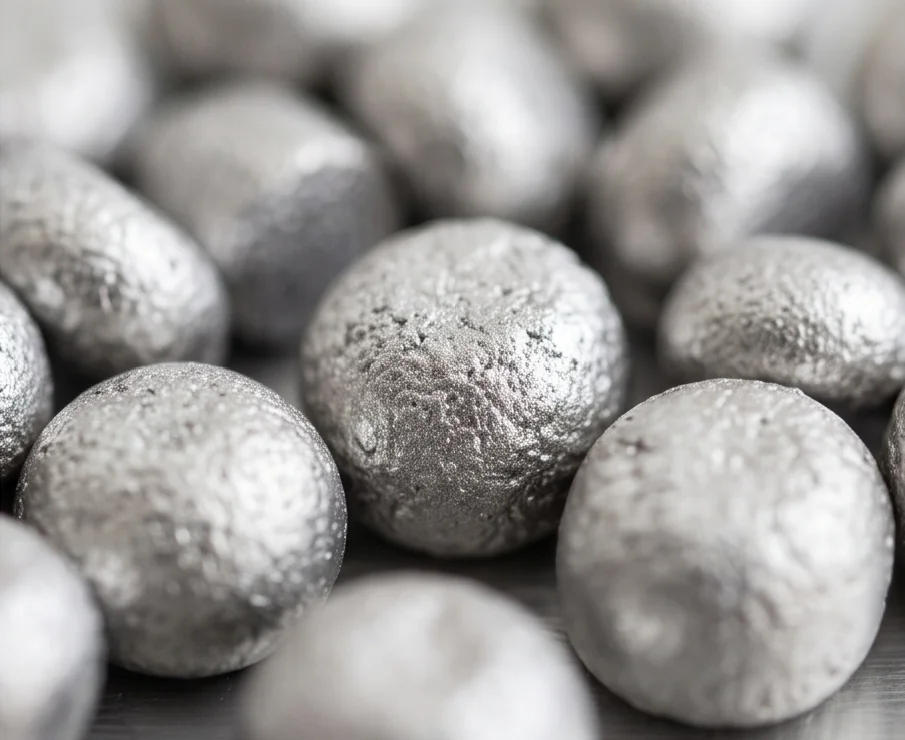

Finished Product Gallery
