02 — Technical Specifications

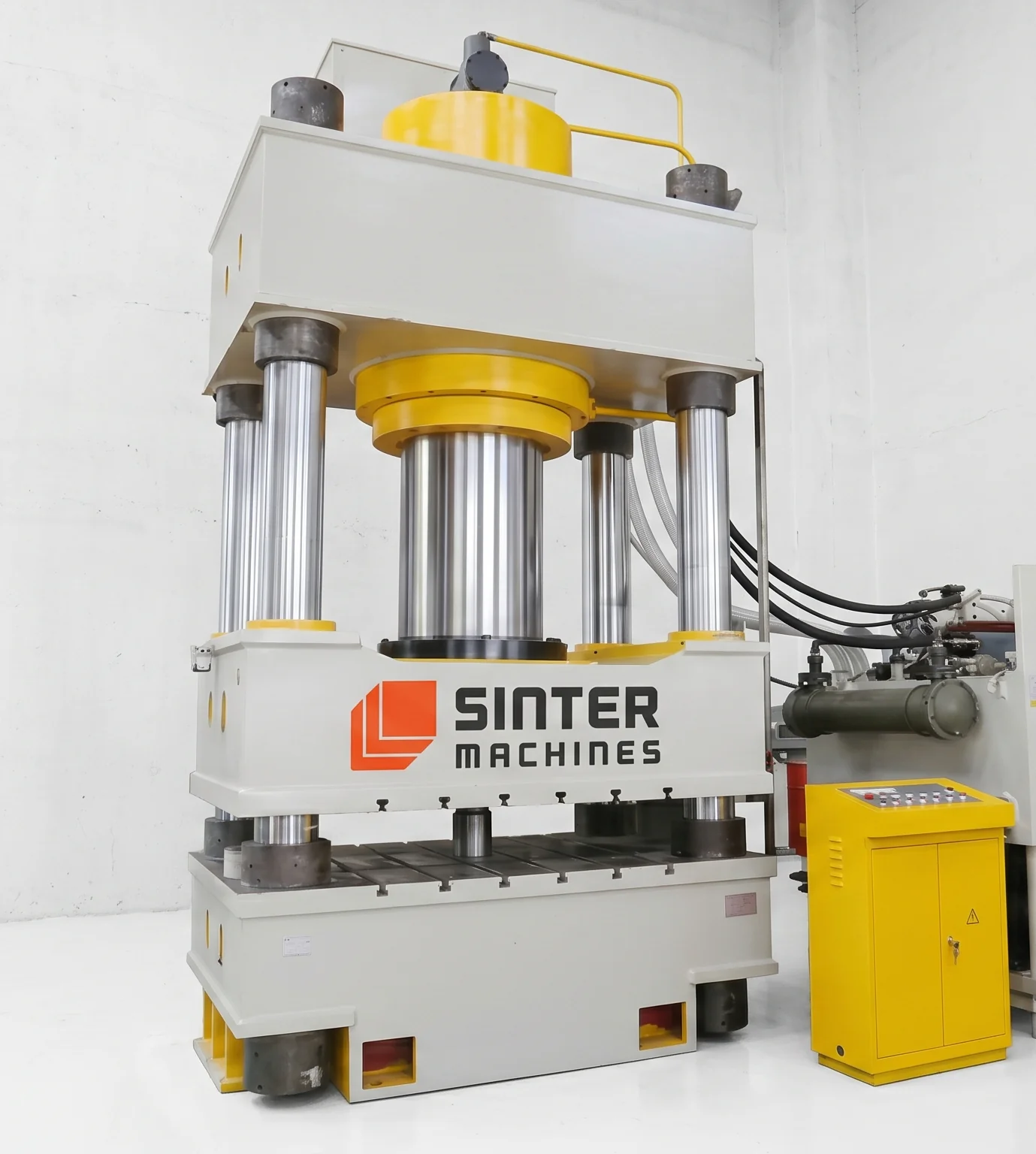

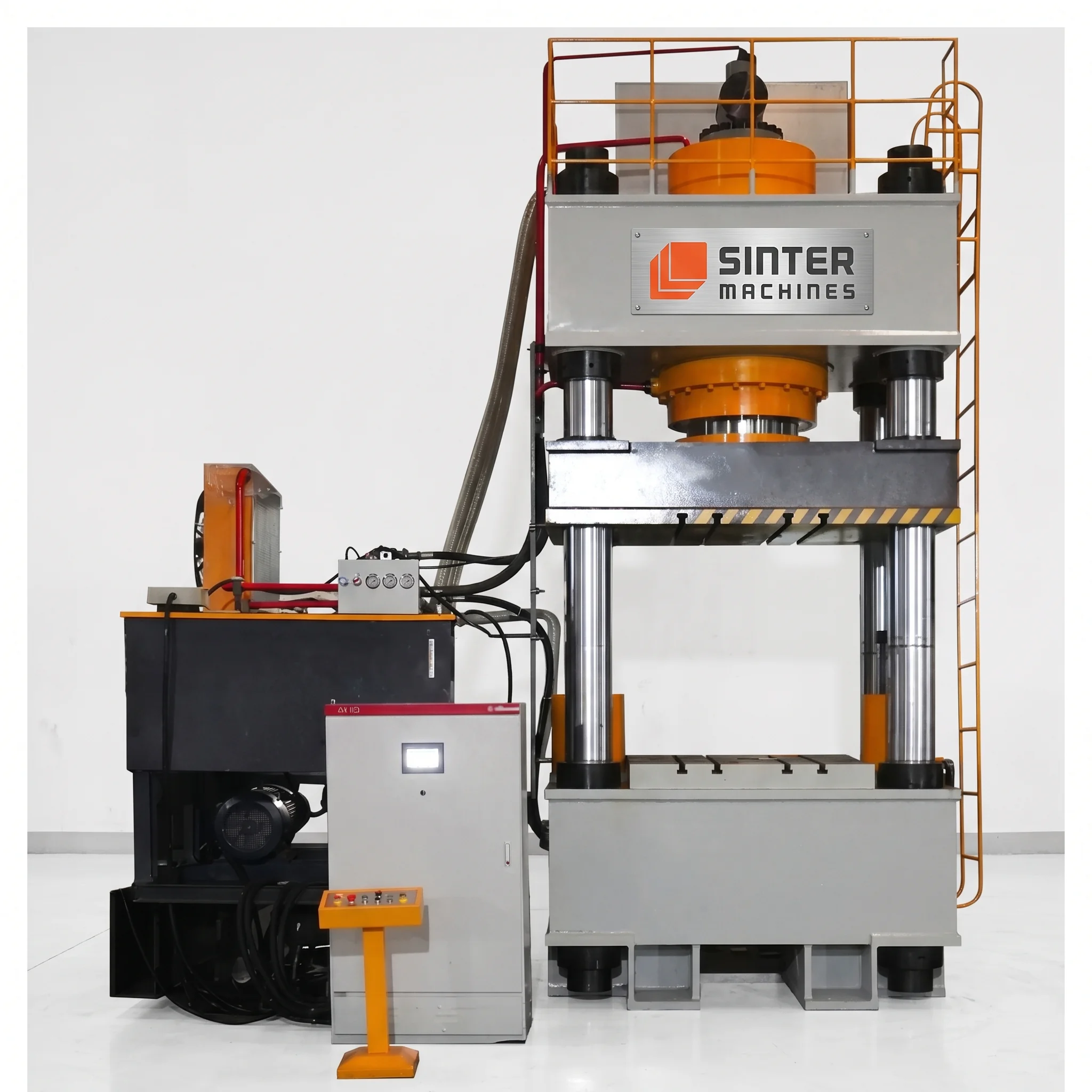

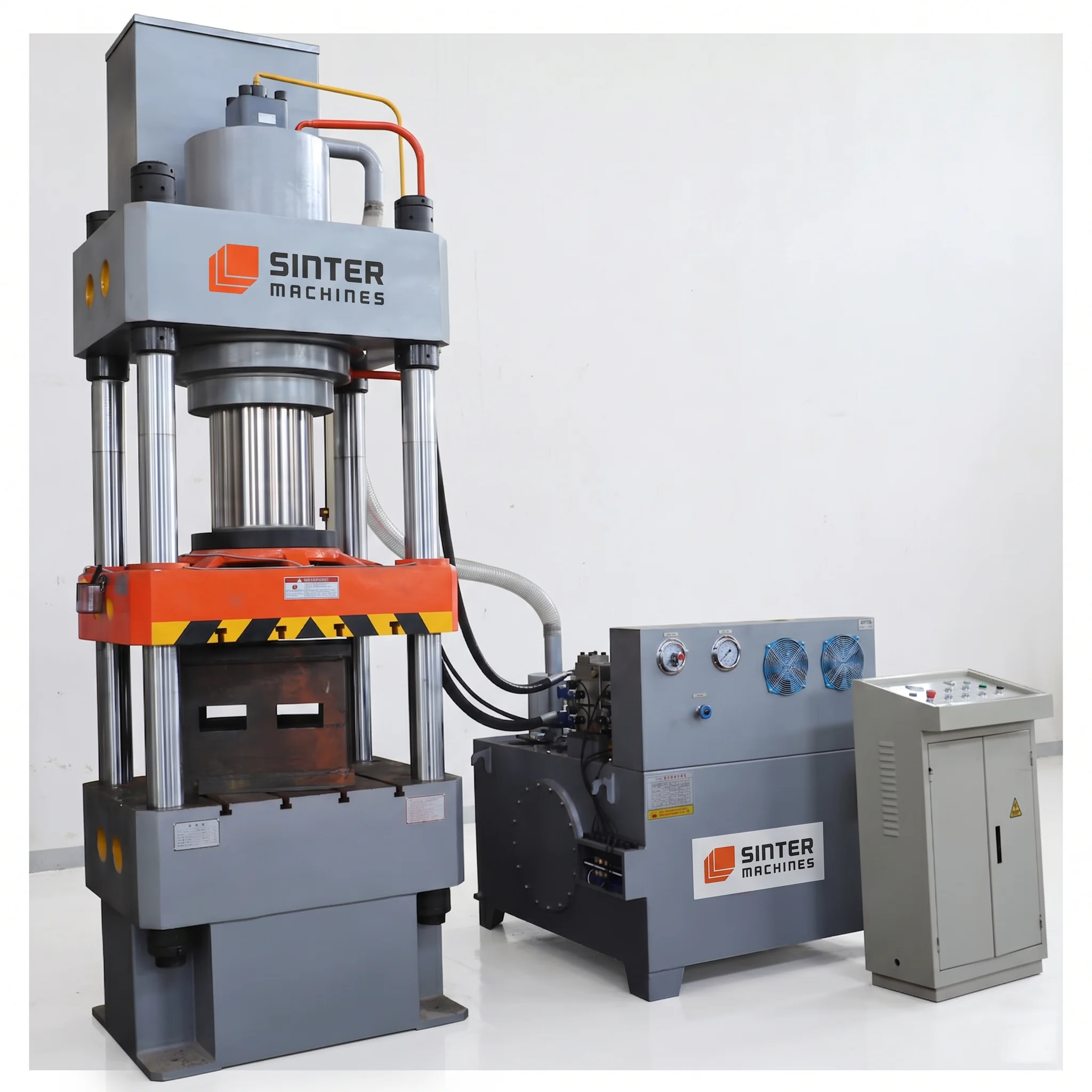

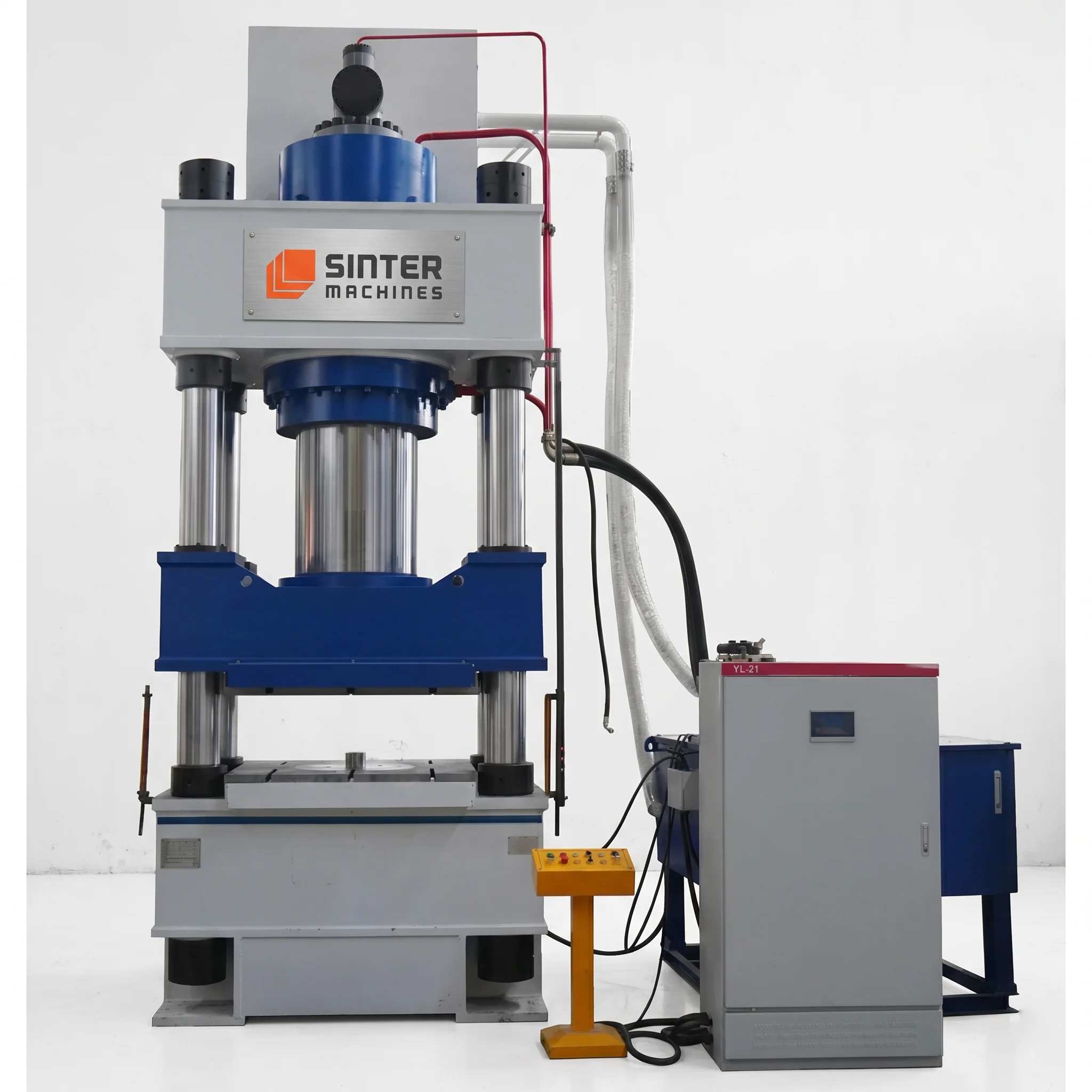

SM 1000 HP – HYDRAULIC PRESS MACHINE COMPLETE TECHNICAL DATA

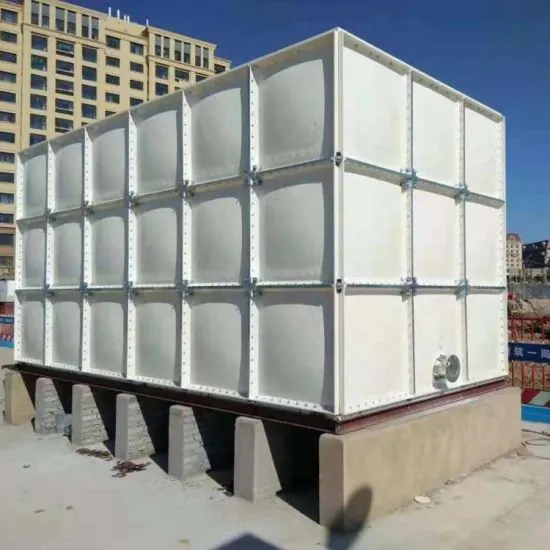

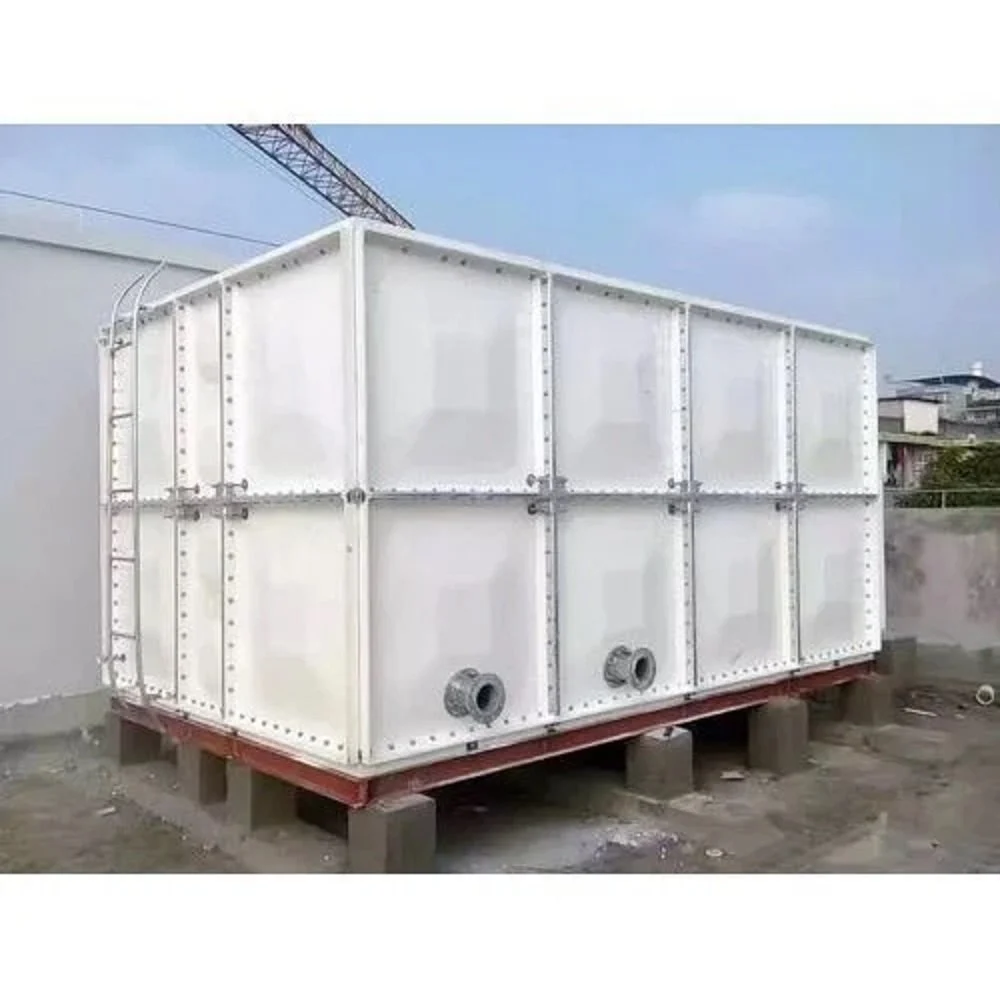

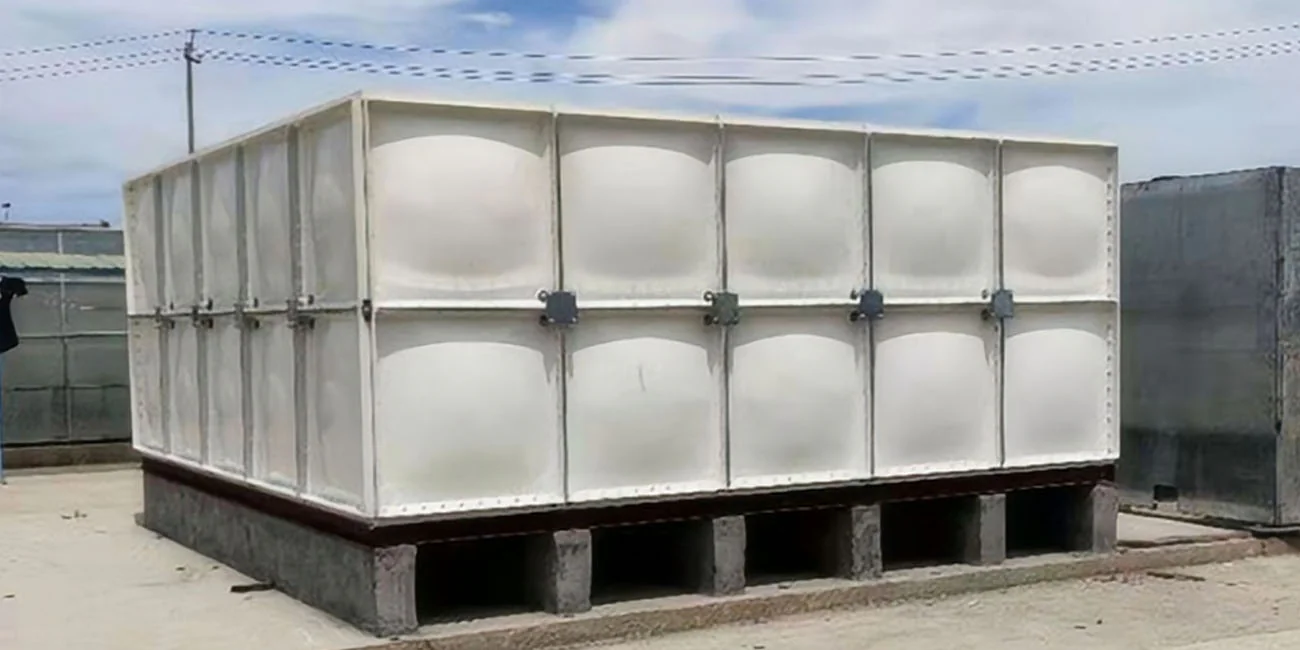

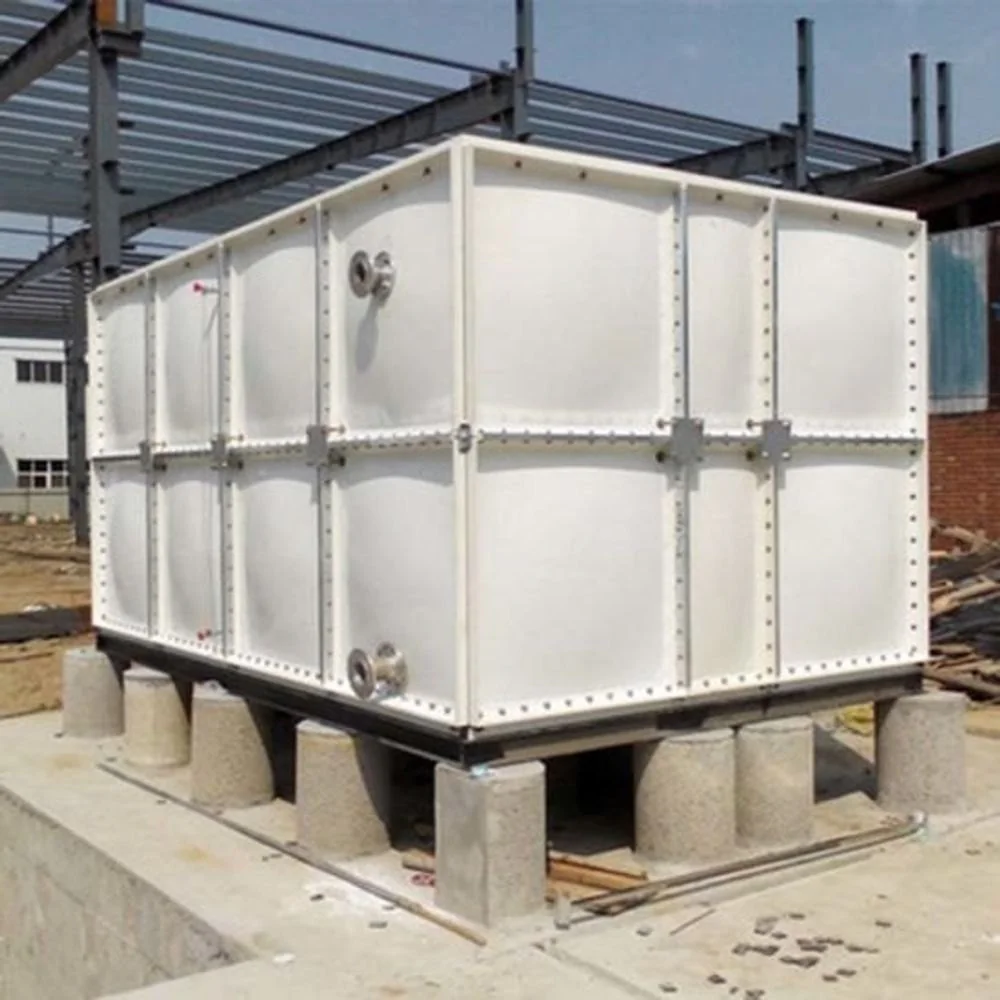

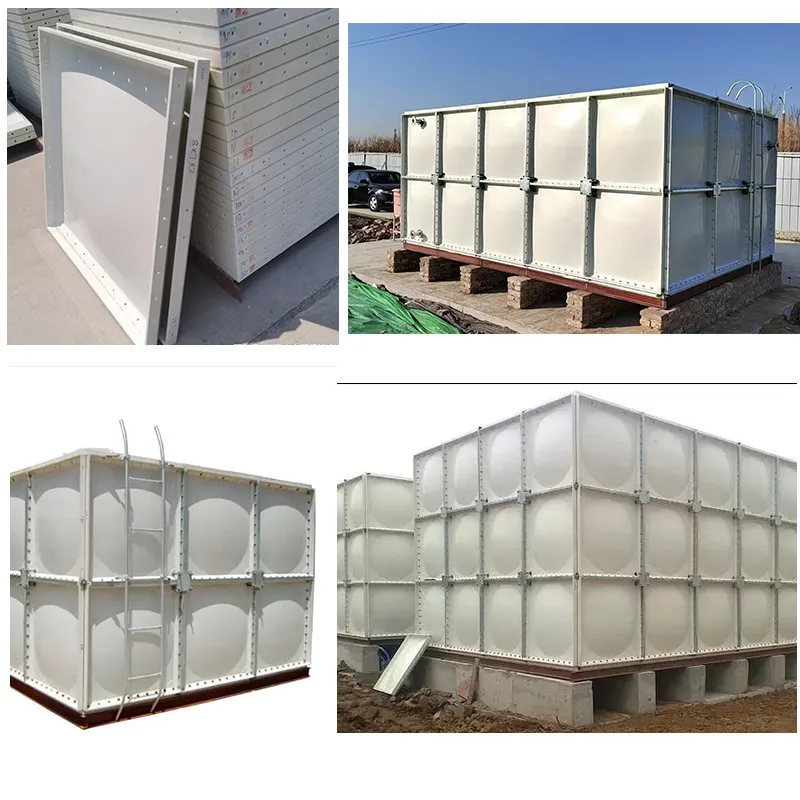

SM 1000 HP – Hydraulic Press Machine delivers powerful, high-precision performance for FRP water tank panels with complete technical reliability. It ensures uniform curing, high structural strength, and consistent quality for efficient large-scale production.
Capacity & Structural Design
- Rated Capacity: 1000 Tons (≈ 9800 kN)
- Press Type: Fourpillar hydraulic hot press
- Frame: Heavy-duty welded + stress-relieved
- Safety factor: ≥ 1.35–1.40
- Deflection at full load: ≤ 0.08–0.10 mm
Hydraulic System
- Main cylinder: Doubleacting
- Bore: 550–650 mm
- Stroke: 800–1300 mm
- Working pressure: 30–32 MPa
- Control system: Servo / proportional hydraulic (recommended)
Compression Cycle (Thermoset)
- Rapid mold closure
- Precompression (fiber distribution)
- High-pressure compression
- Heat curing (cross-linking reaction)
- Dwell (resin curing phase)
- Controlled decompression
- Mold opening
Heated Platen System
- Heating type: Thermal oil circulation (industry standard)
- Temperature range: 120–180°C
- Temperature accuracy: ±2–3°C
- Multi-zone heating (independent zones)
Working Envelope
- Platen size:
- Standard: 1500 × 1500 mm
- Optional: 1800 × 1600 mm
- Daylight: 1500–2200 mm
- Column diameter: 200–260 mm
Control & Automation
- PLC (Siemens / Mitsubishi / Delta)
- HMI with recipe programming
- Pressure–time–temperature graphing
- Production data logging (QA traceability)
- Safety PLC + light curtains
SM 1000 HP — Model Specifications
- Nominal Force: 10000 KN
- Maximum Hydraulic Pressure: 25 MPa
- Max Opening Height of the Slider: 1500 mm
- Max Stroke of the Slider: 900 mm
- Effective Bed Size: 1400 × 1400 mm
- Slider Down Speed: 180 mm/s
- Slider Pressing Speed: 10–18 mm/s
- Slider Return Speed: 220 mm/s
- Ejector Cylinder Nominal Force: 600 KN
- Stroke of the Ejection Cylinder: 300 mm
