400T Precision Electrical connectors Press press view 1
Metal Electrical Connectors · Hydraulic Press Machine

400 Ton Four Column Hydraulic Press for Precision Metal Electrical Connectors

400T Rated Capacity
100 mm/s Slider Down Speed
7–12 mm/s Slider Pressing Speed
100 mm/s Slider Return Speed

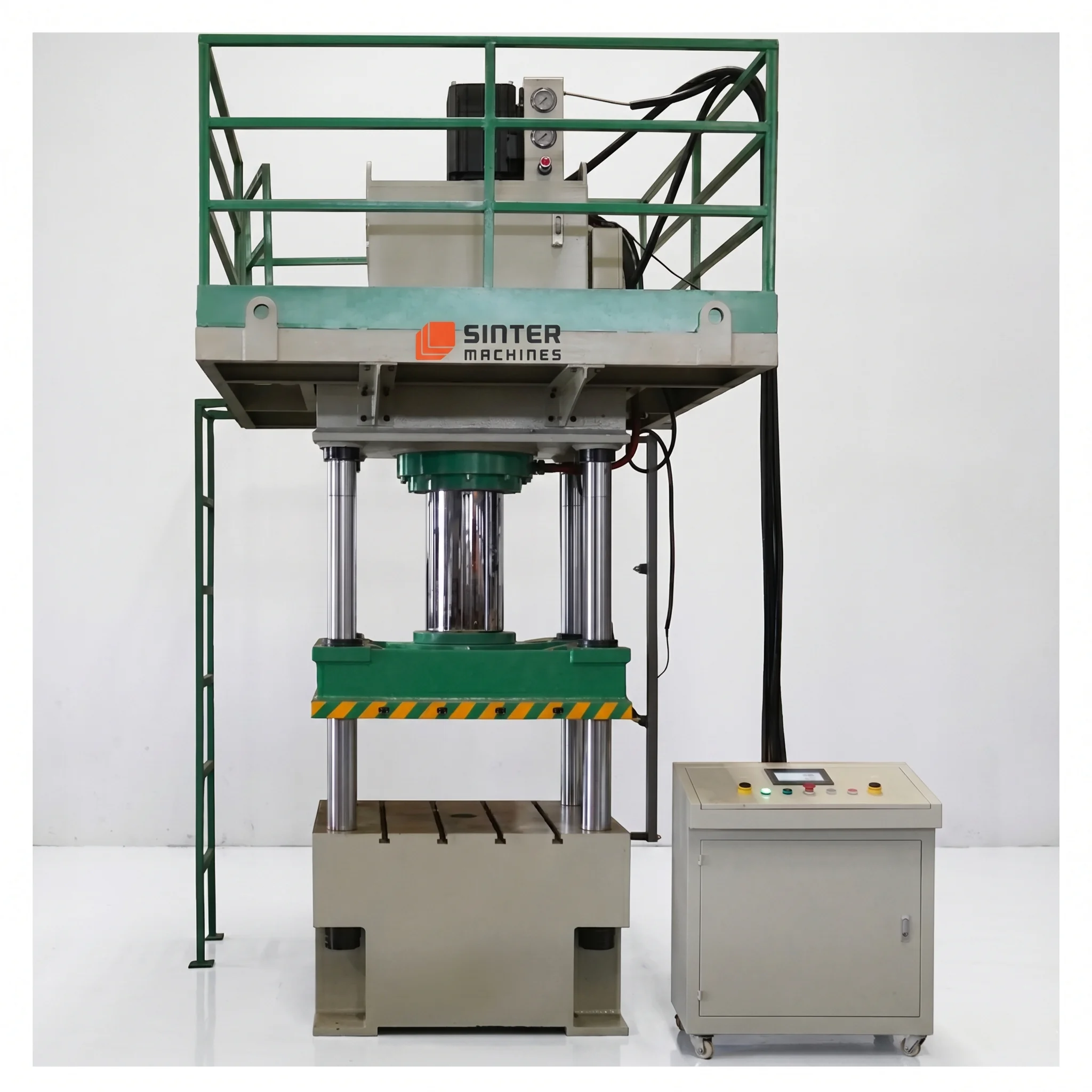

400T Precision Electrical connectors Press press view 1

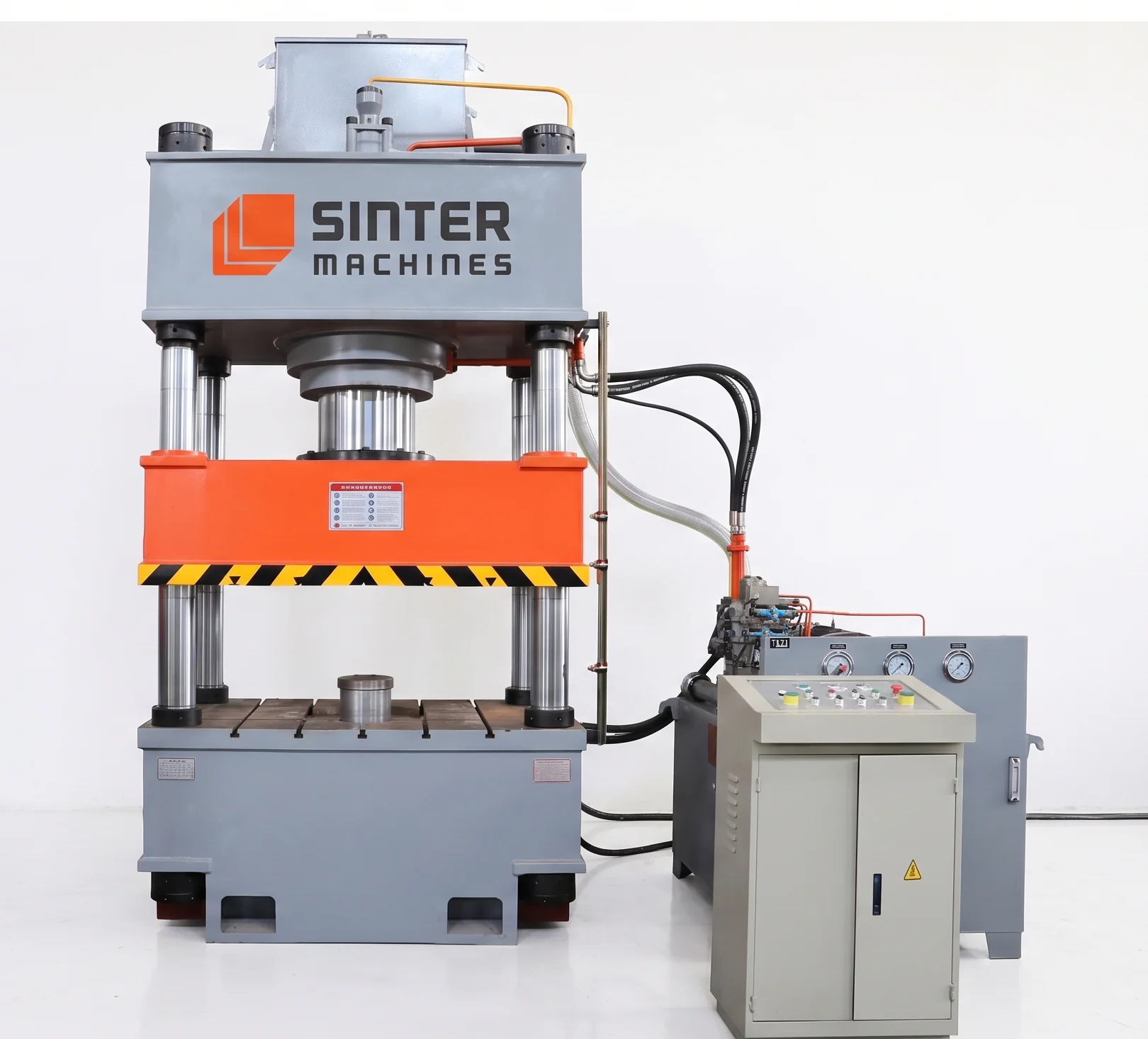

400T Precision Electrical connectors Press press view 2

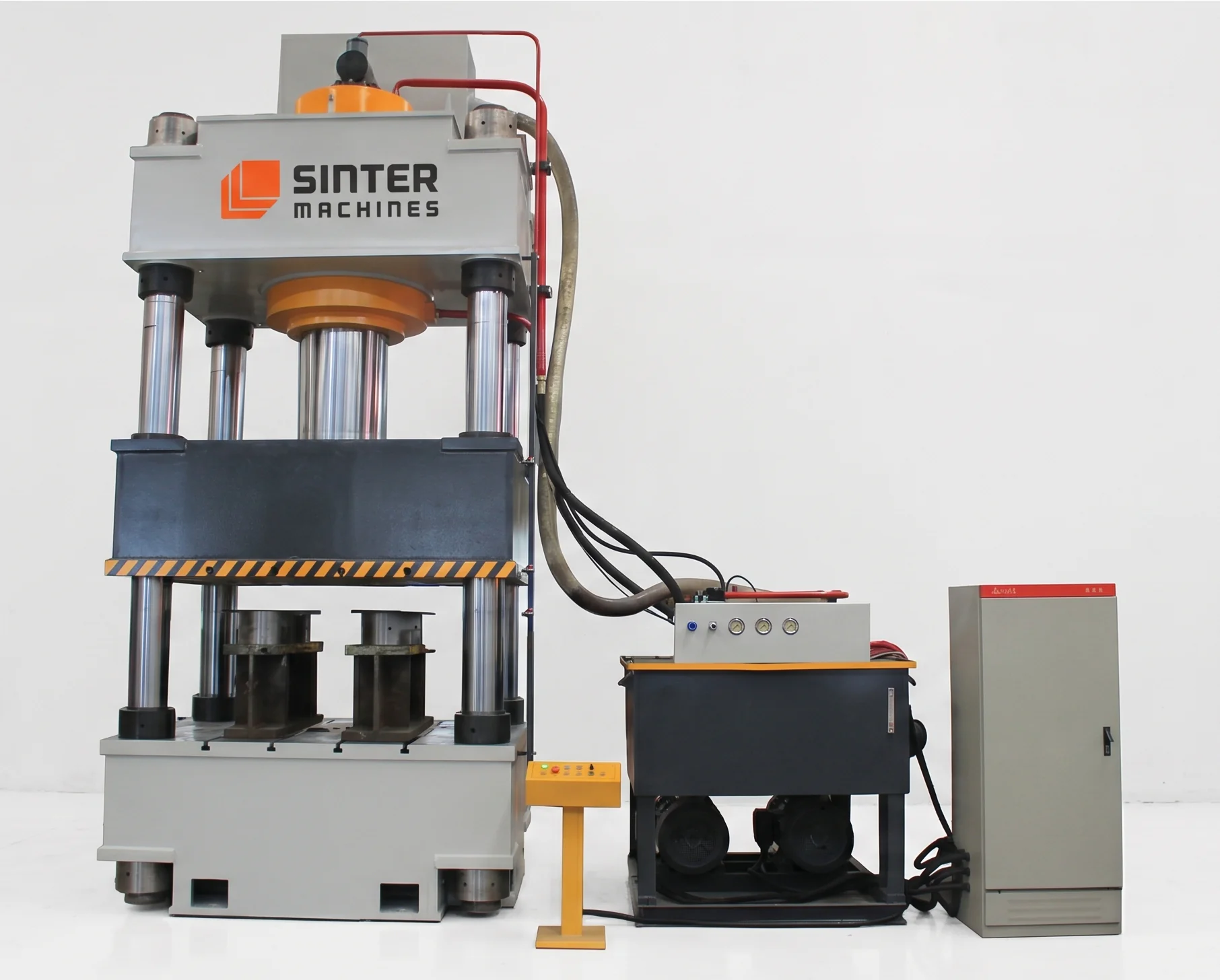

400T Precision Electrical connectors Press press view 3

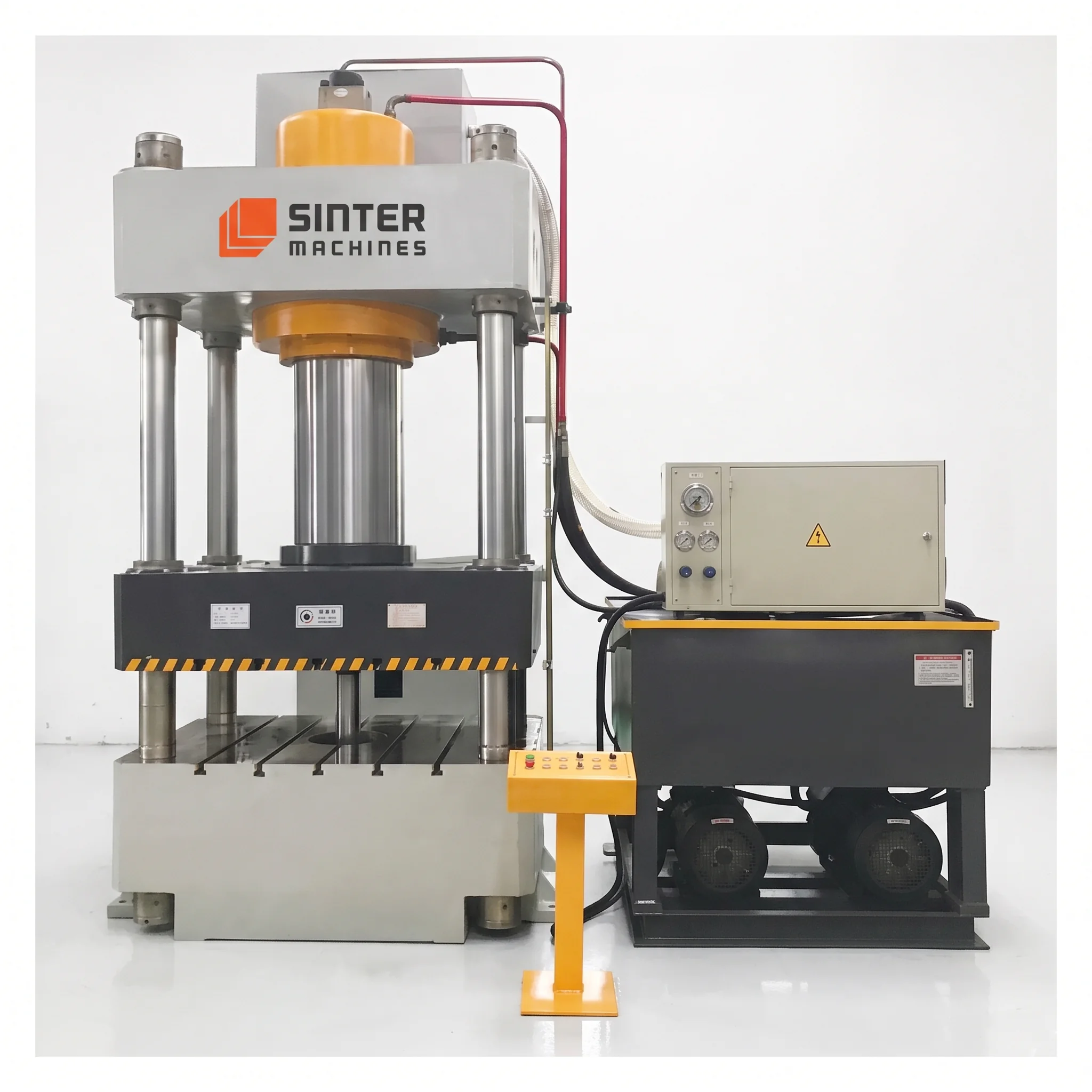

400T Precision Electrical connectors Press press view 4

01 — Press System

400 Ton Four Column Hydraulic Press Machine

The 400-ton four-pillar hydraulic press from Sinter Hydraulics India is a high-precision, production-ready solution engineered for cold forging precision electrical connectors and couplings used in the energy sector. This heavy-duty system ensures high repeatability and exceptional mechanical integrity required for automated equipment assembly.

Use Case

Electrical connectors and precision couplings must provide flawless structural density to guarantee low electrical resistance and reliable contact fit under constant operational loads. This press platform cold-forms highly conductive alloys at room temperature, consolidating the internal grain structure to ensure leak-proof, high-performance joint sealing.

Core Applications

  • High-precision cold heading, forward extrusion, and backward extrusion of high-conductivity electrical hardware
  • Room-temperature closed-die upsetting and calibration of dense multi-channel connector housings
  • Cold formation of complex terminal lugs, splined couplings, and tight-tolerance preforms prior to final threading

Material

  • High-conductivity copper alloys including electrolytic tough pitch copper and specialized beryllium copper grades
  • Premium lightweight aluminum alloys optimized for electrical transmission and corrosion resistance
  • High-tensile stainless steels and specialized low-alloy steels engineered for heavy-duty structural anchoring

Typical Products Processed

  • High-voltage terminal lugs, heavy-duty cable connectors, and compression splices for power transmission lines
  • Precision instrumentation couplings, multi-pin electrical connector shells, and sealed junction box fittings
  • Subsea electrical connector housings, renewable energy busbar connectors, and switchgear components
  • Near-net-shape contact pins, threaded coupling sleeves, and high-strength grounding hardware

Key Functions

  • Proportional flow control tracking to manage material displacement velocity and prevent internal cracks
  • Integrated high-speed mechanical knockout rods for instantaneous and clean automatic part ejection from deep cavities
  • Digital stroke limitation and precise tonnage monitoring to ensure absolute batch consistency across production runs

Why 400 Ton Hydraulic Press?

  • Delivers the exact tonnage required to deform tough copper and aluminum alloys efficiently without overheating the material
  • Four-pillar architecture guarantees absolute platen parallelism under load, preventing wall thickness variation and protecting progressive tooling

02 — Technical Specifications

SM 400 HP – HYDRAULIC PRESS MACHINE COMPLETE TECHNICAL DATA

The SM 400 HP hydraulic press delivers highly stable compression forces and micro-precise alignment tracking optimized for cold forging high-conductivity electrical components. Its high-rigidity structural framework and responsive fluid circuits ensure excellent concentricity and surface finish consistency across high-volume production series.

Capacity

  • Maximum continuous cold forging compression force capacity of 4000 kN
  • Dedicated high speed bottom ejector stripping force capacity of 300 kN

Structural Design

  • High fatigue resistant pre stressed four column configuration built for continuous industrial production
  • Finite element analysis structural simulation frame designed to absorb intense cold sizing stresses

Frame Type

  • Precision aligned solid induction hardened pillar frame guide structure
  • Stress relieved heavy welded steel plate bolster and upper moving slide assembly

Hydraulic System

  • High output variable displacement axial piston pump fluid power assembly
  • Multi stage high capacity offline oil filtration loop with integrated oil coolers

Main Ram Stroke

  • Maximum vertical slide forming travel distance capability of 400 mm
  • Electronic stroke length limitation positioning resolution accurate within 0.005 mm

Working Hydraulic Pressure

  • Maximum continuous operating main hydraulic system fluid pressure of 250 bar
  • Peak shock safety valve pressure relief calibration threshold limit of 280 bar

Daylight Gap

  • Maximum open vertical daylight window working clearance of 800 mm
  • Minimum closed shut die height tool workspace space of 350 mm

Approach Speed

  • Accelerated downward advance slide rapid travel speed of 310 mm/Sec
  • Controlled raw material tool engagement deceleration velocity of 10 mm/Sec

Pressing / Drawing Speed

  • Dynamic high pressure cold forging extrusion speed of 3 to 26 mm/Sec
  • Maximum resistance continuous metal displacement squeezing velocity of 35 mm/Sec

Return Speed

  • High speed upward ram extraction retraction travel speed of 290 mm/Sec
  • Ultra fast automated hydraulic pre return system decompression cycle timing

Bed / Platen Size Platen

  • Total clear bolster bed width left to right of 950 mm
  • Total clear bolster bed depth front to back of 850 mm

Columns

  • Ultra high tensile forged alloy steel pillar diameter of 180 mm
  • Heavy duty wear resistant bronze guide bushings with automatic grease lubrication

Working Envelope

  • Total horizontal internal clear workspace area of 950 by 850 mm
  • Maximum permissible upper die tool assembly mass weight of 2500 kg

Control System

  • Industrial programmable logic controller linked with a graphical touchscreen station
  • Dual redundant non contact linear transducer position tracking systems accurate within 0.002 mm

Main Motor Power

  • High efficiency primary hydraulic pump electric drive motor power of 55 kW
  • Dedicated auxiliary cooling and continuous oil filtration motor power of 5 kW

Valves & Hydraulics

  • High dynamic response proportional servo flow control cartridge manifold block
  • Integrated fast acting overhead gravity pre fill oil valve unit assembly

Automation

  • Digital interface connection ports for synchronized industrial automatic feeder loops
  • High temperature hydraulic quick action die clamping system connecting lines

Safety Features

  • Dual channel infrared light curtain barriers guarding operator workspace zones
  • Automated heavy duty dual fail safe mechanical anti drop ram safety locking blocks

SM 400 HP — Model Specifications

  • Nominal Force: 4000 KN
  • Maximum Hydraulic Pressure: 25 MPa
  • Max Opening Height of the Slider: 1250 mm
  • Max Stroke of the Slider: 800 mm
  • Effective Bed Size: 1260 × 1160 mm
  • Slider Down Speed: 100 mm/s
  • Slider Pressing Speed: 7–12 mm/s
  • Slider Return Speed: 100 mm/s
  • Ejector Cylinder Nominal Force: 400 KN
  • Stroke of the Ejection Cylinder: 300 mm
Production Case Study

Precision Metal Electrical Connectors Production Line

2-8 mmMaterial Thickness
300 mm MaxSheet Strip
5-10 SecCycle time
600-1200 PartsOutput/Hour
Electrical conductivity maintained perfectly
Surface finish optimized highly
Dimensional accuracy held consistently
Microstructural defects prevented completely
Material cracking eliminated entirely
Tooling wear minimized drastically
High volume repeatability ensured

03 — Die / Mold System

Precision Metal Electrical Connectors Die Mold Engineering

This precision tooling system integrates high-density segmented tungsten carbide inserts encased within pre-stressed alloy steel containment rings to withstand intense extrusion forces. The rigid configuration restricts elastic deflections during room-temperature metal flow, maintaining strict wall thickness uniformity and intricate terminal geometries.

Technical Specifications (Tooling)

Die Type

  • High precision progressive multi station closed die cold heading and precision forward backward extrusion tool set assembly
  • Heavy duty industrial grade cold forming tooling layout engineered for high volume electrical connector and terminal manufacturing

Die Materials

  • Premium submicron grain tungsten carbide cobalt matrix inserts providing extreme compressive yield strength and abrasive wear resistance
  • Ultra-high strength chromium molybdenum vanadium hot work tool steel utilized for external pre stressed compression casings

Tool Configuration & Construction

  • Multi-layer interference fit shrink fitted container ring design engineered to counteract massive internal radial splitting stresses
  • Modular quick change cassette layout optimized to minimize production line changeover times and maximize press bed utility

Key Tooling Features

  • Integrated multistage mechanical positive knockout pin assembly designed for rapid automatic part stripping sequences
  • Precision machined internal relief air venting channels engineered to prevent oil entrapment and avoid pneumatic pressure locks

Alignment Accuracy

  • Upper punch and lower die axis concentricity deviation kept strictly under a limit of 0.015 mm
  • Moving slide guiding parallelism variance across the active workspace restricted within a tolerance of 0.008 mm

Process Materials

  • High conductivity copper alloys electrolytic tough pitch copper grades and specialized beryllium copper wires
  • Premium lightweight aluminum alloys optimized for electrical transmission and high tensile corrosion resistant stainless-steel rods

Surface Finish

  • Active mirror polished tungsten carbide forming cavities diamond lapped down to an roughness of Ra 0.04 microns
  • Advanced physical vapor deposition titanium aluminium nitride wear protective surface layer applied to a thickness of 0.003 mm

Tool Life

  • Expected production span of 45000 cycles before requiring mandatory cavity inspection and micro polishing procedures
  • Total structural tooling lifespan capacity reaching 450000 production cycles before complete carbide insert replacement
Case Study (Die Performance)

Precision Metal Electrical Connectors Die Mold

Cr-Mo-V AlloyDie Material
54–60 HRCHardness
Vacuum HardeningSurface Treatment
Cavity wear resisted fully
Thermal fatigue cracking prevented
Structural deflection minimized completely
Intricate profiles maintained perfectly
Interface galling eliminated entirely
Die lifespan extended substantially
Component scrap rates minimized

04 — Product Application

Where Precision Metal Electrical Connectors Are Used

Precision metal electrical connectors are engineered to ensure high-conductivity electrical paths and secure mechanical joints within critical energy infrastructure. These cold-forged components provide the structural density, dimensional accuracy, and material integrity required to maintain reliable performance under continuous electrical load and harsh environmental conditions.

Industry Applications

These ultra-reliable electrical components are essential for grid infrastructure, power generation stations, offshore oil and gas rigs, renewable energy arrays, and EV charging networks. Their superior grain flow consolidation, dimensional predictability, and high conductivity enable tier-one energy equipment suppliers to satisfy rigid safety standards, maximize transmission efficiency, and guarantee the long-term uptime of critical electrical assets.

High-Voltage Power Transmission and Distribution Networks

These robust terminal lugs and connectors ensure seamless power transfer across the grid by maintaining optimal contact pressure and minimal electrical resistance. Their cold-forged grain structure prevents material fatigue during thermal expansion cycles while providing superior corrosion resistance in diverse outdoor climates.

Renewable Energy Infrastructure and Solar Inverter Systems

Heavy-duty connectors secure high-current flow from wind turbines and solar arrays, protecting sensitive electronic systems from electrical arcing and catastrophic failure. The dense material consolidation achieved through cold-forging enhances mechanical strength, shielding the infrastructure against constant wind vibrations and environmental stress.

Oil, Gas, and Subsea Substation Instrumentation

Specialized sealed connectors provide critical protection for sensors and data transmission lines deployed in deep-sea and highly volatile atmospheric conditions. These precision-formed components offer superior ingress protection and structural integrity to prevent electrical short-circuits in high-pressure and corrosive environments.

Electric Vehicle Powertrain Modules and Charging Stations

Cold-forged copper busbar connectors and terminal lugs manage the massive current draws required for rapid vehicle charging and high-torque motor operation. These high-purity components offer excellent thermal conductivity to dissipate heat efficiently, preventing connector degradation during repeated high-load charging cycles.

Finished Product Gallery

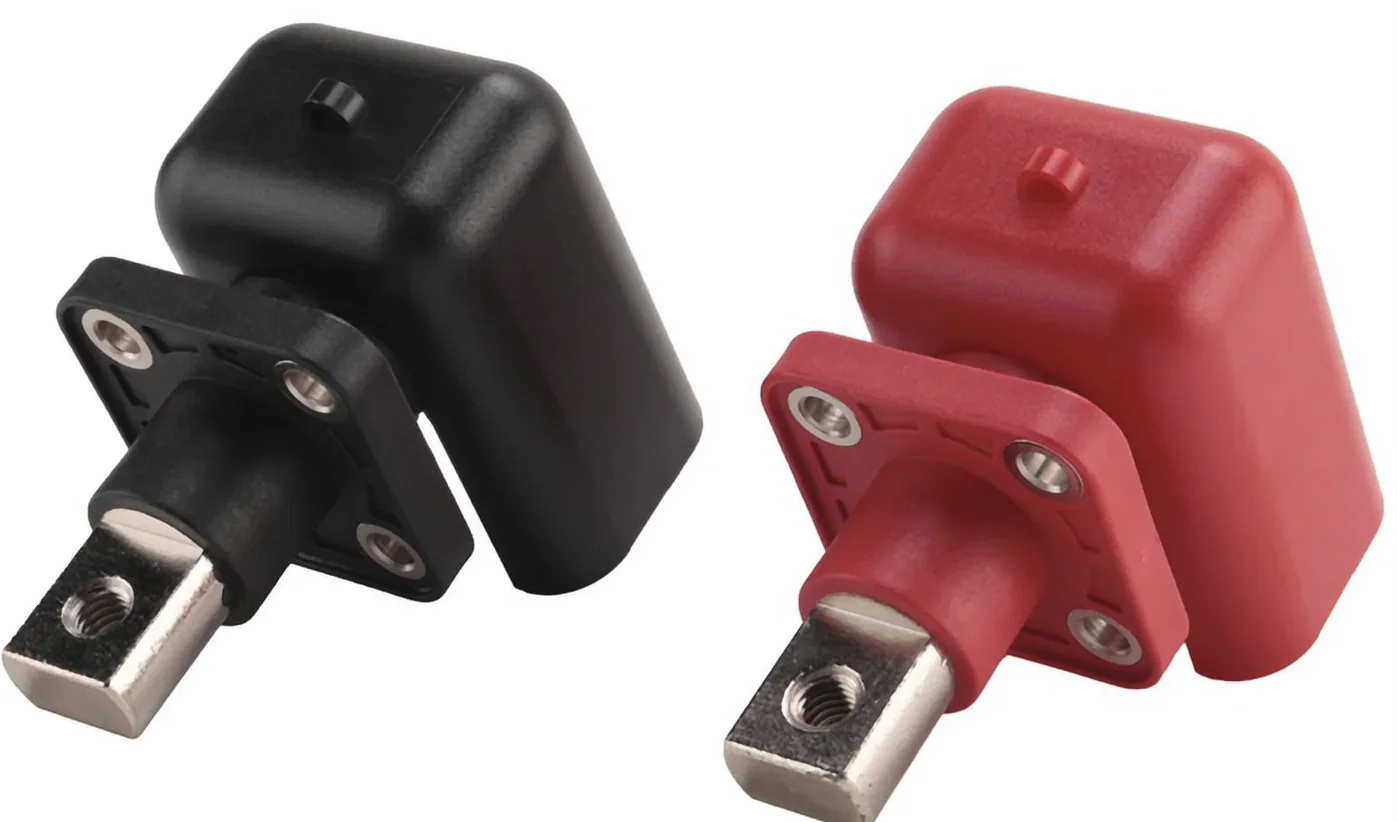

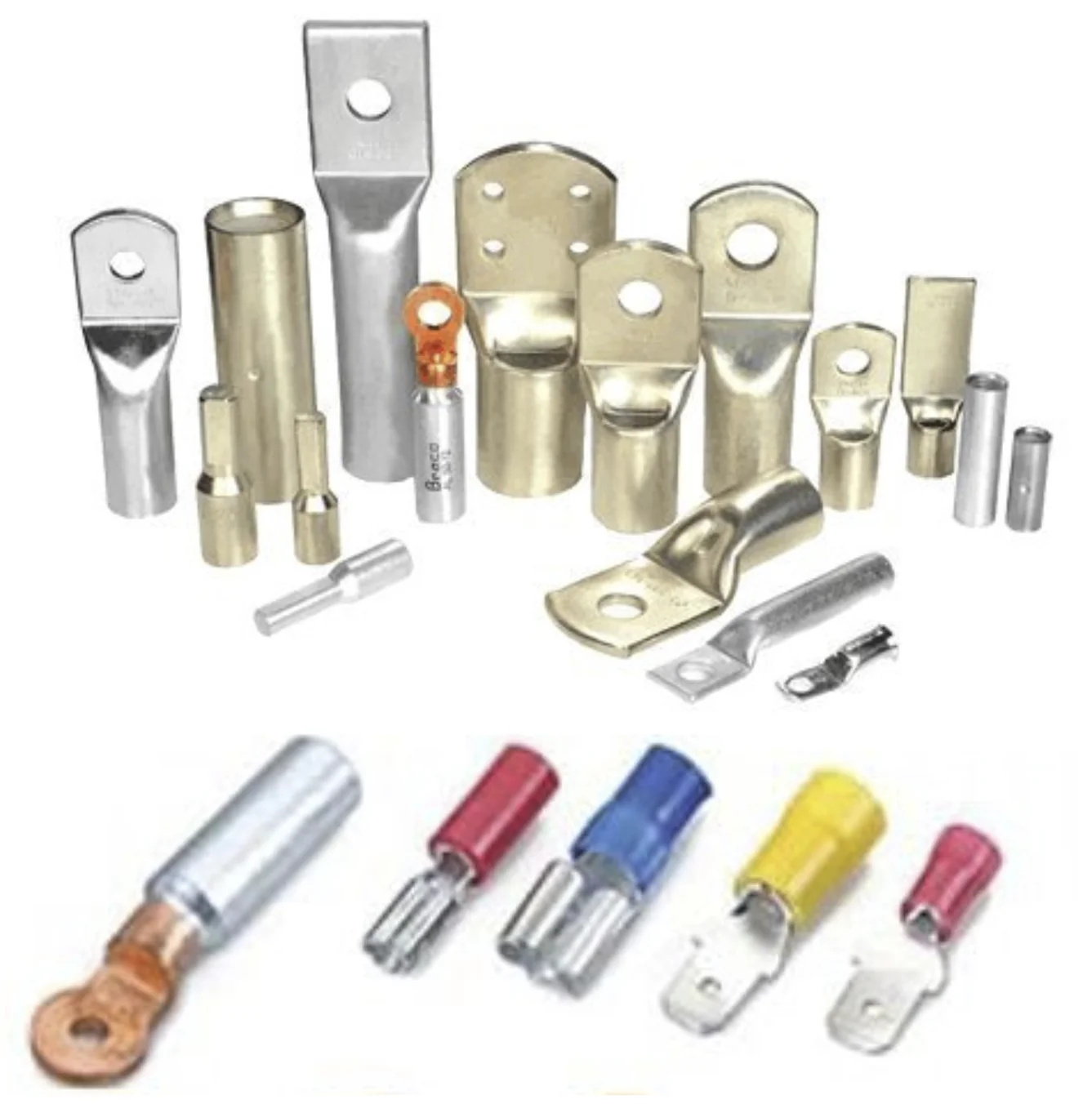

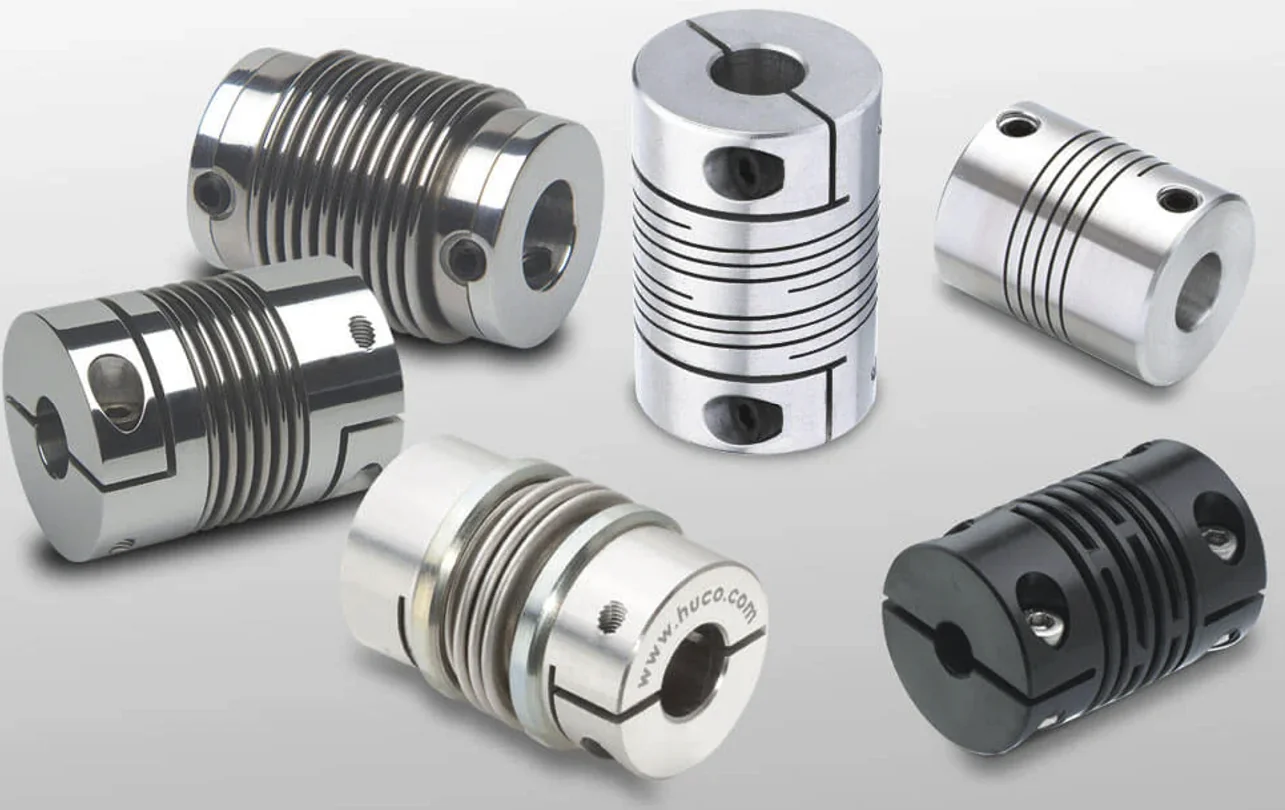

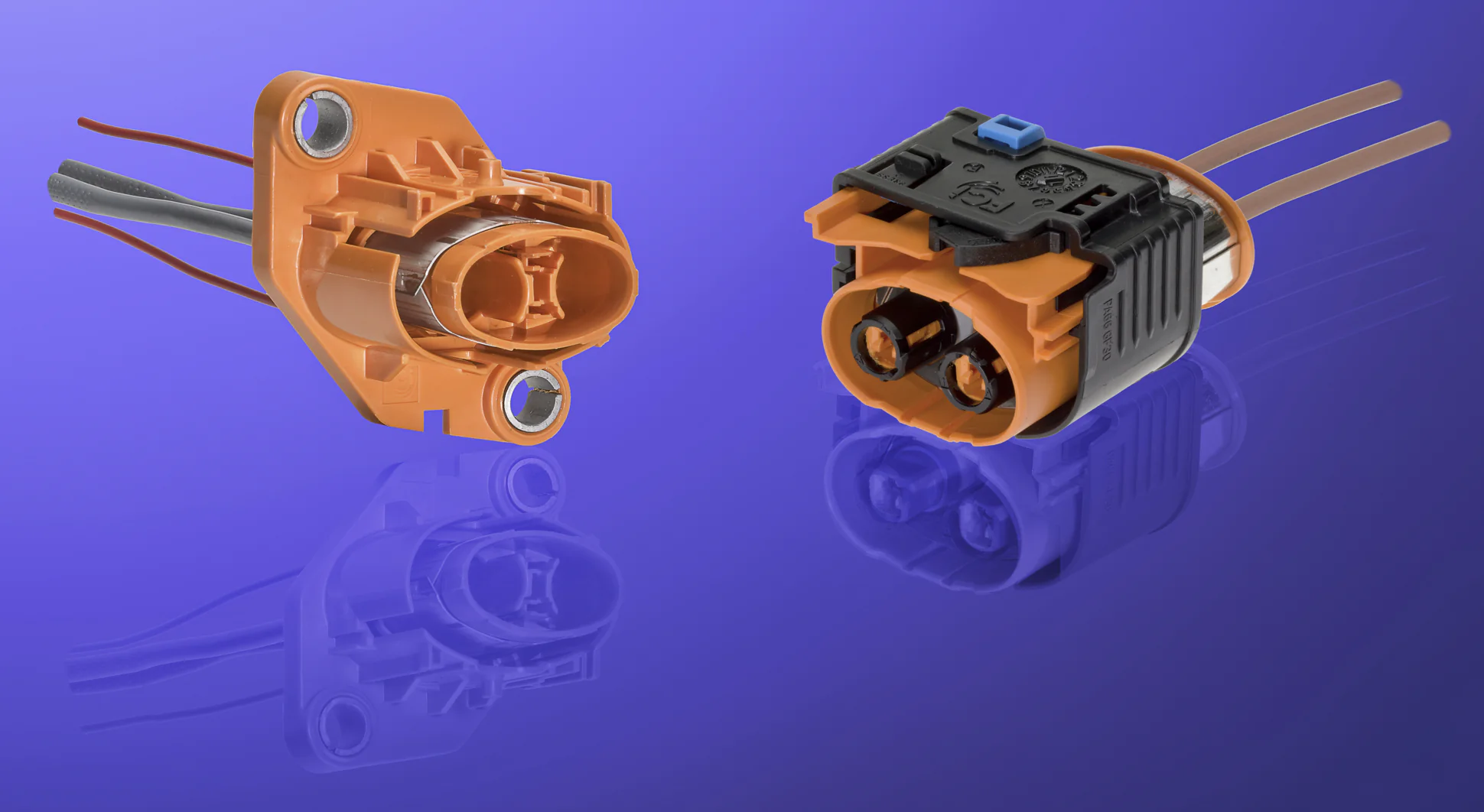

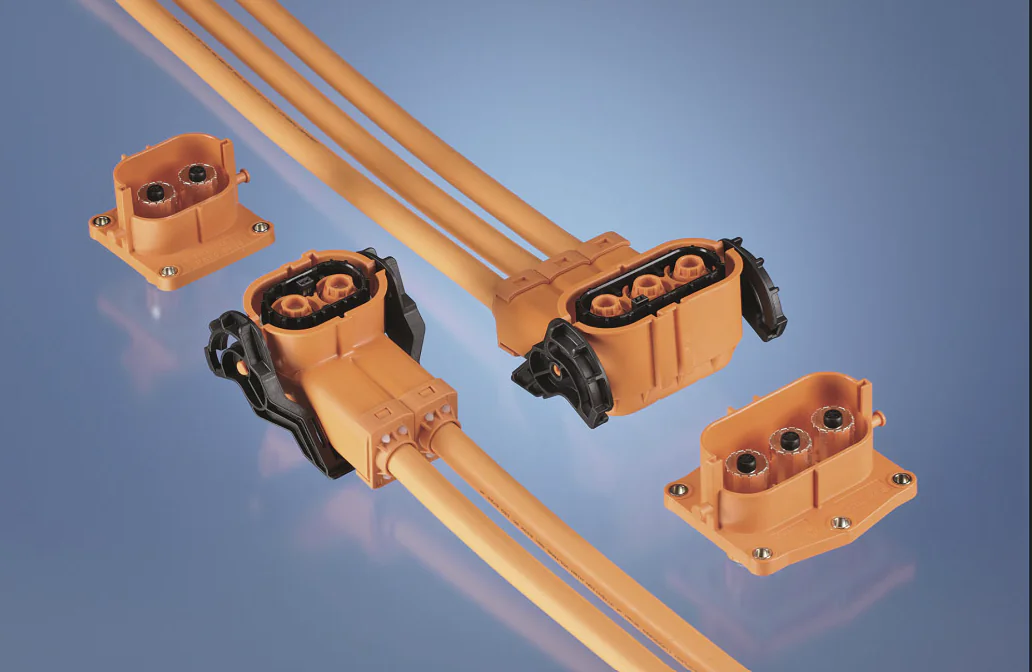

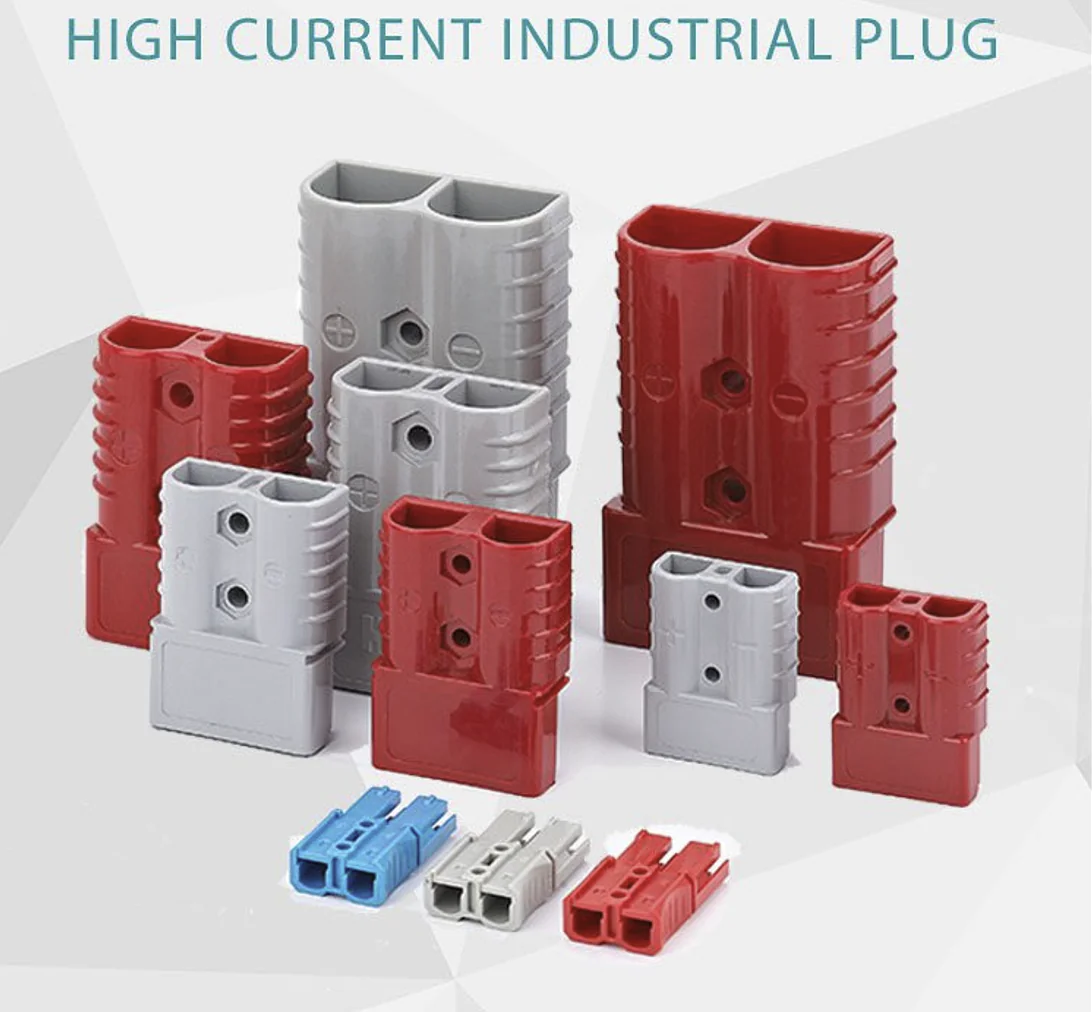

400T Precision Electrical connectors Press finished product 1
400T Precision Electrical connectors Press finished product 2
400T Precision Electrical connectors Press finished product 3
400T Precision Electrical connectors Press finished product 4
400T Precision Electrical connectors Press finished product 5
400T Precision Electrical connectors Press finished product 6

05 — Key Advantages

Why Choose the 400-Ton Sinter Hydraulic Press

The 400-Ton Sinter Hydraulic Press delivers the high structural rigidity and precise force control required to form dense, flawless electrical components. Its synchronized hydraulic system manages metal displacement accurately, guaranteeing low electrical resistance and exceptional dimensional consistency across high-volume production runs.

Technical & Commercial Benefits

01

Massive and Controlled Tonnage for High-Conductivity Copper Alloys

The robust fluid system generates the intense compression forces needed to displace highly ductile copper and aluminum without cracking. Inducing uniform material flow ensures the critical grain structure consolidates perfectly to maximize long-term electrical efficiency.

02

Ultra-Rigid Four-Column Frame Preventing Platen Parallelism Deflection

The heavy guiding framework effectively absorbs severe off-center loading stresses produced during multi-stage progressive cold forging operations. Eliminating platen tilting protects expensive carbide tooling inserts from premature chipping and maintains uniform part wall thicknesses.

03

Sub-Micron Electronic Stroke Limitation for Precision Net-Shape Geometries

Dual non-contact linear transducers continuously track the down-stroke depth to achieve absolute geometric repeatability within single-digit microns. Producing highly accurate preforms directly from the press removes the need for expensive subsequent machining operations.

04

Multi-Stage Proportional Flow Velocity Profiling to Avoid Surface Tearing

The advanced control loop throttles metal forming speeds dynamically down to precise single millimeters per second during operation. Regulating material displacement velocities prevents extreme frictional heat build-up, protecting critical component surfaces from galling defects.

05

Integrated High-Speed Knockout Rod System Minimizing Cycle Dwell Times

A synchronized hydraulic bottom ejector automatically strips tightly compressed connector shells from deep cavity molds upon ram reversal. This instant mechanical extraction speeds up automated part handling cycles to substantially increase total hourly plant yields.

06

Exceptional Raw Material Utilization Bypassing Traditional Manufacturing Waste

Cold forging components directly to final blueprint specifications eliminates traditional turning, chipping, and milling scrap losses entirely. Maximizing the raw material utilization ratio drives substantial cost savings on expensive, high-purity electrical copper stocks.
