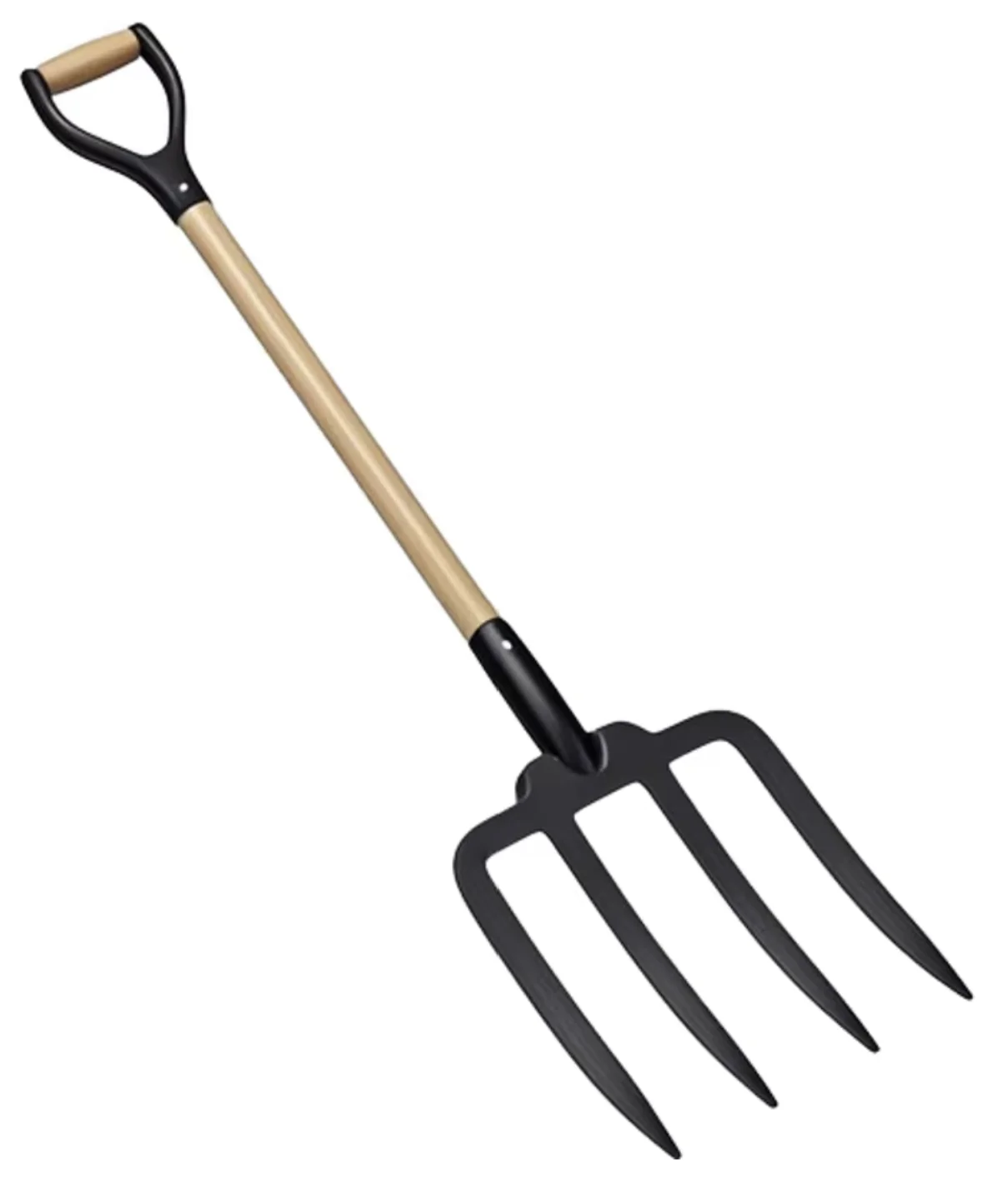

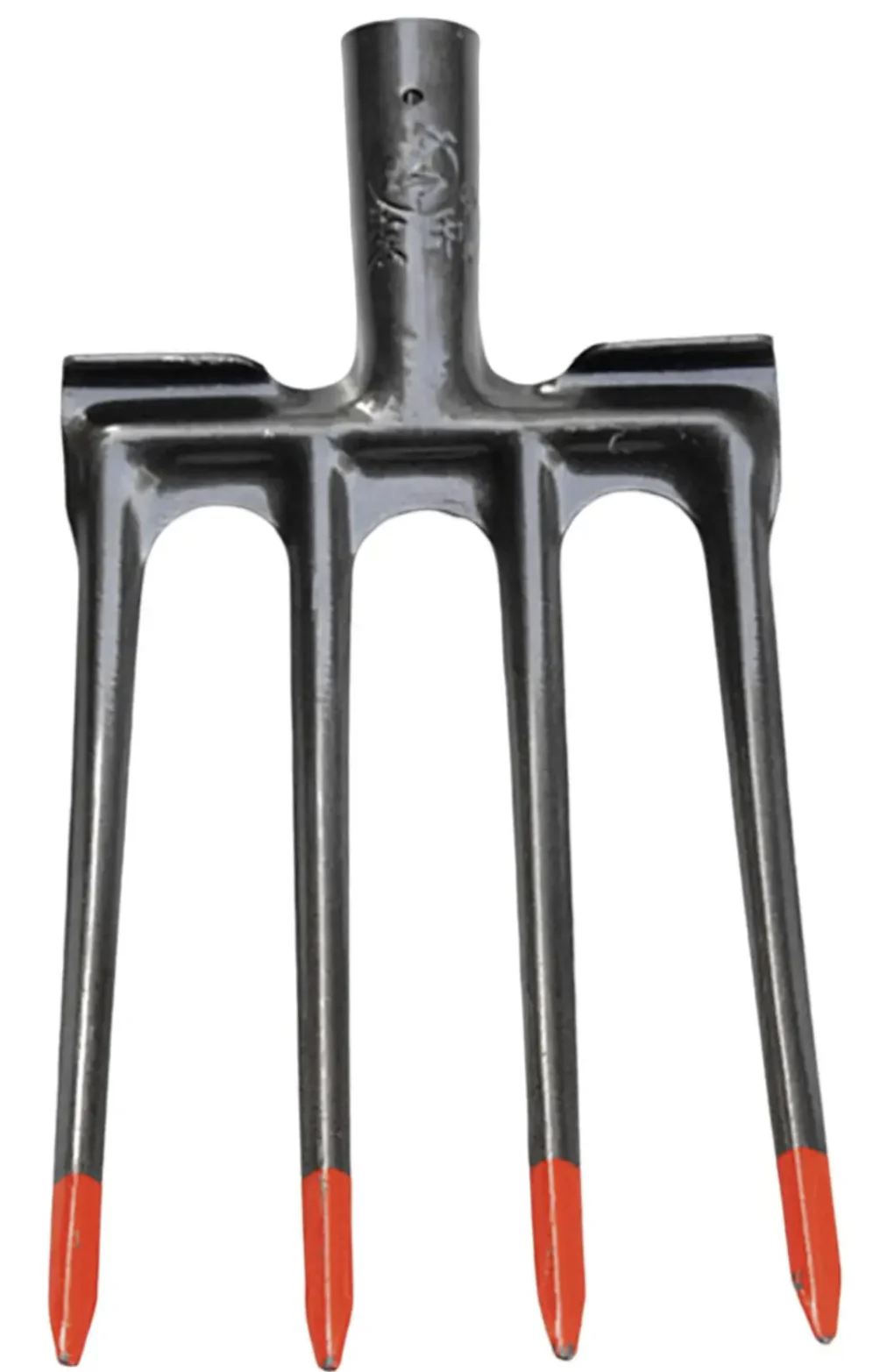

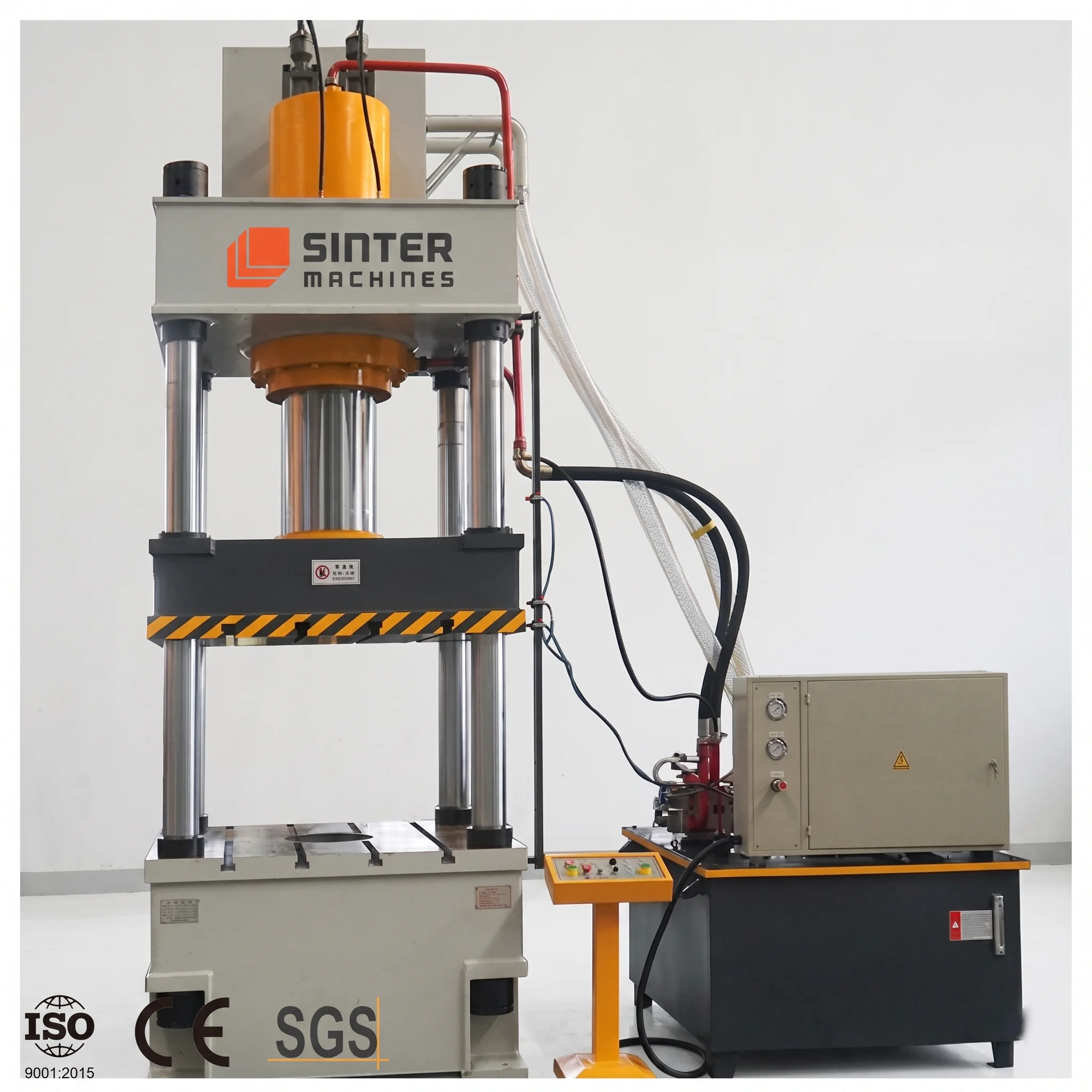

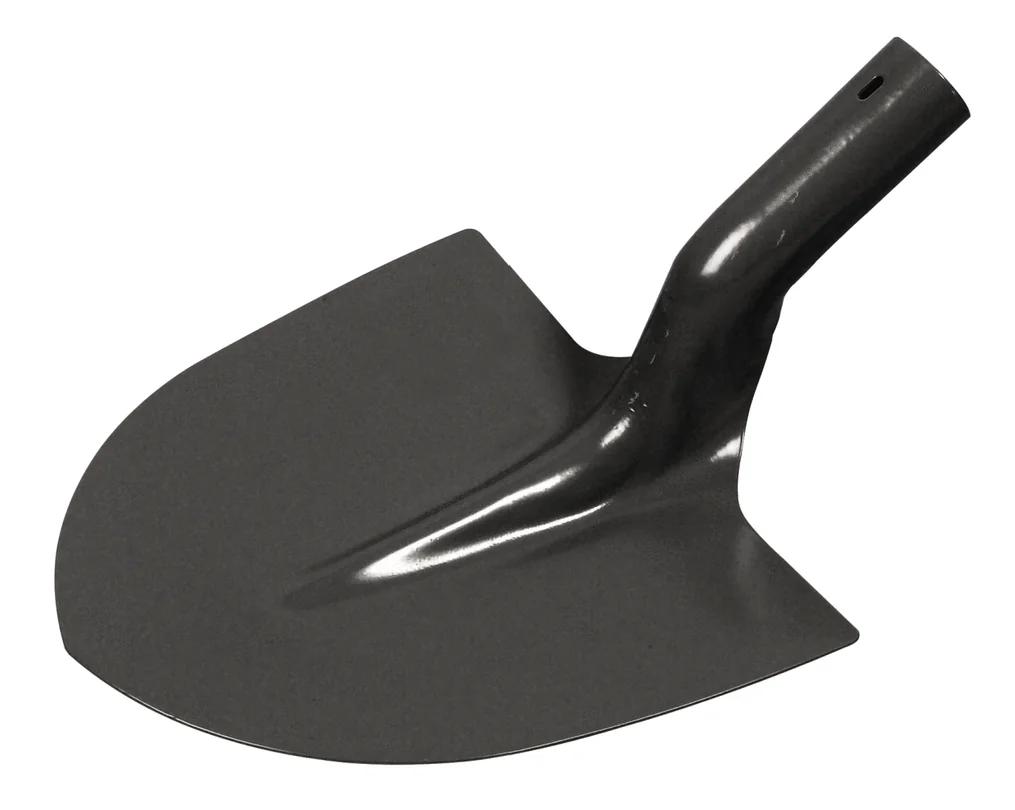

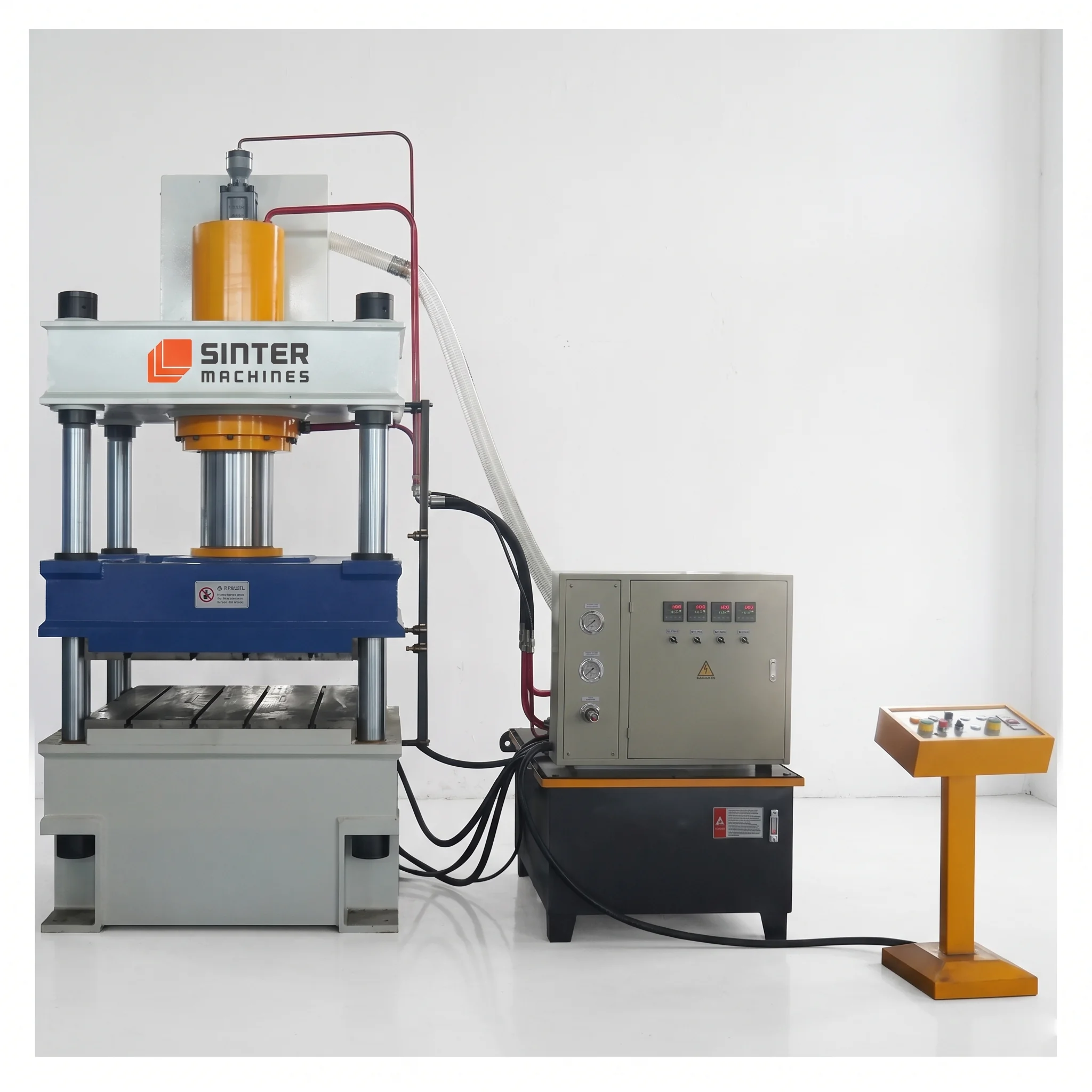

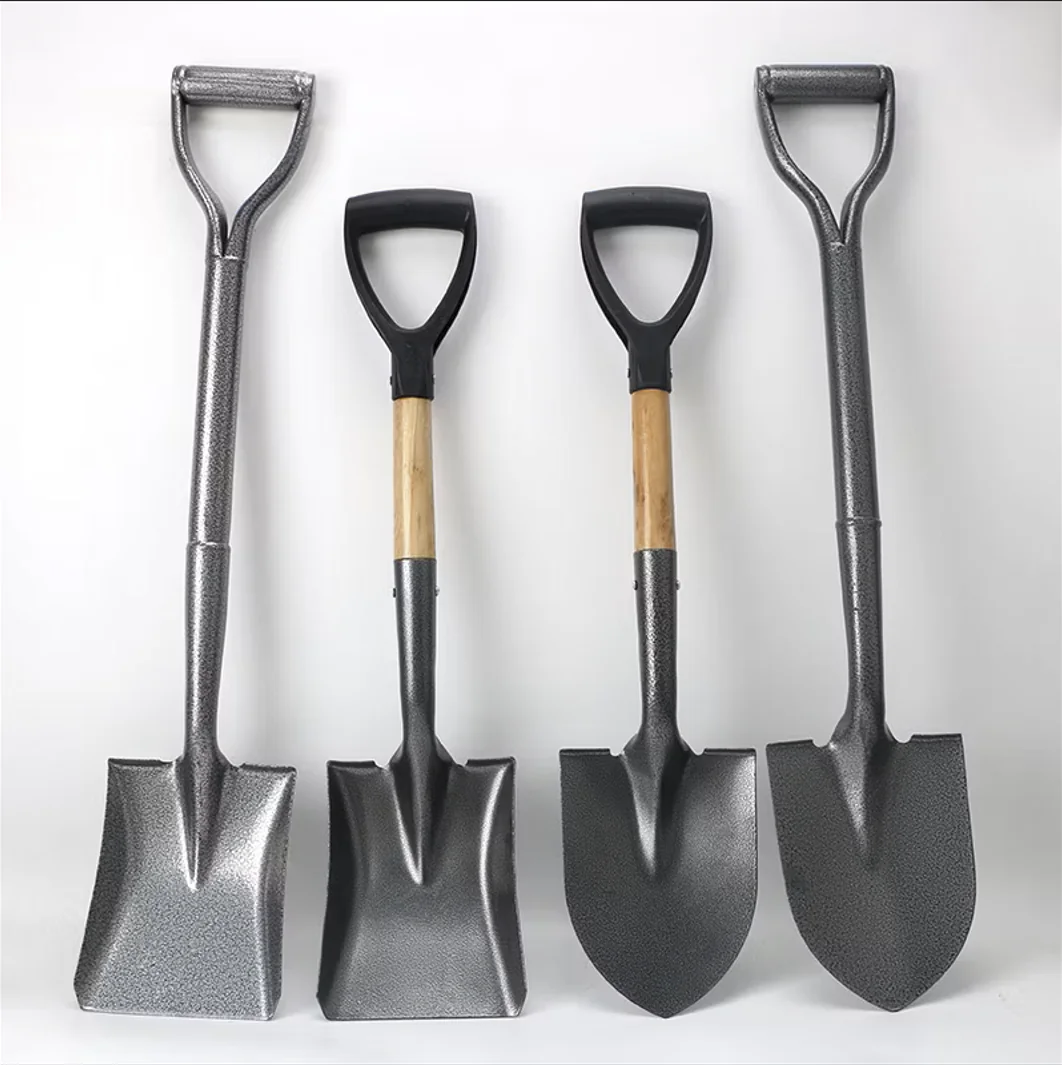

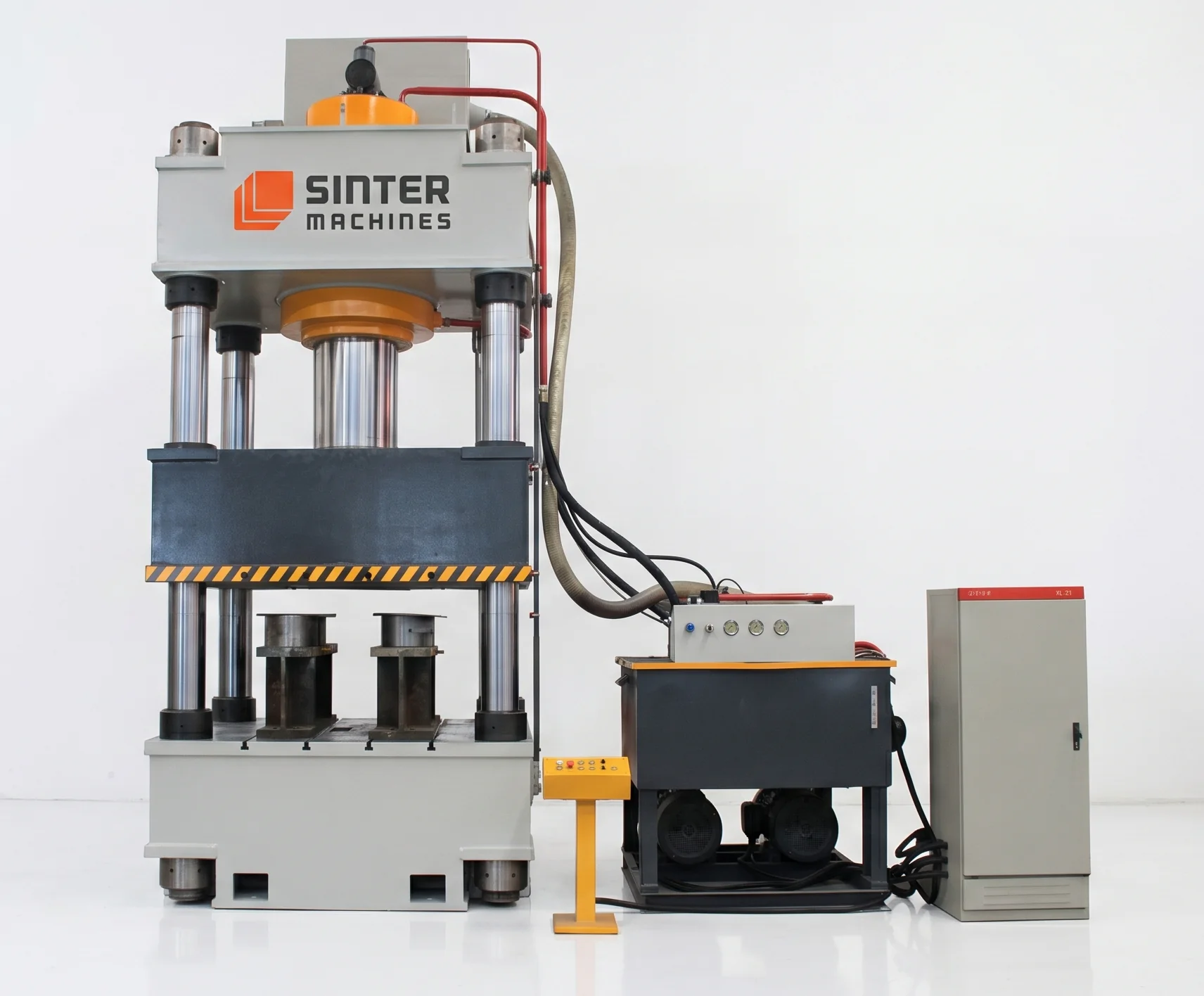

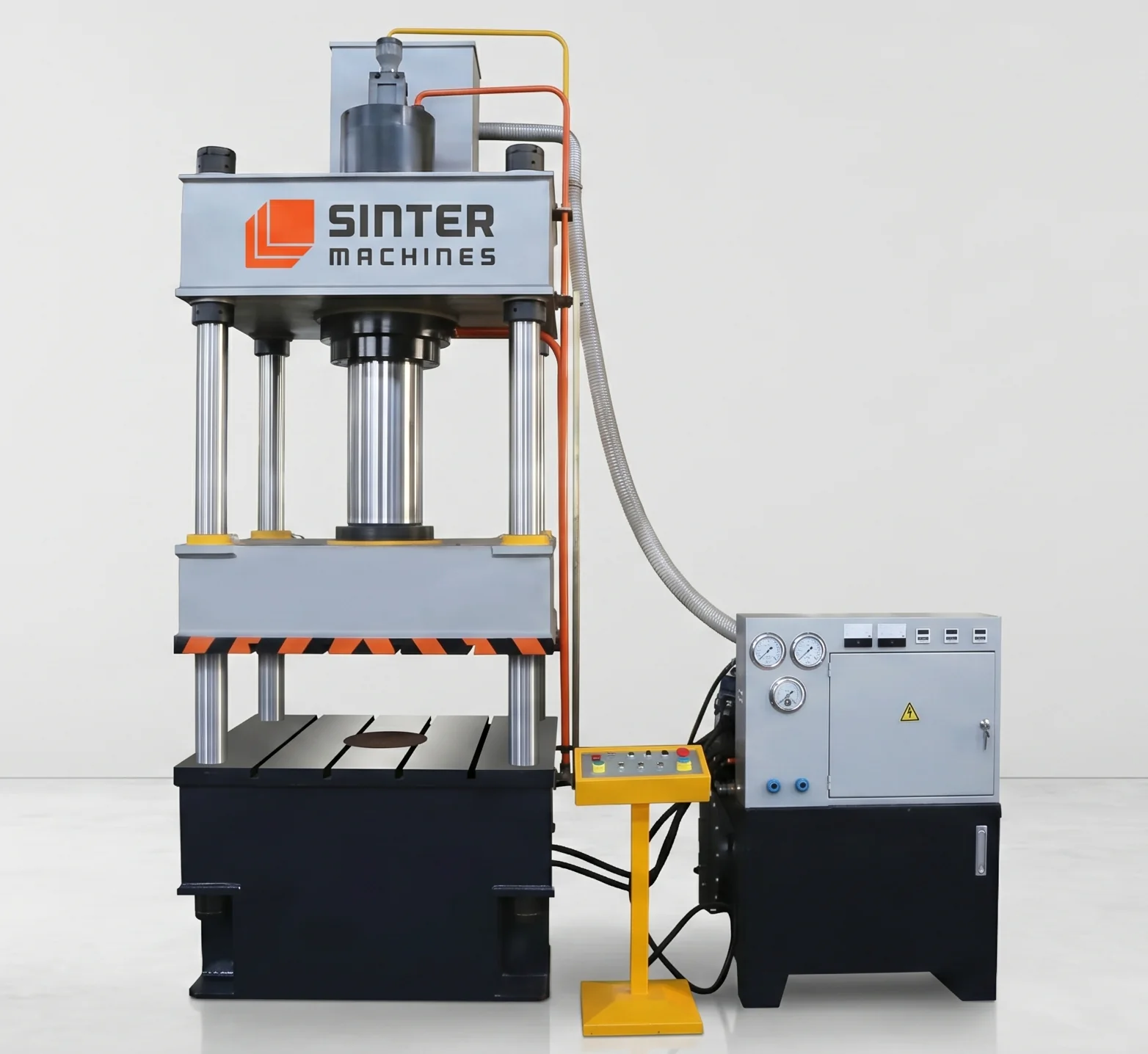

315 Ton Four Pillar Hydraulic Press for Manufacture Shovels & Agricultural Implements

Technical Data

Capacity: Nominal press force rating of 315 ton

Structural Design: Heavy duty stress relieved four pillar construction

Frame Type: Rigid upright pillar structural geometry

Hydraulic System: High efficiency variable displacement piston pump architecture

Main Ram Stroke: Maximum linear travel distance of 500 mm

Working Hydraulic Pressure: Continuous operational fluid limit of 250 bar

Daylight Gap: Maximum vertical open window height of 800 mm

Approach Speed: Rapid downward advance rate of 150 mm/Sec

Pressing / Drawing Speed: Controlled precision forming rate from 8 to 15 mm/Sec

Return Speed: Accelerated upward retract velocity of 130 mm/Sec

Bed / Platen Size Platen: Total structural table footprint of 1000 mm by 900 mm

Columns: Four solid induction hardened steel pillars measuring 140 mm diameter

Working Envelope: Total internal processing volumetric clearance area of 1000 mm by 900 mm by 800 mm

Control System: Programmable logic controller integrated with user friendly touchscreen human machine interface panel

Main Motor Power: High torque electric motor drive rated at 37 kW

Valves & Hydraulics: Manifold block assembly with high response proportional pressure control valves

Automation: Semi automated component ejector mechanics and digital production batch counter tracking

Safety Features: Dual hand optoelectronic safety buttons, light curtain guard zones, and hydraulic overload protection dump valves

SM 315 HP — Model Specifications

• Nominal Force: 3150 KN
• Maximum Hydraulic Pressure: 25 MPa
• Max Opening Height of the Slider: 1000 mm
• Max Stroke of the Slider: 600 mm
• Effective Bed Size: 800 × 800 mm
• Slider Down Speed: 100 mm/s
• Slider Pressing Speed: 7–12 mm/s
• Slider Return Speed: 90 mm/s
• Ejector Cylinder Nominal Force: 300 KN
• Stroke of the Ejection Cylinder: 300 mm
