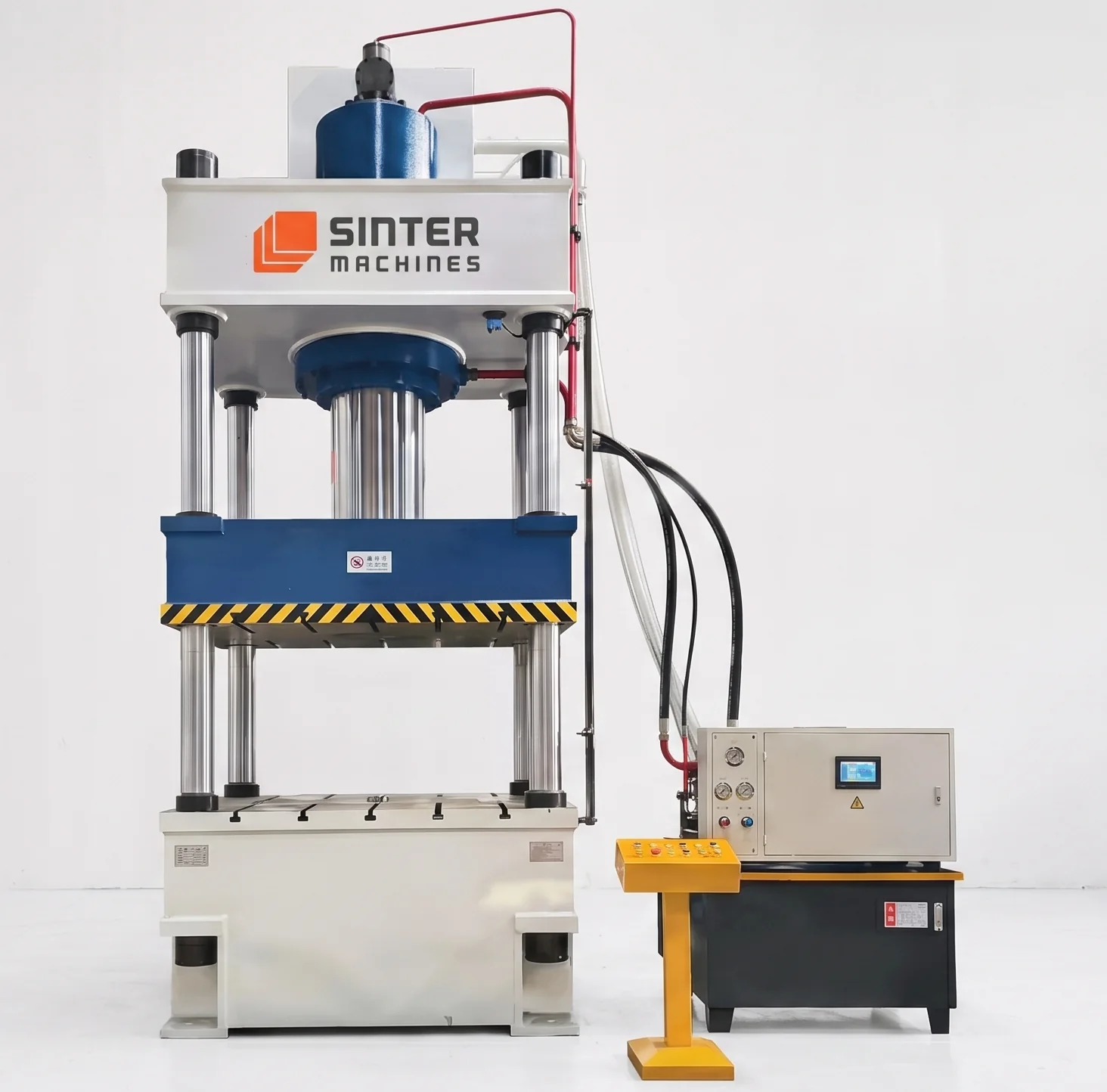

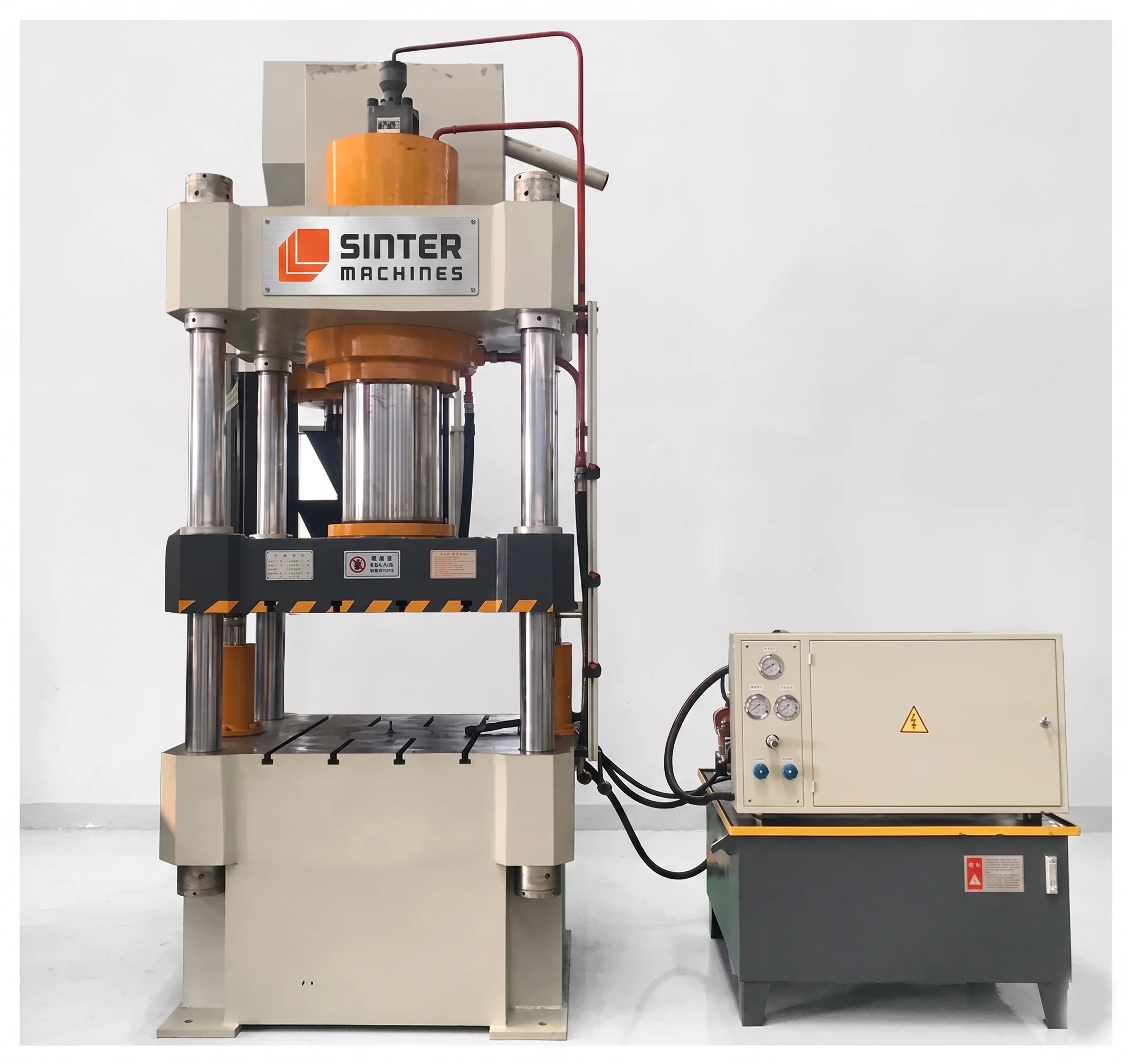

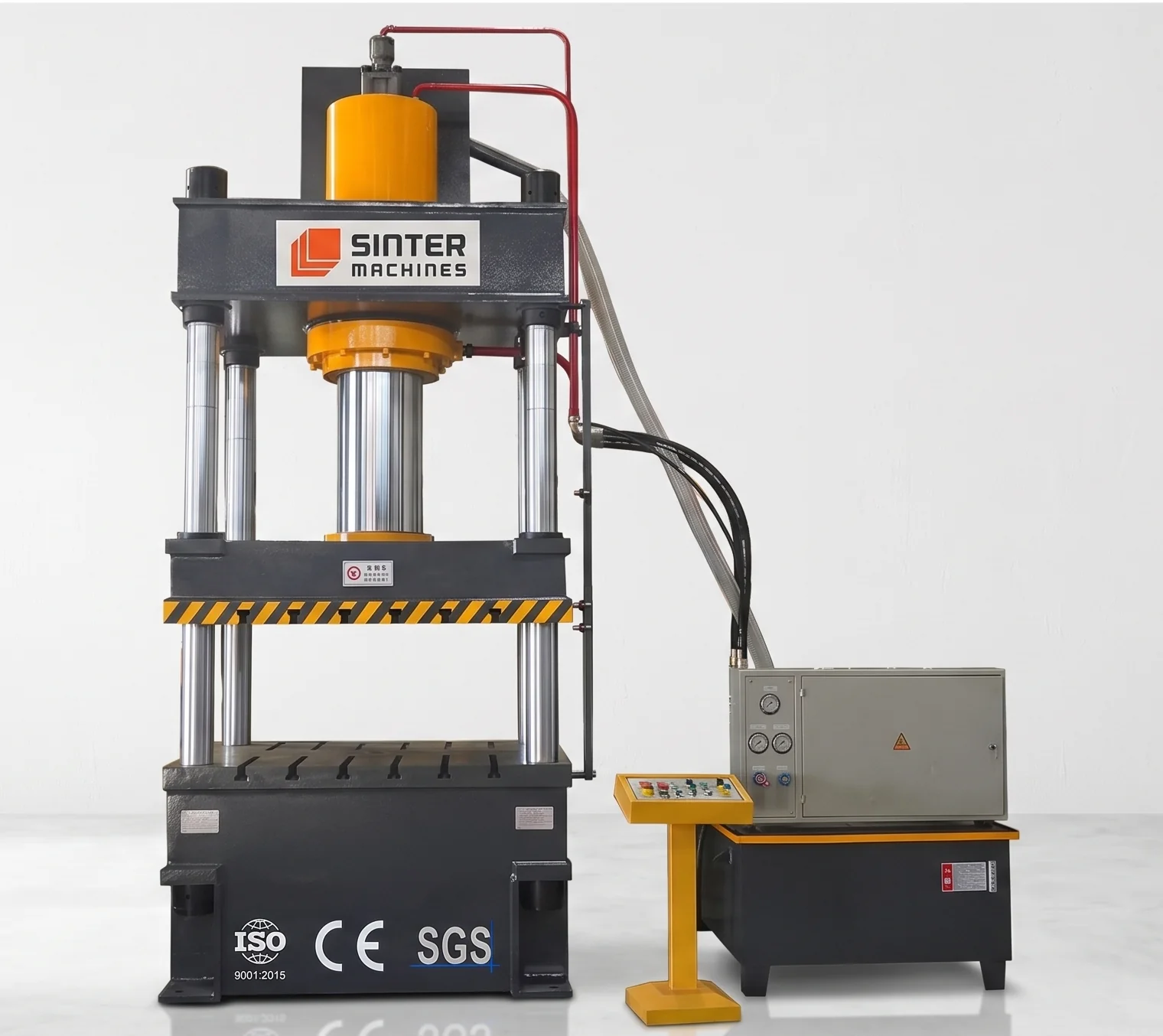

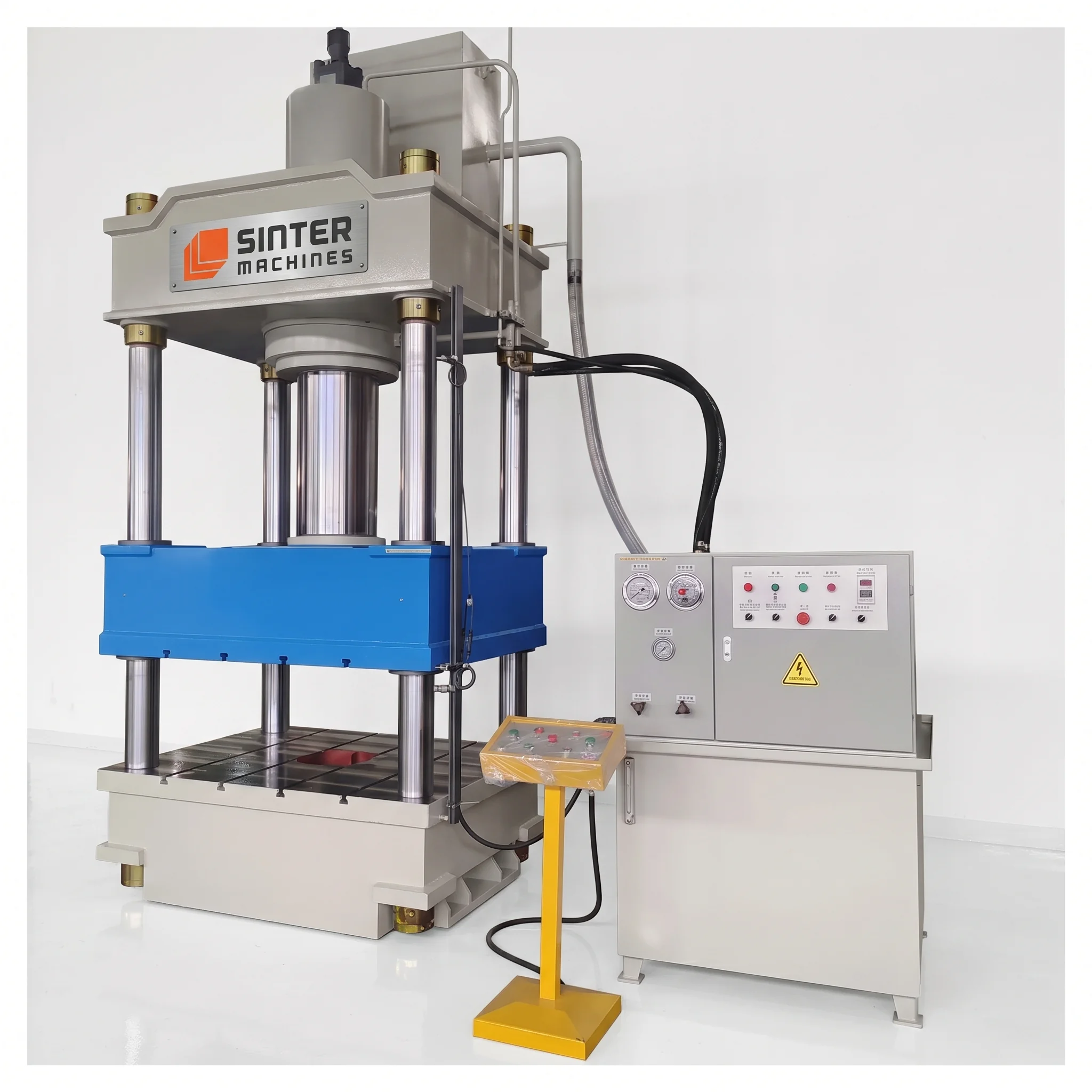

400T Four Column Hydraulic Press for Sallaite Powder Block
Sallaite Powder Block Compression 4-Column Hydraulic Press Machine is a specialized industrial compaction system engineered to compress fine sallaite powder (magnesium fluoride, MgF2) into dense, uniform solid blocks, tablets, or briquettes.
These machines are utilized in optical material preparation, fluoride metallurgy, and advanced chemical manufacturing where fine halide mineral powders must be consolidated to minimize airborne dusting, reduce storage volume, and optimize material handling or thermal processing.
01 — Engineering Considerations
Structural Design & Engineering Considerations (4-Column Architecture)
High-Precision Guidance & Parallelism: Magnesium fluoride and related halide powders require strict control over compaction uniformity to prevent structural weak points or density gradients. The four-pillar precision-ground column architecture ensures absolute platen parallelism and eliminates lateral play, preventing uneven wall pressures and ensuring consistent block density.
Rigid Load Distribution: Compacting fine halide powders into solid blocks requires consistent, balanced tonnage. The 4-column frame withstands heavy cyclic loads without structural flexing, maintaining exact micro-tolerances between the punches and the die cavity over long operational lifespans.
Corrosion Resistance & Material Safety: Halide powders can exhibit corrosive tendencies under certain moisture or processing conditions. Press tooling, die walls, and punches are engineered with corrosion-resistant alloy steels or specialized coatings to protect against chemical reactivity and ensure long operational life.
02 — Technical Specifications
Key Technical Specifications
Feature | Industrial Specification Range |
Nominal Compaction Force | 40 Tons to 400+ Tons (tailored to block cross-sectional area and target density) |
Guide Structure | 4 Hard-Chromed, Precision-Ground Steel Pillars with heavy-duty, low-friction bushings |
Die & Punch Assembly | Corrosion-resistant alloy tool steel or specialized wear-resistant inserts designed to handle halide mineral powders |
Hydraulic Drive | Variable displacement piston pumps or servo-hydraulic systems with smooth proportional pressure control |
Control Unit | PLC system with HMI touchscreen interface for programming fill depth, pressing tonnage, dwell time, and automated extraction |
03 — Operational Workflow
Operational Workflow
- Enclosed Volumetric Feeding: An automated, sealed feed shoe slides precisely over the die cavity to deposit a measured volume of loose sallaite powder, minimizing airborne dust and ensuring uniform fill density.
- Multi-Stage Compression:
- Fast Approach: The top ram lowers quickly to the material surface.
- High-Pressure Compaction: The system applies controlled tonnage. A multi-action or dual-punch configuration ensures even particle interlocking and density distribution throughout the depth of the block.
- Dwell Phase: Peak pressure is held for a set duration to allow trapped air to evacuate and the mineral particles to firmly settle, minimizing internal stress or cracking.
- Controlled Decompression & Ejection: Hydraulic pressure is gradually bled off to prevent surface cracking from elastic springback. A bottom ejection cylinder then cleanly pushes the solid sallaite block out of the die cavity for downstream processing, sintering, or packaging.

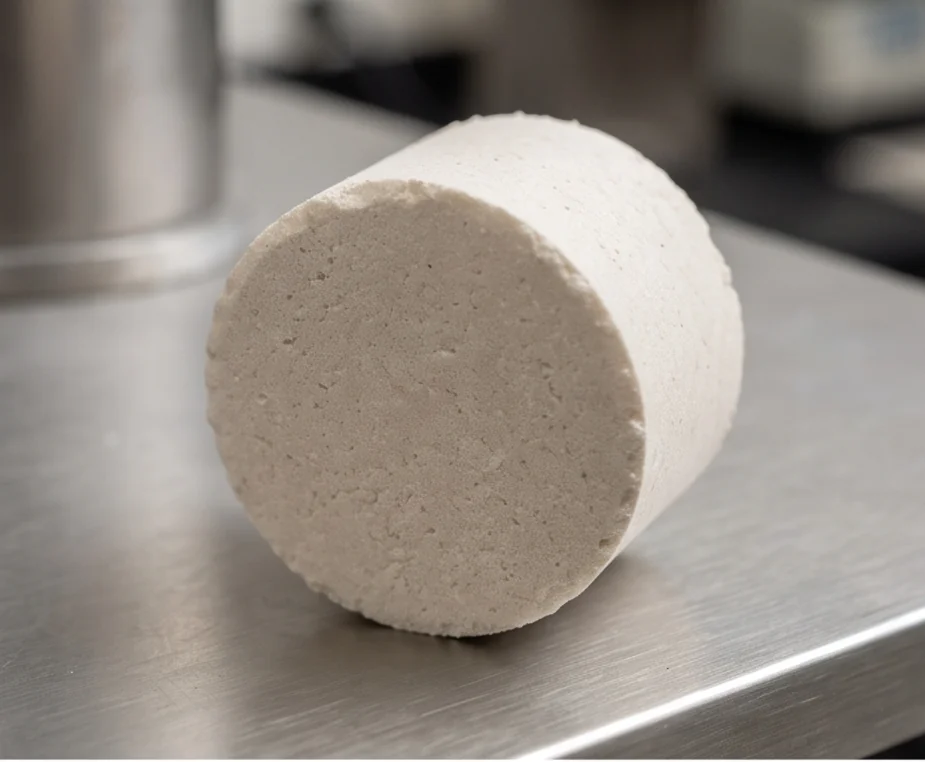

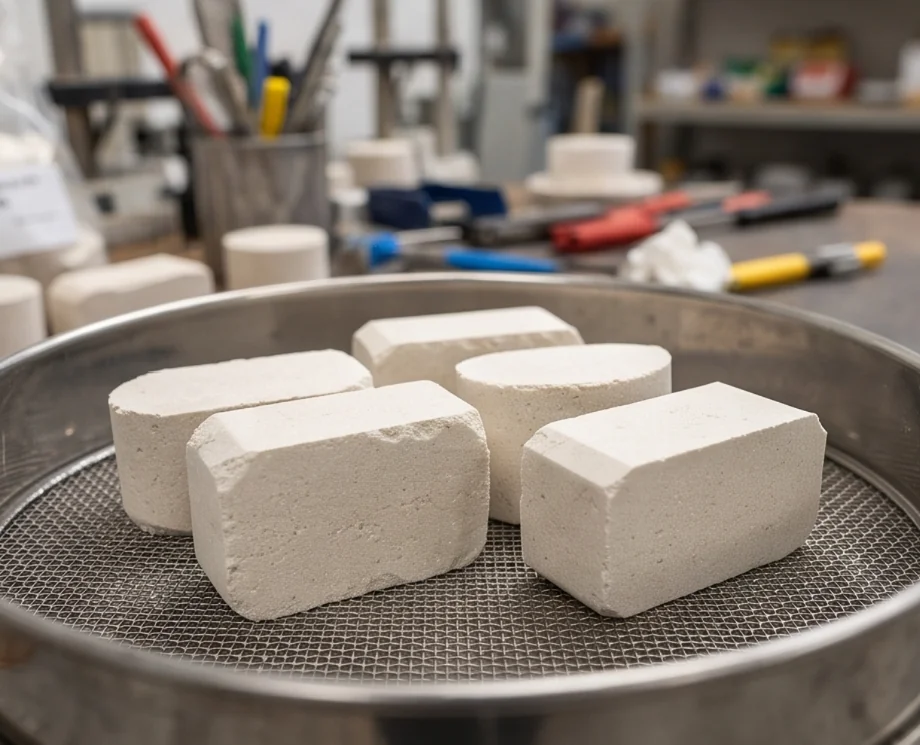

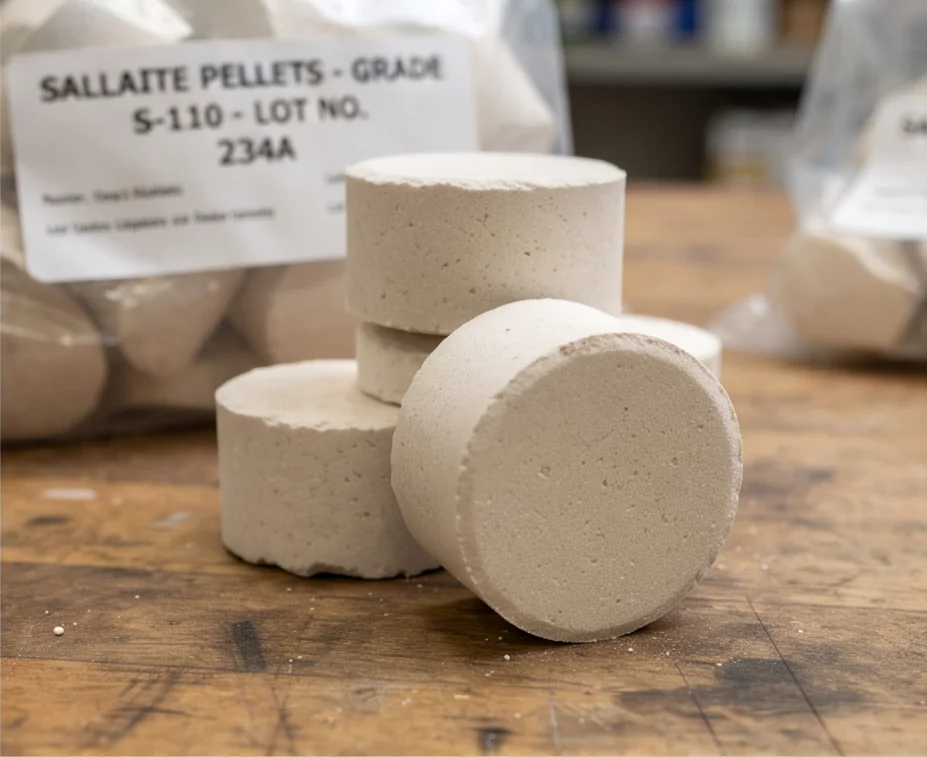

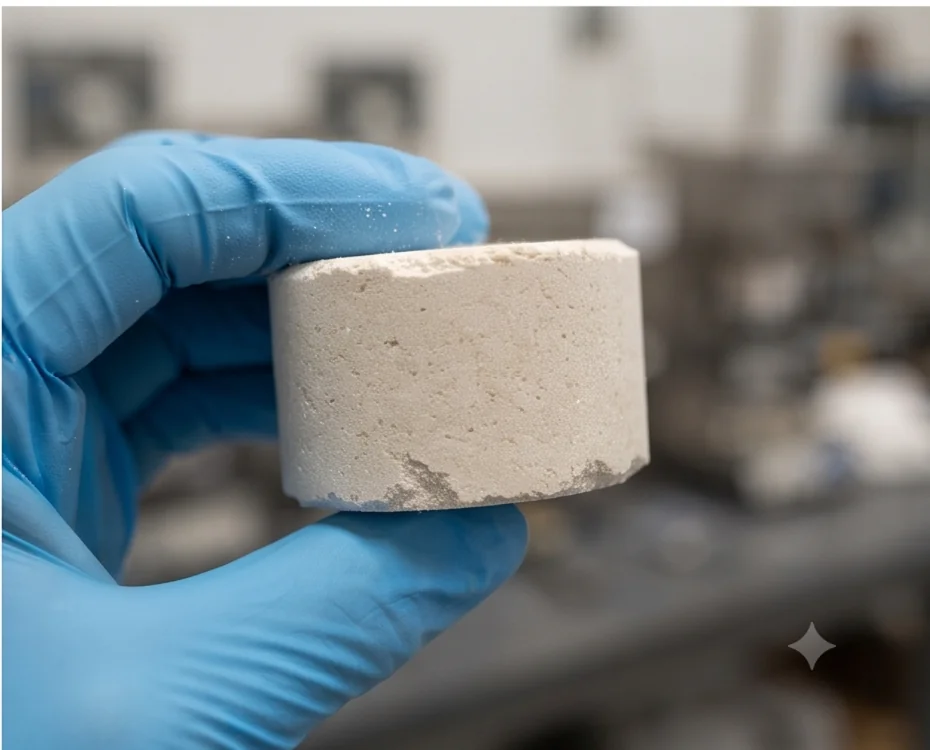

Finished Product Gallery
