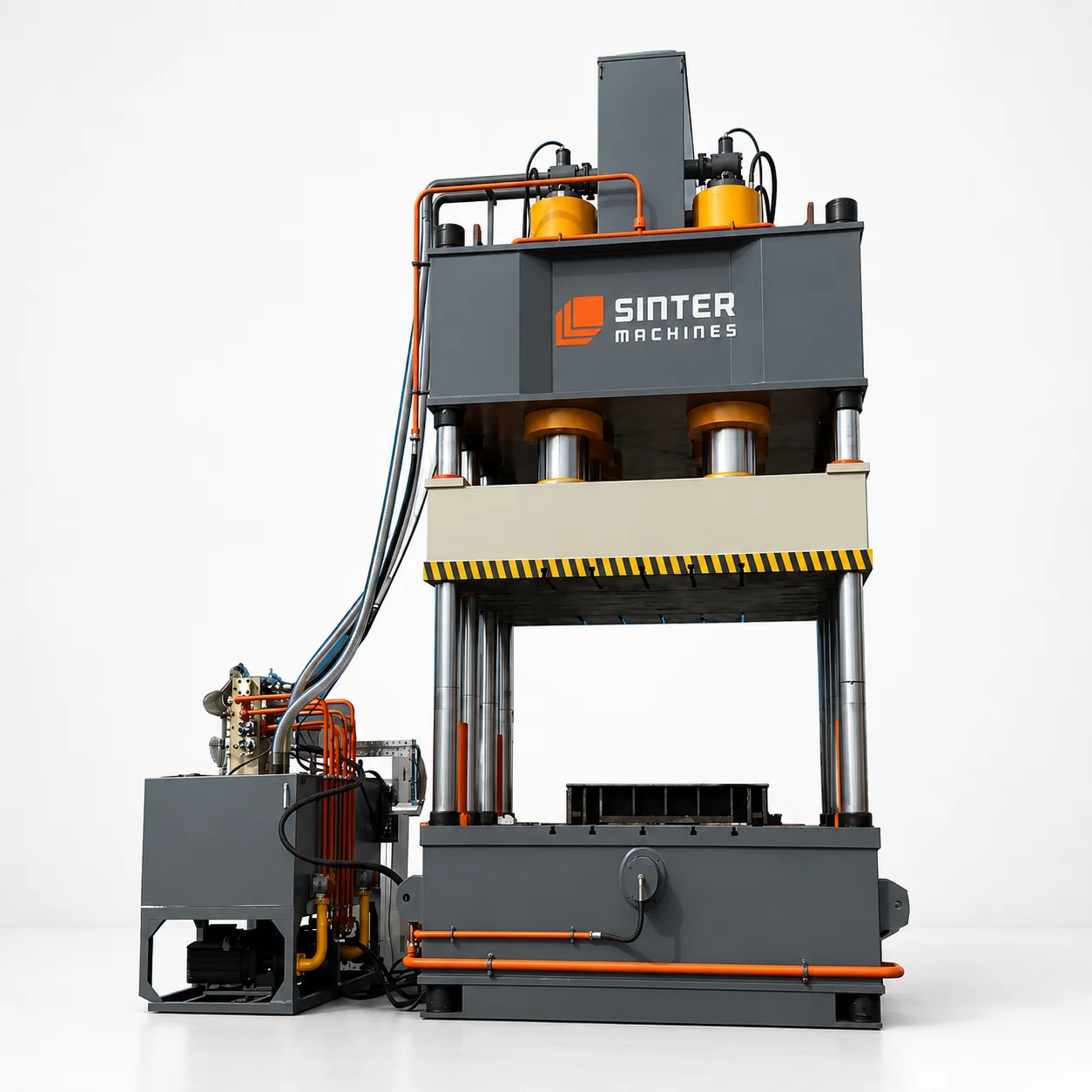

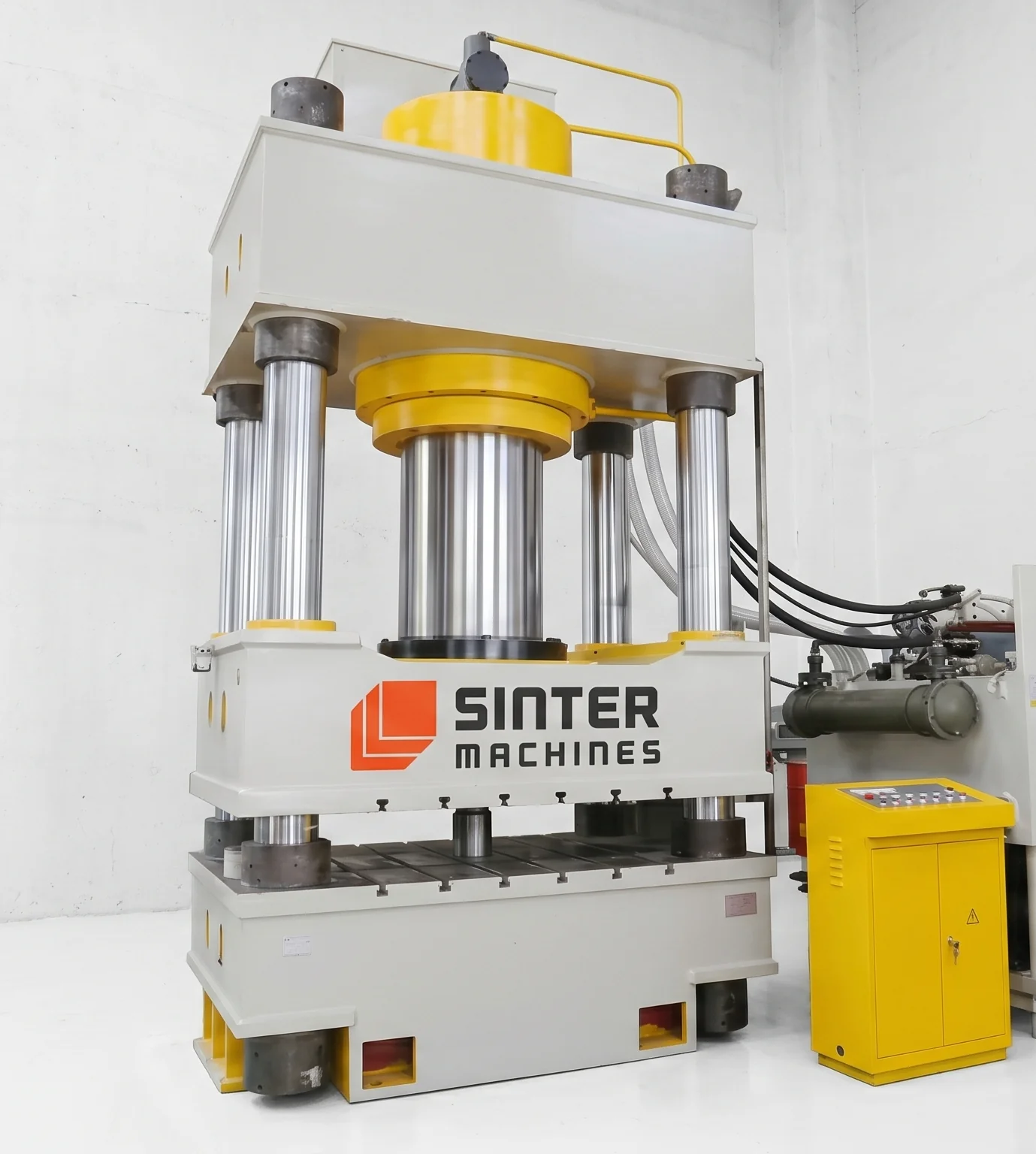

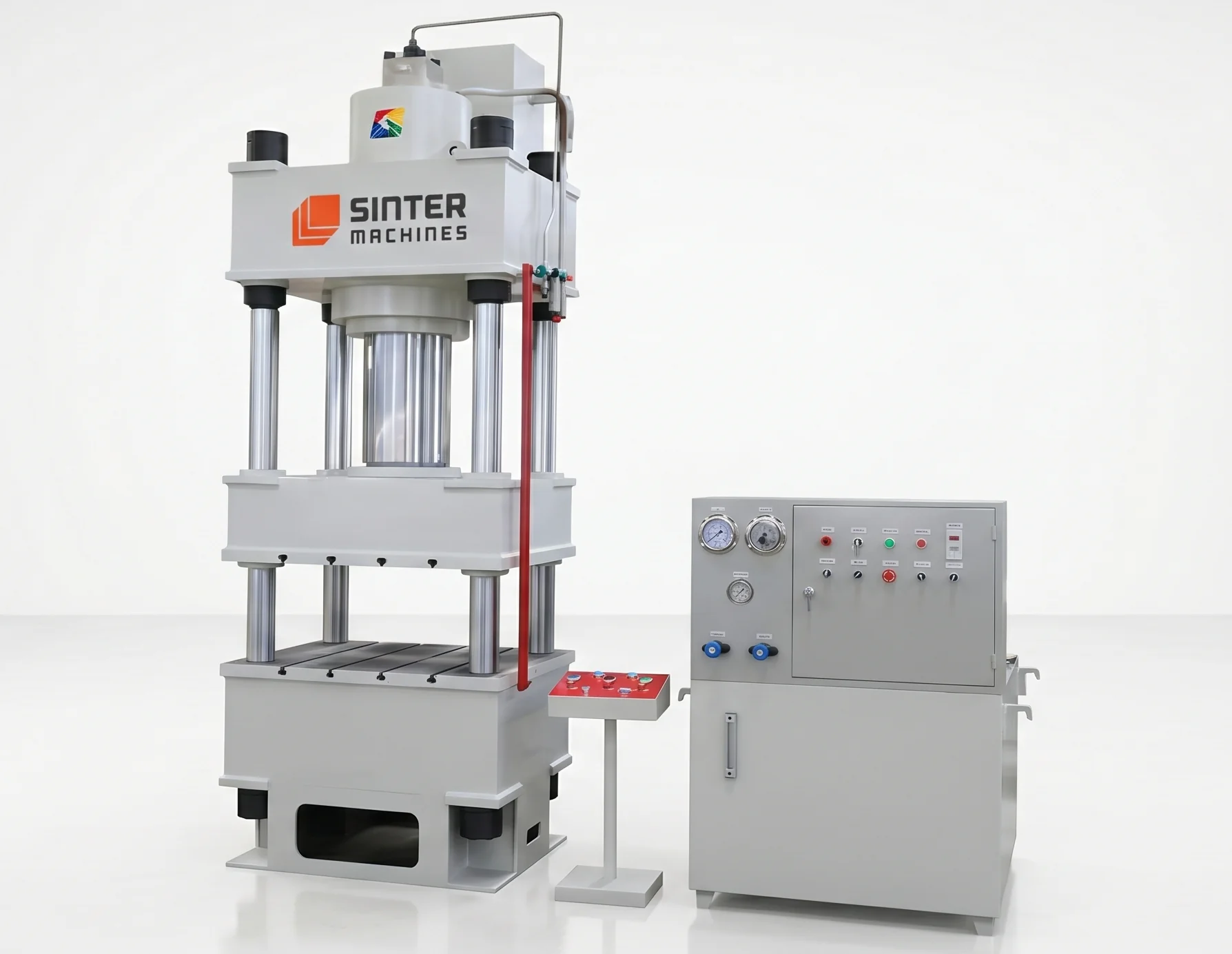

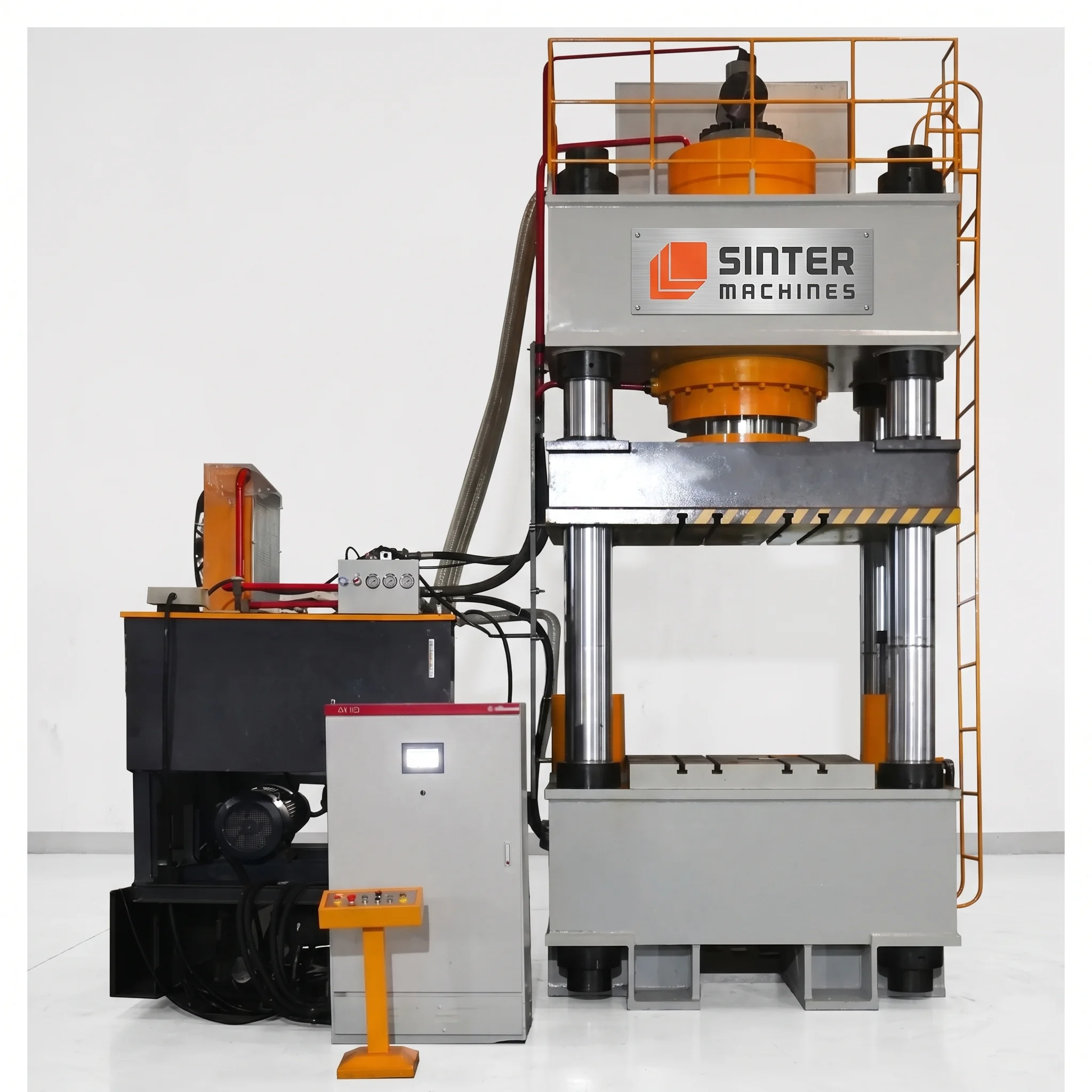

1000T Four Column Hydraulic Press for Titanium Powder Block
A Titanium Powder Block Compression 4-Column Hydraulic Press Machine is a specialized heavy-duty industrial compaction system engineered to compress fine titanium metal powder into dense, uniform solid blocks, bars, or green compacts.
These machines are utilized in advanced powder metallurgy, aerospace component manufacturing, medical implant production, and specialty alloy fabrication, where reactive metal powders must be consolidated to minimize airborne dusting, reduce oxidation risks, and optimize furnace or sintering feed rates.
01 — Engineering Considerations
Structural Design & Engineering Considerations (4-Column Architecture)
High-Precision Guidance & Parallelism: Titanium powders require strict control over compaction uniformity to prevent structural weak points or density gradients that can cause warping or cracking during final sintering. The four-pillar precision-ground column architecture ensures absolute platen parallelism and eliminates lateral play, preventing uneven wall pressures and ensuring consistent block density.
Rigid Load Distribution: Compacting reactive metal powders into high-strength green blocks requires continuous high tonnage. The 4-column frame withstands heavy cyclic loads without structural flexing, maintaining exact micro-tolerances between the punches and the die cavity over long operational lifespans.
Inert Atmosphere & Safety Integration: Because fine titanium powder is reactive and sensitive to oxygen when finely divided, the press can be integrated with inert gas purging systems (such as argon or nitrogen blanketing), sealed enclosures, and explosion-proof electrical components to ensure safe operation and prevent ignition risks.
02 — Technical Specifications
Key Technical Specifications
Feature | Industrial Specification Range |
Nominal Compaction Force | 50 Tons to 800+ Tons (tailored to block cross-sectional area and target density) |
Guide Structure | 4 Hard-Chromed, Precision-Ground Steel Pillars with heavy-duty, low-friction bushings |
Die & Punch Assembly | Hardened alloy tool steel or specialized wear-resistant carbide inserts designed to handle reactive metal powders |
Hydraulic Drive | Variable displacement piston pumps or servo-hydraulic systems with smooth proportional pressure control |
Control Unit | PLC system with HMI touchscreen interface for programming fill depth, pressing tonnage, dwell time, and automated extraction |
03 — Operational Workflow
Operational Workflow
- Inert-Purged Volumetric Feeding: An automated, sealed feed shoe operating under an inert gas blanket slides precisely over the die cavity to deposit a measured volume of loose titanium powder, minimizing oxidation risks and ensuring uniform fill density.
- Multi-Stage Compression:
- Fast Approach: The top ram lowers quickly to the material surface.
- High-Pressure Compaction: The system applies controlled tonnage. A multi-action or dual-punch configuration ensures even particle interlocking and density distribution throughout the depth of the block.
- Dwell Phase: Peak pressure is held for a set duration to allow trapped gas to evacuate and the metal particles to firmly settle, minimizing internal stress or lamination.
- Controlled Decompression & Ejection: Hydraulic pressure is gradually bled off to prevent surface cracking from elastic springback. A bottom ejection cylinder then cleanly pushes the solid titanium block out of the die cavity for downstream sintering, vacuum processing, or secure packaging.

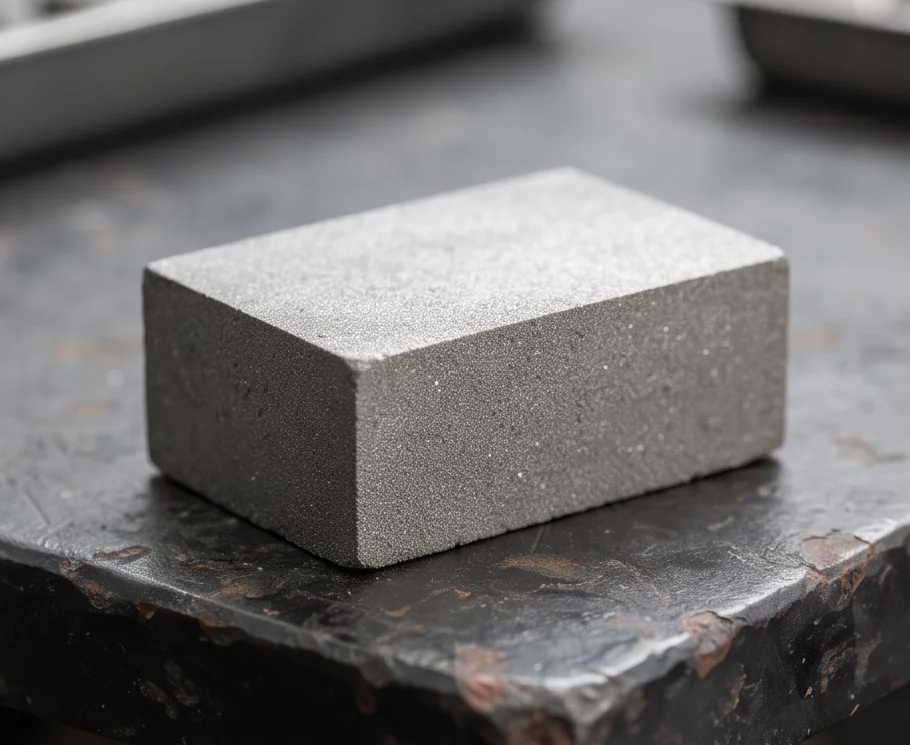

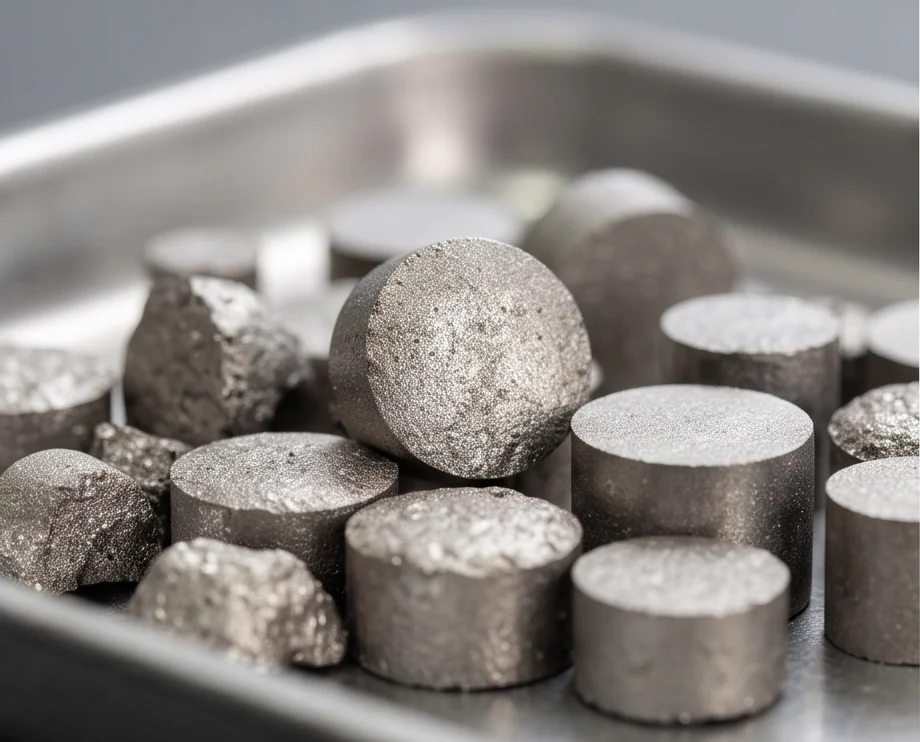

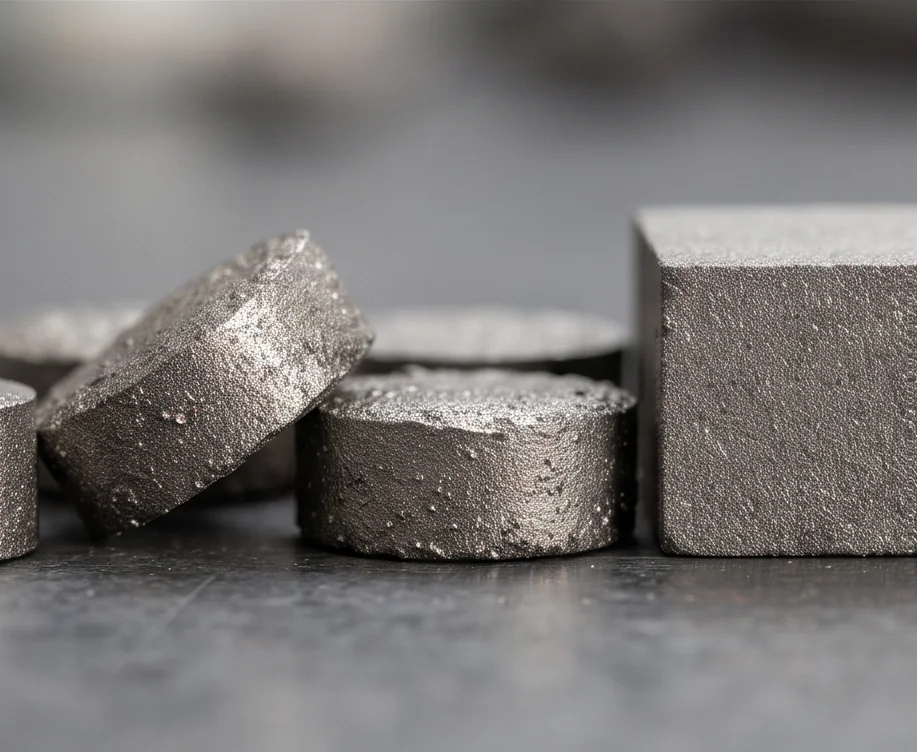

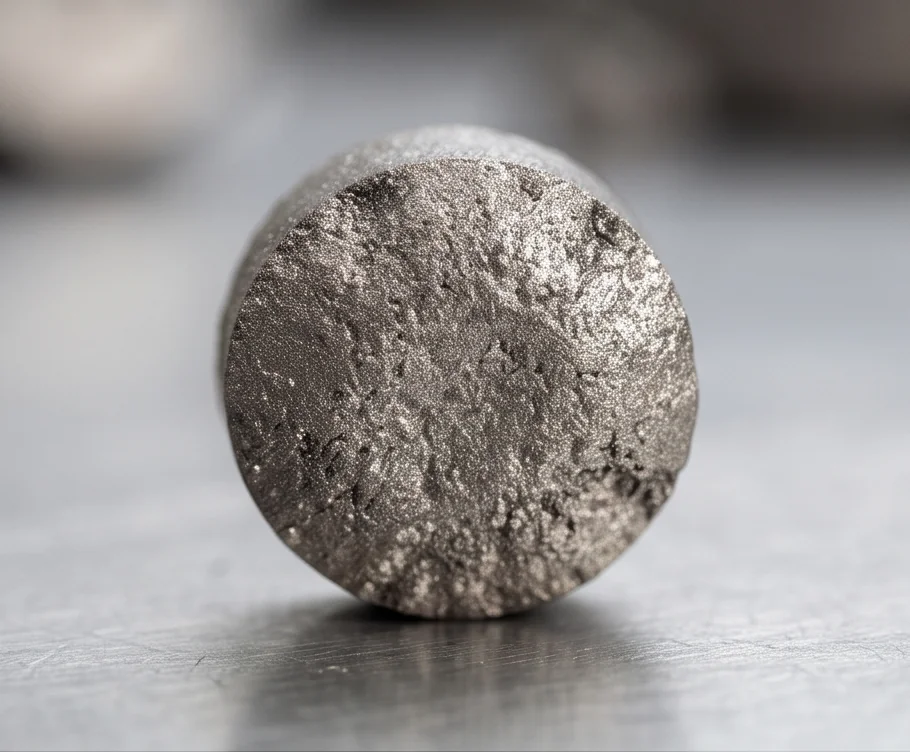

Finished Product Gallery
