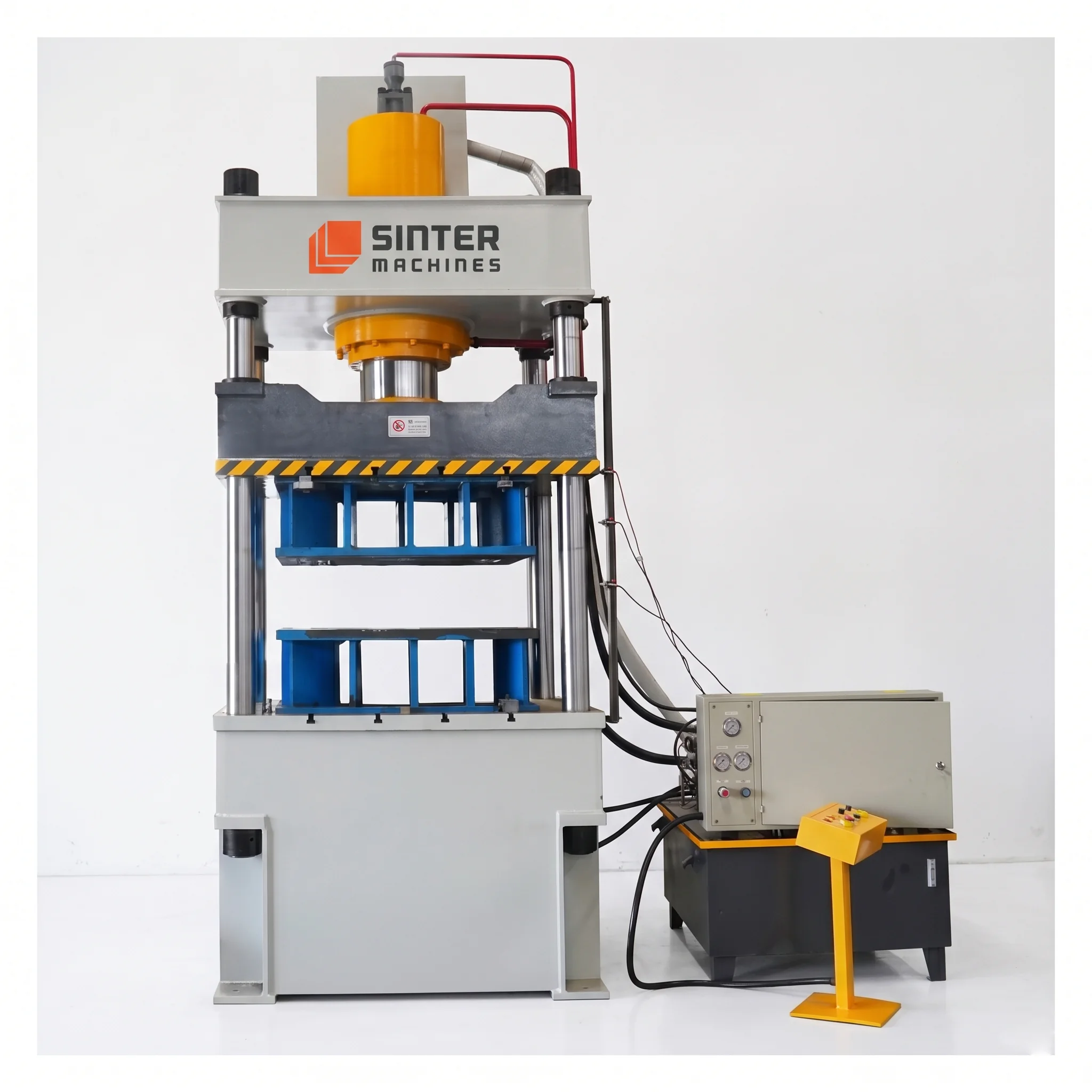

400T Orthopaedic Fittings Press press view 1
Orthopaedic Fittings · Hydraulic Press Machine

400 Ton Four Pillar Hydraulic Press for Large Orthopaedic Fittings

400T Rated Capacity
100 mm/s Slider Down Speed
5–11 mm/s Slider Pressing Speed
100 mm/s Slider Return Speed
400T Orthopaedic Fittings Press press view 1

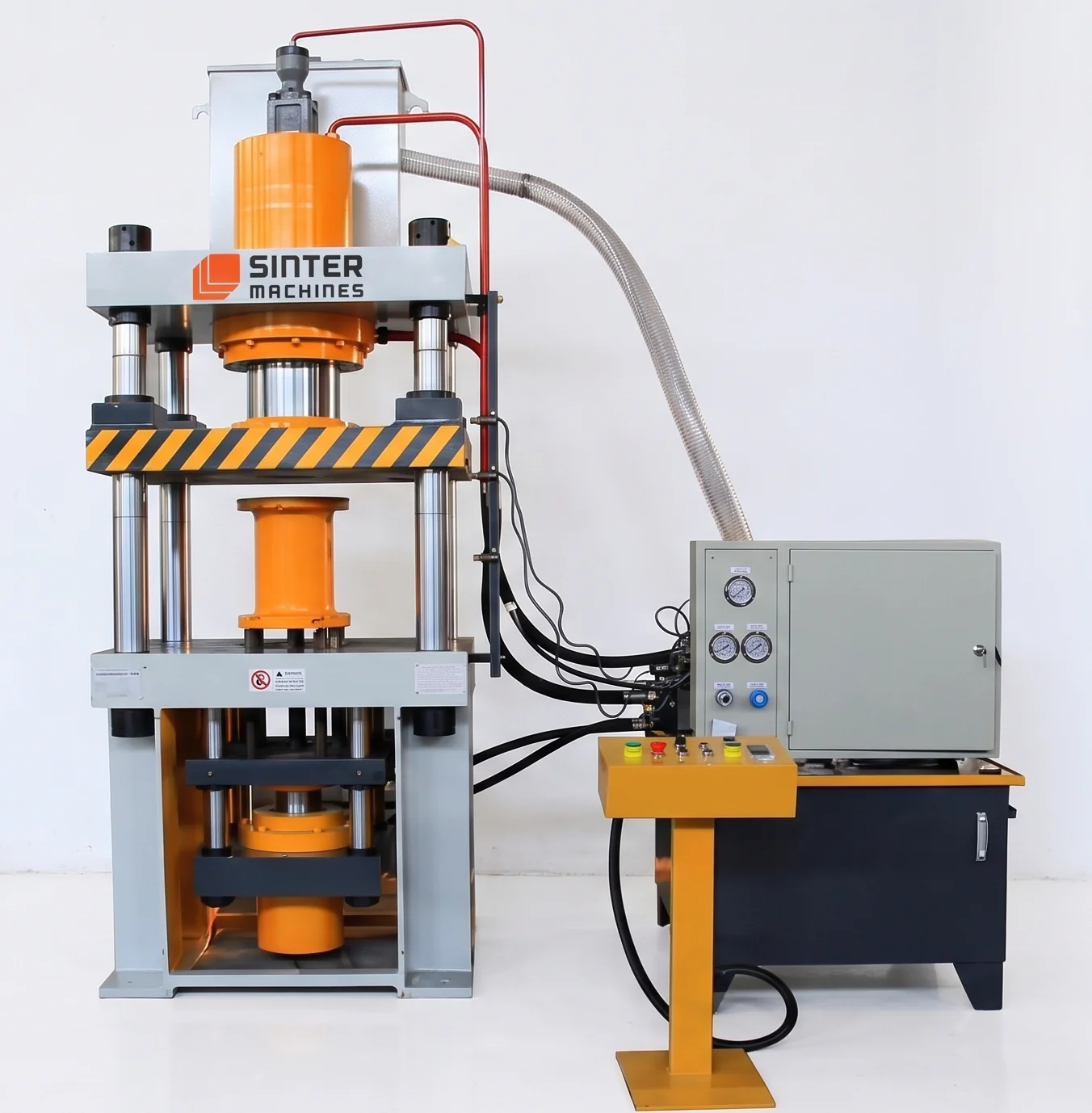

400T Orthopaedic Fittings Press press view 2

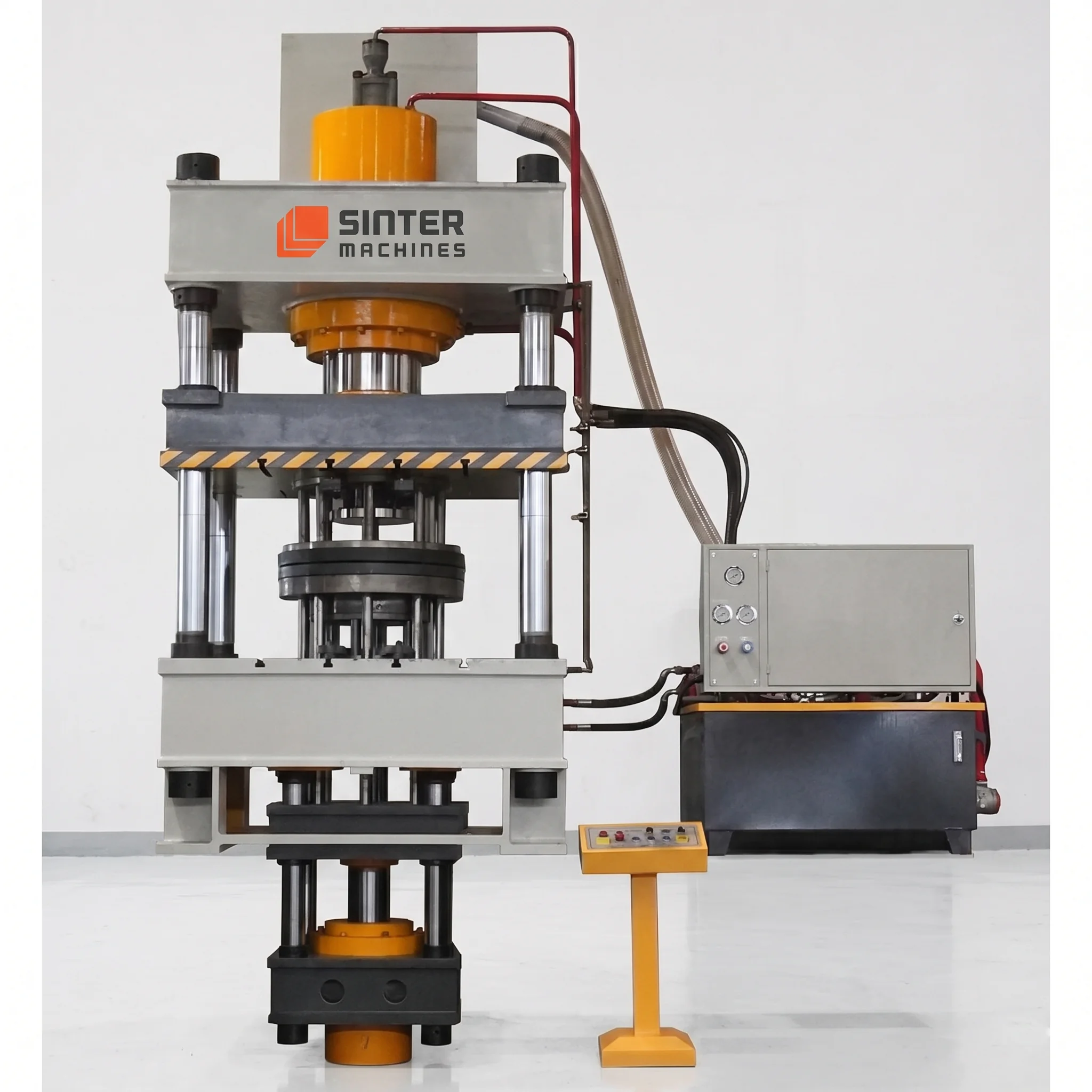

400T Orthopaedic Fittings Press press view 3

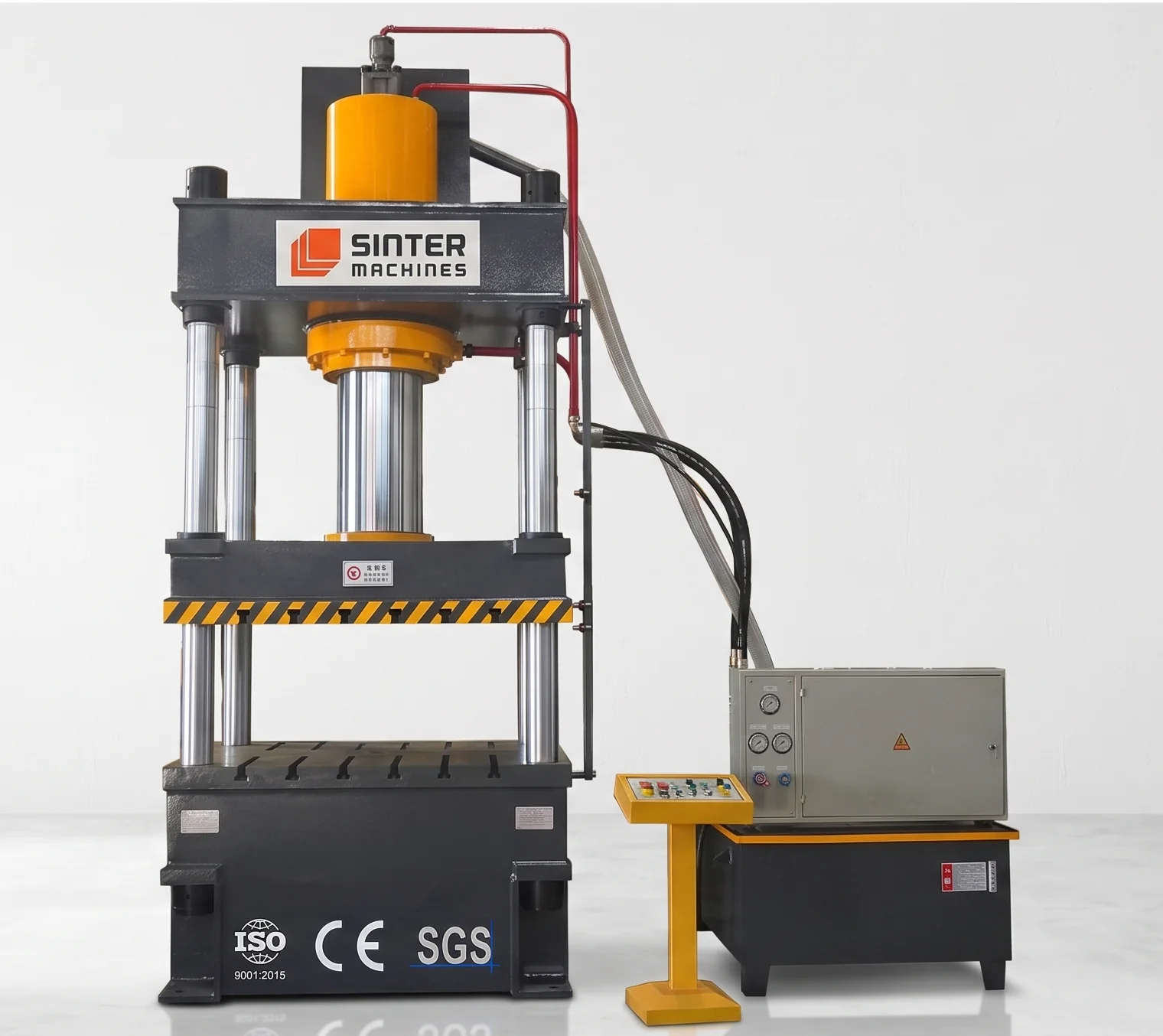

400T Orthopaedic Fittings Press press view 4

01 — Press System

400 Ton Four Pillar Hydraulic Press Machine Production Line

An advanced heavy-duty 400-ton four-pillar hydraulic press custom-engineered for medical-grade powder metallurgy compaction of large orthopedic joint components. It features maximum platen stability and multi-stage pressure controls to deliver exceptional dimensional repeatability across substantial press footprints.

Use Case

Designed for the cold compaction of high-purity medical metal powders blended with clean organic additives into large, high-density green preforms. It provides the substantial tonnage needed to shape large joint reconstructive implants prior to high-temperature sintering.

  • Core Applications: Essential for manufacturing load-bearing total joint replacement components, hip stems, knee femoral components, and large pelvic reconstructive hardware. Widely utilized across orthopedic implant manufacturing, specialized biomedical engineering facilities, and surgical reconstructive device production.
  • Material: Processes medical-grade metal powders including Ti-6Al-4V titanium, cobalt-chromium alloys, stainless steel (316LVM), and biocompatible powders. Formulated with clean-burning binders, organic lubricants, and compaction aids to promote uniform cavity filling and residue-free debinding.
  • Products Processed: Produces femoral hip stems, knee joint femoral components, tibial trays, acetabular cups, and large structural pelvic fixation plates. Generates net-shape green compacts with high surface integrity and precise volumetric geometry to minimize post-sinter machining.
  • Why 400-Ton Hydraulic Press: Delivers high, uniform compaction force across large cross-sectional areas to achieve the green density required for heavy load-bearing implants. Maintains rigid four-pillar guidance and deflection resistance to protect complex mold tooling and ensure micron-level dimensional precision.

02 — Technical Specifications

SM 400 HP – HYDRAULIC PRESS MACHINE COMPLETE TECHNICAL DATA

The SM 400 HP – 400 Ton Hydraulic Press Machine is a heavy-duty four-pillar Powder Metallurgy (PM) compaction system engineered for the production of large orthopaedic implant components used in hip and knee joint replacement systems, trauma fixation devices, spinal supports, and other load-bearing medical applications. Its high-capacity hydraulic structure delivers uniform compaction pressure, excellent rigidity, and precise dimensional control for manufacturing large medical-grade PM components.

Capacity & Structural Design

  • Rated Capacity: 400 metric tons (≈ 3,920 kN)
  • Architecture: Fourpillar / fourcolumn guided hydraulic press
  • Frame: Heavy welded steel, fully stressrelieved
  • Duty Rating: Continuous precision PM production (medical devices)
  • Structural Safety Factor: ≥ 1.30
  • Deflection at Full Load: ≤ 0.06–0.08 mm
  • Load Distribution: Highly uniform across platen (essential for large implants)

Hydraulic System

Main Compaction Cylinder

  • Type: Doubleacting, precisionguided
  • Bore: 320–380 mm
  • Stroke: 400–600 mm
  • Max Working Pressure: 25–30 MPa (250–300 bar)

Hydraulic Control

  • Proportional or servohydraulic pressure control
  • Closedloop force & position feedback

Pressing Modes

  • Constantpressure compaction
  • Positioncontrolled compaction
  • Multistage pressure + dwell (for thick sections and density equalization)

Platen & Working Envelope

Upper / Lower Platen

  • Standard: 700 × 700 mm
  • Optional: up to 900 × 900 mm

Guide Columns

  • Quantity: 4
  • Diameter: 100–130 mm
  • Finish: Hardened, hardchromed & precisionground
  • Daylight Opening: 800–1,000 mm
  • Parallelism Accuracy: ±0.02–0.03 mm / 300 mm

Controls & Safety

  • Control System: PLC + medicalgrade HMI

Process Monitoring

  • Force vs stroke (each cycle)
  • Dwell pressure/time
  • Ejection profile
  • SPCready data logging

Safety Systems

  • Twohand control (manual mode)
  • Full guarding or light curtains
  • Pressurerelief & overload protection
  • Emergency stop (medical manufacturing compliant)

SM 400 HP — Model Specifications

  • Nominal Force: 4000 KN
  • Maximum Hydraulic Pressure: 25 MPa
  • Max Opening Height of the Slider: 1250 mm
  • Max Stroke of the Slider: 800 mm
  • Effective Bed Size: 1260 × 1160 mm
  • Slider Down Speed: 100 mm/s
  • Slider Pressing Speed: 5–11 mm/s
  • Slider Return Speed: 100 mm/s
  • Ejector Cylinder Nominal Force: 400 KN
  • Stroke of the Ejection Cylinder: 300 mm
Production Case Study

Powder Metallurgy (PM) Large Orthopaedic Fittings Production Line

Medical-grade Ti-6Al-4V, Cobalt, 316LVMRaw Material
100 g to 1,200 gProduct Weight
4.2 to 4.8 g/cm³Green Density
12 to 28 SecCycle Time
High Tonnage Precision
Uniform Density Distribution
Clean Room Compatible
Superior Green Strength
Near Net Shape
Maximum Frame Rigidity
Flawless Surface Finish

03 — Die / Mold System

Precision Powder Metallurgy (PM) Large Orthopaedic Fitting Components Die Mold Engineering

The die mold system is specifically engineered for manufacturing large orthopaedic fitting components such as joint replacement fittings, heavy-duty fixation plates, support brackets, implant connectors, and structural orthopaedic assemblies using Powder Metallurgy technology. It ensures high-density compaction, dimensional precision, and reliable mechanical performance for critical load-bearing medical applications.

Technical Specifications (Tooling)

Tool Type

  • Heavy-duty precision PM compaction dies designed for large orthopaedic fittings and structural implant components.
  • Suitable for high-tonnage hydraulic presses and complex near-net-shape medical part production.

Tool Materials

  • Manufactured from tungsten carbide, PM-grade tool steels, hardened alloy steels, and wear-resistant inserts.
  • Selected to withstand high compaction loads, abrasive powders, and long production cycles.

Tool Construction

  • Robust modular die assembly incorporating die blocks, punches, guide pillars, backing plates, and support structures.
  • Engineered for maximum rigidity, reduced deflection, and precise dimensional control during compaction.

Multi-Level Tooling

  • Advanced multi-level tooling enables the production of stepped sections, recessed features, varying wall thicknesses, and complex implant geometries.
  • Minimizes secondary machining operations and improves manufacturing efficiency.

Alignment Accuracy

  • Precision guide pillars and alignment mechanisms maintain punch-to-die accuracy within ±0.01 mm.
  • Ensures uniform density distribution, improved component quality, and reduced tooling wear.

Powder Filling & Ejection

  • Optimized powder filling systems provide consistent cavity filling for large-volume orthopaedic components.
  • Controlled ejection mechanisms reduce cracking, distortion, and surface damage during part removal.

Compatible PM Materials

  • Compatible with titanium alloys (Ti-6Al-4V), cobalt-chromium alloys, 316L stainless steel, and other medical-grade PM materials.
  • Suitable for manufacturing high-strength, corrosion-resistant, and biocompatible orthopaedic fittings.

Surface Finish

  • Precision-polished die cavities achieve surface finishes of Ra 0.1–0.4 µm.
  • Enhances powder flow, reduces friction, and improves final component surface quality.

Lubrication

  • Utilizes internal powder lubricants and external die-wall lubrication systems for smooth compaction and ejection.
  • Reduces wear, improves density consistency, and extends tooling performance.

Tool Life

  • Typical tooling life ranges from 1.5 million to over 3 million compaction cycles depending on material and operating conditions.
  • Advanced coatings, precision maintenance, and optimized process control maximize tool longevity and production reliability.
Case Study (Die Performance)

Precision Powder Metallurgy (PM) Large Orthopaedic Fitting Components Die Mold Tooling

Tungsten Carbide / CPM 10V / M4Die Steel
62–65 HRCHardness
Vacuum Cryogenic HardeningHeat Treatment
Extreme Wear Resistance
High Compaction Rigidity
Mirror Surface Finish
Superior Fatigue Strength
Extreme Dimensional Stability
Extended Tool Life
Zero Powder Contamination

04 — Product Application

Where Powder Metallurgy (PM) Large Orthopaedic Fitting Components Are Used

Powder Metallurgy (PM) large orthopaedic fitting components are used in advanced medical applications that require high strength, durability, dimensional accuracy, and biocompatibility. The PM process enables the efficient production of complex, load-bearing implant components used in joint reconstruction, trauma treatment, and orthopaedic support systems.

Industry Applications

Hip Joint Replacement Systems

Large PM orthopaedic fittings are used in hip replacement implants, including structural connectors, support elements, and fixation components. Their high mechanical strength and wear resistance ensure long-term performance under continuous load-bearing conditions.

Knee Reconstruction Implants

PM-manufactured fittings are incorporated into knee replacement systems requiring precise alignment and structural stability. These components provide reliable support, durability, and consistent performance throughout implant service life.

Trauma and Bone Fixation Assemblies

Large orthopaedic fittings are utilized in trauma implants, fixation systems, and reconstructive surgical devices for severe bone injuries. Their robust construction helps maintain bone stability and supports effective healing and recovery.

Spinal and Orthopaedic Support Systems

PM fitting components are used in spinal stabilization assemblies, orthopaedic support structures, and heavy-duty implant frameworks. The process enables the production of complex geometries with excellent dimensional accuracy and structural reliability.

Finished Product Gallery

400T Orthopaedic Fittings Press finished product 1
400T Orthopaedic Fittings Press finished product 2
400T Orthopaedic Fittings Press finished product 3
400T Orthopaedic Fittings Press finished product 4
400T Orthopaedic Fittings Press finished product 5

05 — Key Advantages

Why Choose the 400-Ton Sinter Hydraulic Press

The 400-Ton Sinter Hydraulic Press is specifically designed for manufacturing large orthopaedic fitting components that require high compaction force, superior density control, and exceptional dimensional accuracy. Its robust four-pillar structure and advanced hydraulic system ensure reliable production of medical-grade PM components for demanding load-bearing applications.

01

High Compaction Capacity

The 400-ton pressing force provides deep and uniform compaction for large orthopaedic fittings and structural implant components. This results in higher density, improved strength, and superior mechanical performance.

02

Excellent Dimensional Accuracy

Precision hydraulic controls maintain tight tolerances throughout the compaction cycle. Produces large components with consistent dimensions and excellent repeatability.

03

Superior Density Uniformity

Uniform pressure distribution ensures consistent density across complex and large component geometries. Reduces internal defects and enhances implant reliability and durability.

04

Ideal for Large Medical Components

Specifically suited for manufacturing hip implant fittings, knee replacement components, spinal supports, and heavy orthopaedic assemblies. Handles larger powder volumes while maintaining high-quality production standards.

05

Enhanced Productivity and Automation

Supports automated compaction cycles, process monitoring, and efficient production workflows. Increases manufacturing throughput while reducing operator intervention and downtime.

06

Lower Overall Production Costs

Near-net-shape PM processing minimizes material waste and reduces secondary machining requirements. Long tooling life, improved process efficiency, and reduced scrap rates contribute to significant cost savings.
