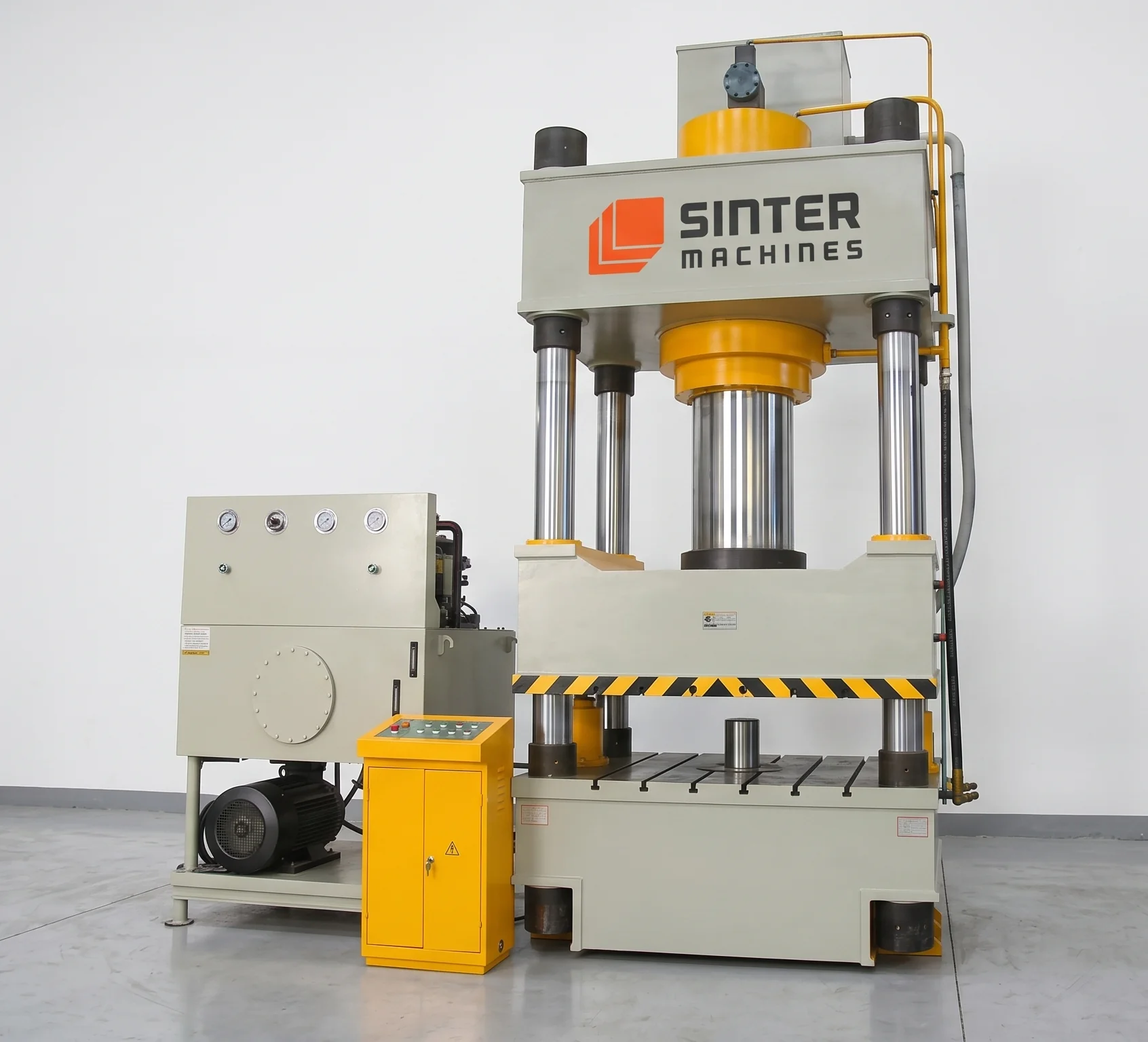

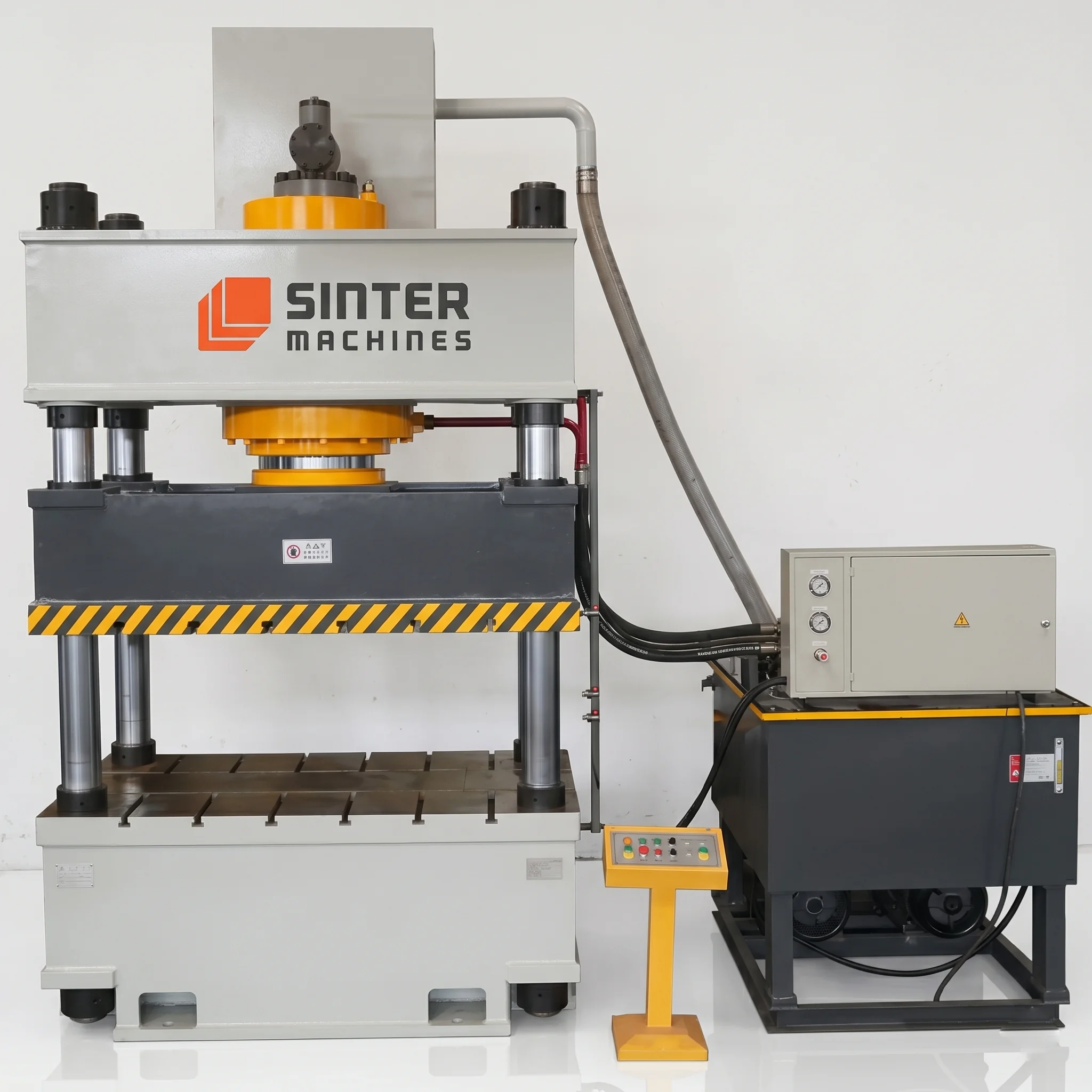

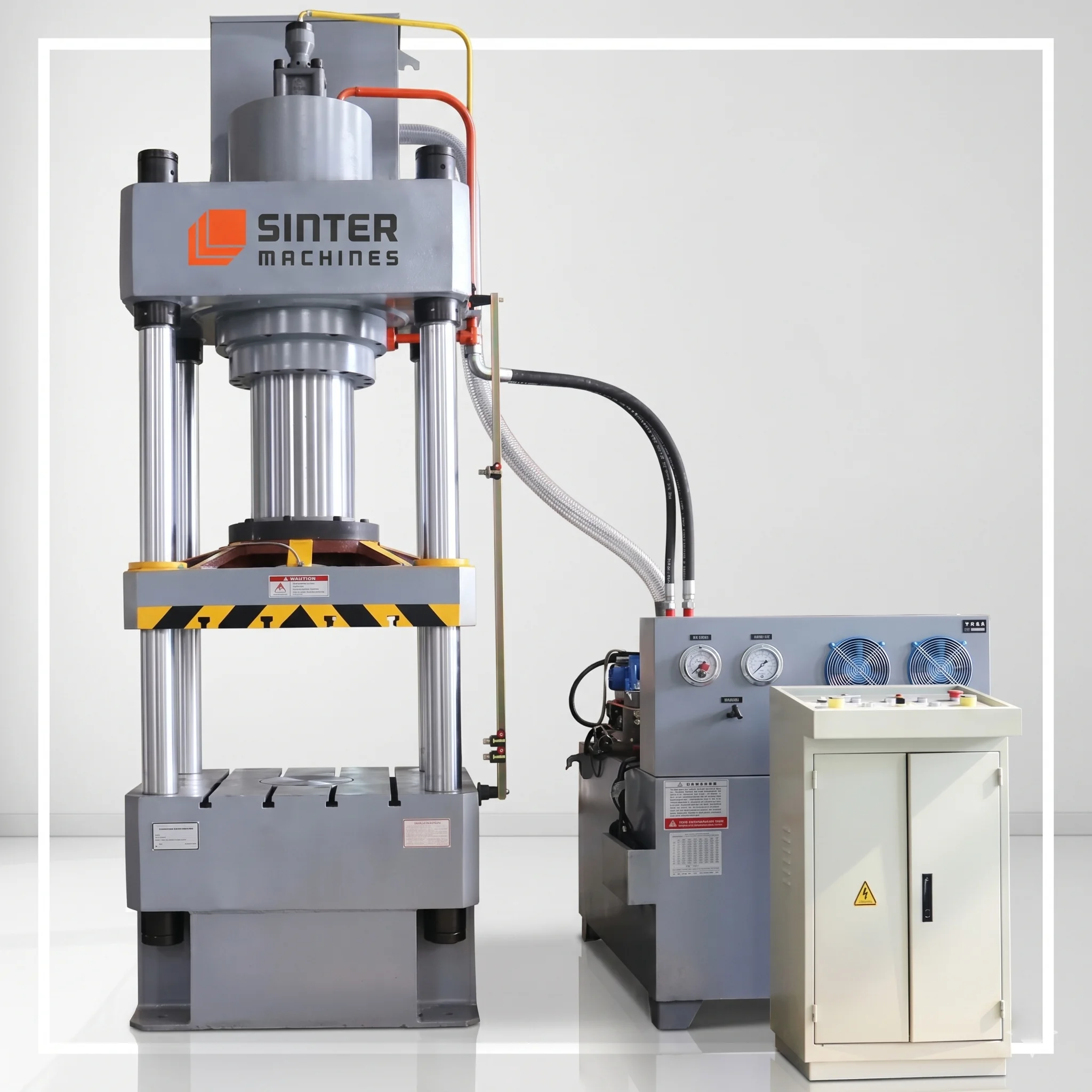

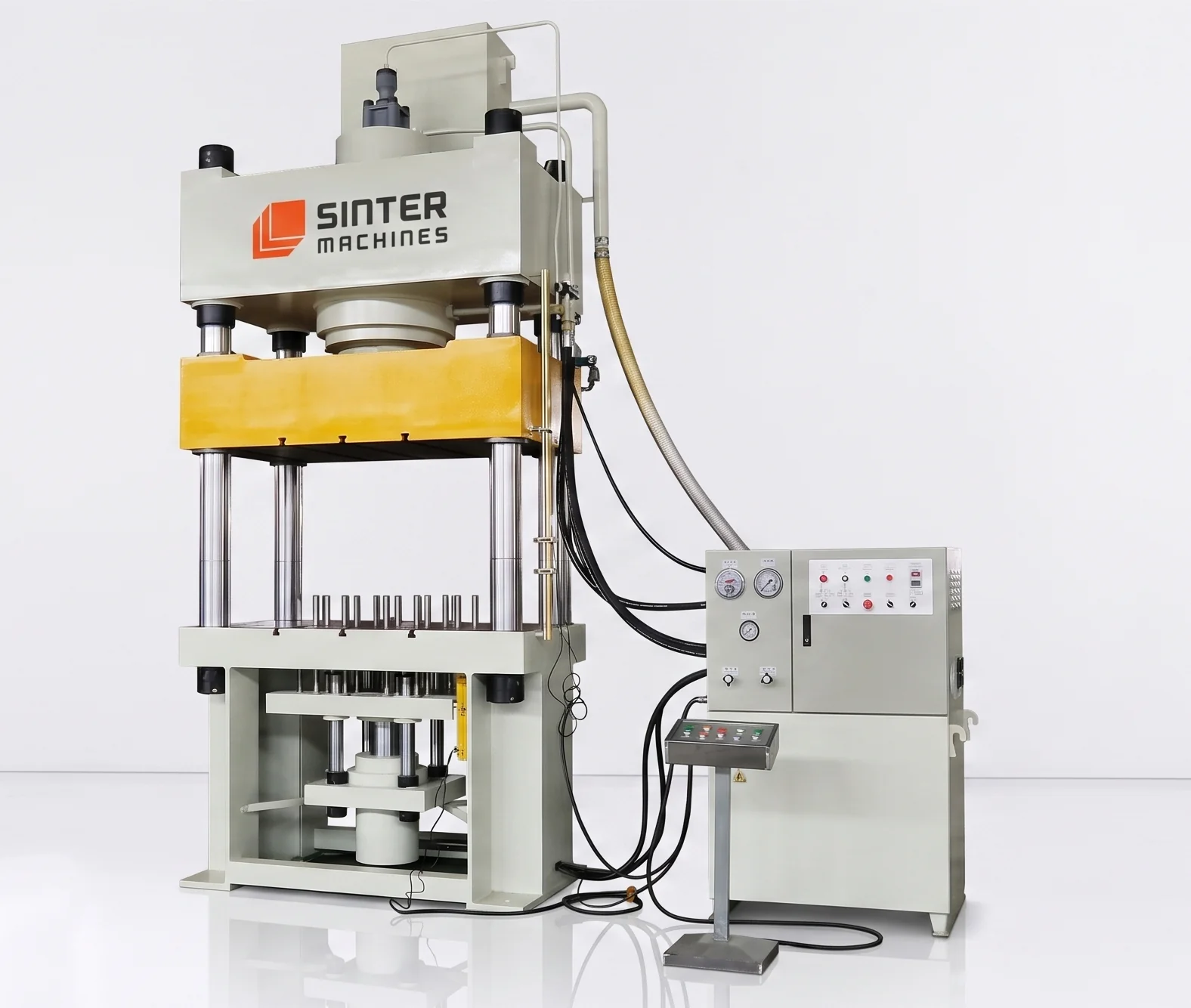

500T Four Column Hydraulic Press for Kaolinite Powder Block
Kaolinite Powder Block Compression 4-Column Hydraulic Press Machine is a specialized industrial compaction system engineered to compress fine kaolinite powder (a hydrous aluminum silicate clay mineral) into dense, uniform solid blocks, refractory bricks, or ceramic preforms.
These machines are utilized in ceramics, sanitaryware manufacturing, refractory production, and tile fabrication where loose clay powders must be consolidated to minimize airborne dusting, reduce storage volume, and optimize handling or firing processes.
01 — Engineering Considerations
Structural Design & Engineering Considerations (4-Column Architecture)
High-Precision Guidance & Parallelism: Clay powders require strict control over compaction uniformity to prevent structural weak points or density gradients. The four-pillar precision-ground column architecture ensures absolute platen parallelism and eliminates lateral play, preventing uneven wall pressures and ensuring consistent block density.
Rigid Load Distribution: Compacting fine clay powders requires consistent, balanced tonnage. The 4-column frame withstands heavy cyclic loads without structural flexing, maintaining exact micro-tolerances between the punches and the die cavity over long operational lifespans.
Air Evacuation & Moisture Management: Fine clay powders trap significant air during filling and may contain variable moisture content. The press features multi-stage compression profiles and dwell times to allow trapped air to evacuate safely without causing internal lamination or cracking.
02 — Technical Specifications
Key Technical Specifications
Feature | Industrial Specification Range |
Nominal Compaction Force | 40 Tons to 500+ Tons (tailored to block cross-sectional area and target density) |
Guide Structure | 4 Hard-Chromed, Precision-Ground Steel Pillars with heavy-duty, low-friction bushings |
Die & Punch Assembly | Hardened alloy tool steel or specialized wear-resistant inserts designed to handle fine clay mineral powders |
Hydraulic Drive | Variable displacement piston pumps or servo-hydraulic systems with smooth proportional pressure control |
Control Unit | PLC system with HMI touchscreen interface for programming fill depth, pressing tonnage, dwell time, and automated extraction |
03 — Operational Workflow
Operational Workflow
- Enclosed Volumetric Feeding: An automated, sealed feed shoe slides precisely over the die cavity to deposit a measured volume of loose kaolinite powder, minimizing airborne dust and ensuring uniform fill density.
- Multi-Stage Compression:
- Fast Approach: The top ram lowers quickly to the material surface.
- High-Pressure Compaction: The system applies controlled tonnage. A multi-action or dual-punch configuration ensures even particle interlocking and density distribution throughout the depth of the block.
- Dwell Phase: Peak pressure is held for a set duration to allow trapped air to evacuate and the clay particles to firmly settle, minimizing internal stress or cracking.
- Controlled Decompression & Ejection: Hydraulic pressure is gradually bled off to prevent surface cracking from elastic springback. A bottom ejection cylinder then cleanly pushes the solid kaolinite block out of the die cavity for downstream drying, curing, or kiln firing.

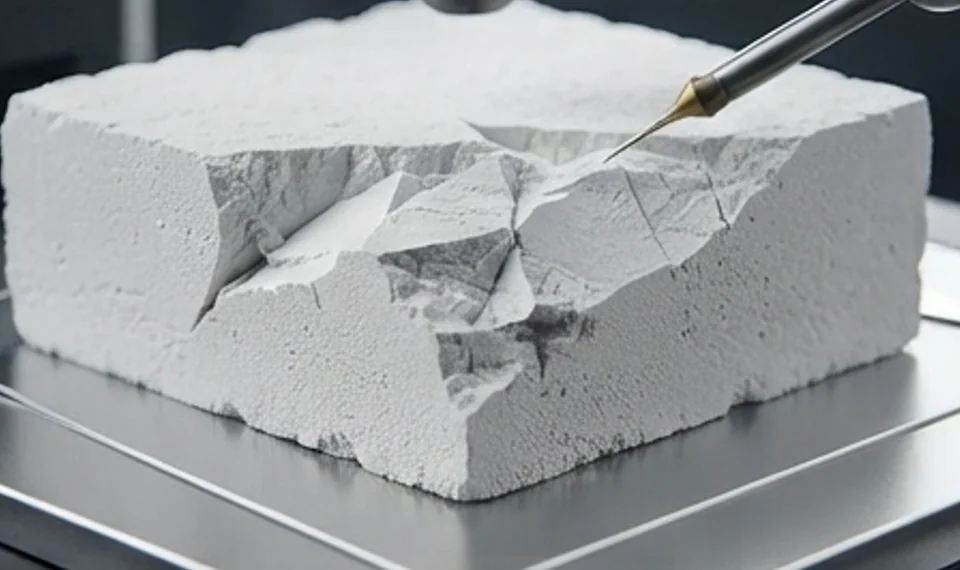

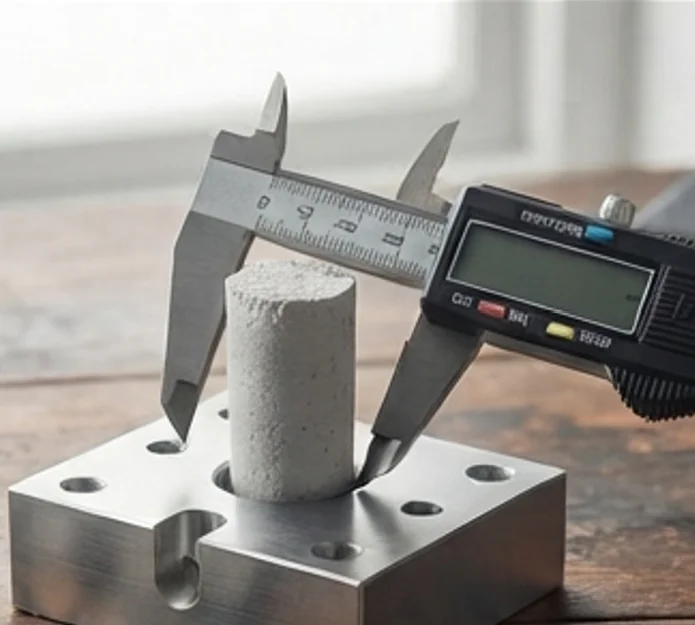

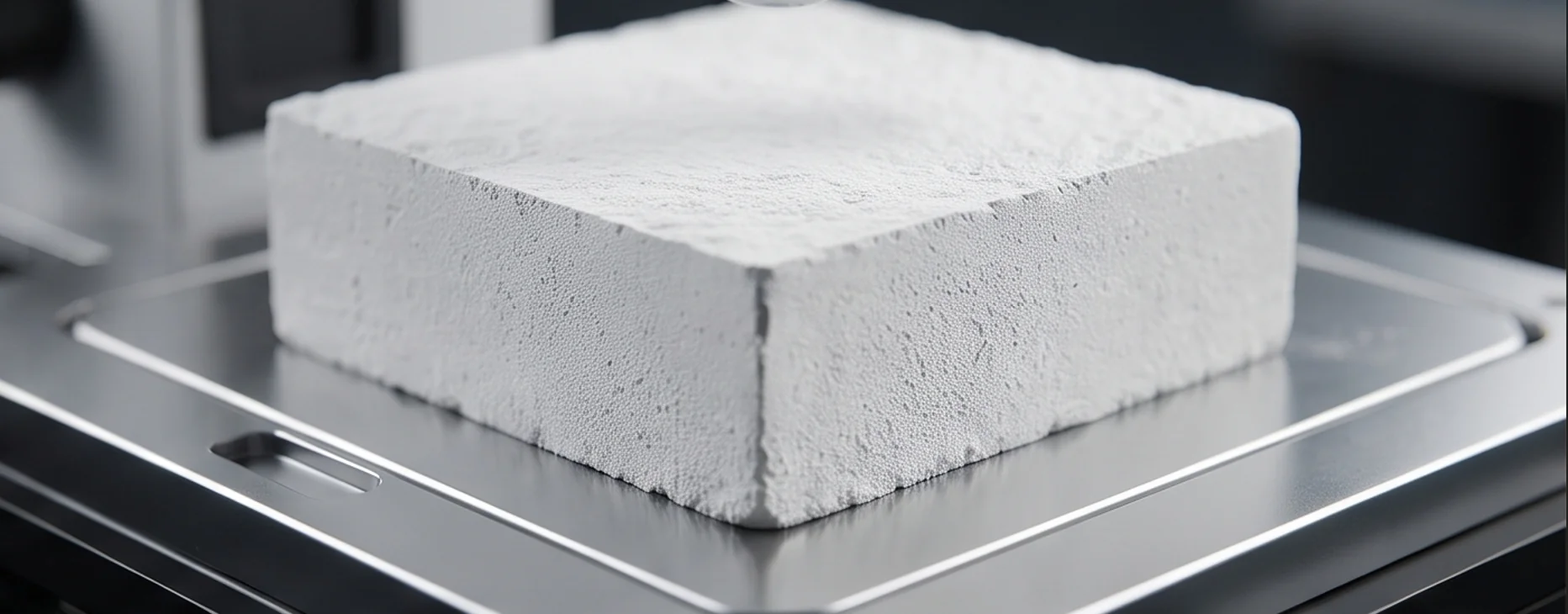

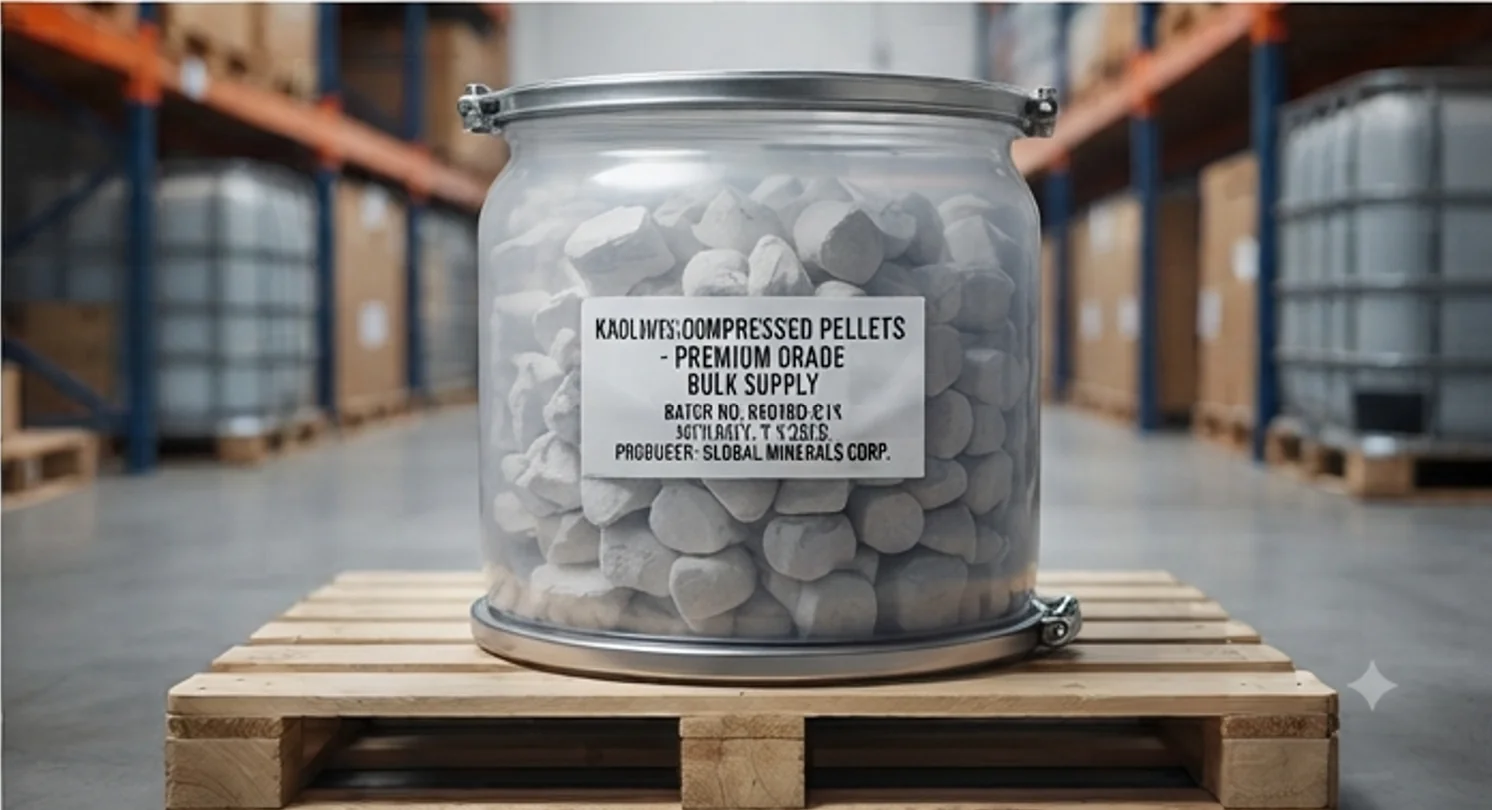

Finished Product Gallery
