315T CSEB Clay Bricks Press press view 1
High Density CSEB Clay Bricks · Hydraulic Press Machine

315 Ton Four Pillar Hydraulic Press for High Density CSEB Clay Bricks

315T Rated Capacity
100 mm/s Slider Down Speed
7–12 mm/s Slider Pressing Speed
90 mm/s Slider Return Speed

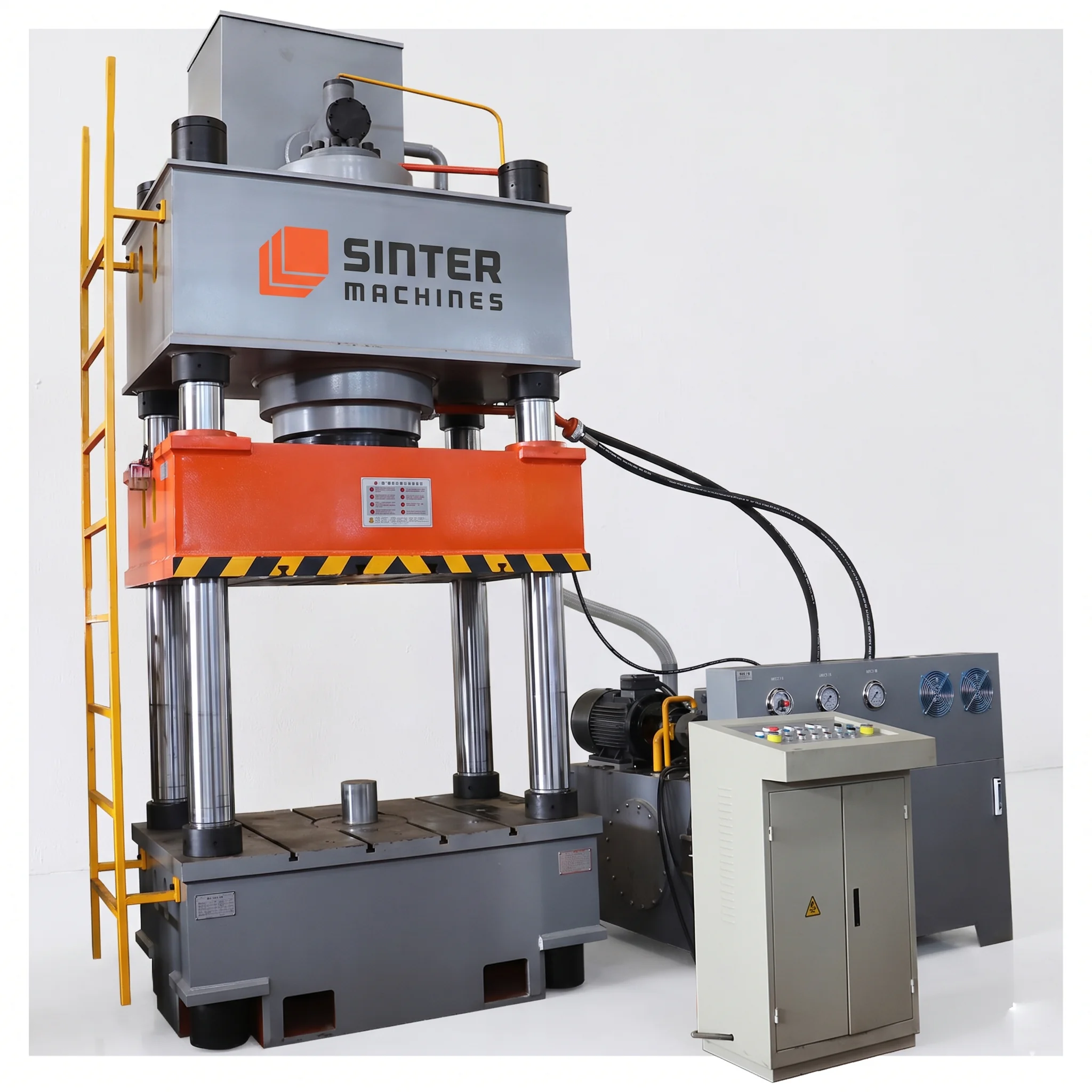

315T CSEB Clay Bricks Press press view 1

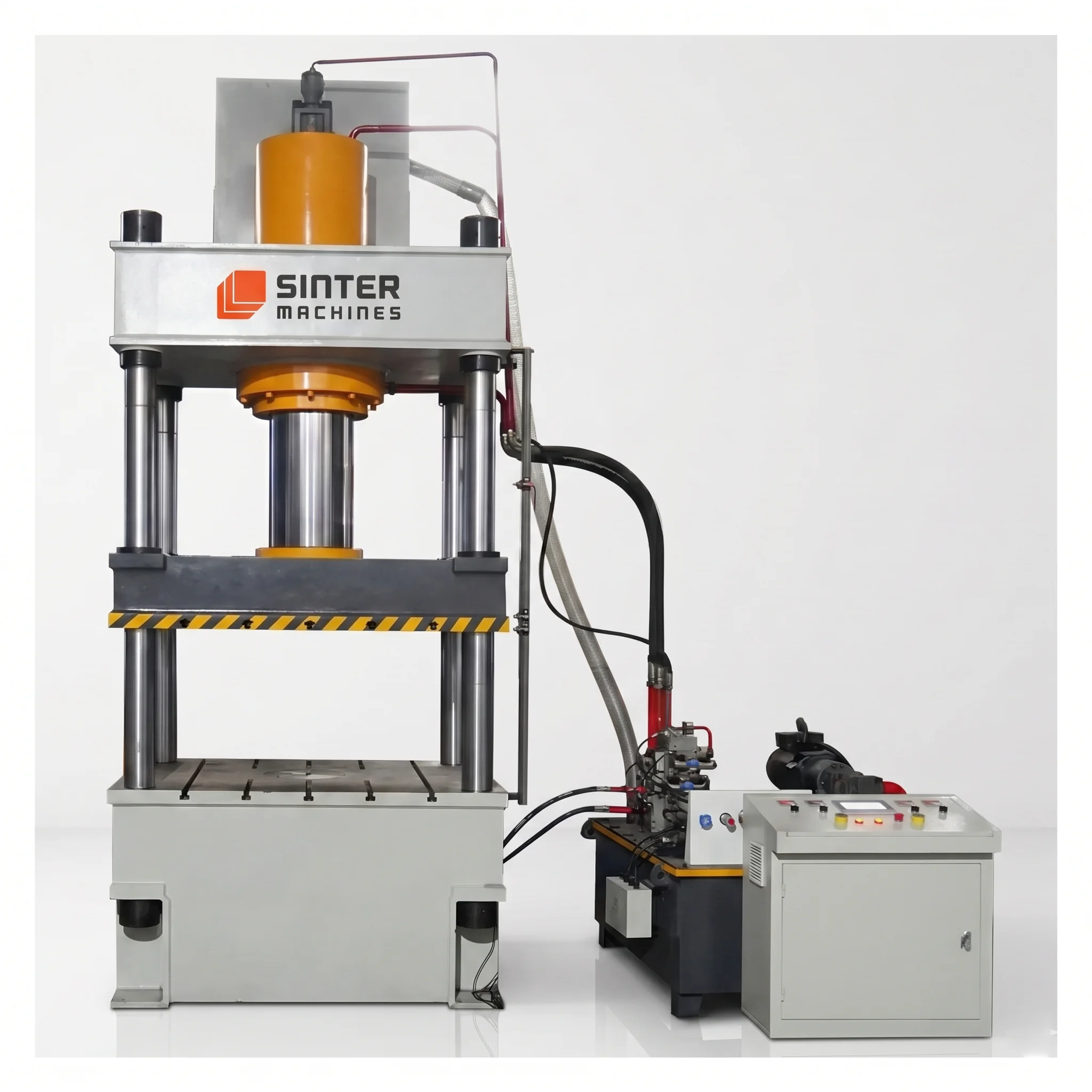

315T CSEB Clay Bricks Press press view 2

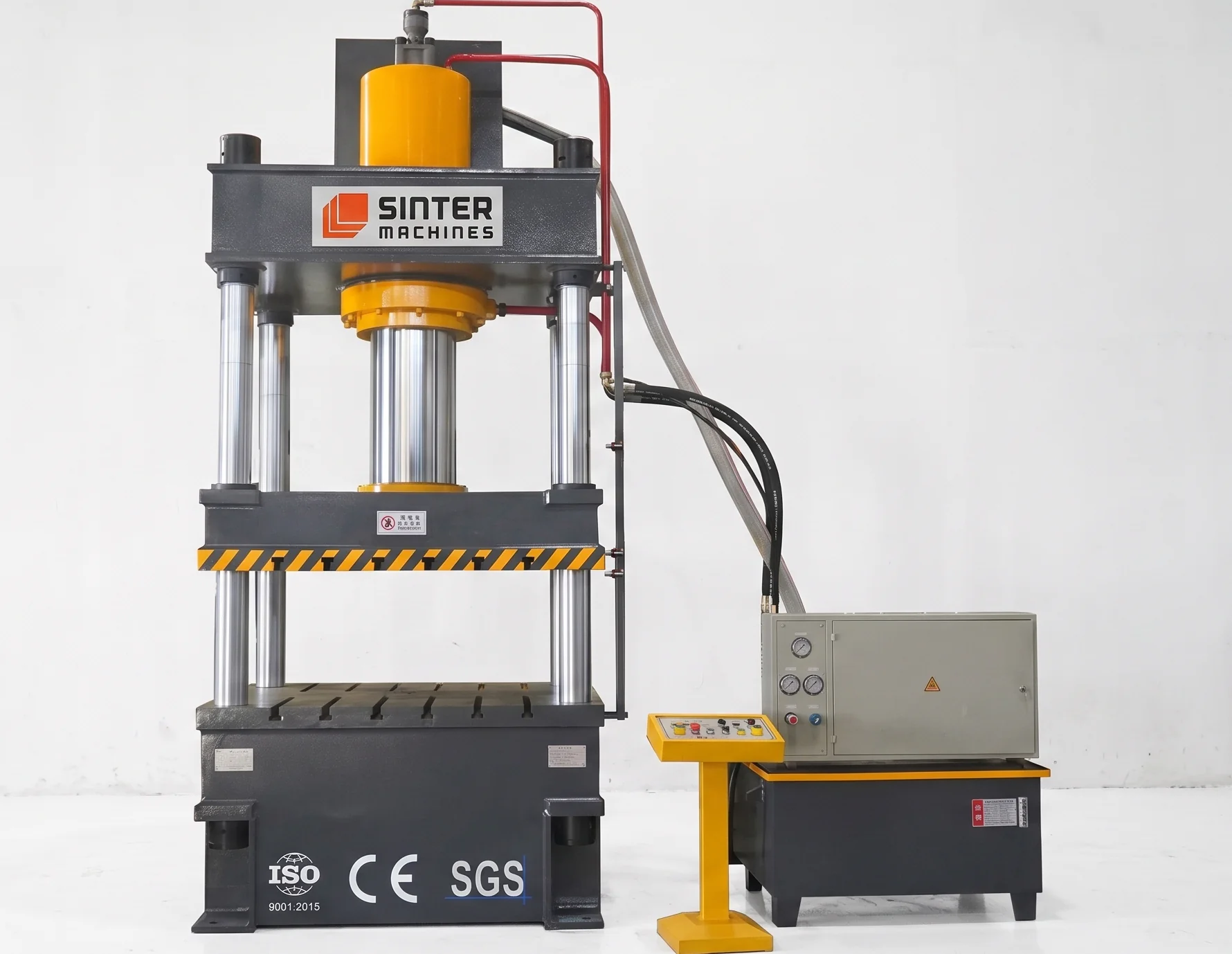

315T CSEB Clay Bricks Press press view 3

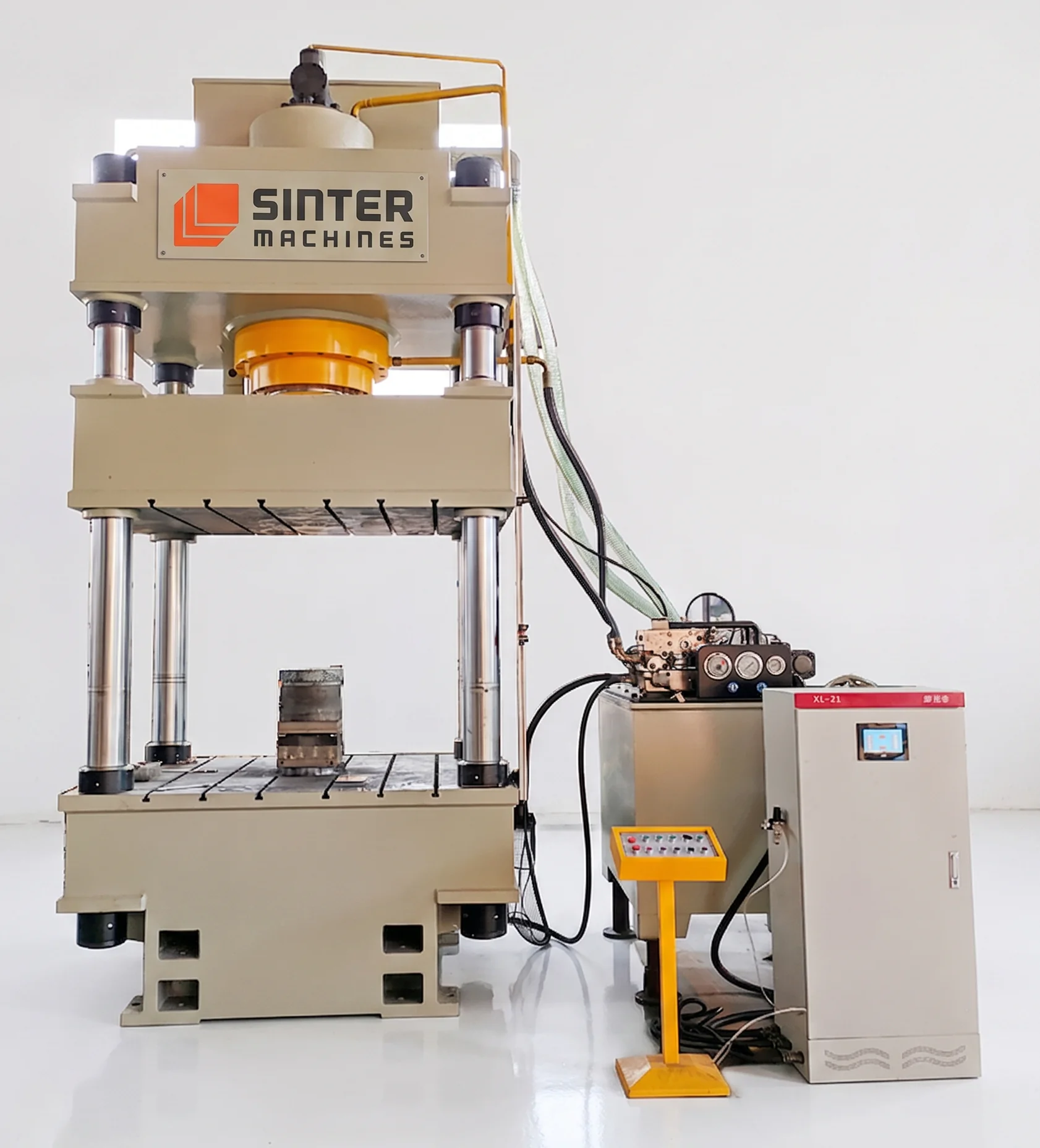

315T CSEB Clay Bricks Press press view 4

01 — Press System

315 Ton Four Pillar Hydraulic Press Machine

The 315-ton four-column hydraulic press machine produces high-density Compressed Stabilized Earth Bricks (CSEB) without energy-intensive kiln firing. By delivering extreme mechanical compaction force, it converts eco-friendly soil mixes into structural clay bricks with exceptional durability and minimal carbon footprint.

Use Case

Engineered for high-volume industrial manufacturing, this fully automated production line delivers 26,400 high-density CSEB bricks per 8-hour shift. The non-fired process relies on ultra-high compaction followed by a 14 to 28-day water curing cycle to exceed the compressive strength of traditional fired clay bricks.

Core Applications: Heavy-duty load-bearing wall construction work requiring high-strength, eco-friendly structural masonry blocks.

Material: Formulated with 60–70% clay/soil, 15–25% fly ash, 8–12% cement or lime, water, and optional gypsum/admixture binders.

Typical Products Processed: Standard brick dimensions of 228 x 104 x 75 mm for uniform, high-precision masonry application.

Brick Compressive Strength: Delivers a superior high-density compressive strength ranging from 8 to 12 MPa (or higher depending on formulation and curing).

Why 315 Ton Hydraulic Press?: A 315-ton hydraulic press provides the immense tonnage required to crush micro-air pockets, heavily densify raw earth particles, and consistently hit 8–12+ MPa strength ratings across high-volume automated cycles.

02 — Technical Specifications

SM 315 HP – HYDRAULIC PRESS MACHINE COMPLETE TECHNICAL DATA

The SM 315 HP is an automated 315-ton four-column hydraulic press engineered for high-density Compressed Stabilized Earth Bricks (CSEB) and clay bricks. It delivers high pressing force and precision control to manufacture heavy-duty structural building products continuously.

Capacity

  • Nominal Pressing Force: 315 Tons (3150 KN)
  • Ejection / Lower Cylinder Force: 40 Tons (400 KN)

Structural Design

  • Heavy-duty steel plate welded three-beam four-column structure
  • Stress-relieved tempered frame for minimal deflection under full load

Frame Type: Four-Column / Four-Pillar guide configuration

Hydraulic System

  • Integrated cartridge valve system for reliable pressure control and minimal hydraulic shock
  • High-pressure oil cylinders with forced air or oil cooling options

Main Ram Stroke: 500 mm

Working Hydraulic Pressure: 25 MPa

Daylight Gap: 800 mm

Approach Speed: 120 mm/Sec to 150 mm/Sec

Pressing / Drawing Speed: 8 mm/Sec to 15 mm/Sec

Return Speed: 100 mm/Sec to 130 mm/Sec

Bed / Platen Size Platen: 1400 × 800 mm

Columns: 4 solid forged steel guide pillars with hard chrome plating

Working Envelope: 1400 × 800 × 800 mm

Control System: Programmable Logic Controller (PLC) with human-machine touch interface screen

Main Motor Power: 22 kW / 30 HP

Valves & Hydraulics: Low-noise hydraulic pump and integral cartridge valve block with short connection pipelines

Automation: Fully automated continuous cycle operation, automatic pallet/raw material feeding, and automatic brick ejection

Safety Features: Dual-hand operation buttons, photo-electric light curtain safety barrier, emergency stop button, and overload pressure safety valves

SM 315 HP — Model Specifications

  • Nominal Force: 3150 KN
  • Maximum Hydraulic Pressure: 25 MPa
  • Max Opening Height of the Slider: 1000 mm
  • Max Stroke of the Slider: 600 mm
  • Effective Bed Size: 800 × 800 mm
  • Slider Down Speed: 100 mm/s
  • Slider Pressing Speed: 7–12 mm/s
  • Slider Return Speed: 90 mm/s
  • Ejector Cylinder Nominal Force: 300 KN
  • Stroke of the Ejection Cylinder: 300 mm
Production Case Study

315 Ton High Density CSEB Clay Bricks Fully Automated Production Line

228 x 104 x 75 mmBrick Size
3,300 BricksOutput/Hour
8-12 MPaCompressive Strength
20 SecondsCycle Time
High Hourly Yield
Consistent Brick Density
Automated Pressing Cycle
Uniform Size Accuracy
High Compressive Strength
Non Fired Eco Production
Continuous Shift Output

03 — Die / Mold System

Precision 18 Cavity CSEB Clay Bricks Die Mold Engineering

The 18-cavity precision die mold enables high-volume manufacturing of Compressed Stabilized Earth Bricks under 315 tons of pressure. It ensures uniform density, clean edges, and exact dimensional consistency across all 18 bricks per pressing cycle.

Technical Specifications (Tooling)

Die Type: 18 Cavity Mold

  • Cavity Configuration: 18 individual brick cavities arranged in a balanced matrix layout
  • Brick Dimensions Processed: 228 × 104 × 75 mm

Die Materials

  • Core Material: High-grade heat-treated alloy tool steel like D2 or P20
  • Wear Surface Treatment: Carburized, hardened, and nitrided for extreme abrasion resistance

Tool Configuration & Construction

  • Structural Framework: Modular block design with replaceable core plates and punch heads
  • Stripping Mechanism: Synchronized bottom ejector system with guide pillars

Key Tooling Features

  • Quick-change modular design for minimal maintenance downtime
  • Integrated air release channels to prevent vacuum formation during pressing

Alignment Accuracy

  • Machine Tolerance: Precision guided within 0.02 mm to 0.05 mm
  • Parallelism Control: Uniform hydraulic load distribution across all 18 cavities

Surface Finish

  • Inner Cavity Finish: Mirror polished with roughness below Ra 0.4 mm
  • Ejection Performance: Smooth non-stick cavity surface for damage-free brick stripping

Tool Life

  • Production Rating: 500000 to 1000000 pressing cycles before major re-conditioning
Case Study (Die Performance)

Precision 18 Cavity CSEB Clay Bricks Die Mold Engineering

D 2 & HARDOX 450Die Material
56-60 HRCHardness
Vacuum HardeningHeat Treatment
High Abrasion Resistance
Exact Dimensional Tolerance
Smooth Cavity Ejection
Extended Tool Life
Zero Deformation Risk
Minimal Maintenance Need
Optimal Cycle Speed

04 — Product Application

Where Building High Density CSEB Clay Bricks Are Used

High-density Compressed Stabilized Earth Bricks (CSEB) serve as sustainable masonry solutions across structural construction projects. Their superior compressive strength and uniform dimensions make them ideal replacements for traditional fired clay bricks in eco-conscious developments.

Industry Applications

Load-Bearing Structural Wall Construction

These high-density stabilized earth bricks provide high compressive strength exceeding 8 to 12 MPa, making them suitable for load-bearing external walls in multi-story residential and commercial structures without requiring heavy concrete frames.

Sustainable Eco-Friendly Housing & Resorts

Widely utilized in green building initiatives, eco-resorts, and rural housing projects where low carbon footprint construction is prioritized. Their aesthetic natural finish allows for exposed brickwork that reduces external plastering and painting costs.

Non-Load Bearing Partition Walls & Infill Panels

Ideal for fast-track interior wall partitioning and frame infills in industrial, commercial, and residential complexes. Their dimensional accuracy ensures minimal mortar consumption during installation while providing optimal acoustic insulation and thermal mass.

Boundary Walls, Perimeter Fencing & Retaining Structures

Extensively deployed for sturdy outdoor boundary walls, compound enclosures, and soil-retaining barriers due to their weather resistance and long-term structural durability under varying climate conditions.

Finished Product Gallery

315T CSEB Clay Bricks Press finished product 1
315T CSEB Clay Bricks Press finished product 2
315T CSEB Clay Bricks Press finished product 3
315T CSEB Clay Bricks Press finished product 4
315T CSEB Clay Bricks Press finished product 5
315T CSEB Clay Bricks Press finished product 6

05 — Key Advantages

Why Choose the 315-Ton Sinter Hydraulic Press

The 315-Ton Hydraulic Press delivers unmatched compaction power and automation efficiency to produce superior non-fired CSEB clay bricks. It combines heavy-duty engineering with eco-conscious manufacturing to lower overall operational expenditure while maximizing structural brick performance.

Technical & Commercial Benefits

01

Superior Compressive Strength & High Density

Delivers an intense 315 tons of uniform hydraulic pressure that thoroughly removes internal voids, yielding high structural strength of 8 to 12 MPa. This heavy compaction ensures exceptionally durable, load-bearing bricks that meet demanding construction standards without thermal sintering.

02

Zero Kiln Firing & Massive Energy Savings

Eliminates traditional high-temperature kiln firing by relying on ambient hydraulic compression and natural moist curing methods. This cold-process technology slashes thermal fuel consumption and operational energy costs while substantially cutting carbon emissions.

03

High Automation & Scalable Hourly Output

Features integrated PLC controls and automated raw material feeding to deliver continuous production cycles of up to 3,300 bricks per hour. The high degree of automation drastically minimizes manual labor dependency and increases daily plant efficiency.

04

Precision Tooling & Uniform Dimensional Accuracy

Utilizes high-grade hardened alloy steel molds that maintain tight manufacturing tolerances within 0.02 mm across every cycle. Produces bricks with sharp edges and uniform surfaces, significantly reducing mortar consumption during wall construction.

05

Resource Efficiency & Eco-Friendly Material Utilization

Optimally processes locally sourced soil, fly ash, agricultural residues, and industrial waste mixed with minimal binder ratios. Reduces overall raw material acquisition costs while promoting sustainable green building practices and eco-certifications.

06

Low Operating Costs & Rapid Return on Investment

Optimized hydraulic valve circuits and low-horsepower electric drives reduce total kilowatt consumption per output unit. The combination of rapid cycle times, minimal scrap loss, and reduced labor yields a exceptionally fast capital payback period.
