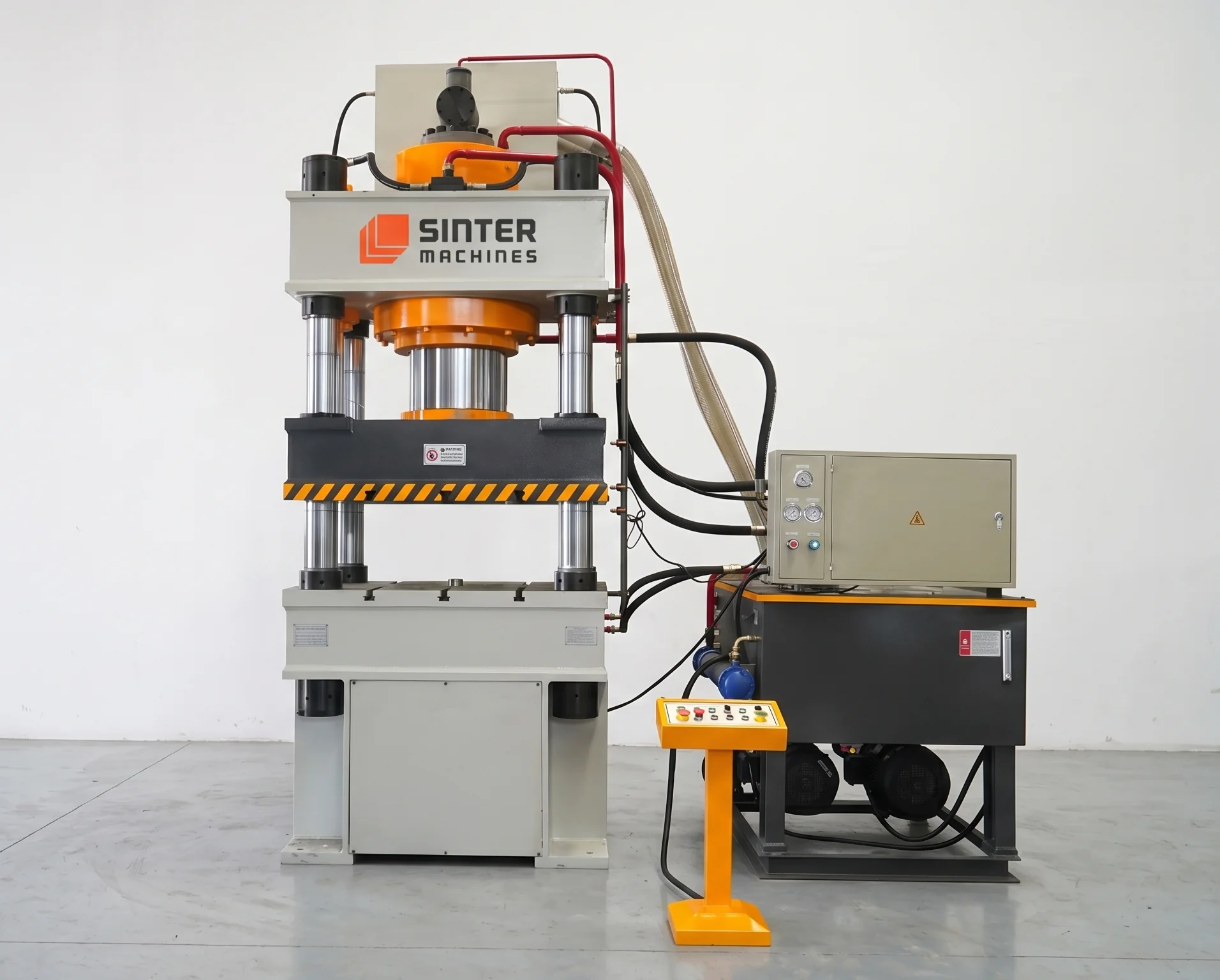

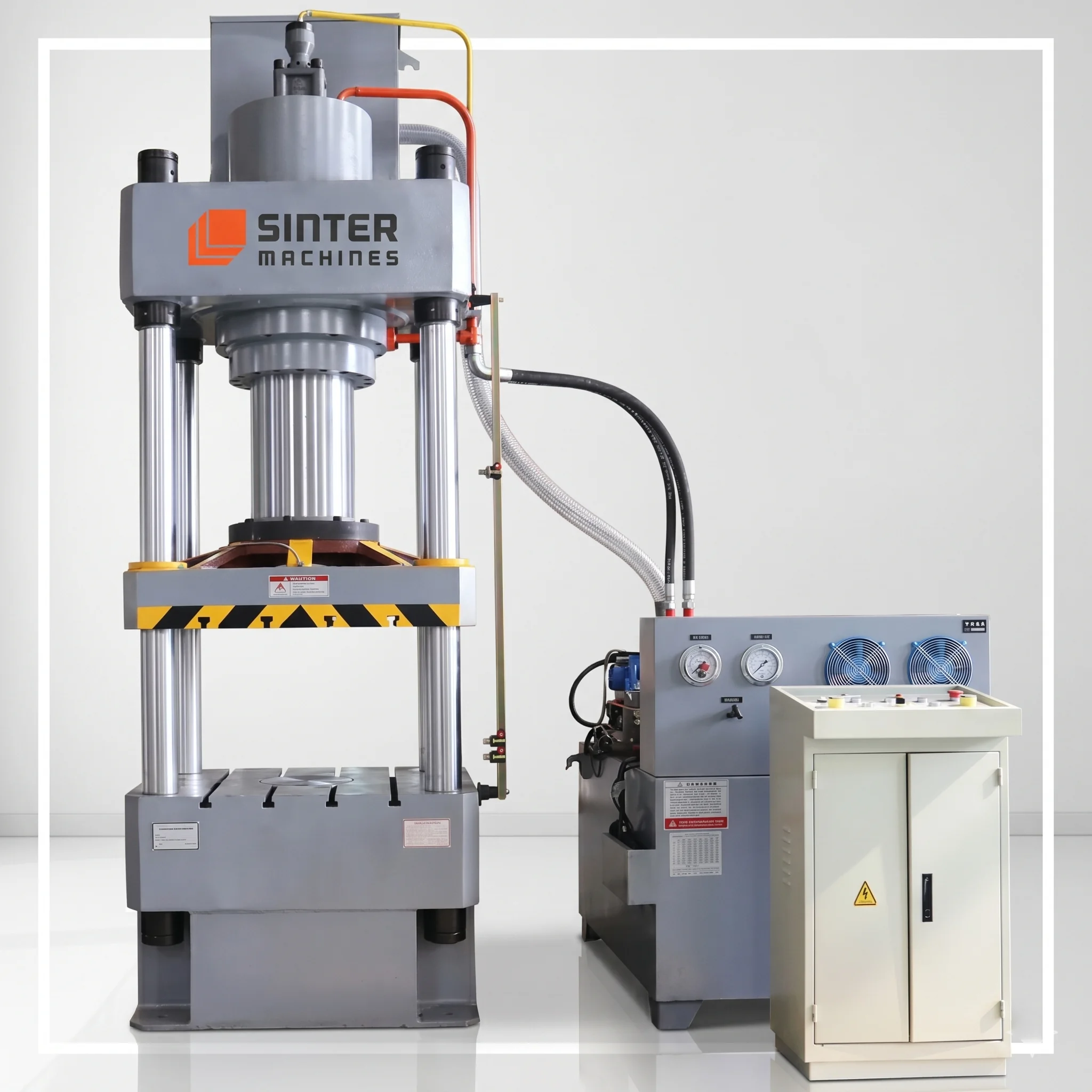

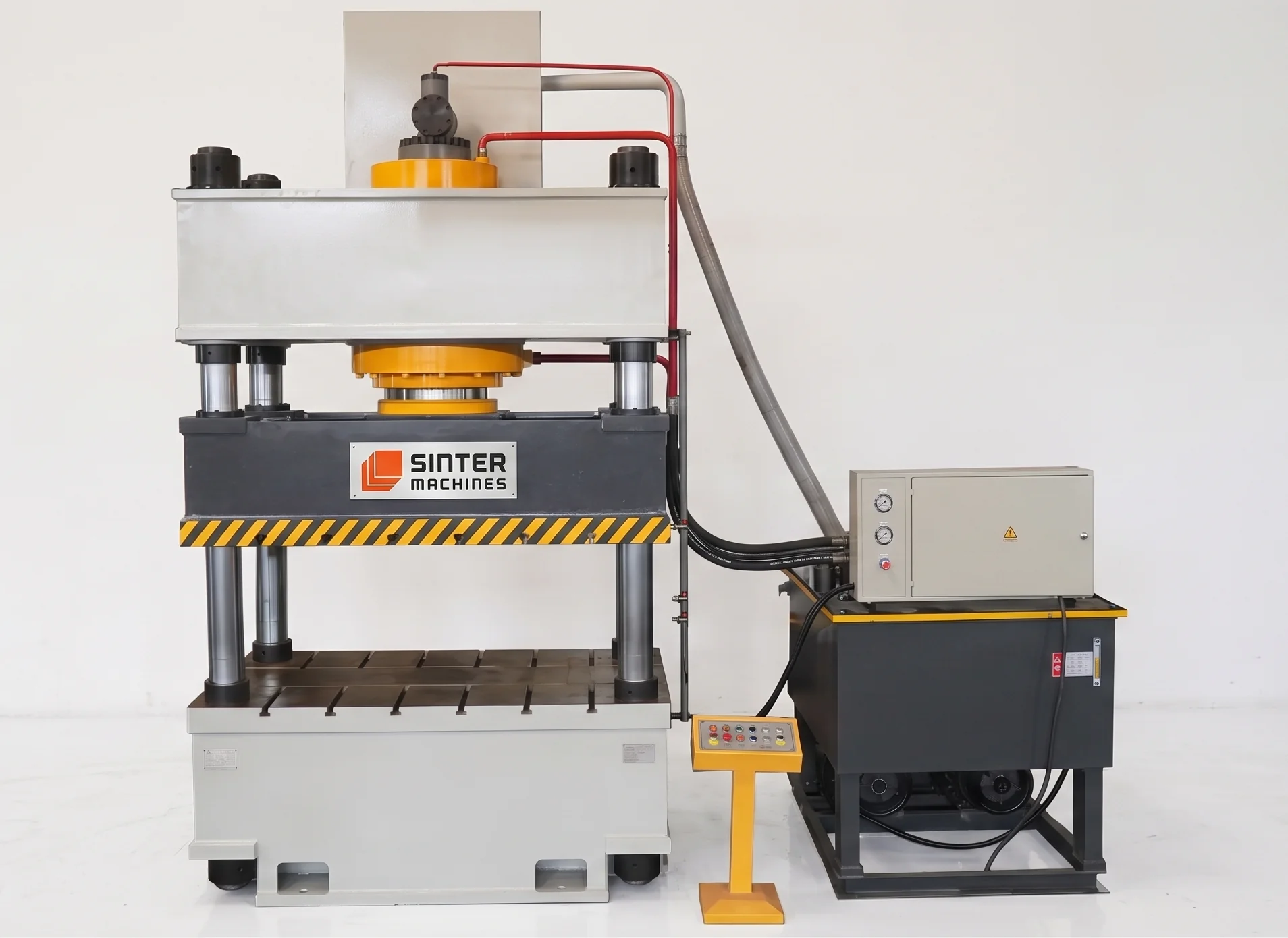

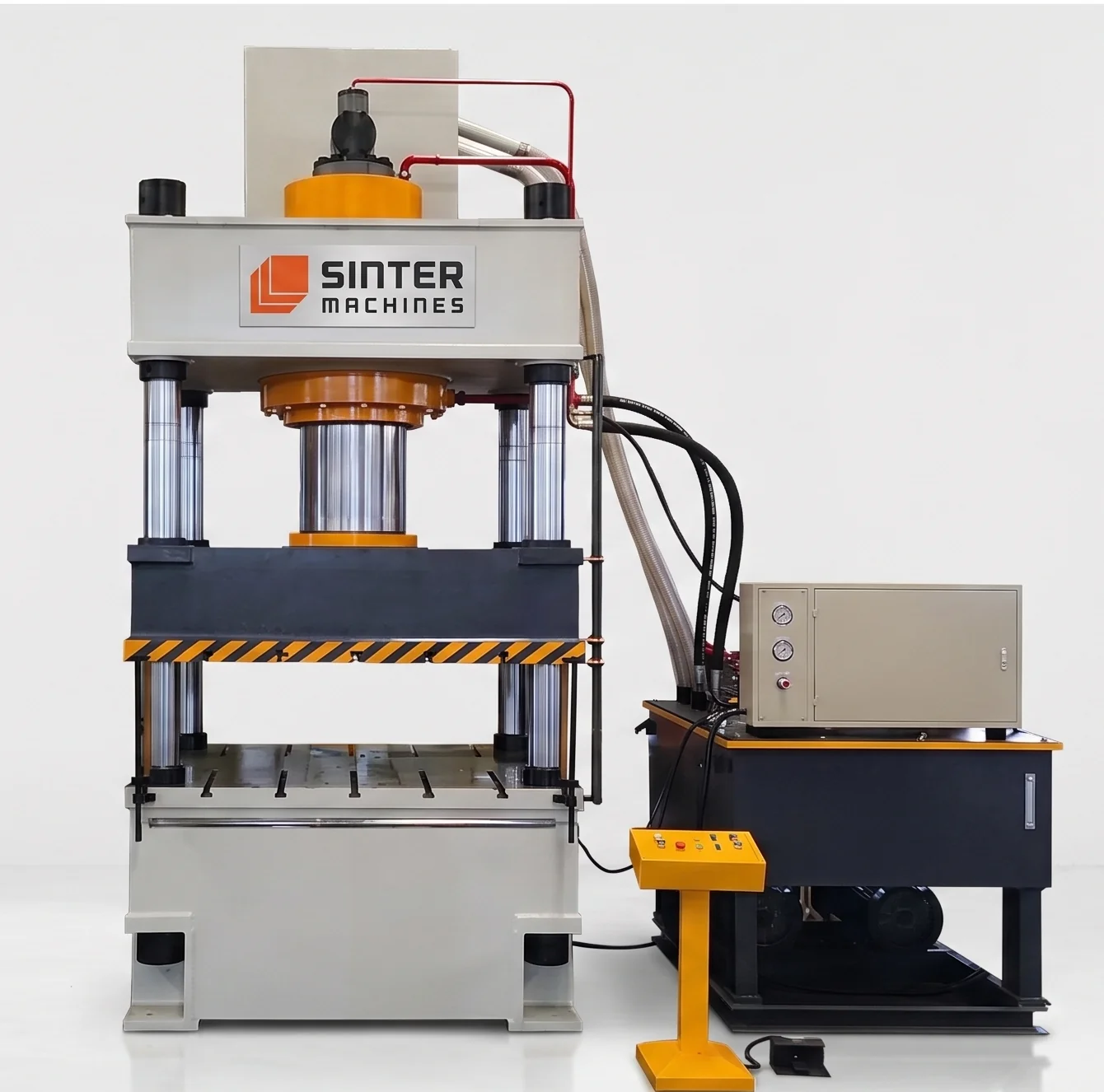

500T Four Column Hydraulic Press for Ruby Powder Block
A Ruby Powder Block Compression 4-Column Hydraulic Press Machine is a high-precision industrial compaction system engineered to compress fine ruby powder (synthetic or natural corundum, Al2O3 doped with chromium) into dense, uniform green blocks, preforms, or tablets.
These machines are utilized in advanced ceramics, synthetic gemstone manufacturing, laser crystal preparation, and high-wear technical component production, where material purity, exact green density, and freedom from internal micro-defects are critical prior to sintering or high-temperature fusion.
01 — Engineering Considerations
Structural Design & Engineering Considerations (4-Column Architecture)
High-Precision Guidance & Parallelism: Ruby powder is composed of ultra-hard corundum particles that are extremely sensitive to pressure gradients. The four-pillar precision-ground column architecture ensures absolute platen parallelism and eliminates lateral play, preventing uneven wall pressures or density variations across the molded block.
Rigid Load Distribution: Compacting hard oxide ceramic powders requires consistent, high tonnage. The 4-column frame withstands continuous heavy cyclic loads without structural flexing, maintaining exact micro-tolerances between the punches and the die cavity.
Abrasion Resistance: Because aluminum oxide is exceptionally abrasive, the press tooling and die liners require extreme wear-resistance (such as tungsten carbide or specialized ceramic inserts) to prevent premature wear and material contamination.
02 — Technical Specifications
Key Technical Specifications
Feature | Industrial Specification Range |
Nominal Compaction Force | 50 Tons to 500+ Tons (tailored to block cross-sectional area and target green density) |
Guide Structure | 4 Hard-Chromed, Precision-Ground Steel Pillars with heavy-duty, low-friction bushings |
Die & Punch Assembly | High-grade tungsten carbide inserts or specialized abrasion-resistant alloy tool steel to withstand extreme wear from hard alumina particles |
Hydraulic Drive | Servo-hydraulic or variable displacement piston pumps with closed-loop proportional pressure and displacement control |
Control Unit | Advanced PLC system with HMI touchscreen interface for programming multi-stage pressing profiles, exact fill depth, dwell times, and automatic extraction |
03 — Operational Workflow
Operational Workflow
- Precision Volumetric Feeding: An automated, calibrated powder-feed shoe slides across the high-tolerance die cavity to evenly deposit a measured quantity of loose ruby powder, ensuring uniform fill density and minimizing air entrapment.
- Multi-Stage Compression:
- Fast Approach: The top ram lowers rapidly to the material surface.
- High-Pressure Compaction: The system applies controlled, heavy tonnage. A multi-action or dual-punch configuration (top and bottom movement) ensures even particle rearrangement and density distribution throughout the depth of the block.
- Dwell Phase: Peak pressure is held for a set duration to allow trapped air to evacuate and the hard ceramic particles to fully settle, minimizing internal stress or lamination defects.
- Controlled Decompression & Ejection: Hydraulic pressure is gradually bled off to prevent elastic spring back cracking. A bottom ejection cylinder then cleanly pushes the solid green ruby block out of the die cavity for transfer to a high-temperature sintering or crystal-growth furnace.

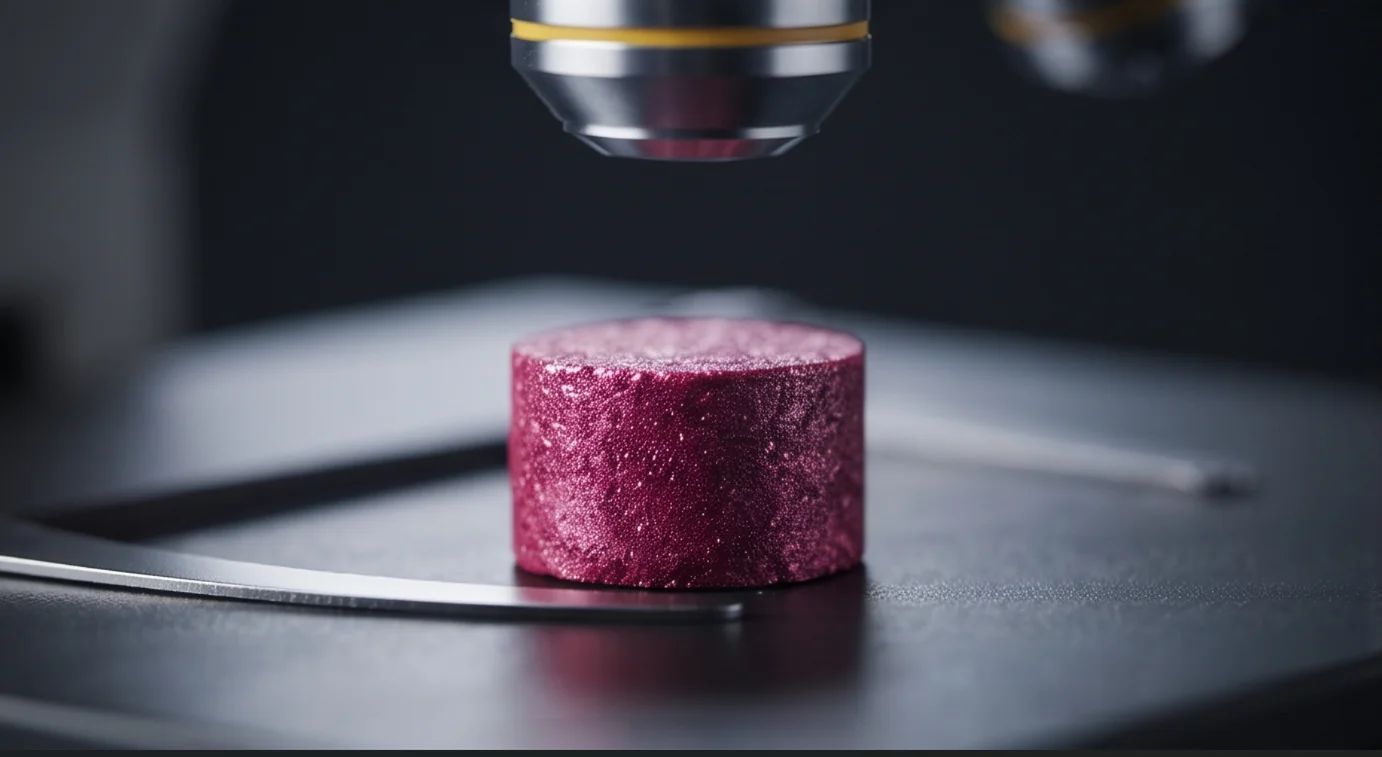

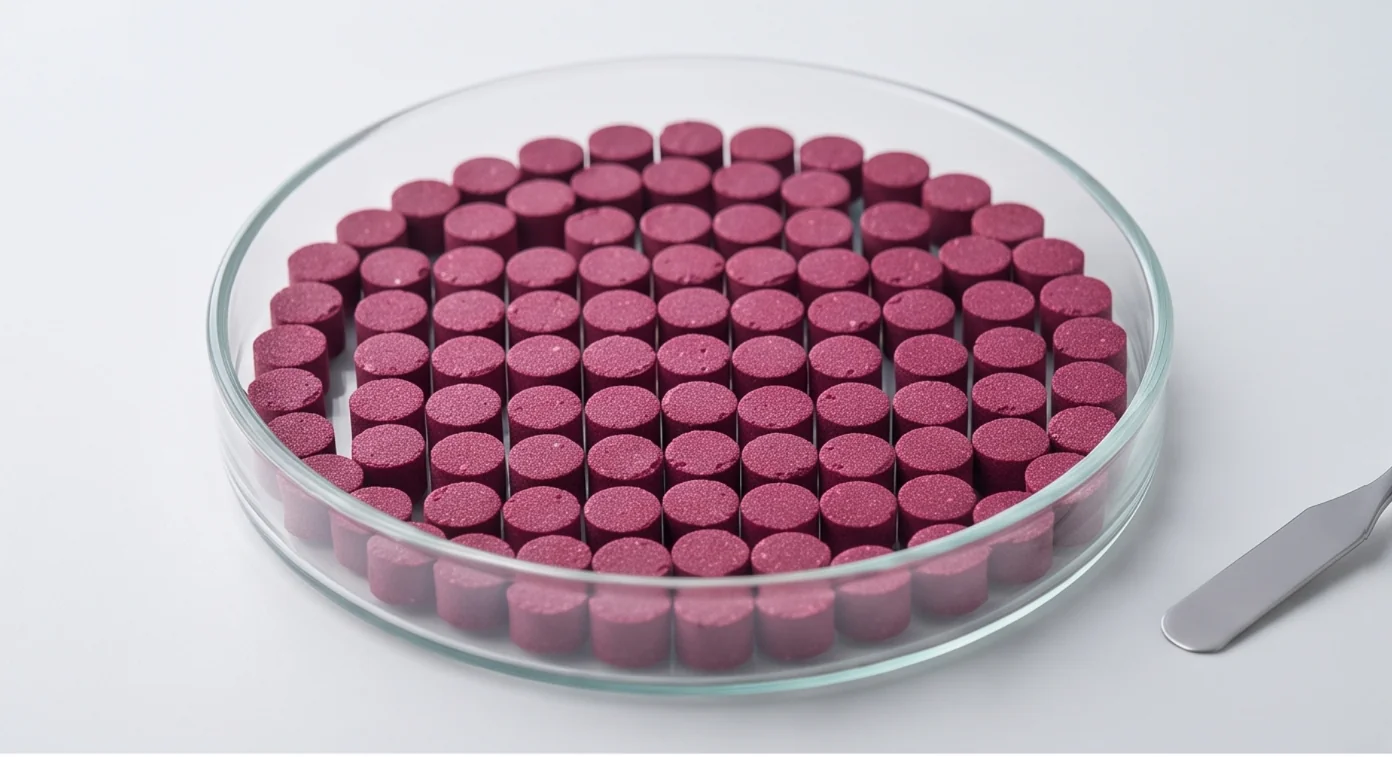

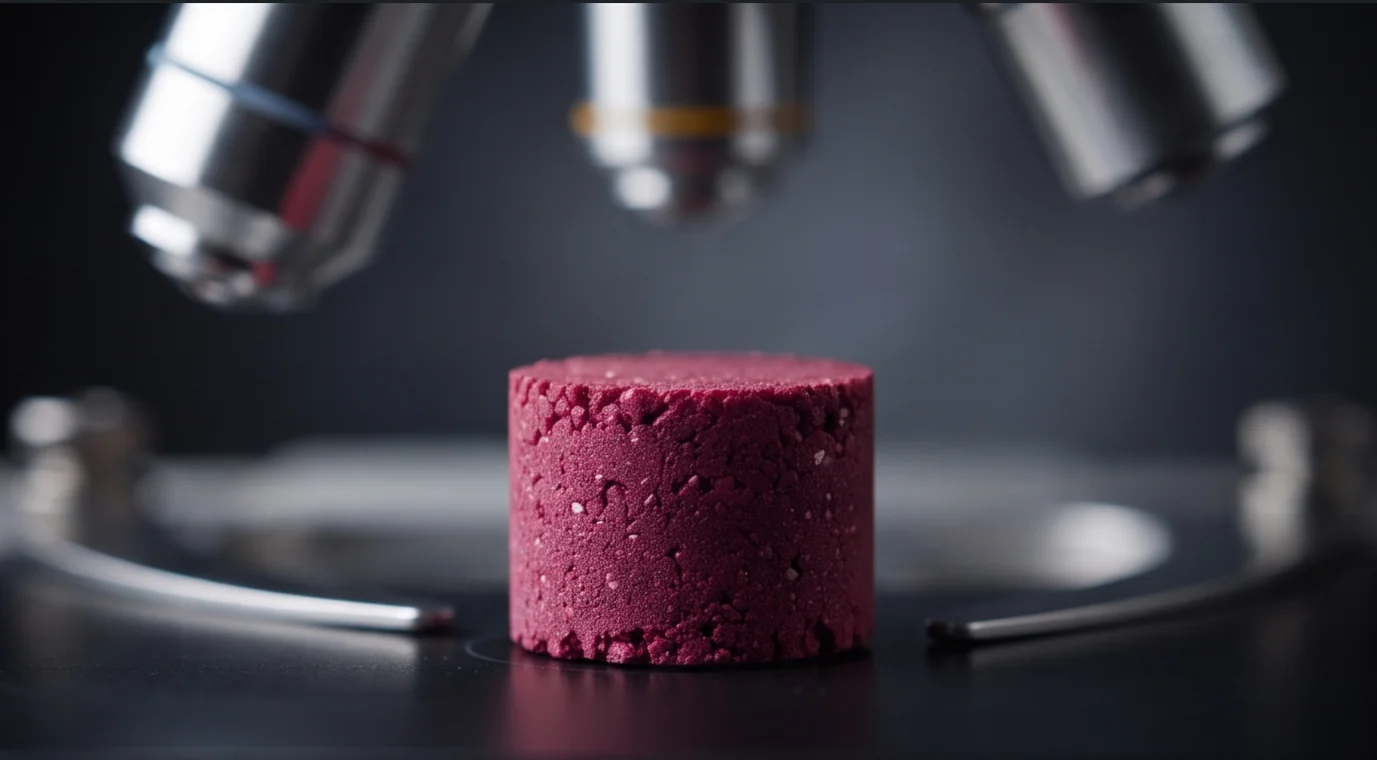

Finished Product Gallery
