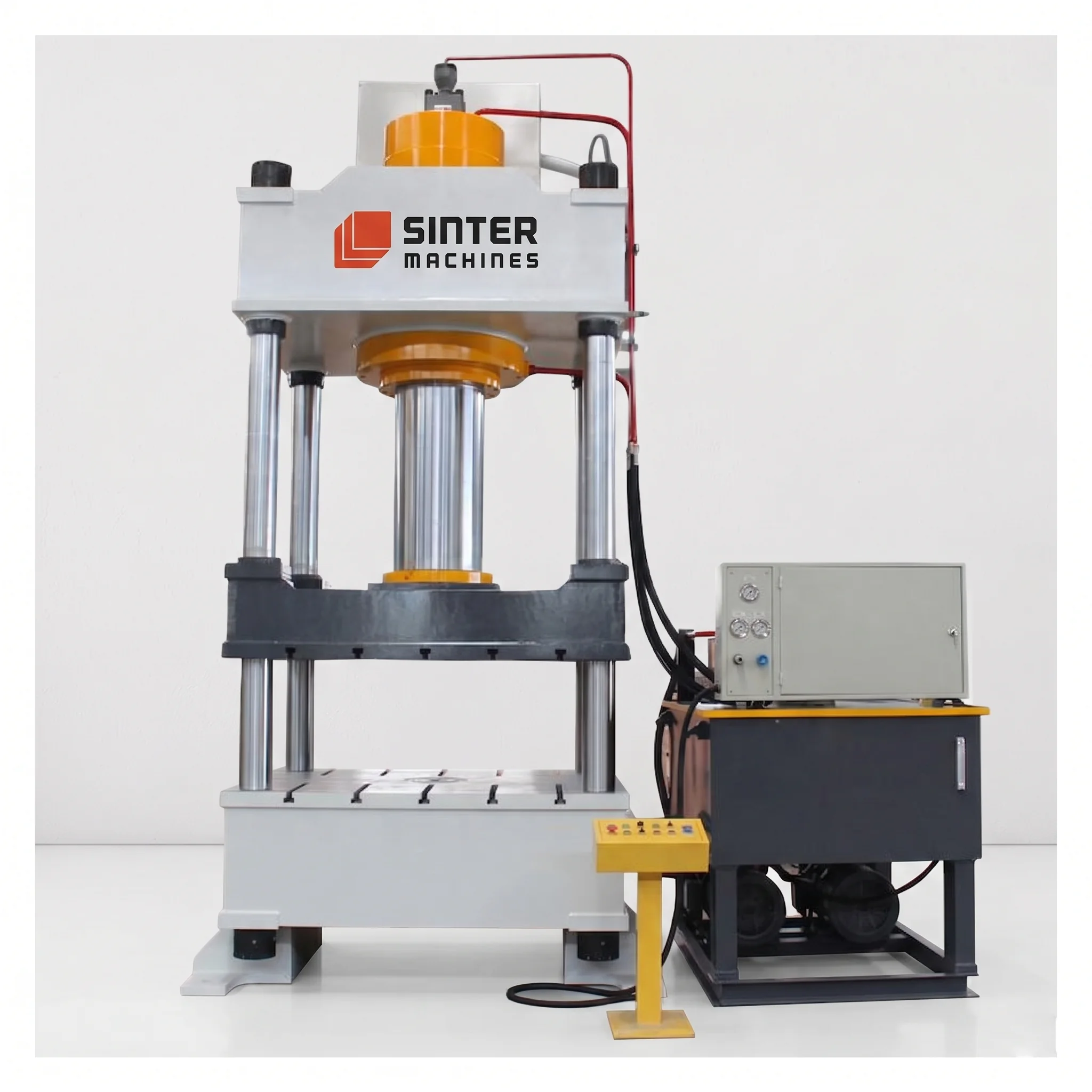

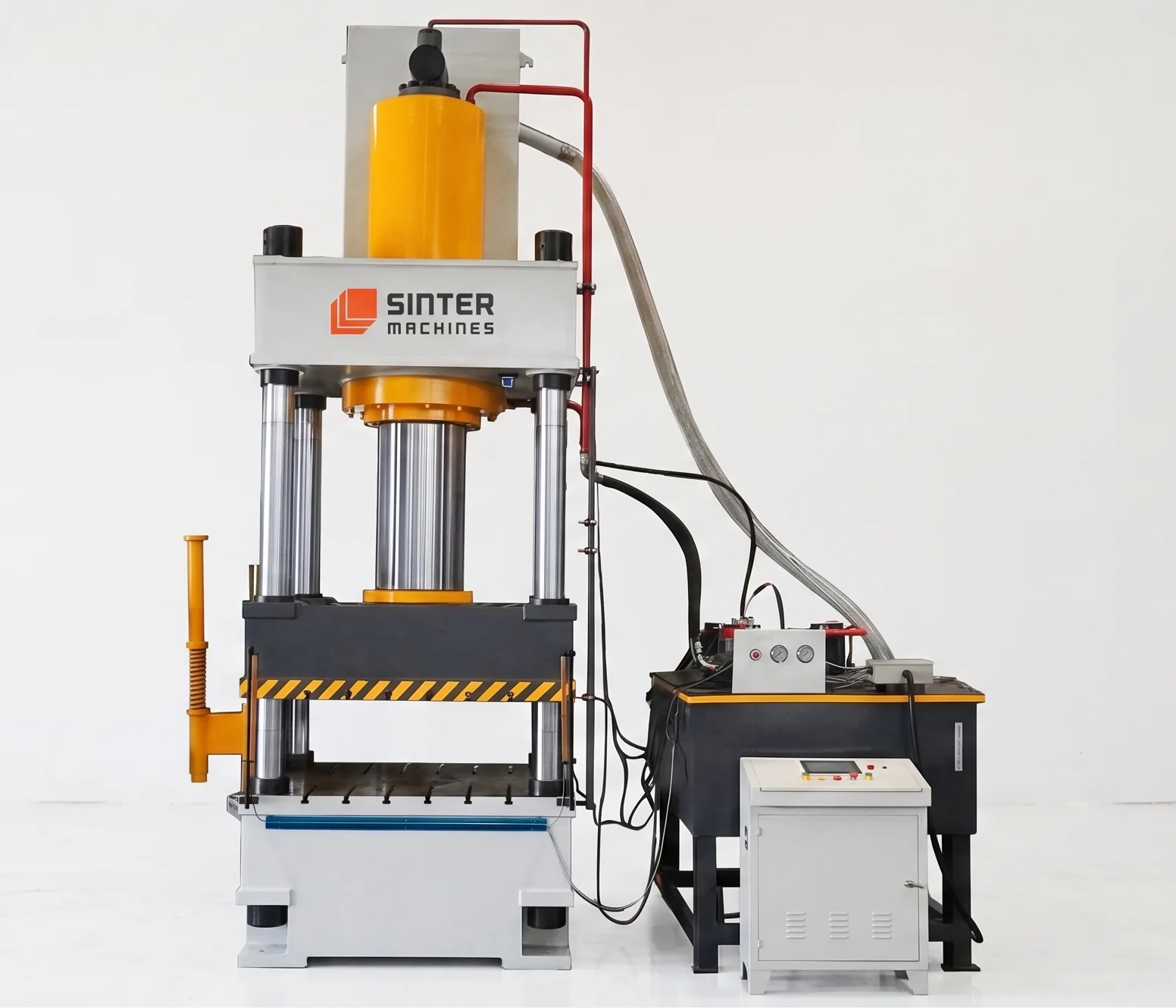

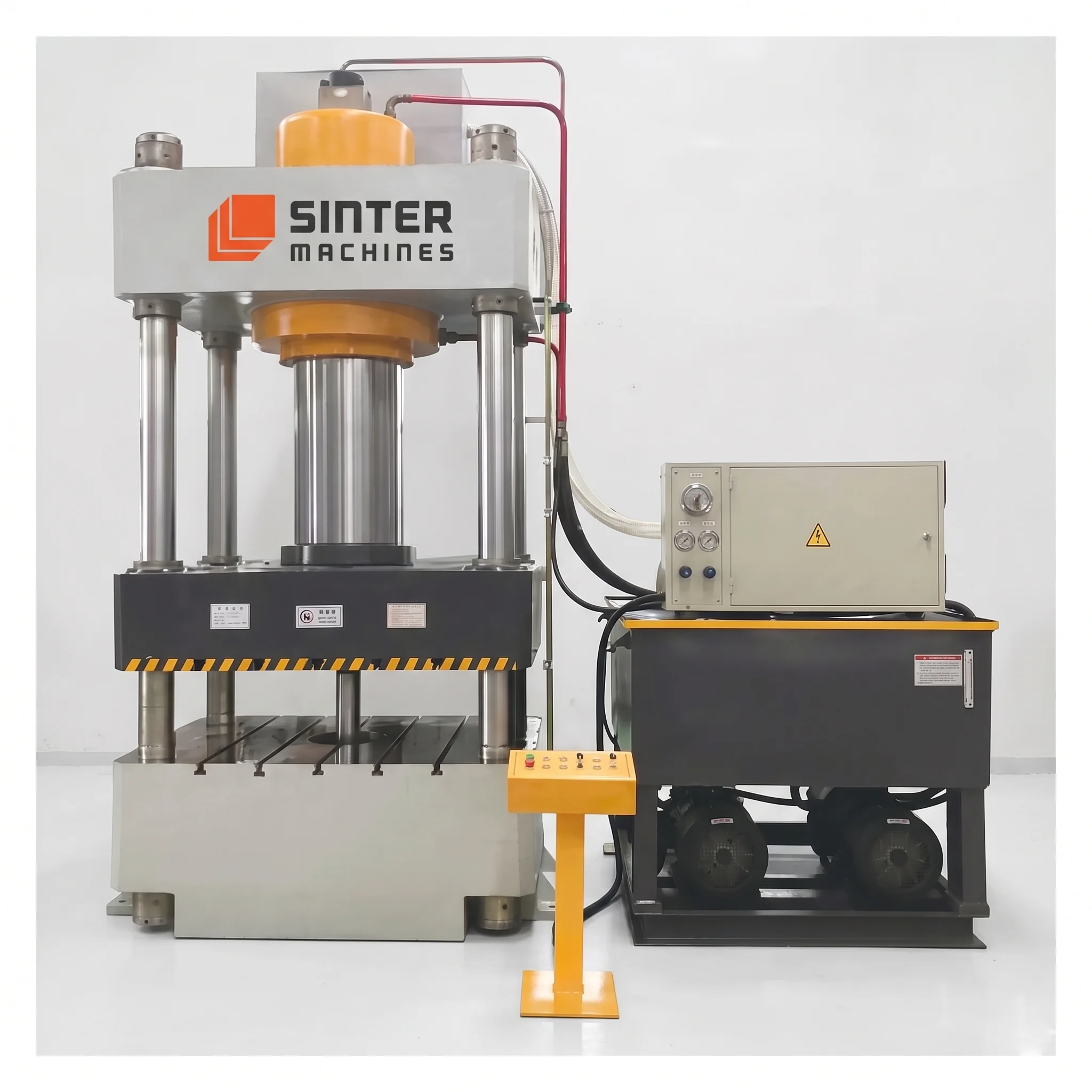

400T Four Column Hydraulic Press for Sawdust Powder Block
A Sawdust Block Forming 4-Column Hydraulic Press Machine is a specialized heavy-duty industrial compaction system engineered to compress loose wood sawdust, shavings, or biomass biomass residues into dense, uniform solid blocks, fuel logs, or industrial packaging components.
These machines are utilized in biomass energy production, woodworking waste recycling, furniture manufacturing, and pallet block fabrication, where loose wood waste must be consolidated to minimize storage volume, eliminate airborne dusting, and optimize handling or combustion efficiency.
01 — Engineering Considerations
Structural Design & Engineering Considerations (4-Column Architecture)
High-Precision Guidance & Parallelism: Loose wood fibers require strict control over compaction uniformity to prevent structural weak points or density gradients that can cause blocks to crumble. The four-pillar precision-ground column architecture ensures absolute platen parallelism and eliminates lateral play, preventing uneven wall pressures and ensuring consistent block density.
Rigid Load Distribution: Compacting fibrous biomass into high-strength blocks requires continuous, balanced tonnage. The 4-column frame withstands heavy cyclic loads without structural flexing, maintaining exact micro-tolerances between the punches and the die cavity over long operational lifespans.
Thermal & Friction Management: Because wood waste compaction often relies on natural lignin activation or added binders under pressure, press tooling and die assemblies can be integrated with heating elements or specialized surface coatings to ensure smooth material release and prevent sticking.
02 — Technical Specifications
Key Technical Specifications
Feature | Industrial Specification Range |
Nominal Compaction Force | 30 Tons to 400+ Tons (tailored to block cross-sectional area and target density) |
Guide Structure | 4 Hard-Chromed, Precision-Ground Steel Pillars with heavy-duty, low-friction bushings |
Die & Punch Assembly | Hardened alloy tool steel or specialized wear-resistant inserts designed to handle fibrous wood materials |
Hydraulic Drive | Variable displacement piston pumps or servo-hydraulic systems with smooth proportional pressure control |
Control Unit | PLC system with HMI touchscreen interface for programming fill depth, pressing tonnage, dwell time, and automated extraction |
03 — Operational Workflow
Operational Workflow
- Volumetric Feeding: An automated feed shoe slides precisely over the die cavity to deposit a measured volume of conditioned sawdust, ensuring uniform fill density and minimal waste.
- Multi-Stage Compression:
- Fast Approach: The top ram lowers quickly to the material surface.
- High-Pressure Compaction: The system applies controlled tonnage. A multi-action or dual-punch configuration ensures even particle interlocking and density distribution throughout the depth of the block.
- Dwell Phase: Peak pressure is held for a set duration to allow trapped air to evacuate and the wood fibers to firmly bond together, minimizing internal stress or springback cracking.
- Controlled Decompression & Ejection: Hydraulic pressure is gradually bled off to prevent surface splitting. A bottom ejection cylinder then cleanly pushes the solid sawdust block out of the die cavity for downstream cooling, curing, wrapping, or packaging.

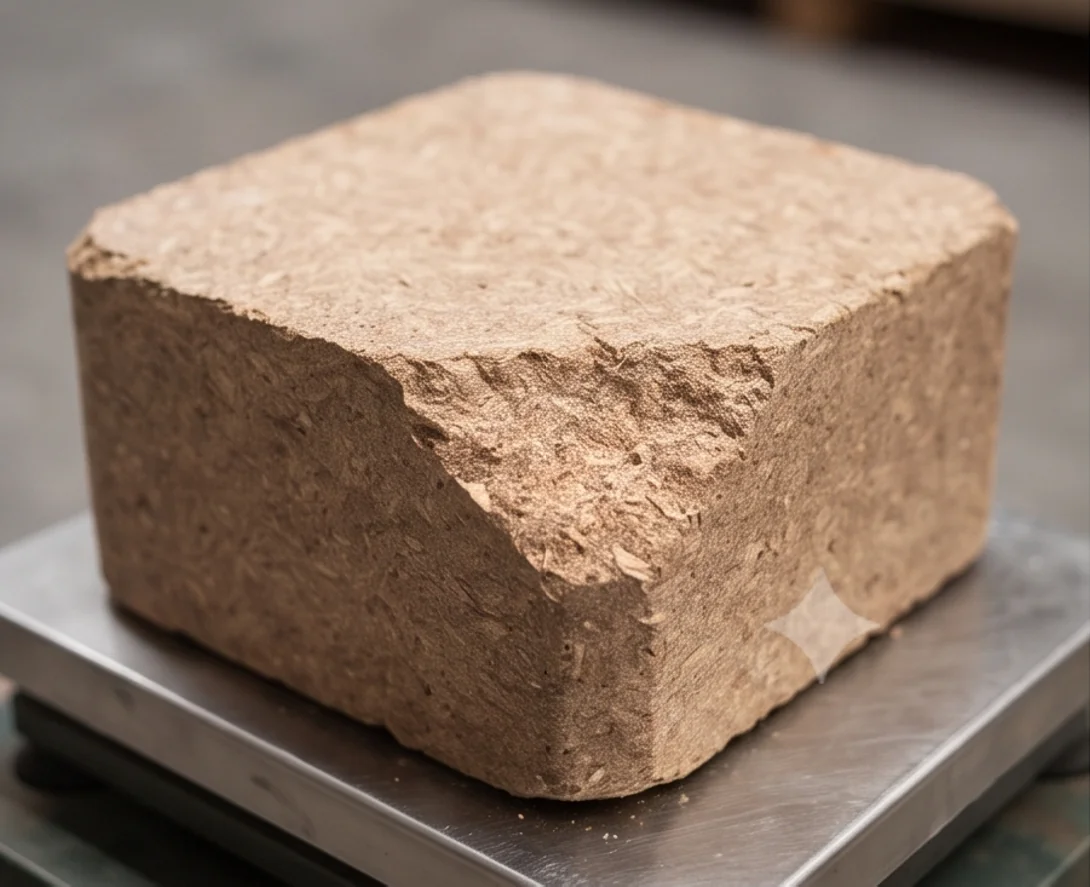

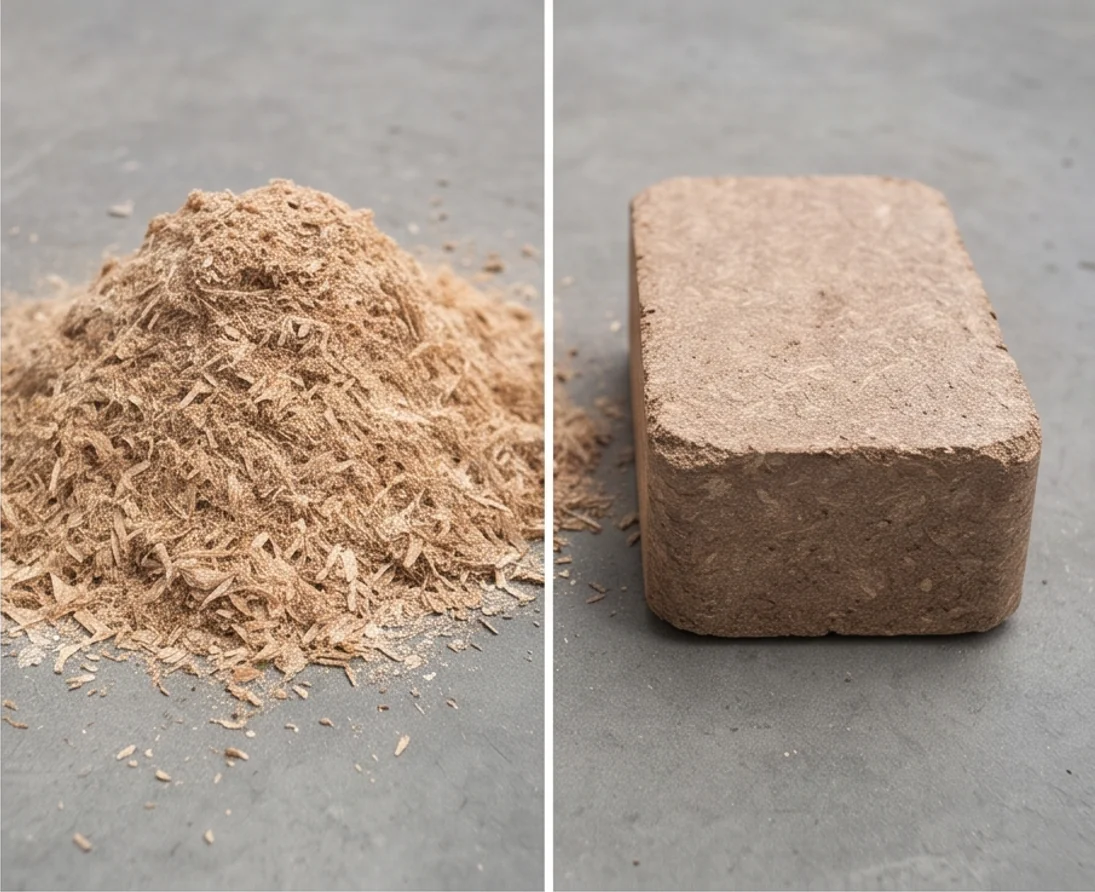

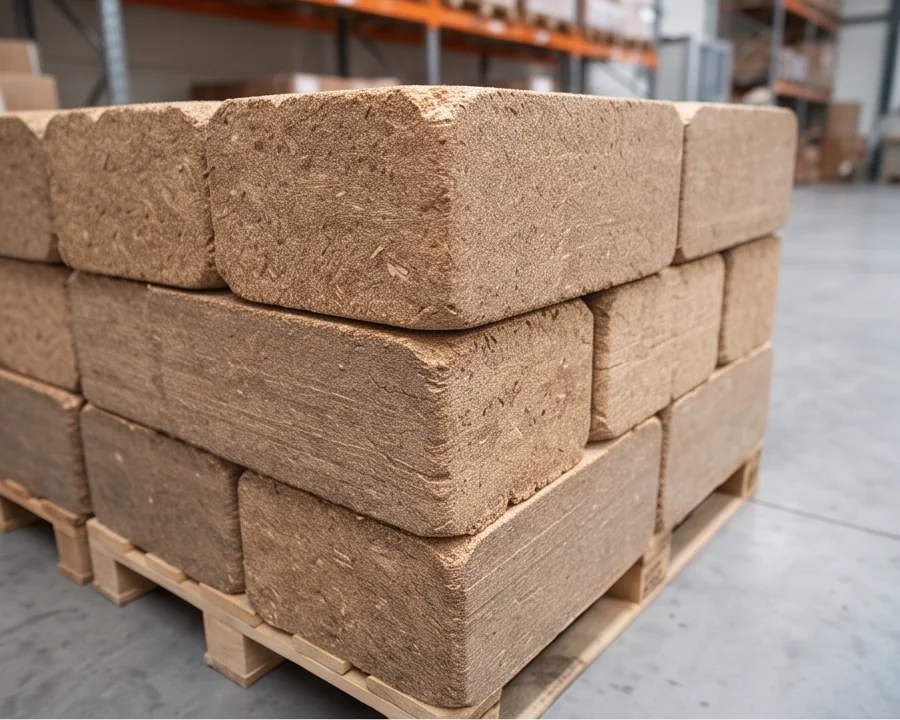

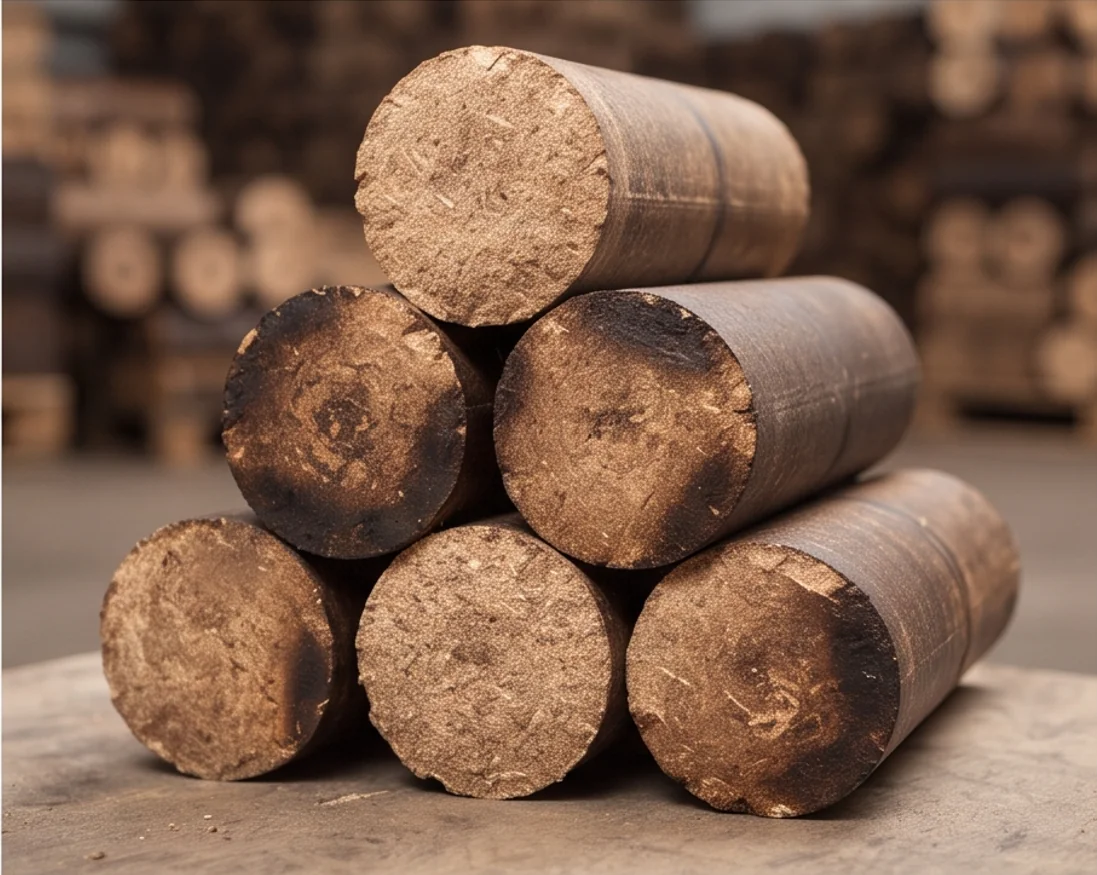

Finished Product Gallery
