02 — Technical Specifications

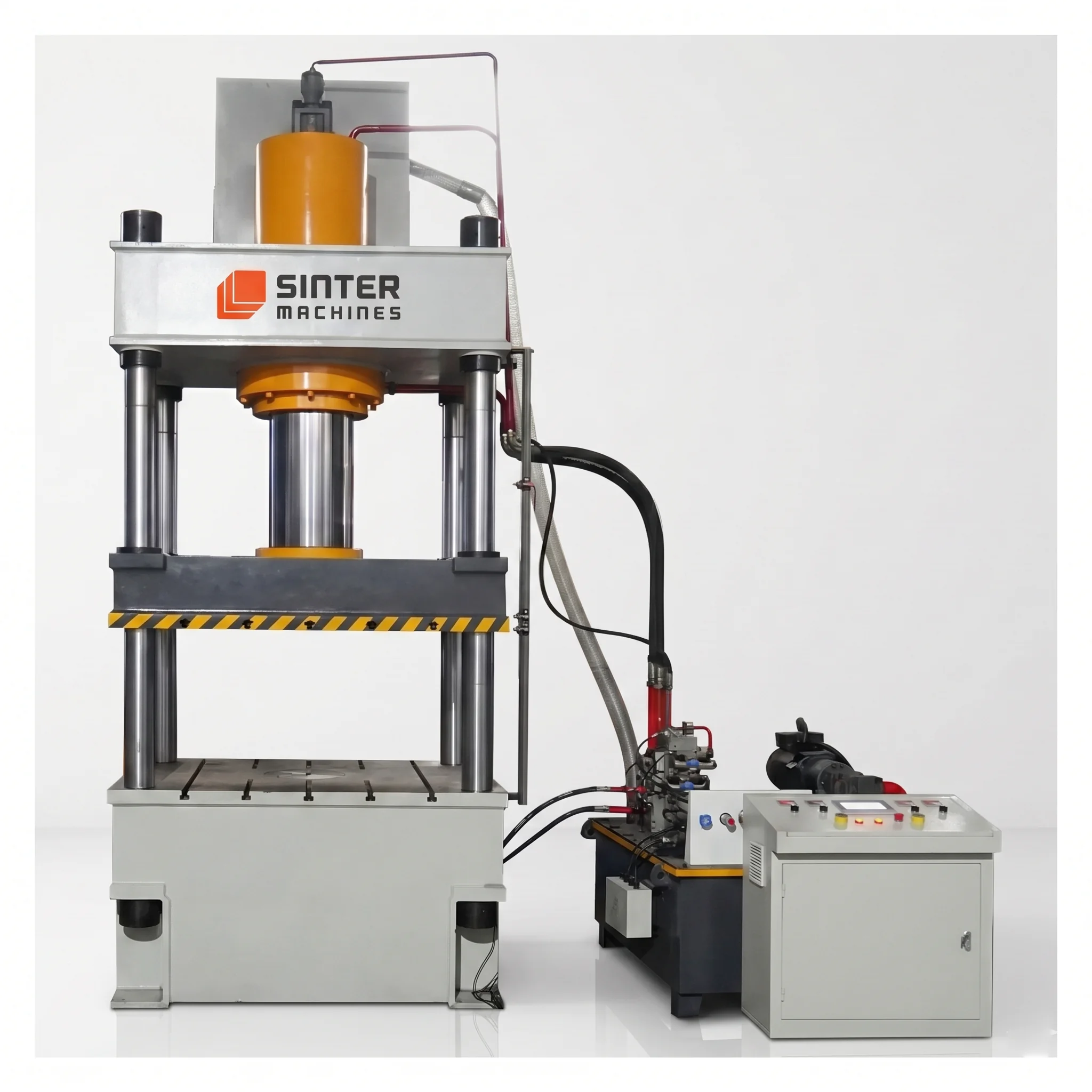

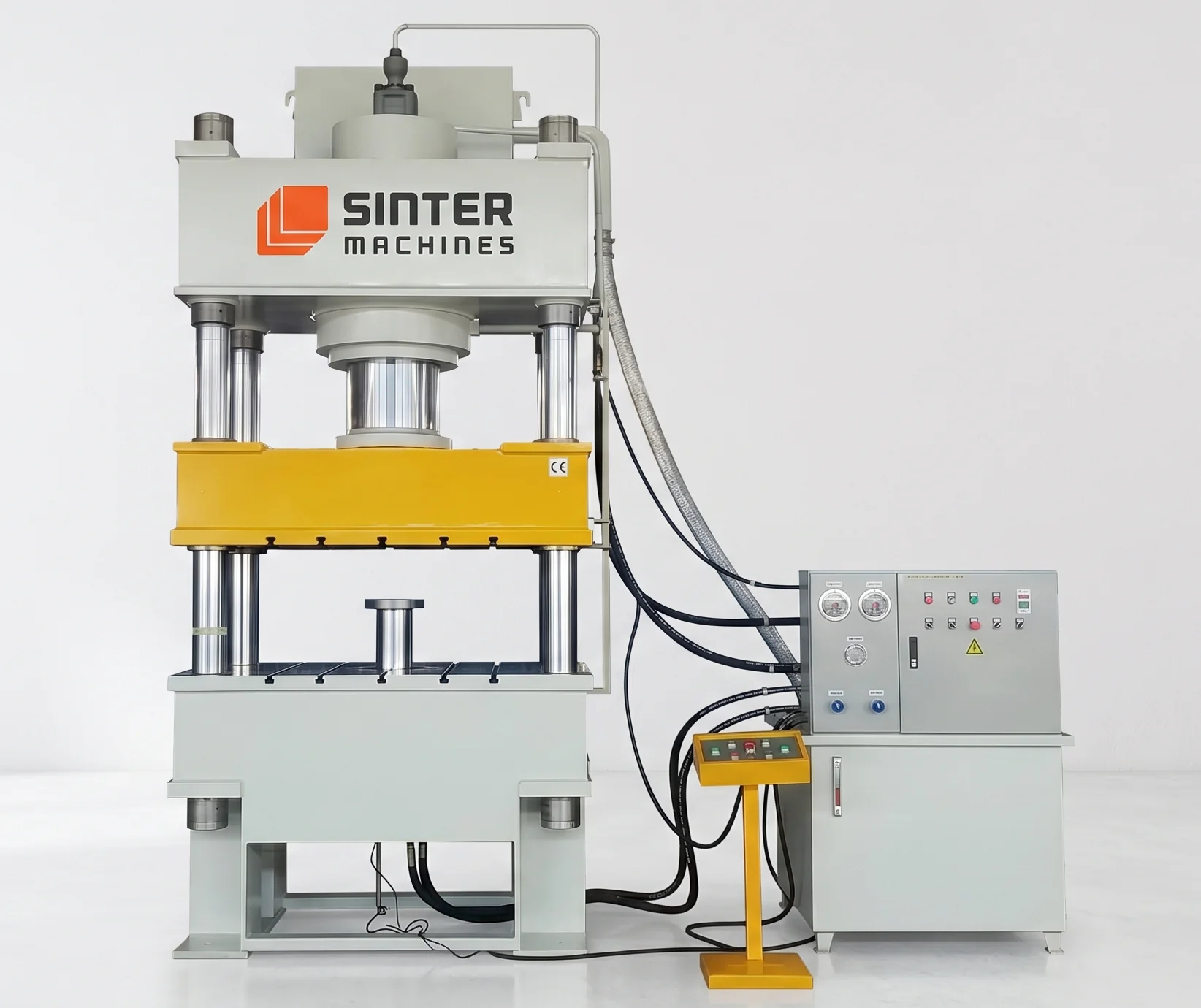

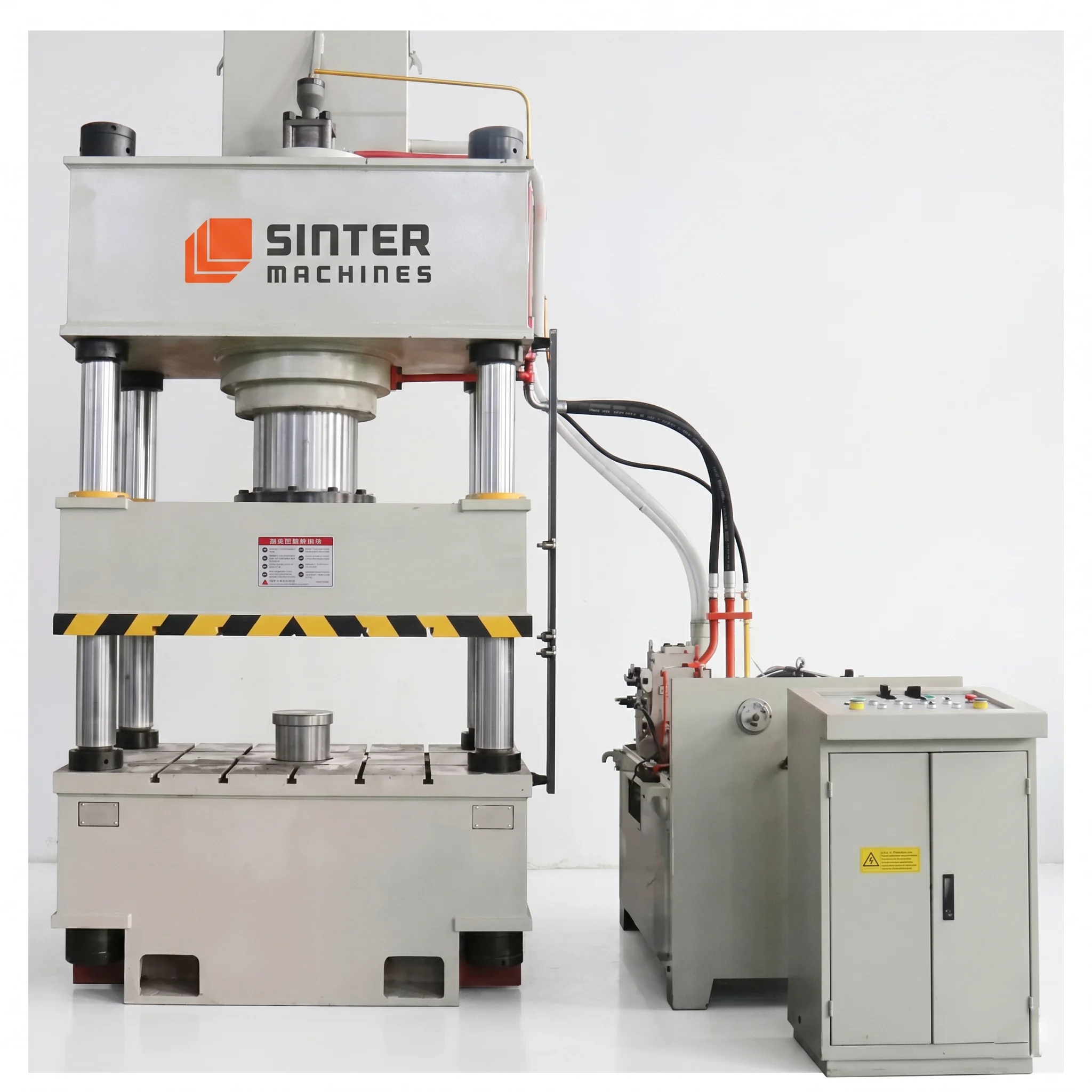

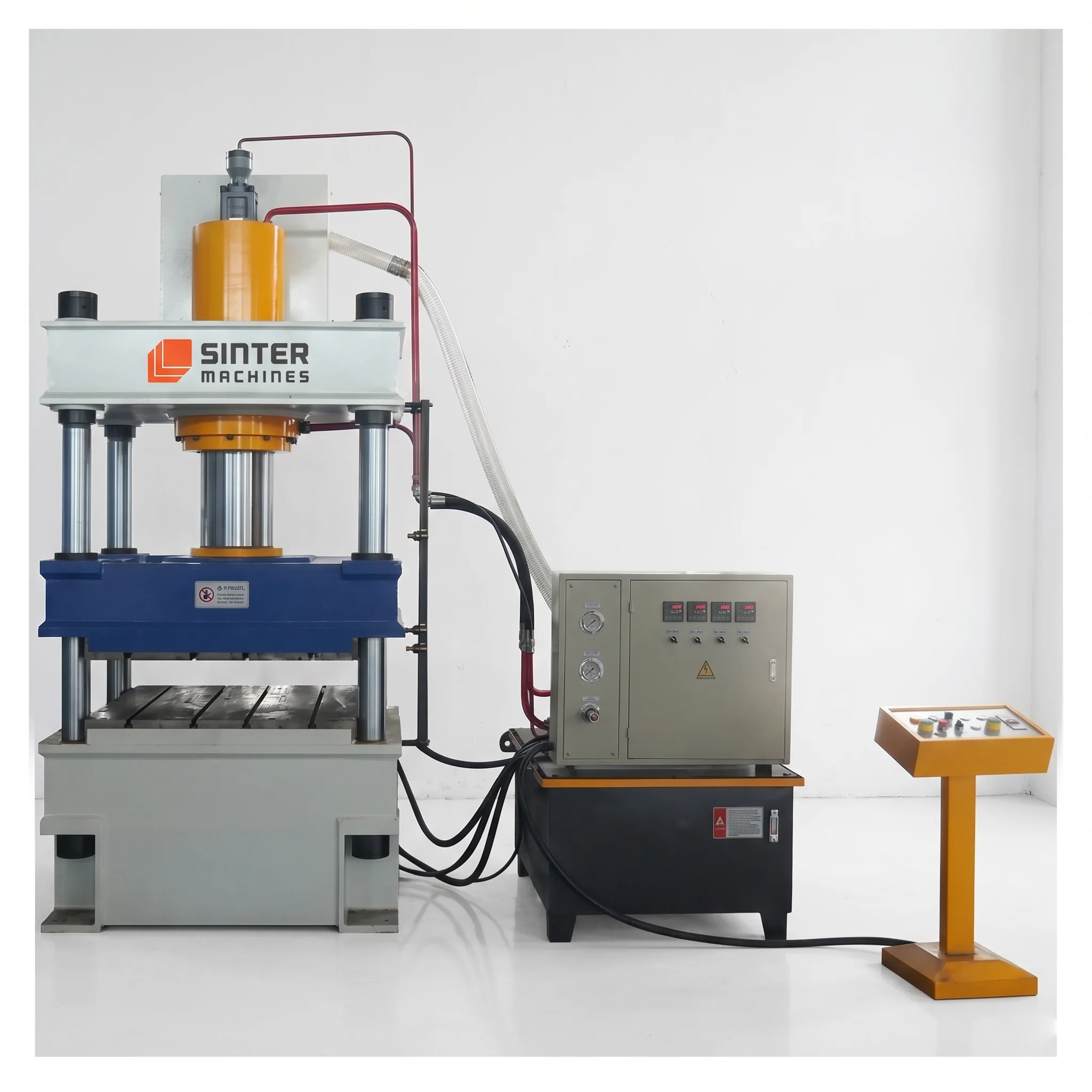

SM 400 HP – HYDRAULIC PRESS MACHINE COMPLETE TECHNICAL DATA

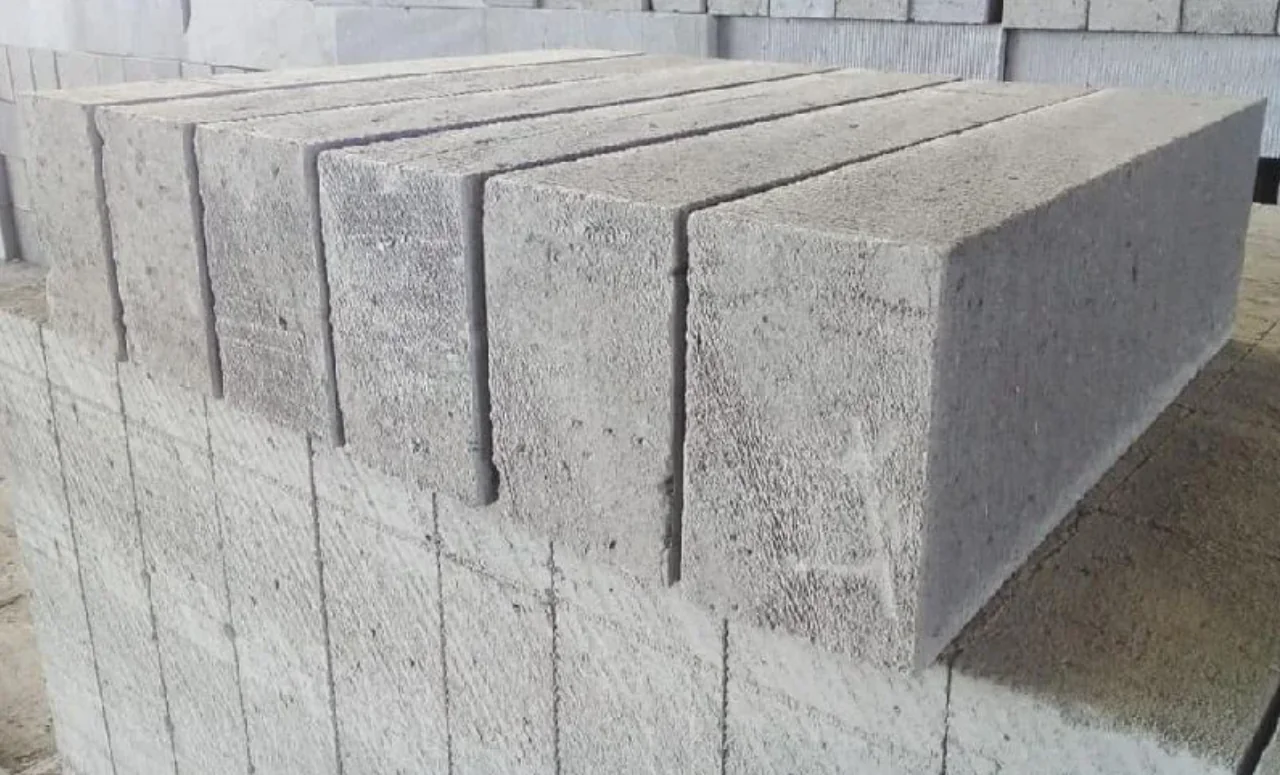

Complete technical parameters for the SM 400 HP hydraulic press engineered for extra high density quarry dust brick compaction. Built for heavy duty automated manufacturing to deliver maximum continuous pressing force and high dimensional accuracy.
Machine Capacity & Structure
- Capacity: 400 Ton main pressing force
- Structural Design: Heavy duty ultra rigid steel structure
- Frame Type: Four column guide structure
Operating Parameters
- Working Hydraulic Pressure: 28 MPa maximum system pressure
- Main Ram Stroke: 450 mm travel distance
- Daylight Gap: 650 mm maximum daylight opening
- Approach Speed: 160 mm per Sec fast down speed
- Pressing / Drawing Speed: 10 mm per Sec controlled compaction speed
- Return Speed: 130 mm per Sec fast return speed
Mechanical & Envelope Dimensions
- Bed / Platen Size Platen: 1000 x 1000 mm upper and lower platen area
- Columns: 140 mm diameter hard chrome plated steel columns
- Working Envelope: 1000 x 1000 x 650 mm clear working space
Power & Drive System
- Main Motor Power: 37 kW high efficiency electric motor
- Valves & Hydraulics: Proportional directional and pressure control valves
- Hydraulic System: Closed loop variable displacement hydraulic system
Automation & Safety
- Control System: Programmable logic controller with touchscreen HMI interface
- Automation: Fully automated loading pressing and ejection cycle integration
- Safety Features: Dual optical light curtains emergency stop buttons and mechanical safety interlocks
SM 400 HP — Model Specifications
- Nominal Force: 4000 KN
- Maximum Hydraulic Pressure: 25 MPa
- Max Opening Height of the Slider: 1250 mm
- Max Stroke of the Slider: 800 mm
- Effective Bed Size: 1260 × 1160 mm
- Slider Down Speed: 100 mm/s
- Slider Pressing Speed: 7–12 mm/s
- Slider Return Speed: 100 mm/s
- Ejector Cylinder Nominal Force: 400 KN
- Stroke of the Ejection Cylinder: 300 mm
