02 — Technical Specifications

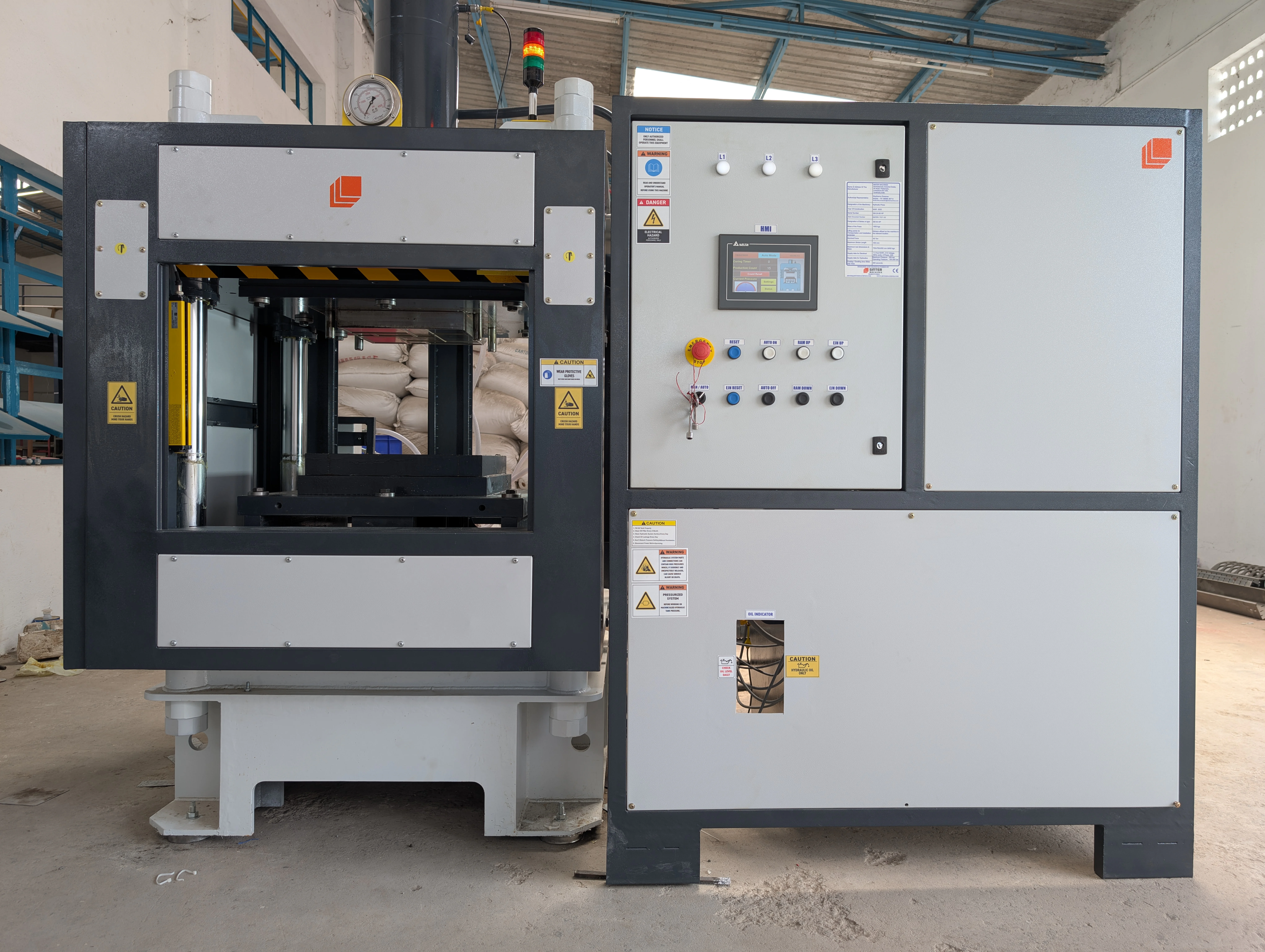

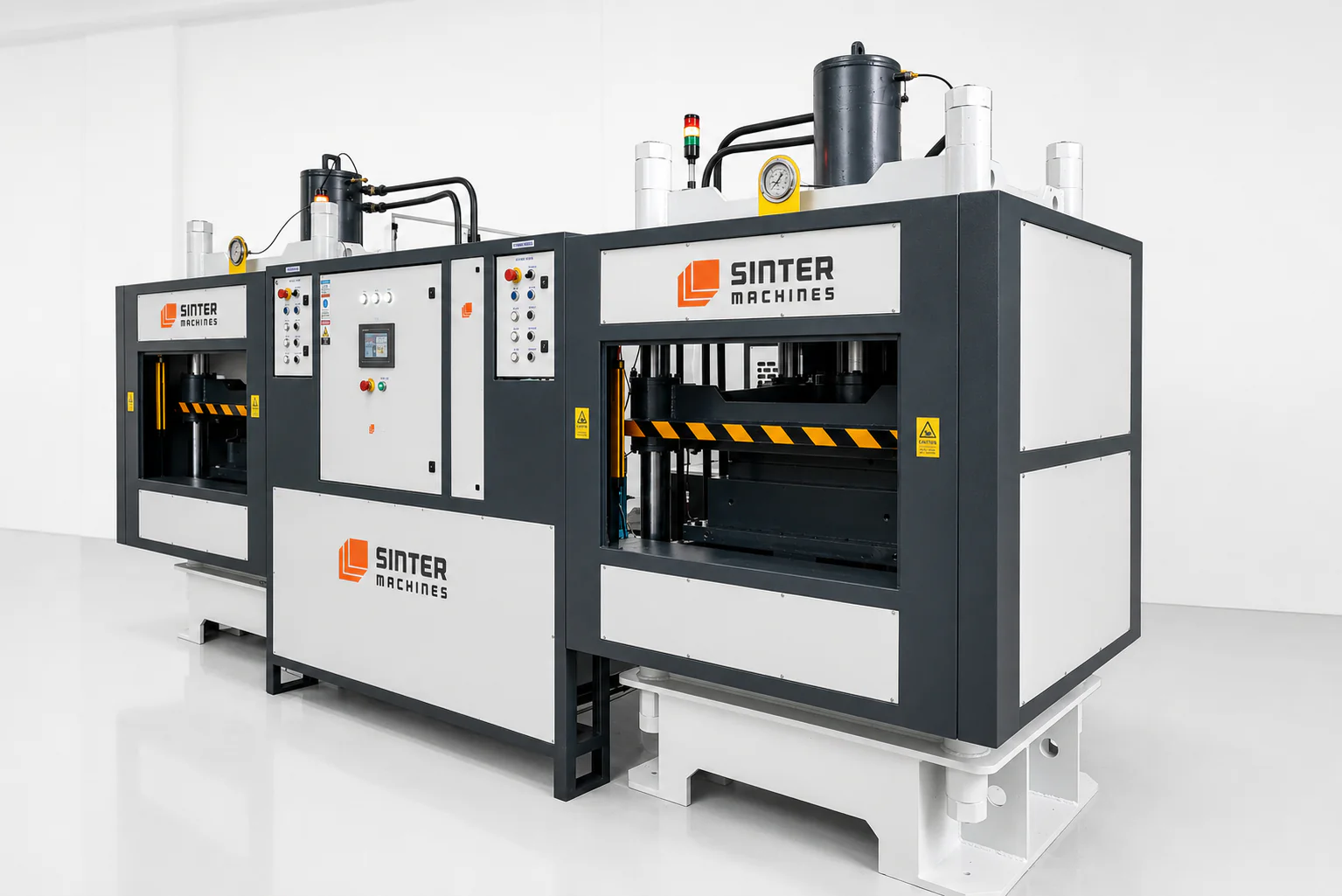

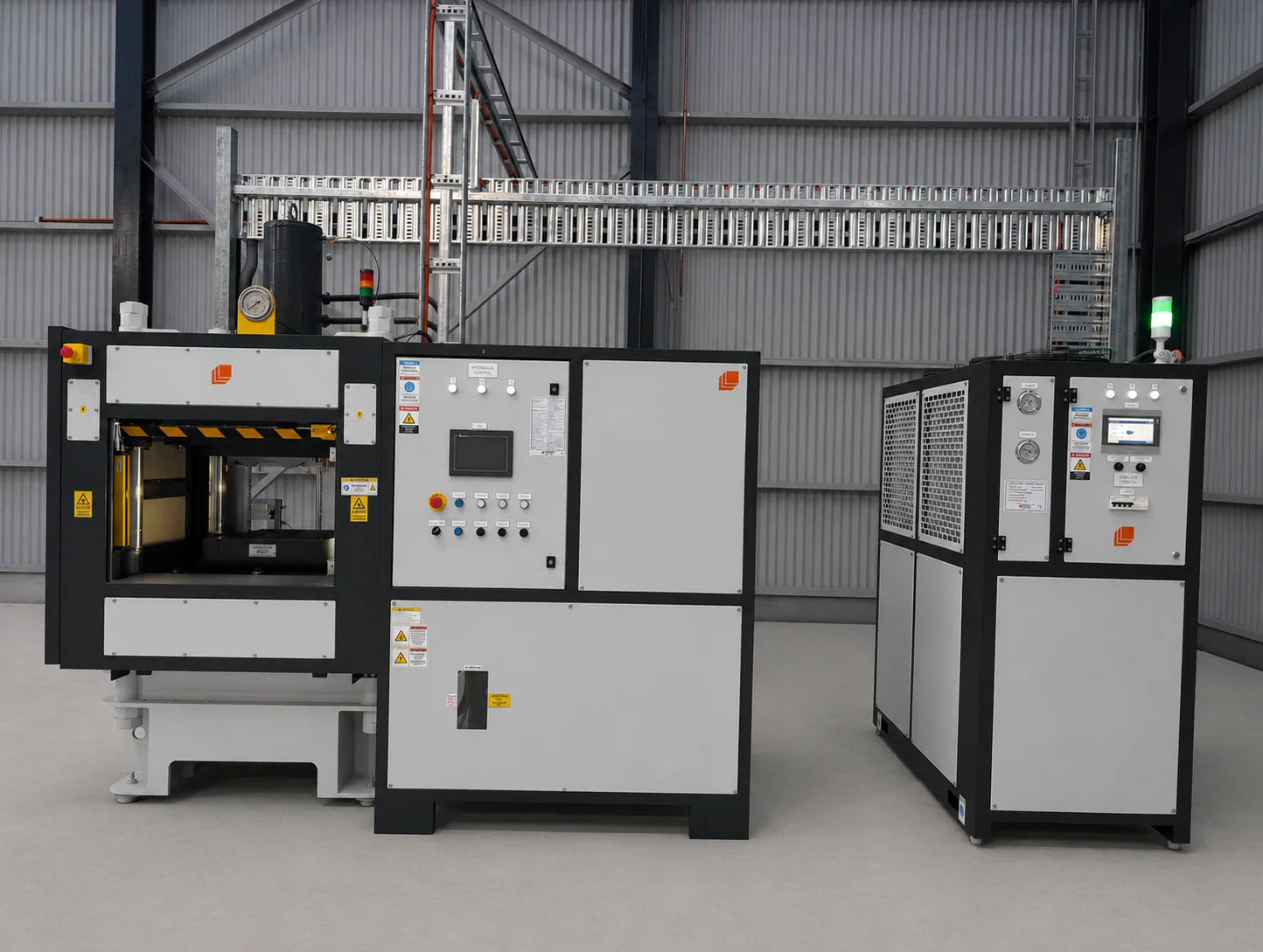

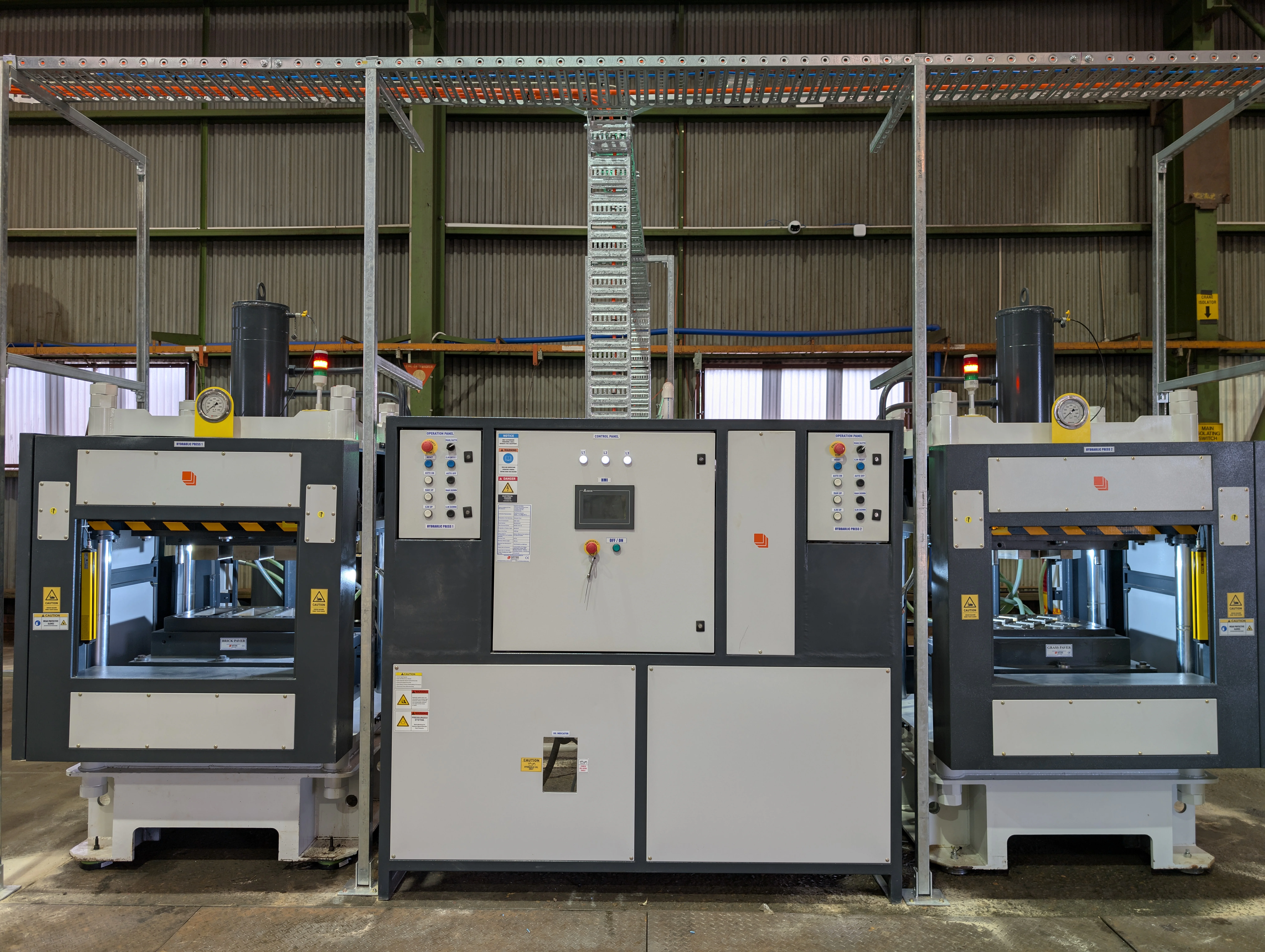

SM 100 HP – Hydraulic Press Machine Complete Technical Data

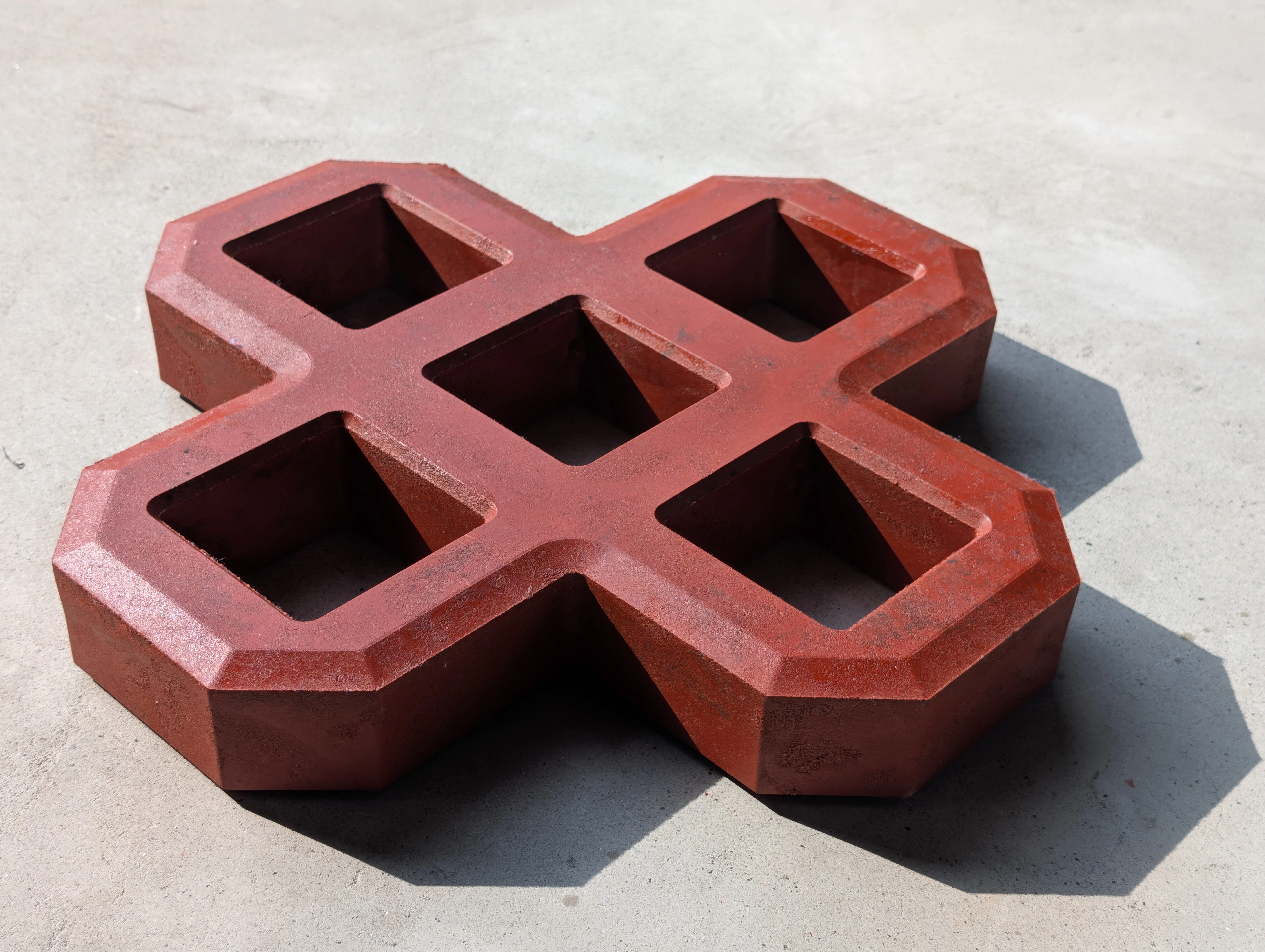

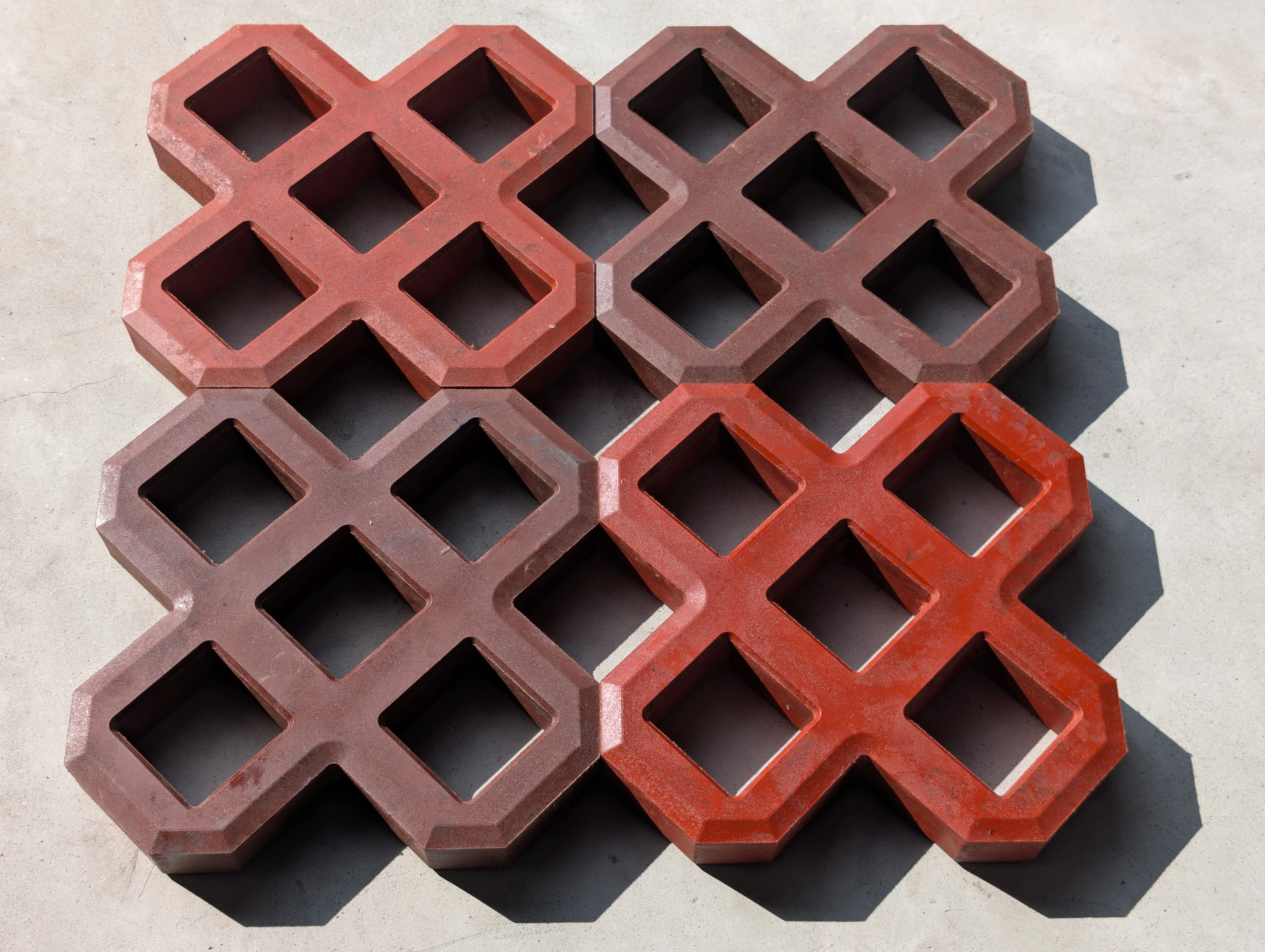

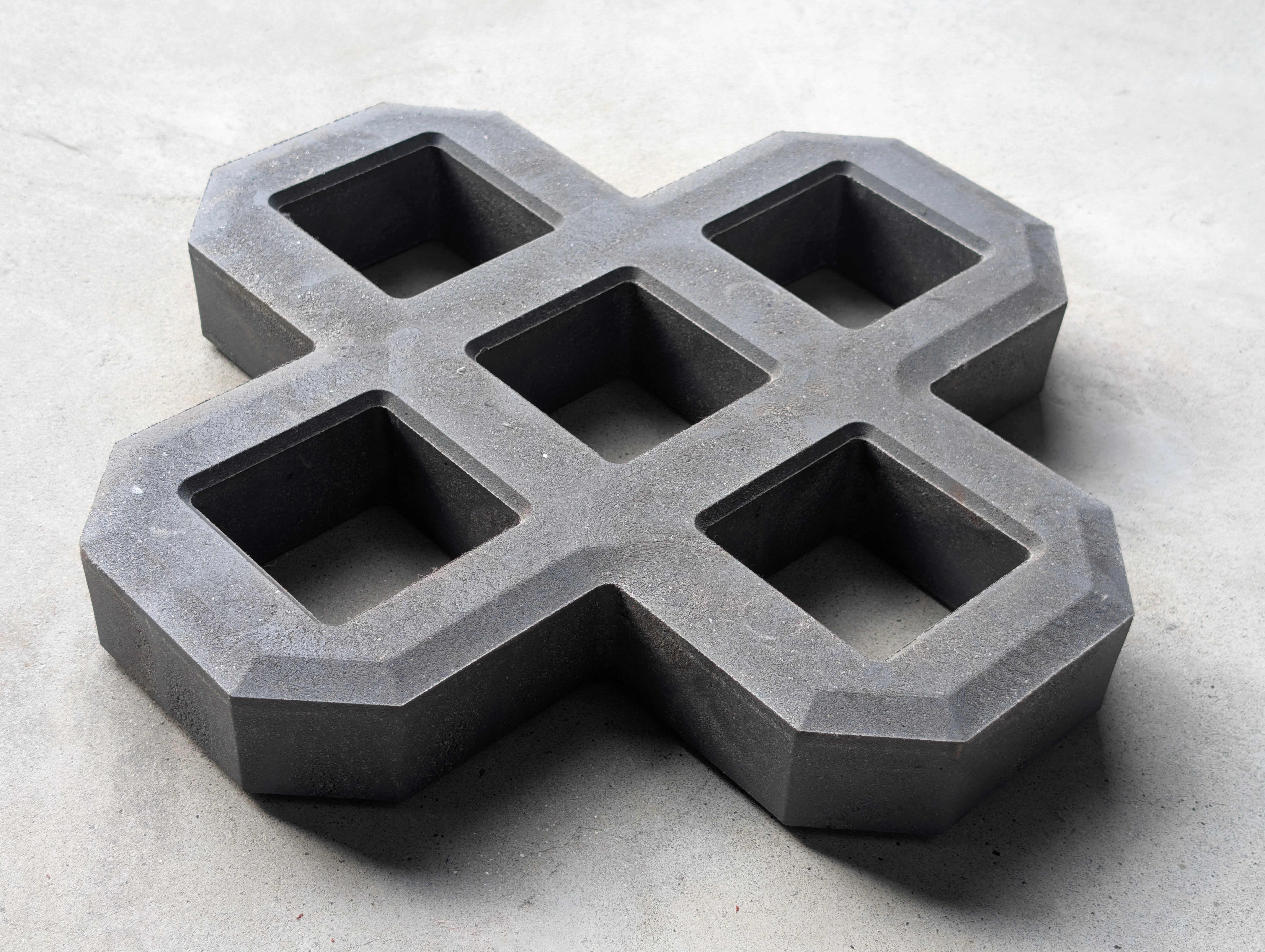

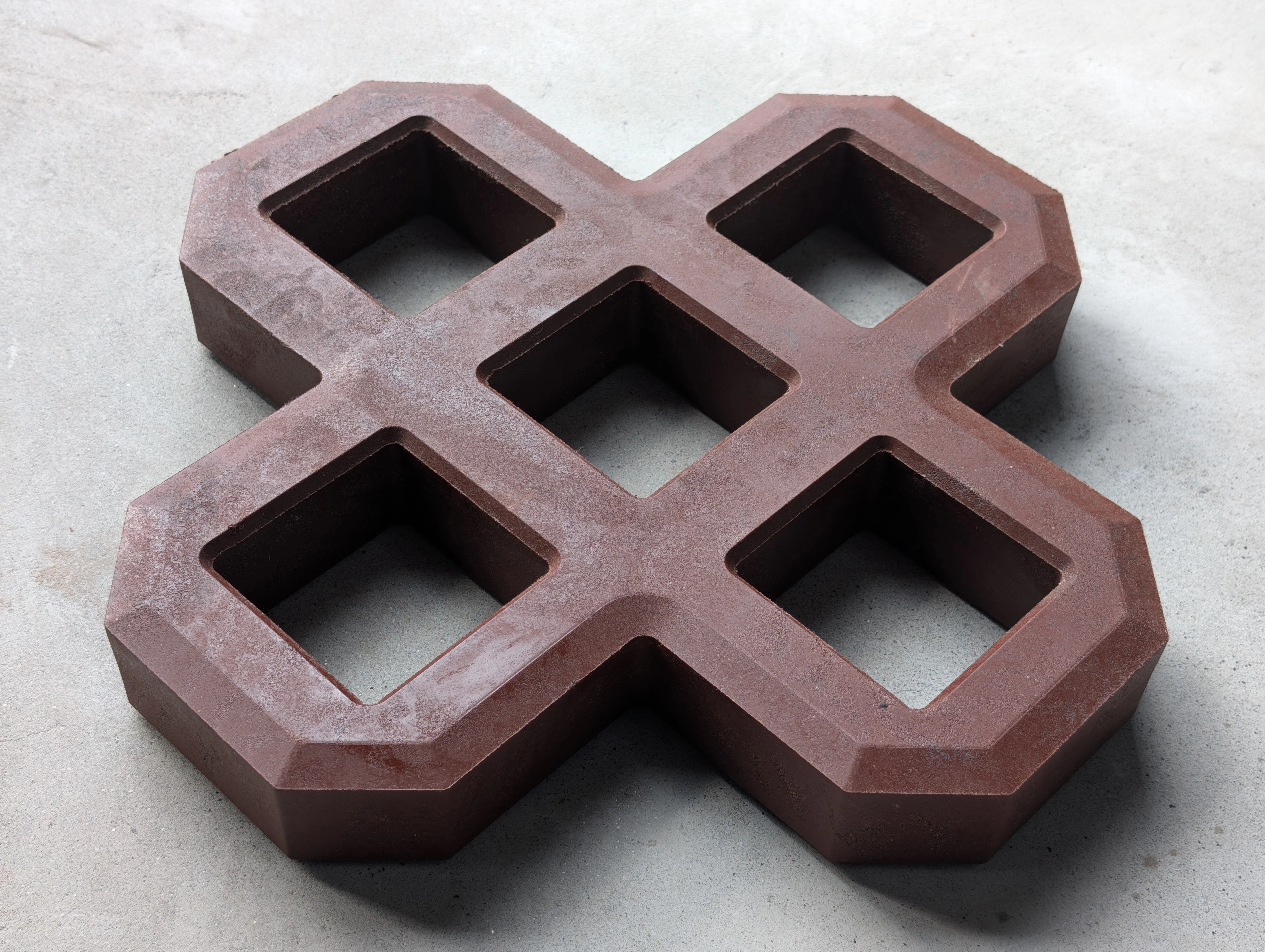

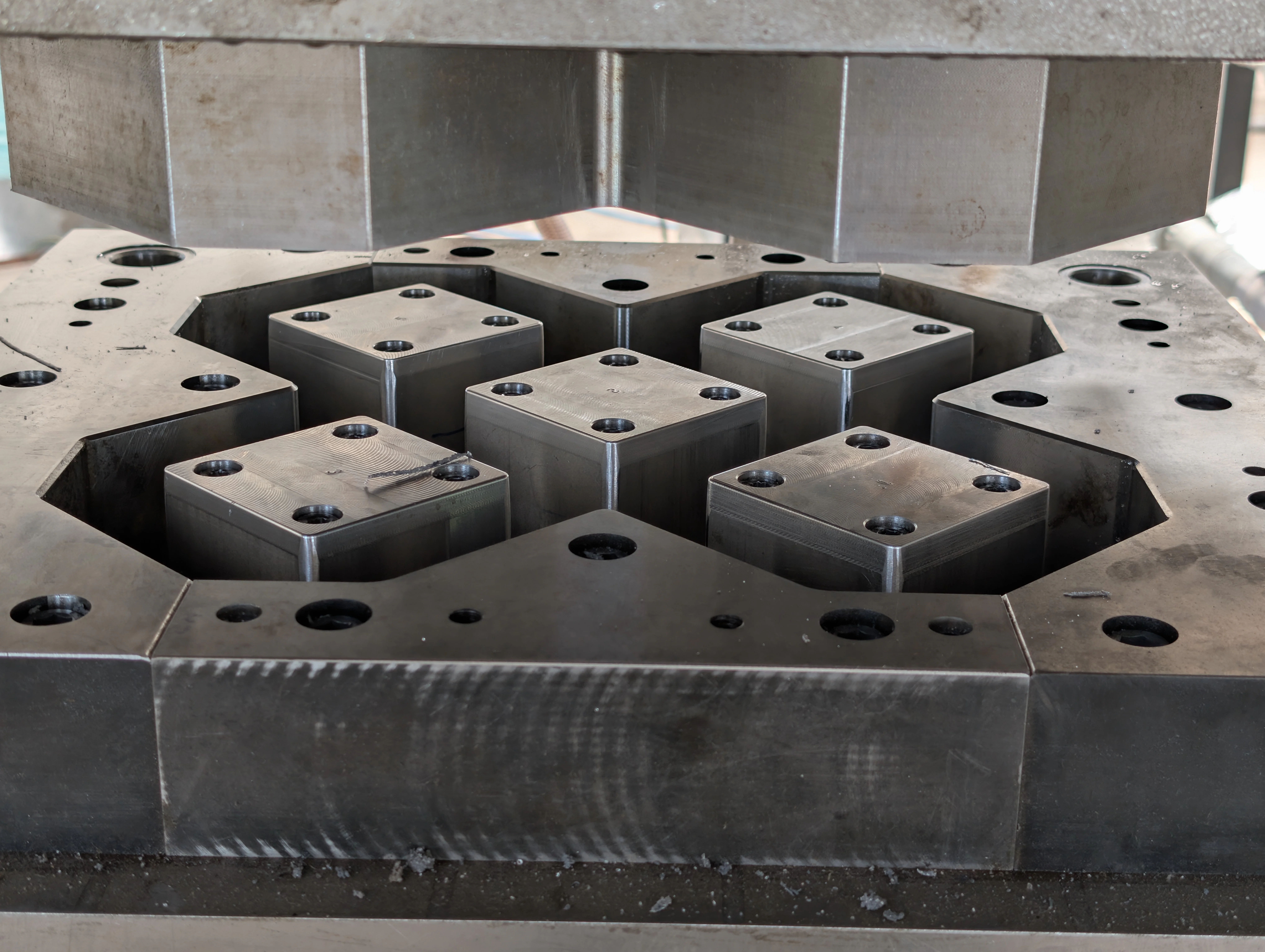

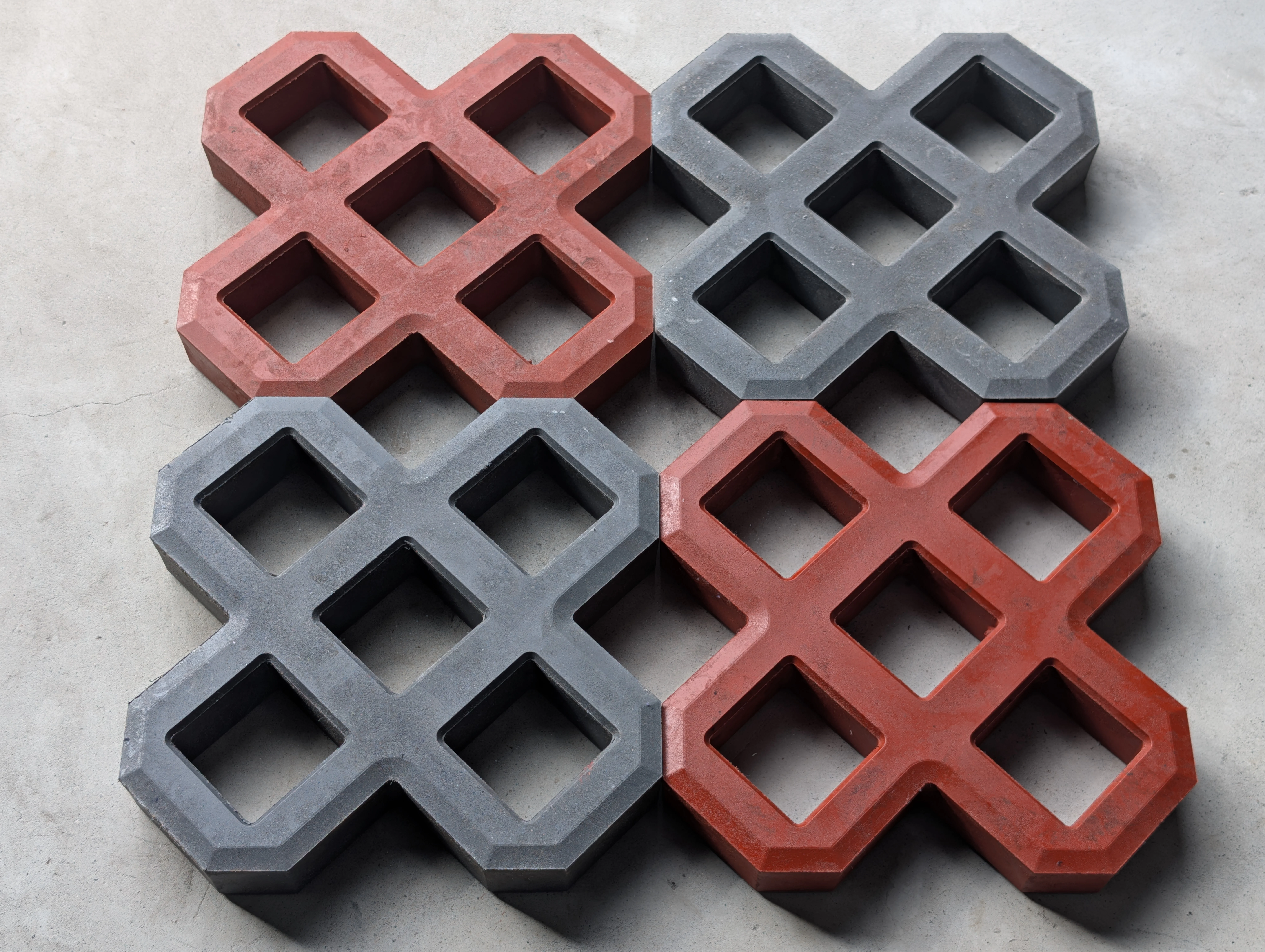

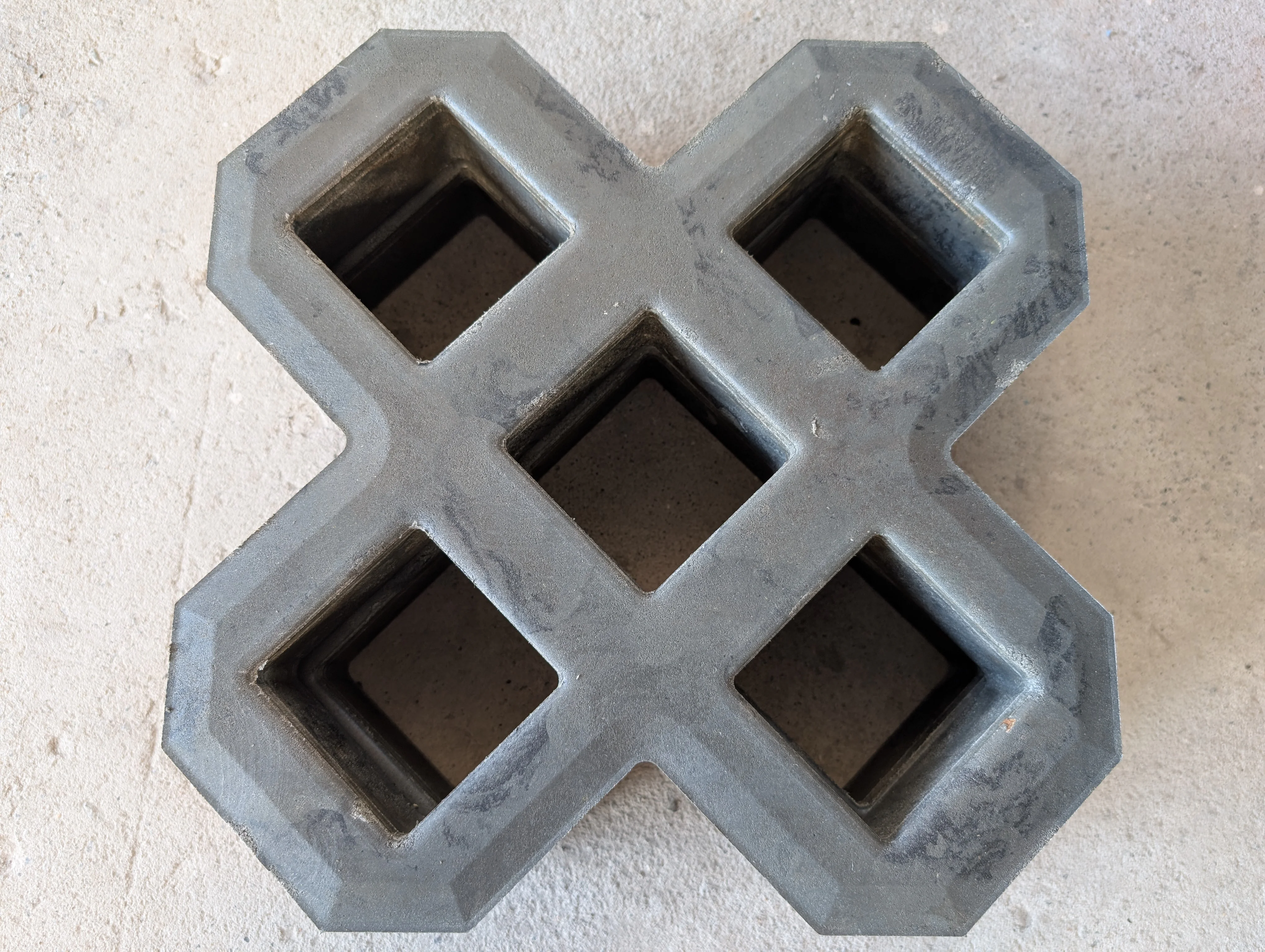

The SM 100 HP 100 Ton Hydraulic Press Machine is specifically engineered to compress plastic sand composites into high-density walkway paver blocks. It delivers high-tonnage compaction force, precise hydraulic control, and automated cycle capability required for industrial composite manufacturing.
Capacity: 100 Tons pressing force with production output up to 120 blocks per Hour
Structural Design
- Frame Type: Heavy duty steel fabricated H frame structure designed for minimal deflection
Hydraulic System
- Main Ram Stroke: 450 mm
- Working Hydraulic Pressure: 210 Bar
- Daylight Gap: 600 mm
- Approach Speed: 100 mm per Sec
- Pressing / Drawing Speed: 8 mm per Sec
- Return Speed: 120 mm per Sec
- Bed / Platen Size: 600 mm by 600 mm
- Columns: 4 hard chrome plated tie rods
Working Envelope: 600 mm by 600 mm by 450 mm space
Control System
- Main Motor Power: 10 HP electric motor
- Valves & Hydraulics: High pressure hydraulic pump and integrated manifold valve block
- Automation: Programmable logic controller with push button panel and automatic cycle control
Safety Features: Dual palm operator buttons, optical safety light curtain, emergency stop switch, and pressure relief valve
SM 100 HP — Model Specifications
- Nominal Force: 1000 KN
- Maximum Hydraulic Pressure: 25 MPa
- Max Opening Height of the Slider: 800 mm
- Max Stroke of the Slider: 500 mm
- Effective Bed Size: 630 × 550 mm
- Slider Down Speed: 100 mm/s
- Slider Pressing Speed: 7–15 mm/s
- Slider Return Speed: 90 mm/s
- Ejector Cylinder Nominal Force: 100 KN
- Stroke of the Ejection Cylinder: 200 mm
