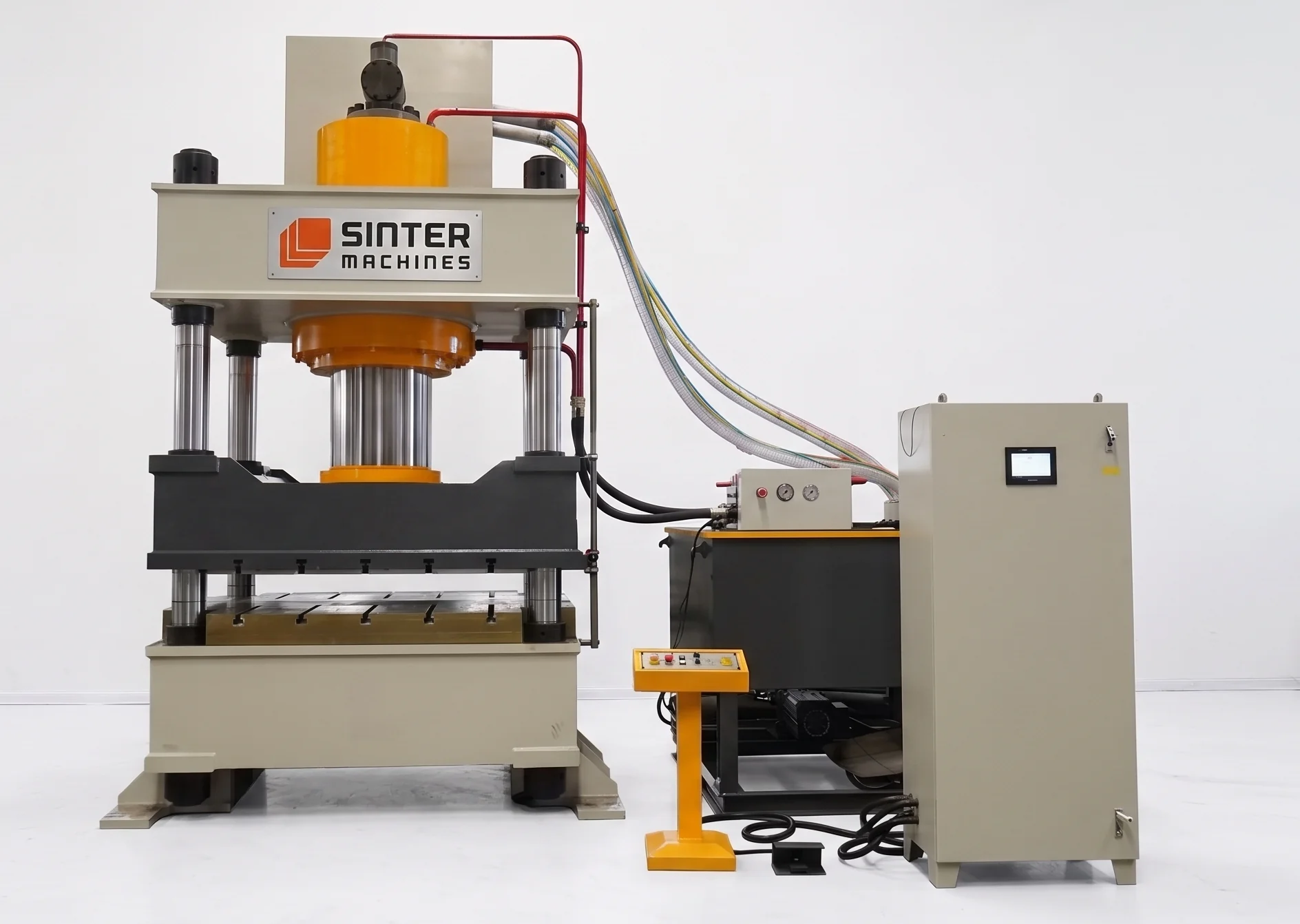

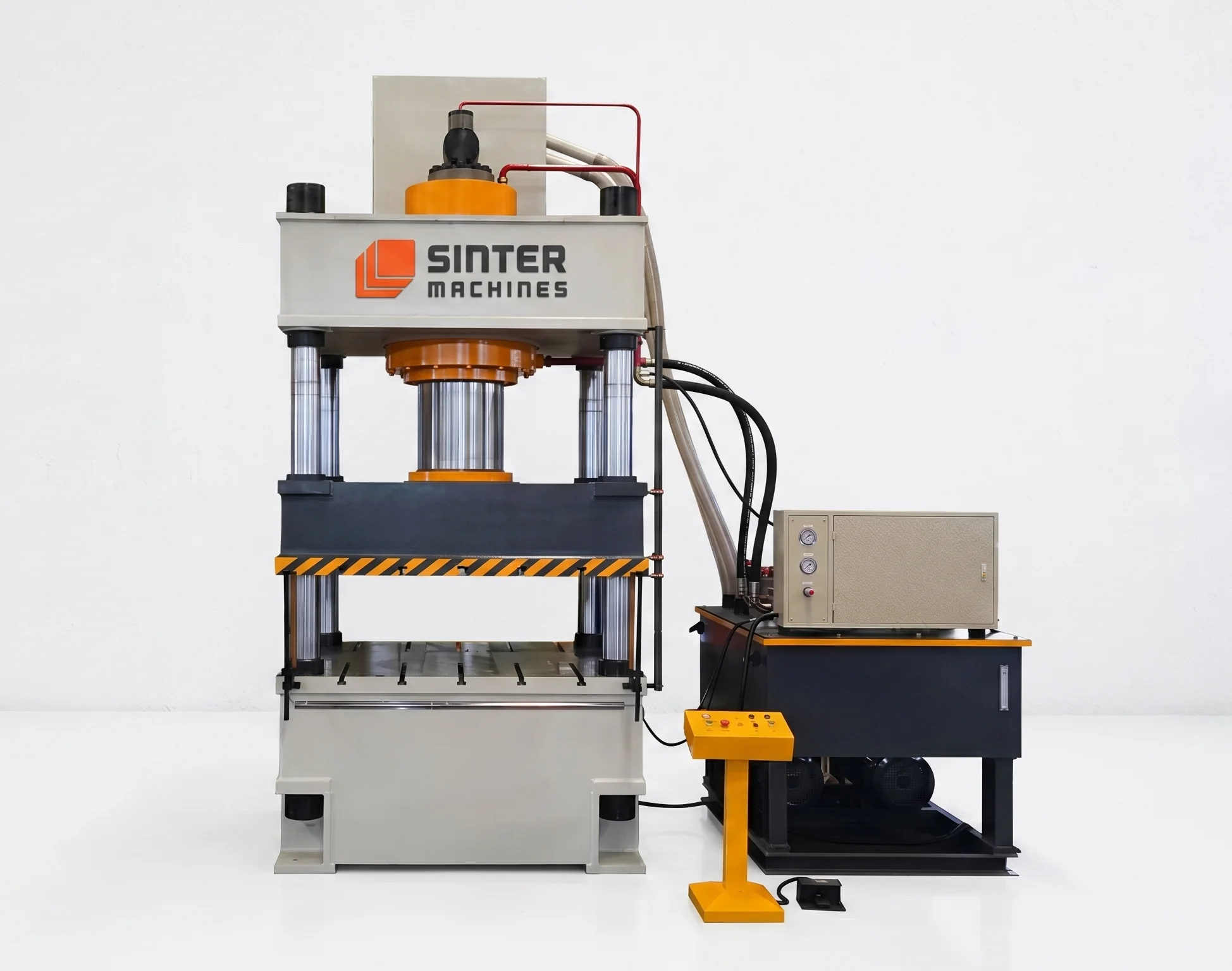

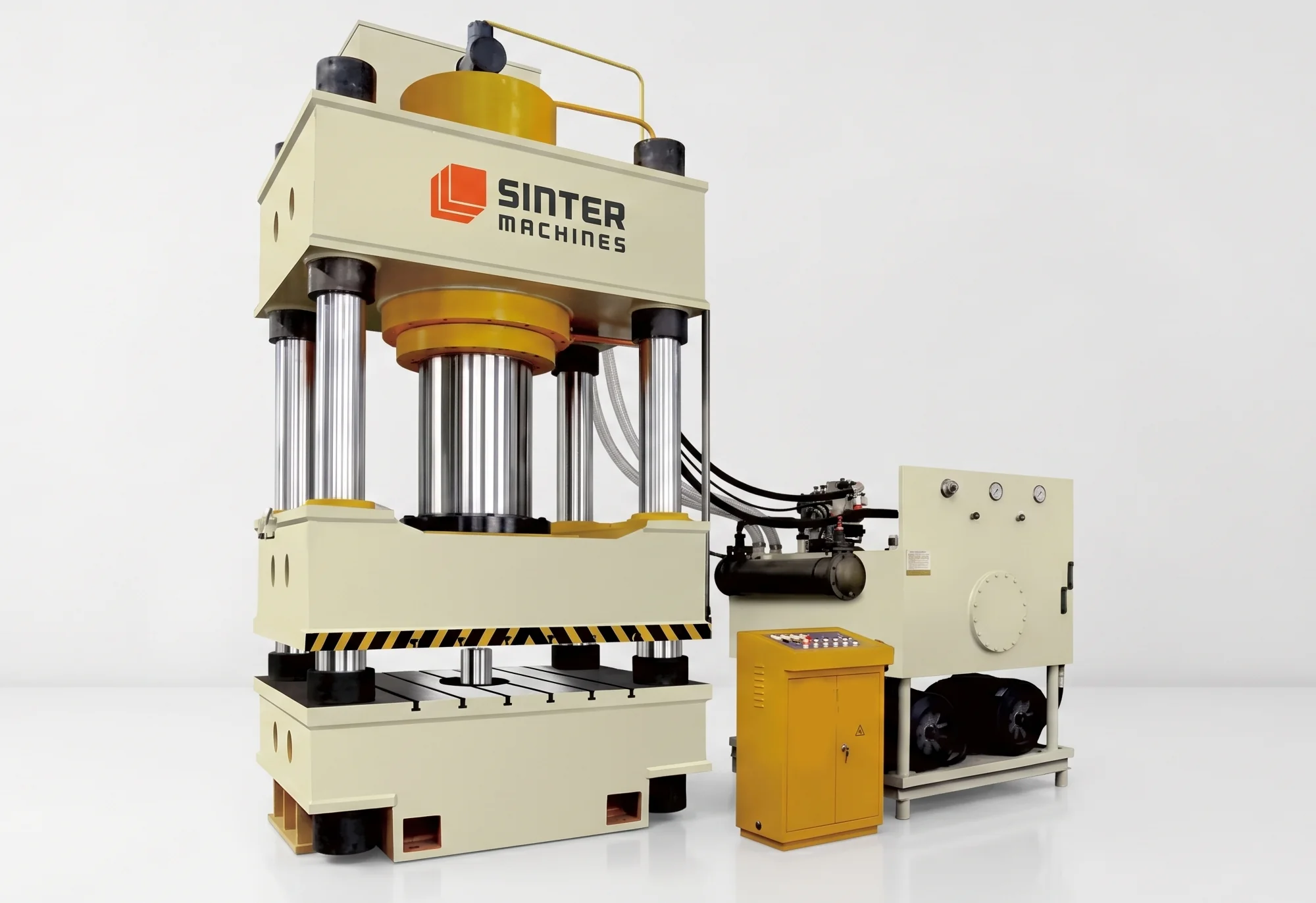

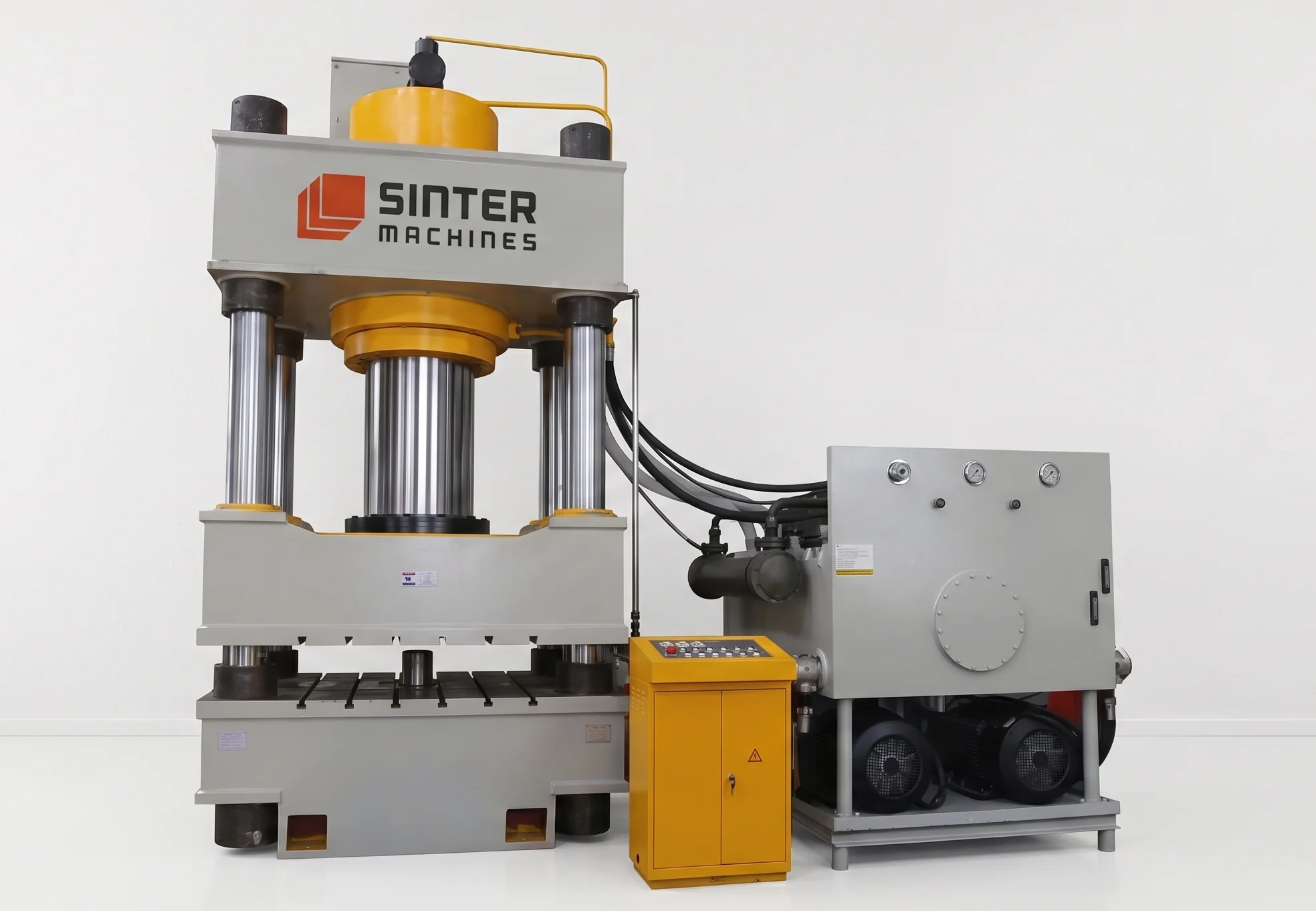

800T Four Column Hydraulic Press for Iridium Powder Block
A Iridium Powder Block Compression 4-Column Hydraulic Press Machine is a specialized heavy-duty industrial compaction system engineered to compress fine iridium metal powder into dense, uniform solid blocks, pellets, or green compacts.
These machines are utilized in precious metal refining, advanced powder metallurgy, aerospace component manufacturing, and high-temperature crucible production, where rare, high-density platinum-group metal powders must be consolidated to minimize material loss, prevent airborne dusting, and optimize subsequent sintering processes.
01 — Engineering Considerations
Structural Design & Engineering Considerations (4-Column Architecture)
High-Precision Guidance & Parallelism: Platinum-group metal powders require strict control over compaction uniformity to prevent structural weak points, density gradients, or inconsistent mechanical properties. The four-pillar precision-ground column architecture ensures absolute platen parallelism and eliminates lateral play, preventing uneven wall pressures and ensuring consistent block density.
Rigid Load Distribution: Compacting extremely dense and hard precious metal powders into high-strength blocks requires continuous high tonnage. The 4-column frame withstands heavy cyclic loads without structural flexing, maintaining exact micro-tolerances between the punches and the die cavity over long operational lifespans.
Material Security & Tooling Durability: Because iridium is extremely rare, valuable, and hard, the press is integrated with enclosed feeding hoppers, secure collection zones, complete housing enclosures, and high-durability carbide-lined tooling to prevent material loss, protect operators, and resist severe abrasive wear.
02 — Technical Specifications
Key Technical Specifications
Feature | Industrial Specification Range |
Nominal Compaction Force | 50 Tons to 600+ Tons (tailored to block cross-sectional area and target density) |
Guide Structure | 4 Hard-Chromed, Precision-Ground Steel Pillars with heavy-duty, low-friction bushings |
Die & Punch Assembly | Hardened alloy tool steel or specialized wear-resistant carbide inserts designed to handle dense precious metal powders |
Hydraulic Drive | Variable displacement piston pumps or servo-hydraulic systems with smooth proportional pressure control |
Control Unit | PLC system with HMI touchscreen interface for programming fill depth, pressing tonnage, dwell time, and automated extraction |
03 — Operational Workflow
Operational Workflow
- Enclosed Volumetric Feeding: An automated, sealed feed shoe slides precisely over the die cavity to deposit a measured volume of loose iridium powder, minimizing airborne dust and preventing precious metal loss.
- Multi-Stage Compression:
- Fast Approach: The top ram lowers quickly to the material surface.
- High-Pressure Compaction: The system applies controlled tonnage. A multi-action or dual-punch configuration ensures even particle interlocking and density distribution throughout the depth of the block.
- Dwell Phase: Peak pressure is held for a set duration to allow trapped air to evacuate and the dense metal particles to firmly settle, minimizing internal stress or cracking.
- Controlled Decompression & Ejection: Hydraulic pressure is gradually bled off to prevent surface cracking from elastic springback. A bottom ejection cylinder then cleanly pushes the solid iridium block out of the die cavity for downstream sintering, high-temperature processing, or secure transport.

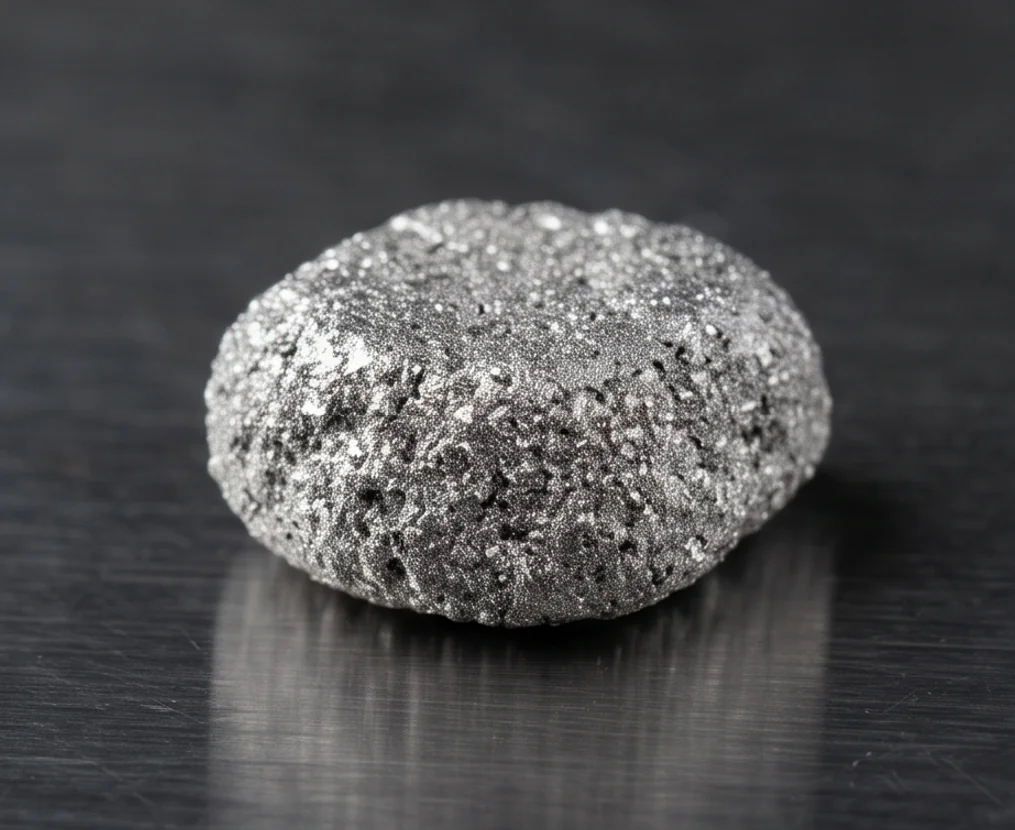

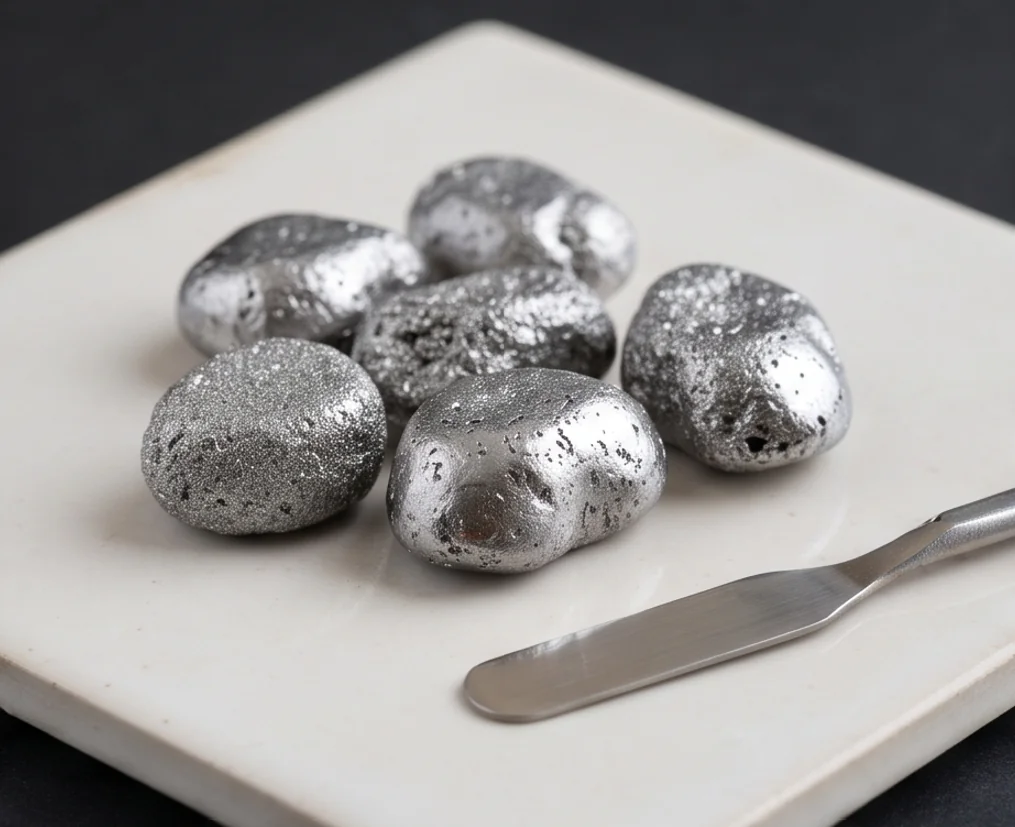

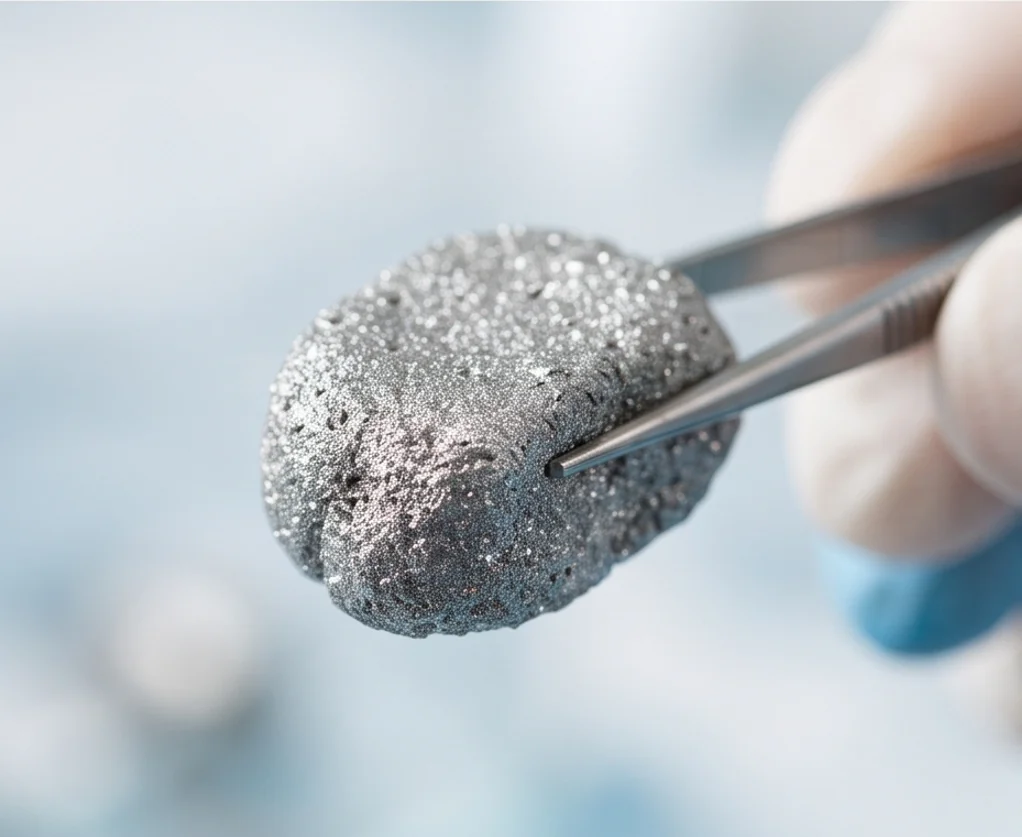

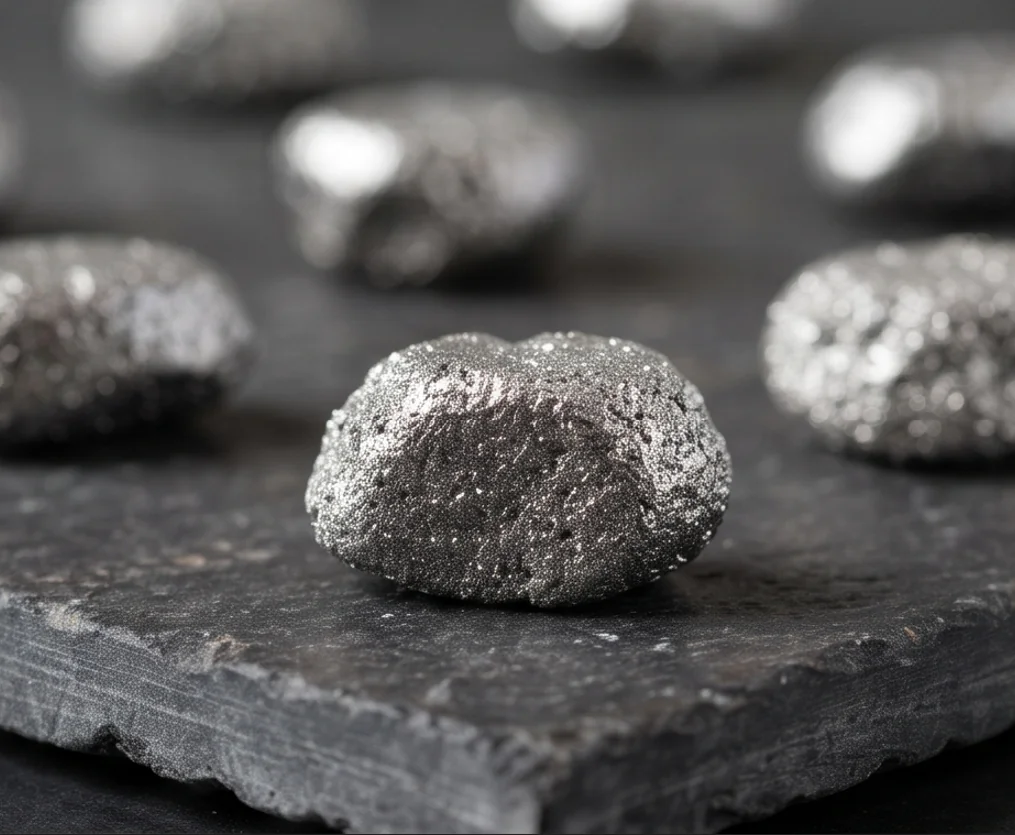

Finished Product Gallery
